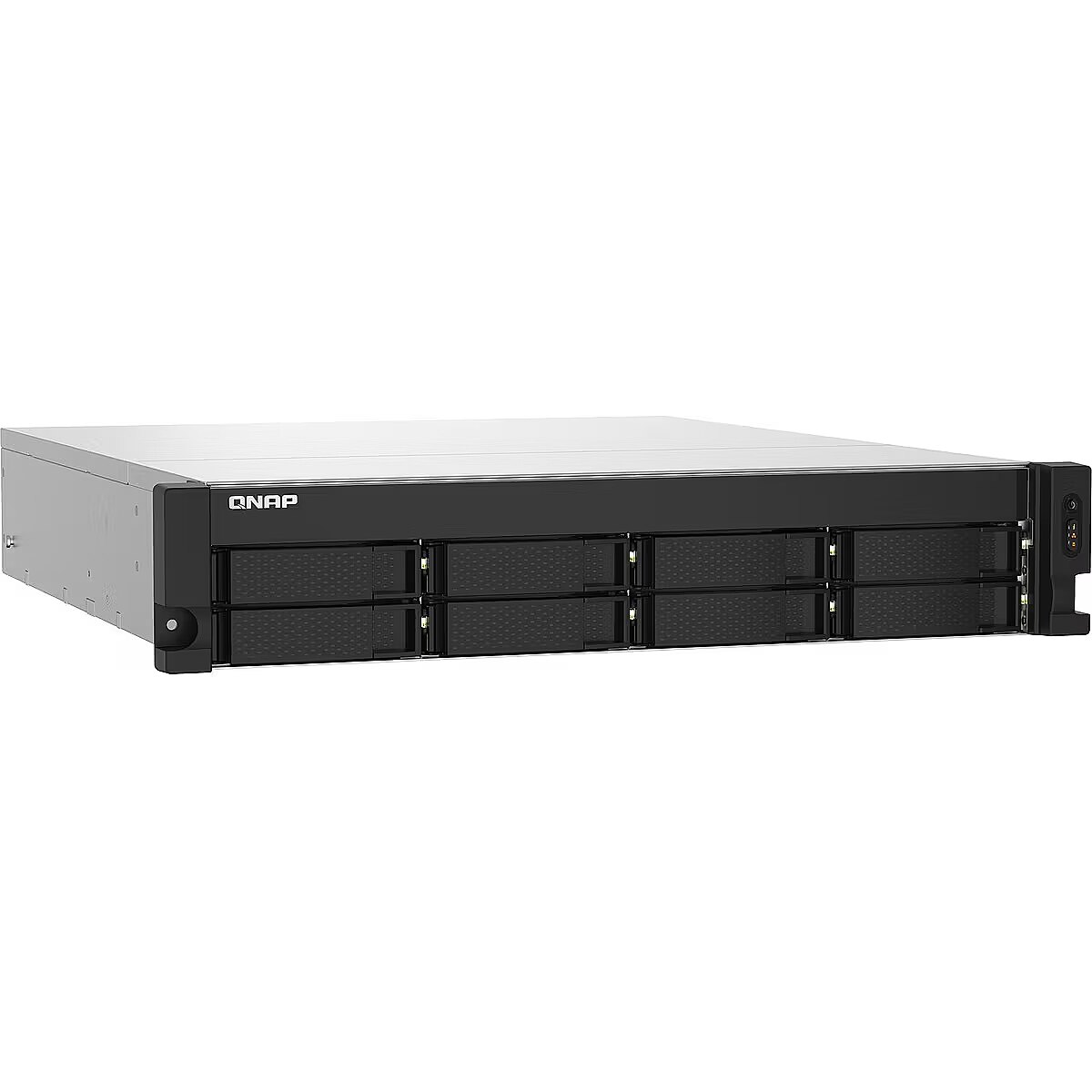

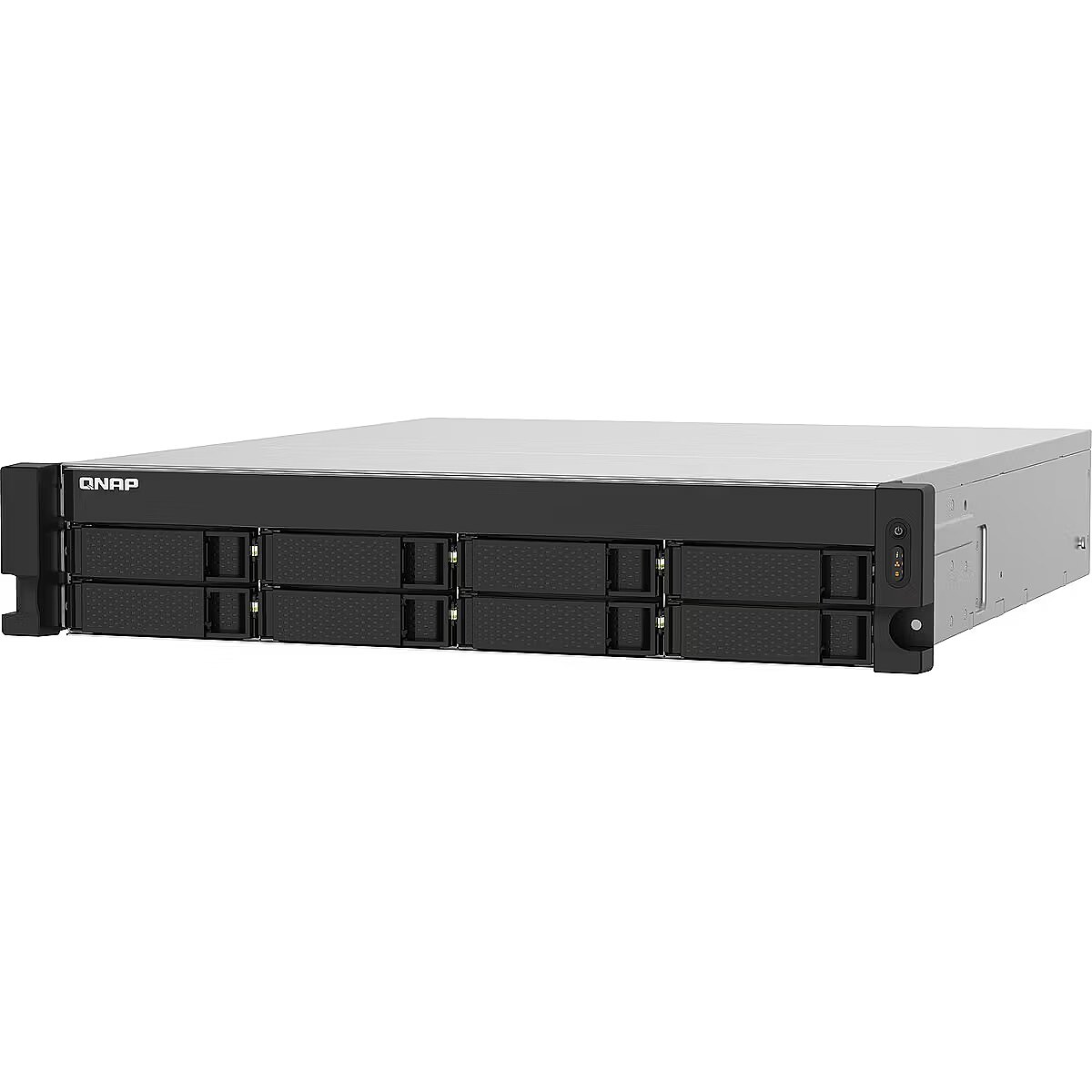

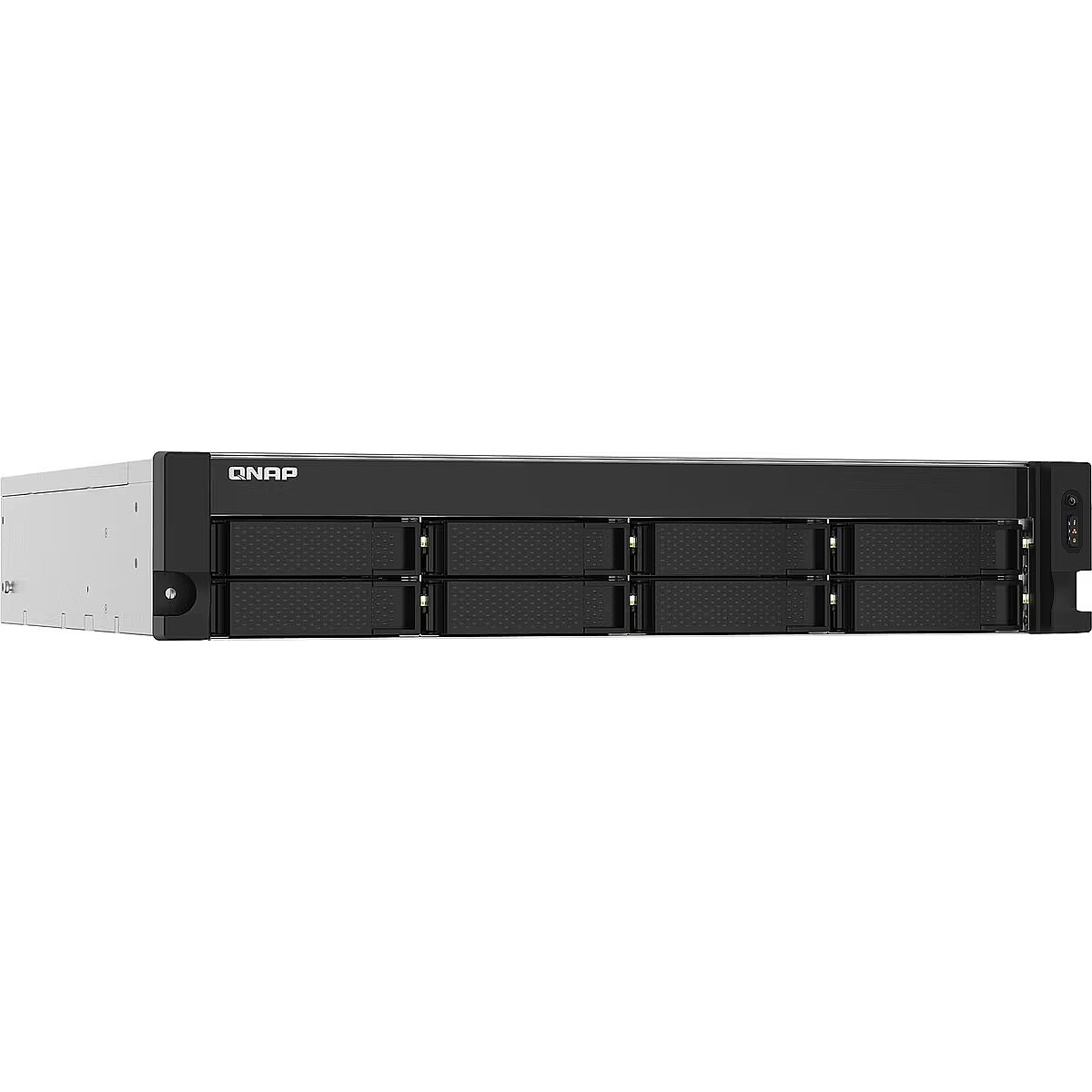

Qnap TS-832PXU-RP-4G, 2U 8-Bay

2.5GbE Ports - 2
Accessories included -
ARTIKEL1 - TS-832PXU-RP-4G 2U 8BAY 1.7GHZ
ARTIKEL2 - QC 2X10GBE SFP+ 2X2.5 GBE RPS
Brand - QNAP
BrandPartCode - TS-832PXU-RP-4G
Breite - 0.57
Built-in flash memory - 512 MB
Built-in RAM memory - 4 GB
Category - NAS & Storage Servers
Category Code - STS
Code - TS-832PXU-RP-4G
CPU - AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
Description - Czterordzeniowy 1,7GHz NAS w obudowie typu RACK z dwoma portami 10GbE SFP+ i 2,5GbE i nadmiarowym zasilaczem dla środowisk IT w małych i średnich firmach
Description - With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PXU-RP supports file backup and synchronization, secure snapshot protection, and Google™ Workspace and Microsoft 365® enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-832PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.
Design - Chassis type - Rack (2U)
Design - Cooling type - Active
Design - Fan diameter - 7 cm
Design - LED indicators - HDD, LAN, Status
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design > Chassis type - Rack
Design > Number of 3.5" bays - 8
dimension depth - 270 mm
dimension height - 720 mm
Dimensions - 89 × 482 × 534 mm
dimension weight - 14450 g
dimension width - 560 mm
Disk type - HDD
Disk type - SSD
EAN - 4713213518144
ean - 4713213518144
EANCode - 4713213518144
Expansion slots - 1 x PCIe 2.0 x 2
Fan - 7 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Full Description Line - NAS Enterprise|CPU AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor|Drives/bays 8|Rack 2U|2x2.5GbE|2xSFP+|4xUSB 3.2|Memory 4 GB|Power consumption 69.191 Watts|Power supply requirements 250W (x2) PSU, 100 - 240V
Gewicht - 14.54
Gross Weight Kg - 16,87
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 0885022020164
GTIN - 885022020164
GTIN - 4713213518144
guarantee - 36
guarantee_type - normal
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP
Hoehe - 0.27
Hot-swapping support - Yes
Housing - Rack 2U
HSTNUMMER - TS-832PXU-RP-4G
I/O connectors - 4 x USB 3.0
Laenge - 0.72
Link - https://www.qnap.com/en/product/ts-832pxu-rp/specs/hardware
Logistics data - Harmonized System (HS) code - 84714100
LongDesc - With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity.Higher performance x faster throughputThe TS-832PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM® Cortex®-A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.Upgrade your network to increase team efficiencyQNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows® / Linux® devices, allowing all of your workstations to take advantage of high-speed networks.Boost NAS performance with SSDsAs SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU-RP supports SSD cache technology, Qtier™ auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.Balance performance and capacityBoost NAS performance by enabling SSD caching. Coupled with Qtier™ auto-tiering technology, you can find the perfect storage configuration between high-performance SSD and high-capacity HDD while balancing performance and cost.Extend SSD lifespanSSD Extra Over-provisioning allows for adding 1~60% reserved space to avoid performance degradation, helping to increase system stability and extend SSD lifespan.Multi-point file backup, access and syncHBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.Easily find and automatically organize files and photosThe TS-832PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.File searchQsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.Photo managementQuMagie identifies people and objects in photos and supports automated photo categorization, allowing you to easily find similar photos.Auto archivingQfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.Secure Google™ Workspace and Microsoft 365® backupThe convenience of Software as a Service (SaaS) solutions such as Google™ Workspace and Microsoft 365® has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google™ Workspace and Microsoft 365® to provide an extra layer of data protection for business cloud data.Low Latency Access to Cloud Data with Cloud Storage GatewaysBy deploying cloud storage gateways and enabling local caching on the TS-832PXU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.HybridMount File-Based Cloud GatewayFlexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.VJBOD Cloud Block-Based Cloud GatewayVJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.Flexibly expand storage capacity whenever neededThe storage capacity of the TS-832PXU-RP can be easily expanded to meet growing data demands. Simply connect a QNAP TR RAID expansion enclosure or TL JBOD to expand storage space on demand. With QNAP's Virtual JBOD (VJBOD) technology, the unused space of the TS-832PXU-RP can also be used to expand the storage space of other QNAP NAS.PCIe expandability for greater application potentialThe TS-832PXU-RP includes a PCIe Gen 2 x2 slot, enabling you to expand its application potential by installing a compatible PCIe card.Network AdapterAdd additional 2.5GbE/ 5GbE/ 10GbE network ports to boost bandwidth-demanding tasks, such as massive data transmission and fast backup/restoration.QM2 CardAdd M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.USB CardAdd QNAP USB 3.2 Gen 2 expansion card to benefit from 10Gbps data transfer performance with newer, faster USB devices for transferring large media files.Redundant power for dependable servicesThe TS-832PXU-RP is equipped with a redundant power supply to ensure maximum service uptime. Combined with dual 10GbE SFP+ and dual 2.5GbE ports, your businesses can easily maintain 24/7 operations, guaranteeing a cost-effective and reliable storage solution.
LongProductName - 8x 3.5", Alpine AL324, 4 GB UDIMM DDR4 (1 x 4 GB), 512 MB Flash, LAN, 250W (x2) PSU, 100 - 240 V, 89 x 482 x 534 mm
LongSummaryDescription - QNAP TS-832PXU-RP. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III, Supported storage drive interfaces: Serial ATA II, Serial ATA III. Processor family: Annapurna Labs, Processor manufacturer: Annapurna Labs, Processor model: AL324. Internal memory: 4 GB, Internal memory type: DDR4, Maximum RAM supported: 16 GB. Ethernet LAN data rates: 100,1000,2500,10000 Mbit/s, Ethernet LAN data rate supported (max): 10000 Mbit/s, Supported network protocols: PPTP, L2TP/IPSec, OpenVPN, QBelt. Fiber optic connector: SFP+
Management, monitoring, configuration -
Manufacturer Code - TS-832PXU-RP-4G
Manufacturer Name - QNAP
Max. number of disks - 8
Max memory size - 16 GB
Memory - 4 GB
Memory - Flash memory - 512 MB
Memory - Internal memory - 4 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 16 GB
Memory - Memory form factor - UDIMM
Memory - Memory slots - 1
Memory > Internal memory type - DDR4
Memory > Internal RAM - 4 GB
Memory type - DDR4
Name - QNAP | 8-Bay NAS | TS-832PXU-RP-4G | Up to 8 HDD Hot-swap | AnnapurnaLabs Alpine | AL324 ARM Cortex-A57 Quad-Core | Processor frequency 1.7 GHz | 4 GB | DDR4
name - TS-832PXU-RP-4G 2x10GbE 2x2.5GbE 4 GB UDIMM DDR4
NAS features - Enterprise
Network - DHCP client - Yes
Network - DHCP server - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500,10000 Mbit/s
Network - Ethernet LAN data rate supported (max) - 10000 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Link aggregation - Yes
Network - Load balancing system - Yes
Network - Supported network protocols - PPTP, L2TP/IPSec, OpenVPN, QBelt
Network - Wake-on-LAN ready - Yes
Network - WLAN adapter supported - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network interface - 2 x 10Gbit/s SFP+
Network protocols -
Number of available memory slots - 0
Number of drives/bays - 8
Number of fans - 2
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other disk parameters -
Other features -
Other features > Drive bays - 8
Other features > Ethernet LAN (RJ-45) ports - 4
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 720.00 mm
Package features > Gross height (mm) - 260 mm
Package features > Gross width (mm) - 560.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 1440.00 g
Package features > Plastic (No PET) - 223 g
Package features > Tare weight (kg) - 1.44 kg
Package features > Volume (m3) - 0.104832 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Number of screws - 56
PDF - https://www.blobs.lt/products/6/4/5/3/6/3/06c6f6a86947dbbb4ab8051eed11c85c/original.pdf
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud, iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - Noise level - 30.6 dB
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Performance - Share folder - CIFS/SMB
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Performance - Universal Plug and Play (UPnP) - Yes
Performance - USB copy function - Yes
Performance - Web-based management - Yes
Ports & interfaces - Concurrent connections - 700
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Fiber optic connector - SFP+
Ports & interfaces - Fiber ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x2.5GbE, 2x10GbE 4xUSB 3.2 Gen 1, 1xPCIe
Power - AC input voltage - 100 - 240 V
Power - Fan voltage - 12 V
Power - Number of power supply units - 2
Power - Power consumption (typical) - 69.191 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 250 W
Power consumption - 69.191 Watts
Power supply - 250 W (x2) PSU, 100240 V
Power supply requirements - 250W (x2) PSU, 100 - 240V
Processor - Czterordzeniowy procesor AnnapurnaLabs Alpine AL324 64-bitowy ARM Cortex-A57 1,7 GHz
Processor - Processor cores - 4
Processor - Processor family - Annapurna Labs
Processor - Processor frequency - 1.7 GHz
Processor - Processor manufacturer - Annapurna Labs
Processor - Processor model - AL324
Processor > Processor family - AnnapurnaLabs Alpine
Processor > Processor frequency - 1.7 GHz
Processor > Processor model - AL324 ARM Cortex-A57 Quad-Core
producer - QNAP
Producer product family - 8-Bay NAS
Producer product name - TS-832PXU-RP-4G
ProductName - TS-832PXU-RP
Rack 2U Mounting Type - Yes
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - 60 (6+0)
RAID levels - JBOD
SFP+ Ports - 2
Shipping Box Depth Shipping/Package Box Dimensions - 72 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 14.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 55.5 cm
Short description - QNAP NAS TS-832PXU-RP-4G (8 Bay) 2U
ShortSummaryDescription - QNAP TS-832PXU-RP, NAS, Rack (2U), Annapurna Labs, AL324, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Software - Operating system installed - QNAP Turbo System
Software - Operating system version - 5.0.0
Software - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software - Windows operating systems supported - Windows 10, Windows 7, Windows 8
Stck_Kart - 1
Stck_Pal - 2
Storage - Bad block scan - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 8
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drive interface - Serial ATA III
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5,3.5"
Storage - Supported file systems - FAT32, HFS+, NTFS, ext3, ext4
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storage > Number of storage drives supported - Up to 8 HDD Hot-swap
Storno - Y
Supported drives - 3.5-inch SATA;2.5-inch SATA
Technical details > Gross weight - 14.2 kg
Technical details > Net weight - 12.76 kg
Technical details > Other features - Fan 2 x 70mm, 12VDC; Power Supply Unit 250W (x2) PSU, 100 - 240V
Technical details > Producer - QNAP
Technical details > Warranty - 36 month(s)
Title - QNAP TS-832PXU-RP NAS Rack (2U) Ethernet LAN Black AL324
Total number of memory slots - 1
Unit Box Height - 0.265
Unit Box Length - 0.715
Unit Box Width - 0.56
Unit Brutto Volume - 0.1059 cubm
Unit Gross Weight - 14.5 kg
Unit Net Weight - 10.94 kg
URL - https://www.qnap.com/en/product/ts-832pxu-rp
USB 3.2 Input/Output connectors - 4
Vendor Homepage - www.qnap.com/en/product/ts-832pxu-rp
vendpn - TS-832PXU-RP-4G
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 year
Weight - 10.94 kg
Weight & dimensions - Depth - 534 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 10.9 kg
Weight & dimensions - Width - 482 mm
