Category Code - MDE
Communication - Wireless
Current drain - 20 mA

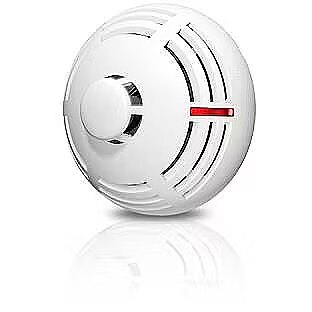

Description - Smoke and heat detector, designed for early detection of a developing fire. In addition to providing information about the hazard to the control panel, the MSD-300 detector can warn of the danger, using the built-in siren. In contrast to conventional smoke detectors, this device will react not only to visible smoke, but also to a rapid increase in temperature, thus providing more complete protection against the danger of fire. Features: photoelectric system for detection of visible smoke accompanying the fire development, meeting the requirements of EN54-7, temperature rise detection system, meeting the requirements of Class A1R, according to EN54-5, built-in siren to warn of a threat detection, detection and indication of dirt in the detection chamber to facilitate system diagnostics and maintenance, manual test and alarm reset button to facilitate regular verification of correct operation, precision mechanical filter to prevent ingress of insects and dust inside the detector, energy management system to enable many years of operation without having to replace the CR123A lithium battery, detection of tamper, e.g. opening enclosure
Detector Type - Fire
Dimensions - 108 x 61 mm
Product Net Weight - 0.17 kg
Unit Box Height - 0.07
Unit Box Length - 0.12
Unit Box Width - 0.12
Unit Calculated Volume - 0.001008 cubm
Unit Calculated Weight - 0.217 kg
Units per Shipping Box - 1
Vendor Homepage - http://www.satel.pl/en/product/489/MSD-300,Wireless-smoke-and-heat-detector-for-MICRA-system
Warranty - 36 months
