Accessories included - Maclean MCE468 B PIR infrared motion detector User manual Manufacturer's packaging
Alarm - Light
Color - Black

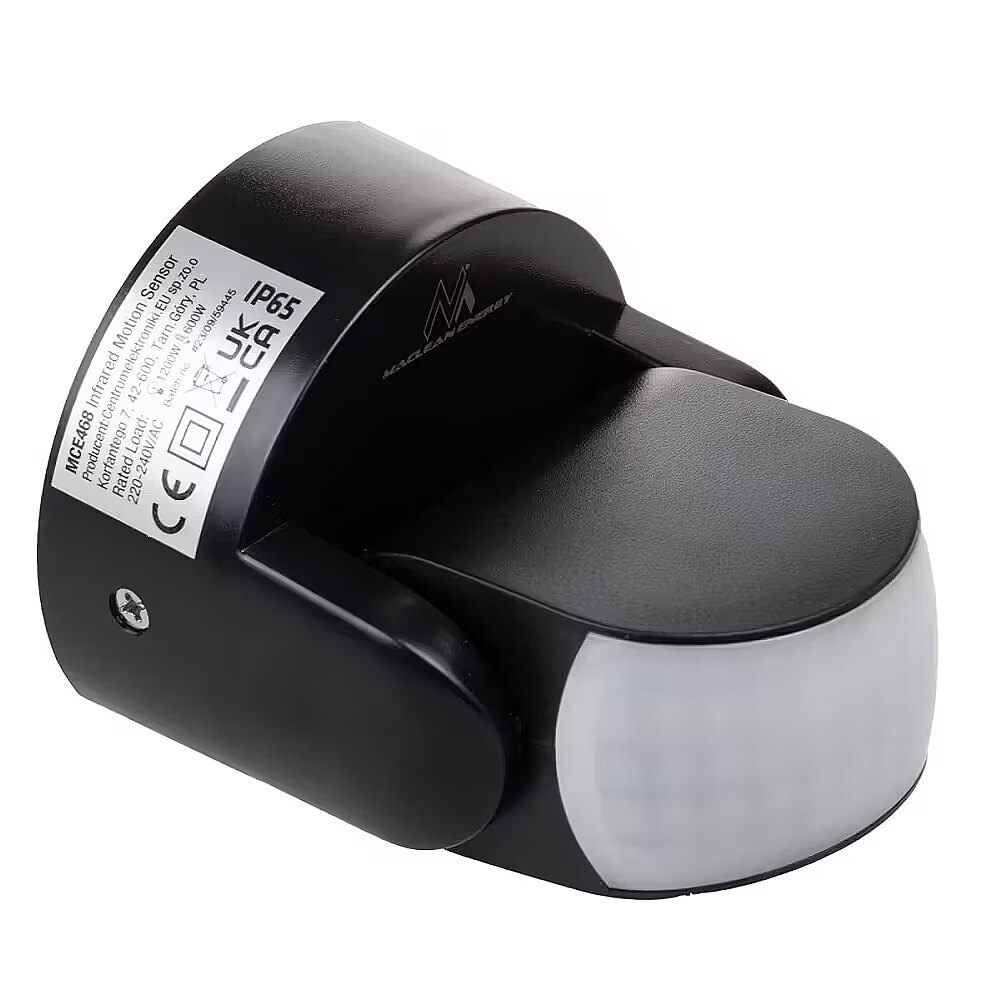

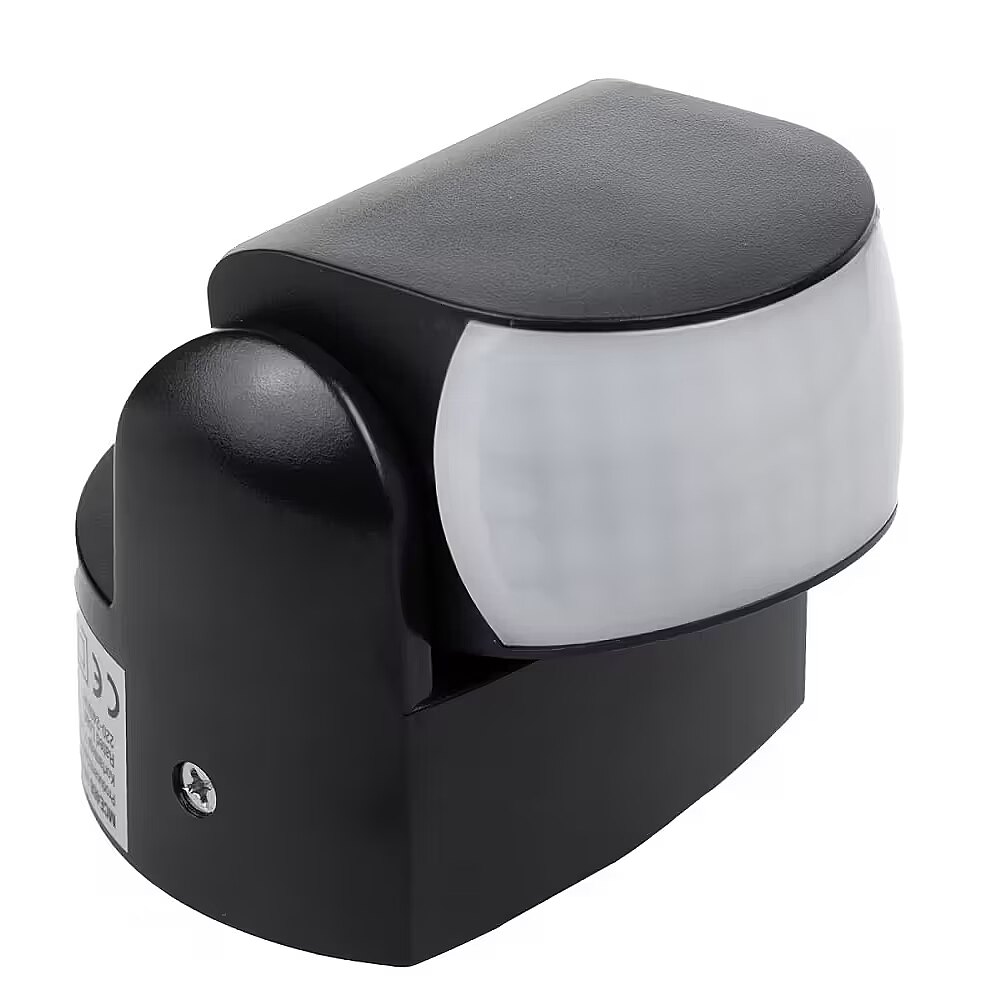

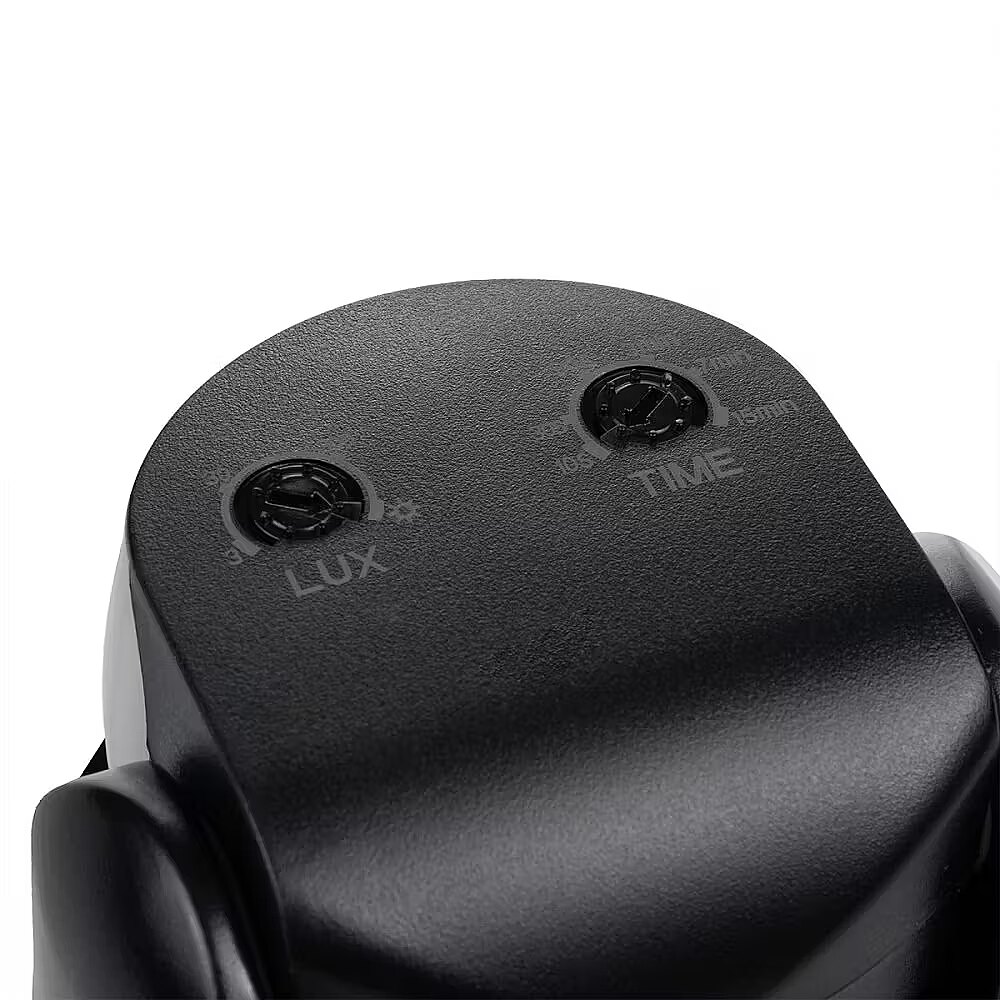

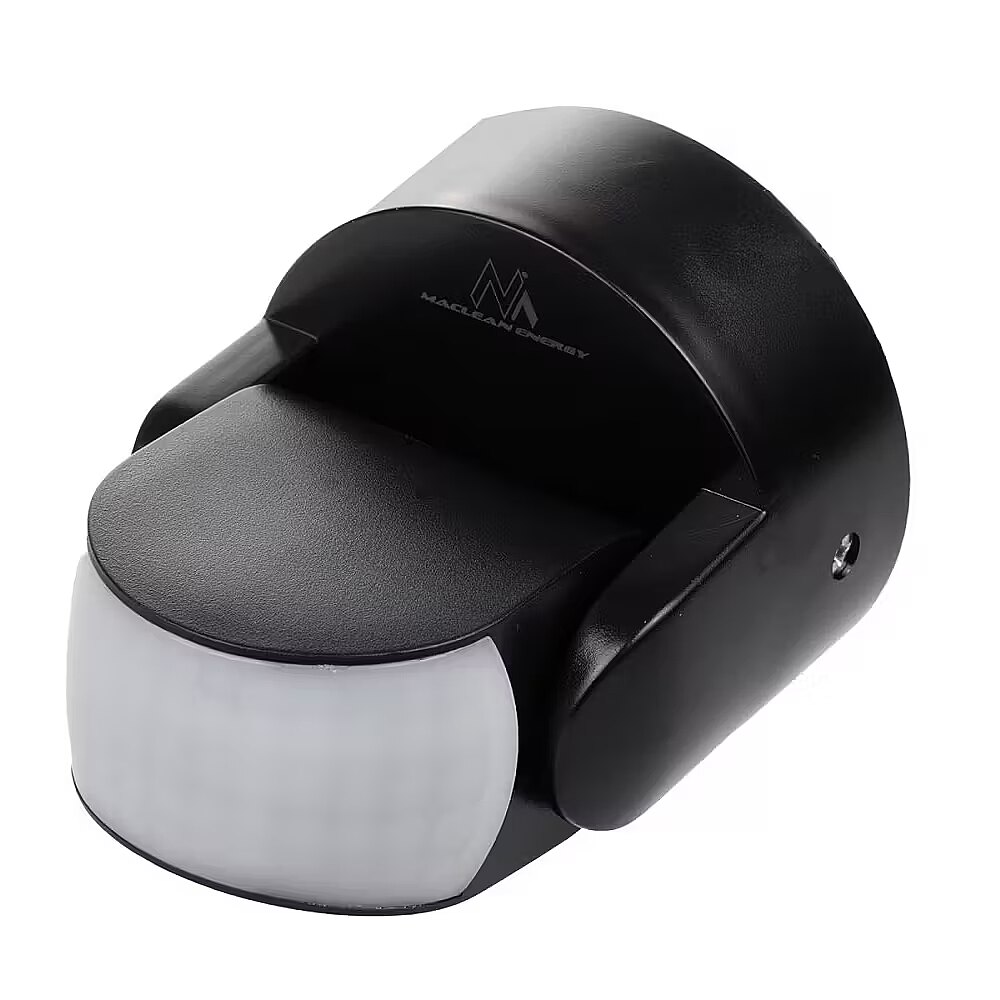

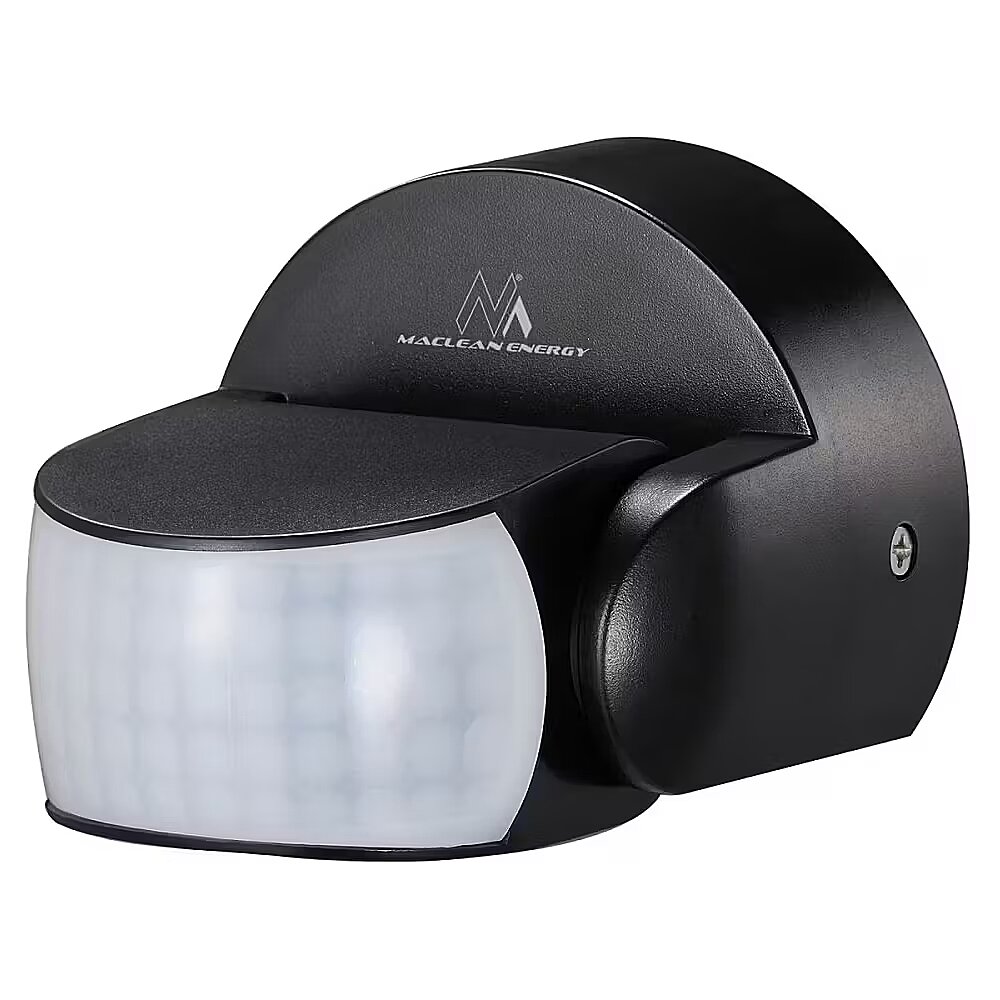

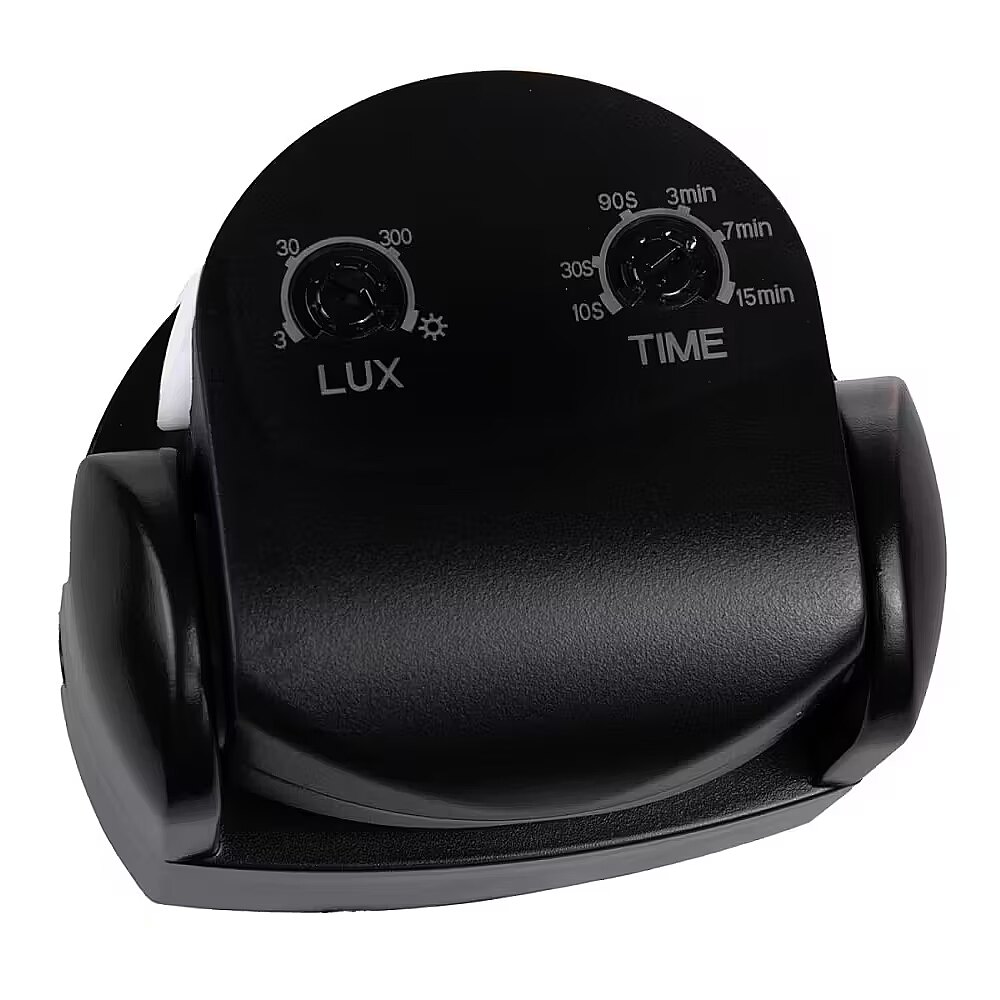

Description - Maclean MCE468 B PIR Motion Sensor Infrared IP65 White Range 12m max load 600/1200W 180° Detection Angle Black The MCE468 sensor is versatile and suitable for various applications, such as garden, home, terrace, door, corridors, cellars, storerooms, garages, and areas requiring motion-activated lights or appliances. It automatically toggles on and off based on motion, distinguishing between day and night with a twilight sensor. With a wide 180° detection angle and a range of up to 12 meters, it effectively surveils large areas. The sensor primarily controls lighting automatically but can also connect to other devices like heating or air conditioning. Ensure the power receiver stays within 1200 W for resistive loads or 600 W for inductive loads. Applications include controlling lighting for residential facades, courtyards, driveways, entrances, gates, gardens, parking lots, exterior walls, architectural structures, advertising, billboards, shop windows, and indoor objects. The device operates day and night. The TIME button adjusts lighting duration (10 seconds to 15 minutes), while the LUX button sets sensitivity (3 to 2000 LUX). In low light, the button can be set to day mode for continuous operation.
Designation - CE+WEEE
Detector - Motion
dimension depth - 75 mm
dimension height - 115 mm
Dimensions -
dimension weight - 165 g
dimension width - 85 mm
ean - 5902211131137
Environment requirements - Maximum load: 1200 W (ohmic load) / 600 W (inductive load) - Operating temperature: -20 to +40°C - Permissible humidity:
Frequency range - 50/60 Hz
guarantee - 24
guarantee_type - external
name - Infrared Motion Sensor MCE468B IP65
Other features - - 180° motion detection angle - Adjustable PIR infrared sensor - Maximum power: 1200 W (ohmic load) - Operates with LED lighting - Degree of protection: IP65 - Integrated light intensity sensor - Light duration and light intensity level adjustable from the moment the device starts operating (twilight sensor) - Sensor range: 12 m maximum. Manufacturer: Maclean - Model: MCE468 B - Power supply: 220-240 V/AC - Frequency: 50/60 Hz - Detection area: 180° - Operating temperature: -20 to +40°C - Permissible humidity:
Power supply - 220-240 V/AC
producer - Maclean
Range - 12 m
Special functions - Delay: min. 10 sec (+/- 3 sec), max. 15 min (+/- 2 min) Motion detection speed: 0.6 - 1.5 m/
Technologies - - Illumination sensor:
vendpn - MCE468B
