Accessories included - - Maclean MCE32 V PIR motion sensor - User manual - Manufacturer's packaging
Color - White

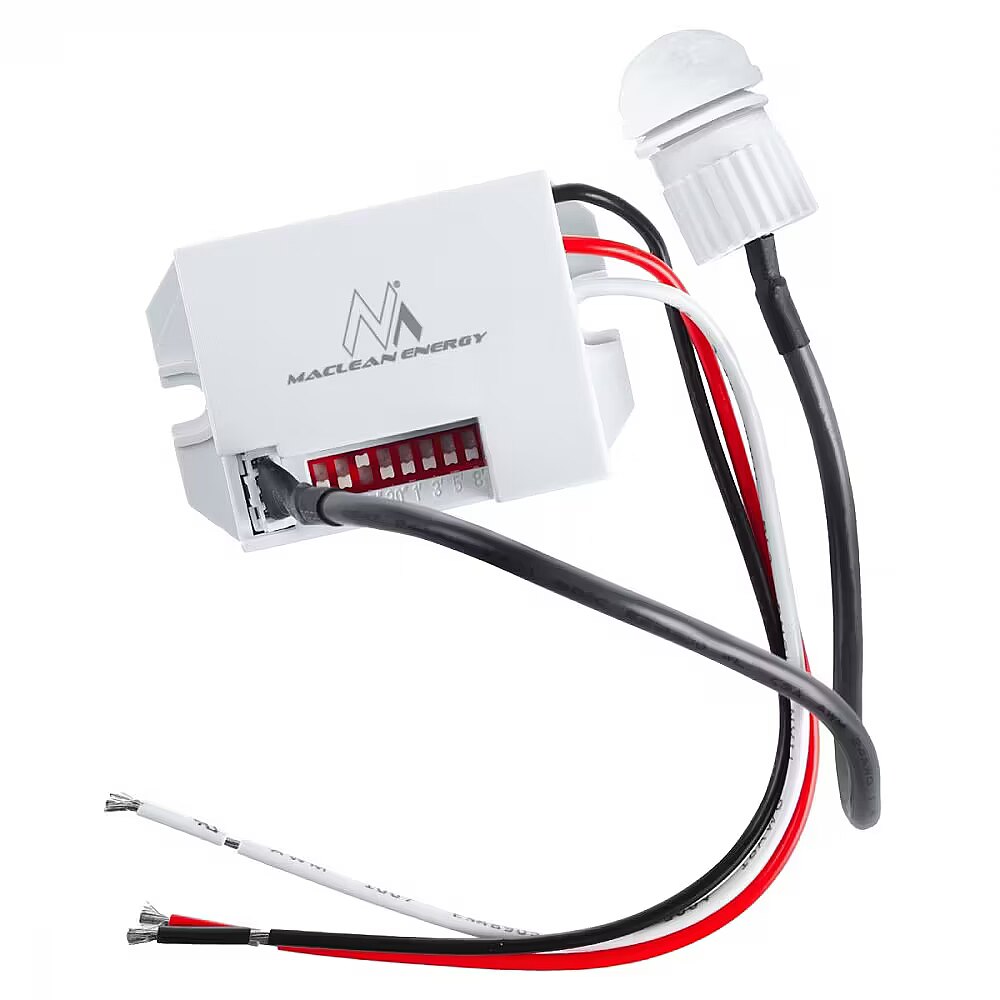

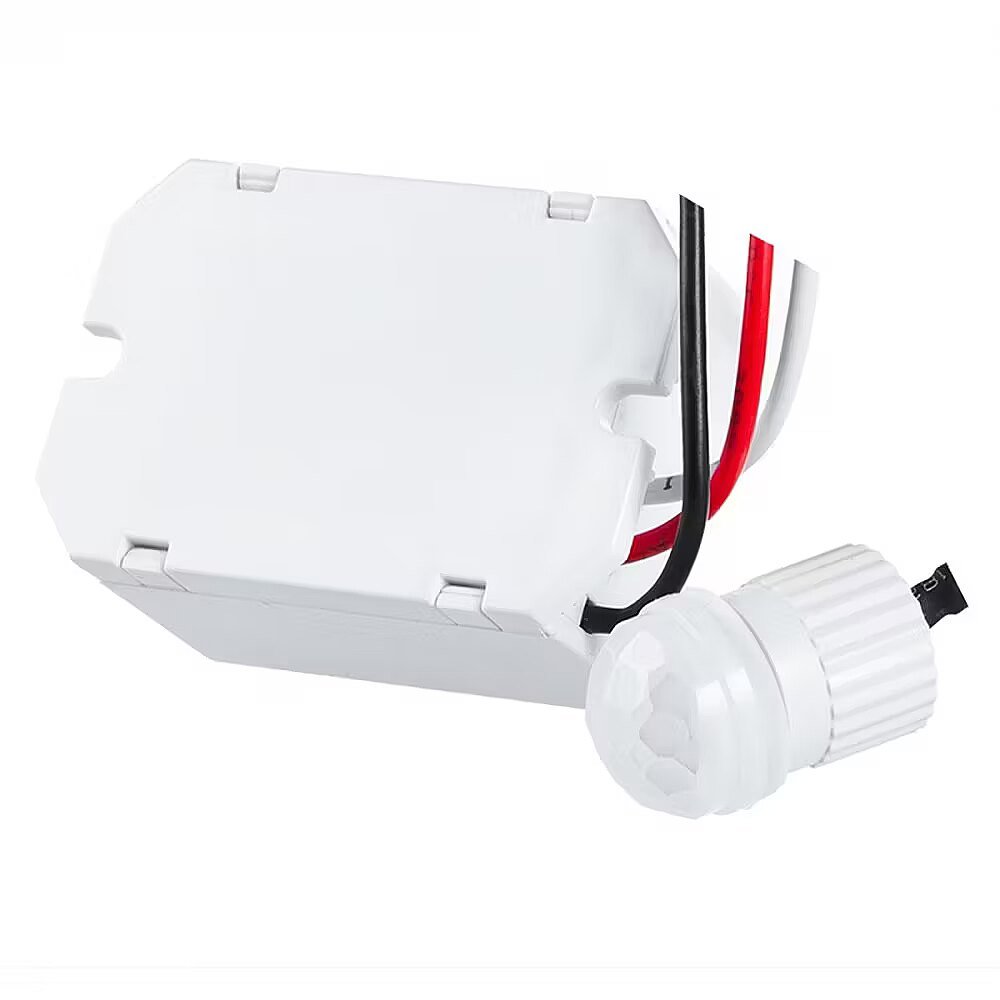

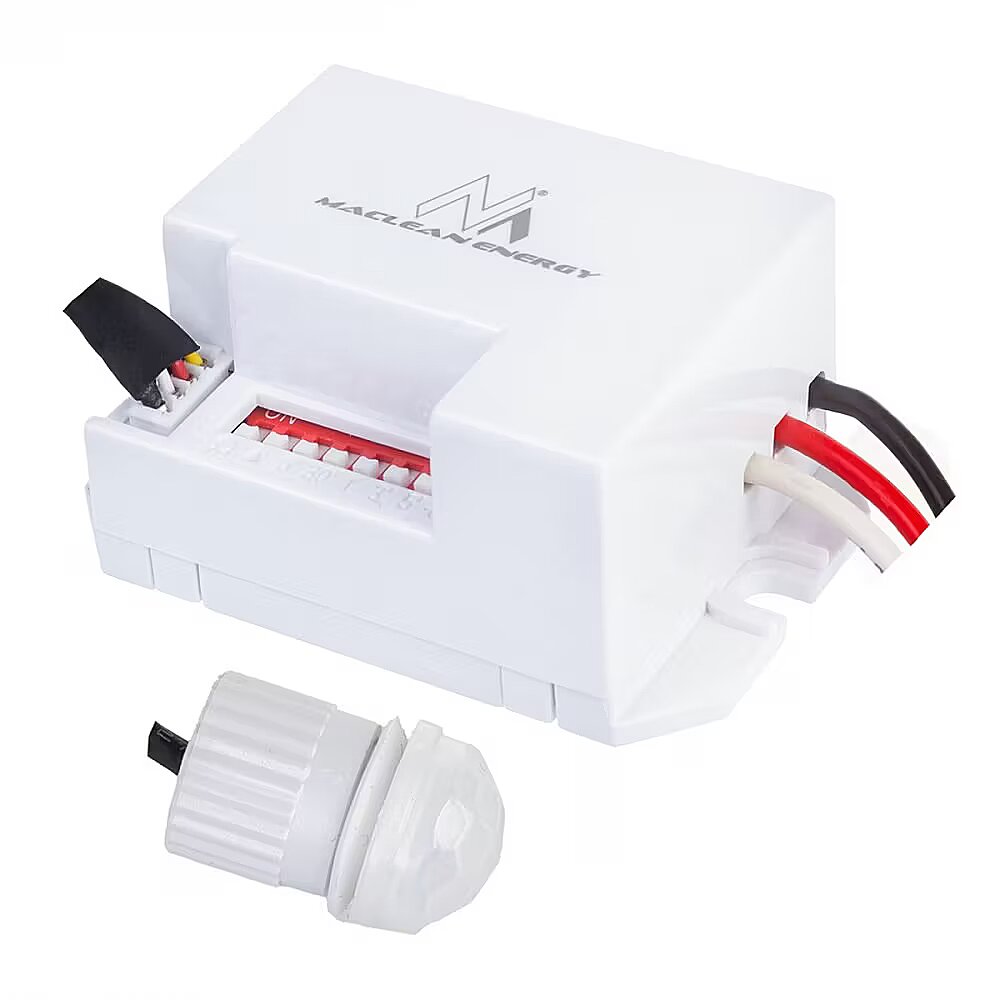

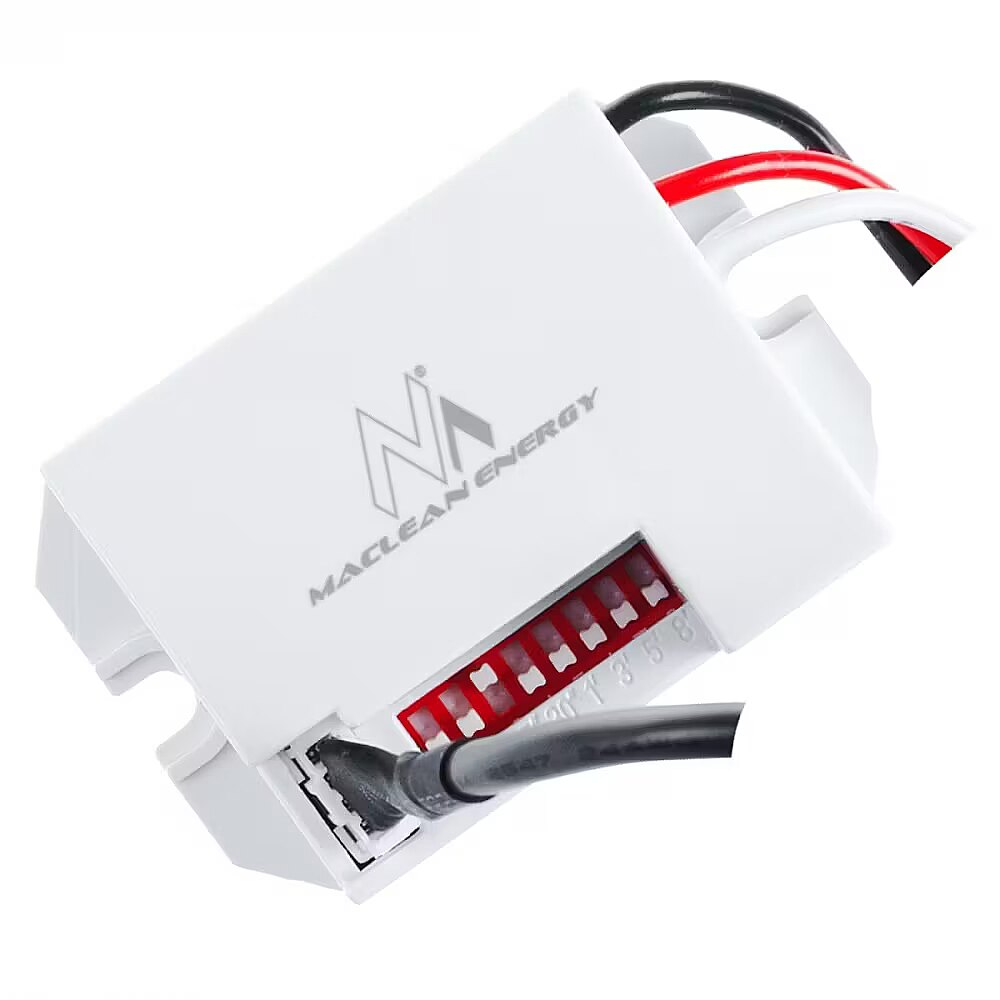

Description - PIR motion sensor with mini probe 12-24V DC 360st. Maclean PIR motion sensor, with external sensor,12-24V DC, 360°, MCE32 V Maclean MCE32 sensor is used to automatically control lighting or other electrical devices with 12-24V voltage, which saves electricity consumption. The lighting is switched on with the help of a PIR motion sensor, which works on infrared. It allows the lighting to be turned on by the movement of an object that emits heat. Adjustment of the light sensor allows the sensor function to be activated both day and night, as well as only in ambient light below 10 LUX. Additionally, it is possible to adjust the lighting time after motion detection (5s, 30s, 1min, 3min, 5min, 8min) and sensitivity depending on the size of the room (3m or 6m).
Designation - CE+WEEE
Detector - Twilight

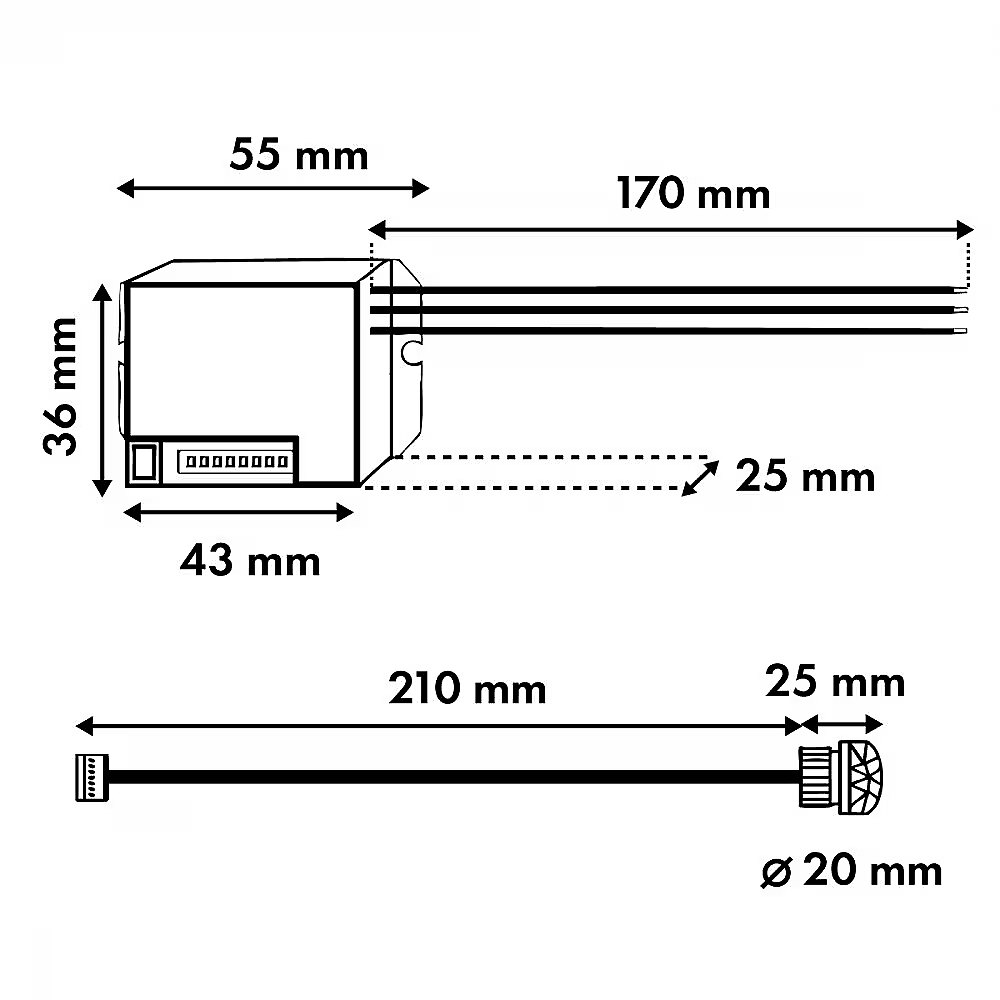

dimension depth - 50 mm
dimension height - 95 mm
Dimensions - - Manufacturer: Maclean - Model: MCE32 V - Power source: 12-24V / DC - Viewing angle: 120° wall installation / 360° ceiling installation - Sensor range (SENS): 3 or 6 m at 24°C (selectable) - Light sensitivity range: 10 LUX / 2000 LUX (adjustable) - Operating temperature: -20 to +40°C - Lighting time: 5 s, 30 s, 1 min, 3 min, 5 min, 8 min (selectable) - Power consumption: approximately 0.5 W - Mounting height: 1.8-2.5 m (wall mounting) - Mounting height: 2.2-4 m (ceiling mounting) - Degree of protection: IP20 - Maximum load: 60 W (incandescent lamps) 120 W (energy saving lamps).
dimension weight - 22 g
dimension width - 50 mm
ean - 5902211138198
Environment requirements -
Frequency range -
guarantee - 24
guarantee_type - external
name - PIR motion sensor, 12-24V DC, MCE32 V
Other features - - Automate lighting and save energy with motion detector with probe on cable - Precise motion detection thanks to PIR sensor (infrared) - Probe on cable allows flexible placement of the detector in a convenient place, even in hard-to-reach areas - Adjustable lighting time and detection sensitivity - Also works with LED lighting! - Degree of protection: IP20
Power supply -
producer - Maclean
Range - 3 m
Special functions -
Technologies -
vendpn - MCE32 V
