ID: 936426
Product code: H610M K DDR4
In stock 32 units
Warranty: 2 years

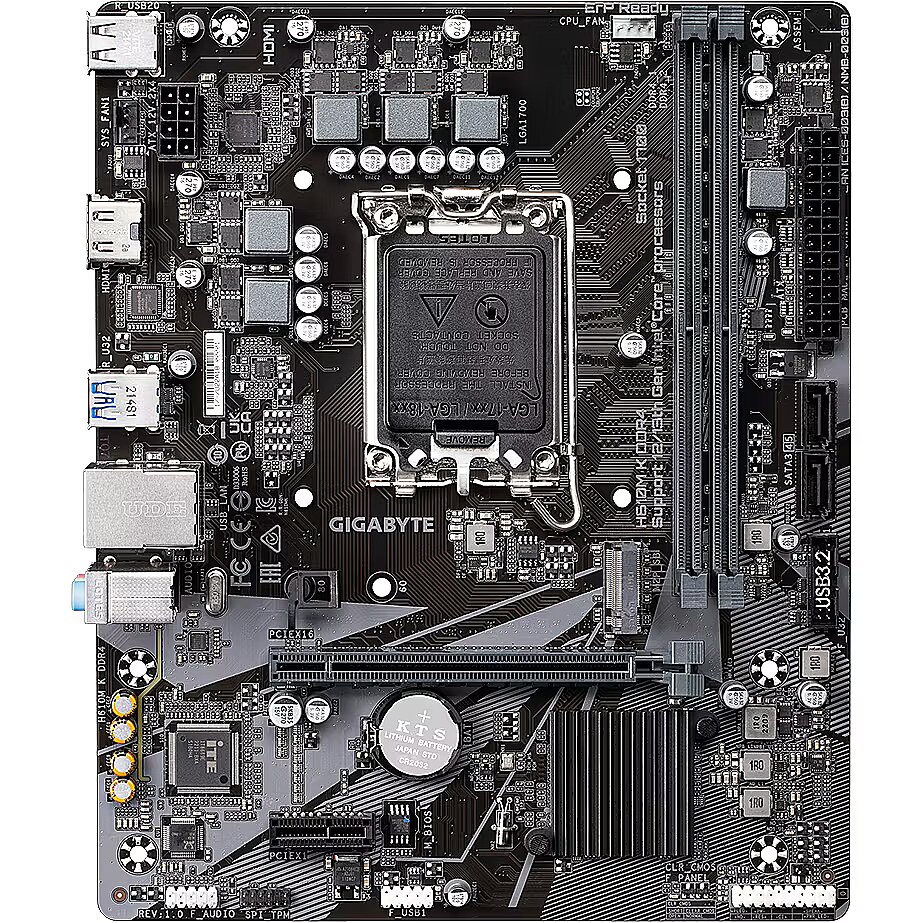

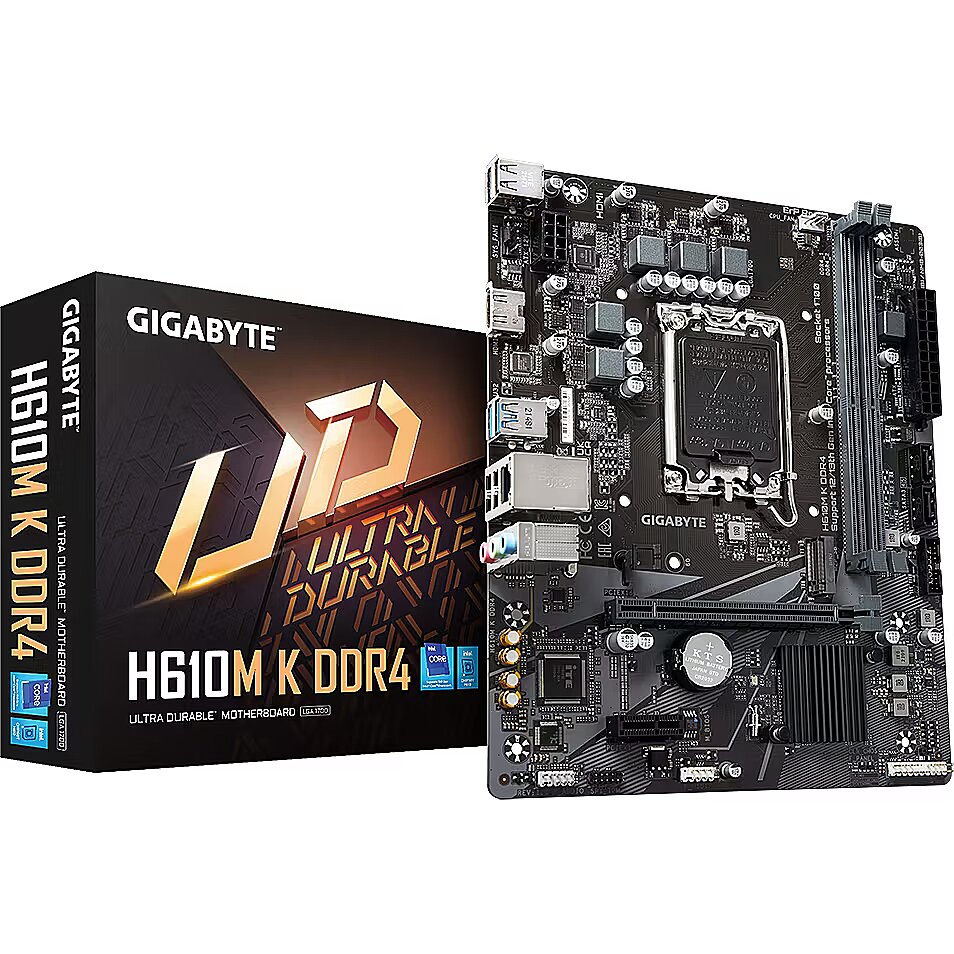

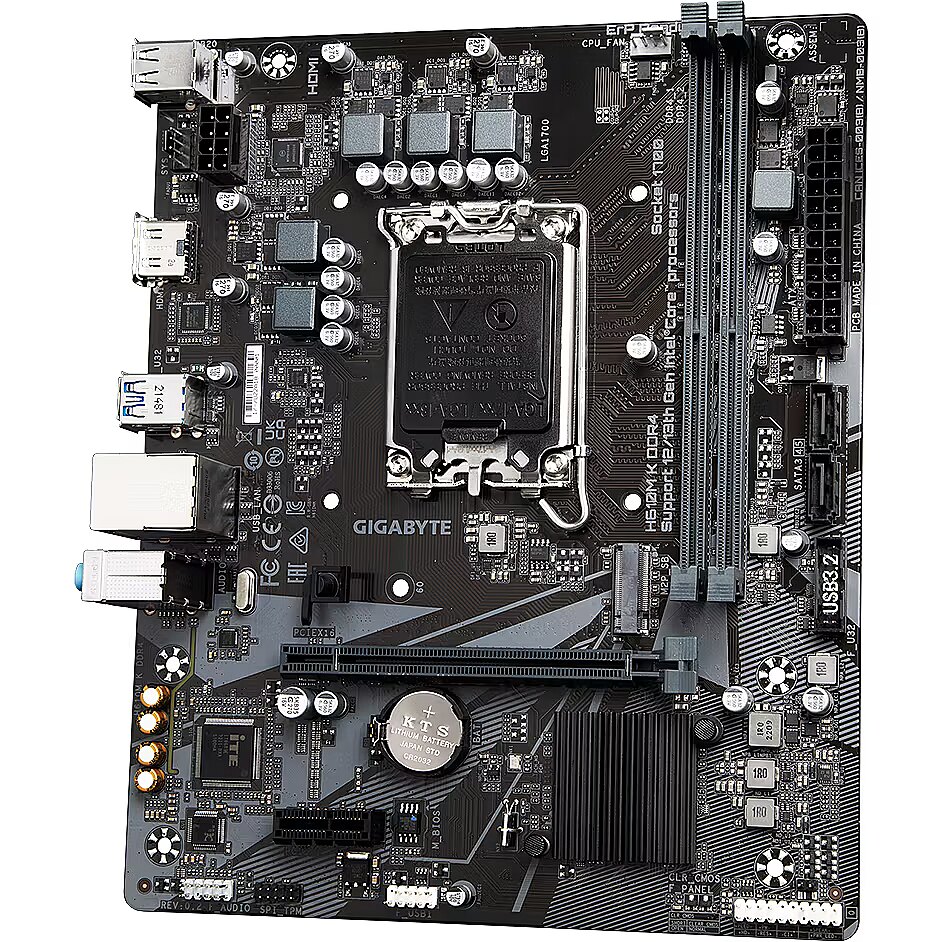

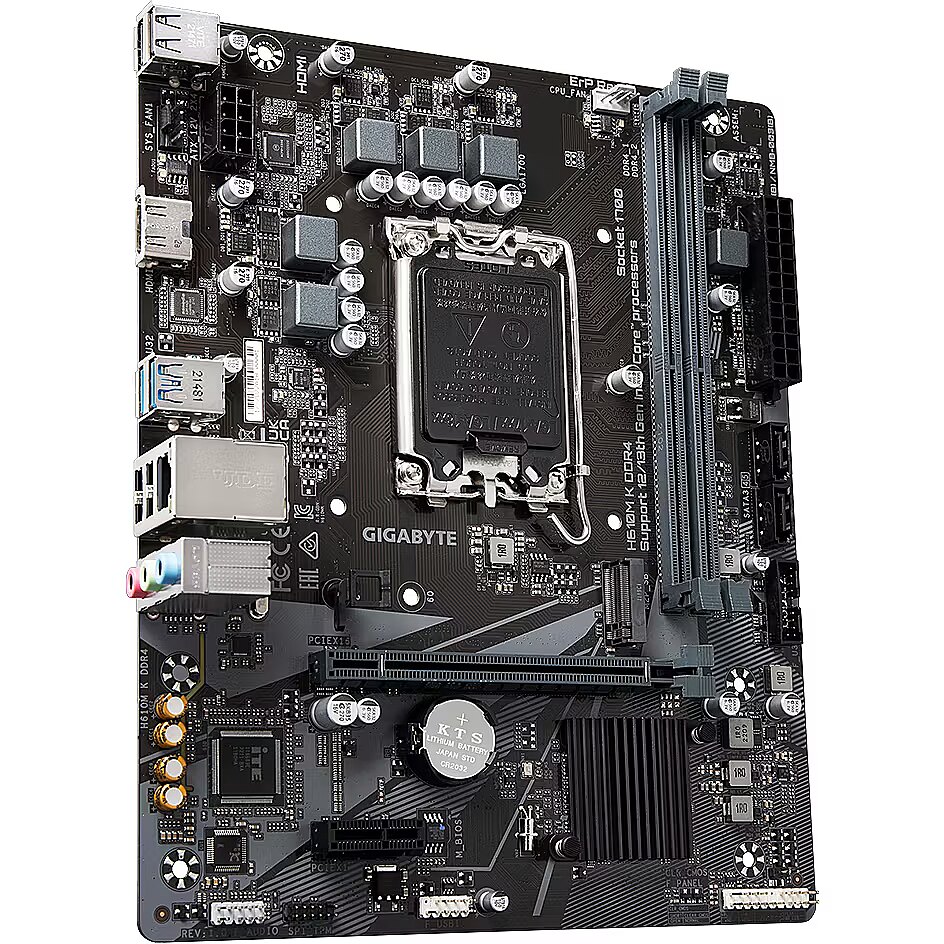

Gigabyte H610M K DDR4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 14.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 14.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 14.05.2024
- Delivery to address in Riga 3.99 €: 14.05.2024
- Delivery to address in Latvia 6.99 €: 14.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 10.05.2024 after 15:00
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 2
More detailed specification
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - H610M K DDR4
category - Mainboards Intel Mainboards
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
code - H610M K DDR4
Code - H610M K DDR4
Description - PCIe 4.0* Design, Gen3 x4 M.2 , Realtek Gaming LAN , Anti-Sulfur Resistor, Smart Fan 6 - Supports 13th/12th Gen Intel® Core™ Series Processors? - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs? - GbE LAN with Bandwidth Management? - NVMe PCIe 3.0 x4 M.2? - High Quality Audio Capacitors and Audio Noise Guard? - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP? - GIGABYTE APP Center, Simple and Easy Use? - Anti-Sulfur Resistors Design?
dimensionalWeight - 712
EAN - 4719331851675
ean - 4719331851675
EAN_code - 4719331851675
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|TPM Header
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.79 kg
GTIN - 4719331851675
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Power fan connector - Yes
Internal I/O - Total number of SATA connectors - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - Gigabyte H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M K DDR4
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Maximum RDIMM memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory slots - 2
Memory type - DDR4
Model - H610M K DDR4
MPN - H610M K DDR4
Name - 1700 Gigabyte H610M K mATX D4
Name - GIGABYTE H610M K DDR4 - Socket 1700 - motherboard
name - GIGABYTE H610M K DDR4, Intel H610 Mainboard - Sockel 1700, DDR4
Name - Gigabyte | H610M K DDR4 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel H610 Express | Micro ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross depth master carton - 570 mm
Package features > Gross height (mm) - 55.00 mm
Package features > Gross height master carton - 285 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Gross width master carton - 285 mm
Package features > Net weight master carton - 8.02 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 400 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.787 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 717 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel H610 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
producerCode - H610M K DDR4
Producer product name - H610M K DDR4 1.0 M/B
productName - Gigabyte H610M K DDR4 1.0 motherboard Intel H610 Express LGA 1700 micro ATX
ProductName - H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal

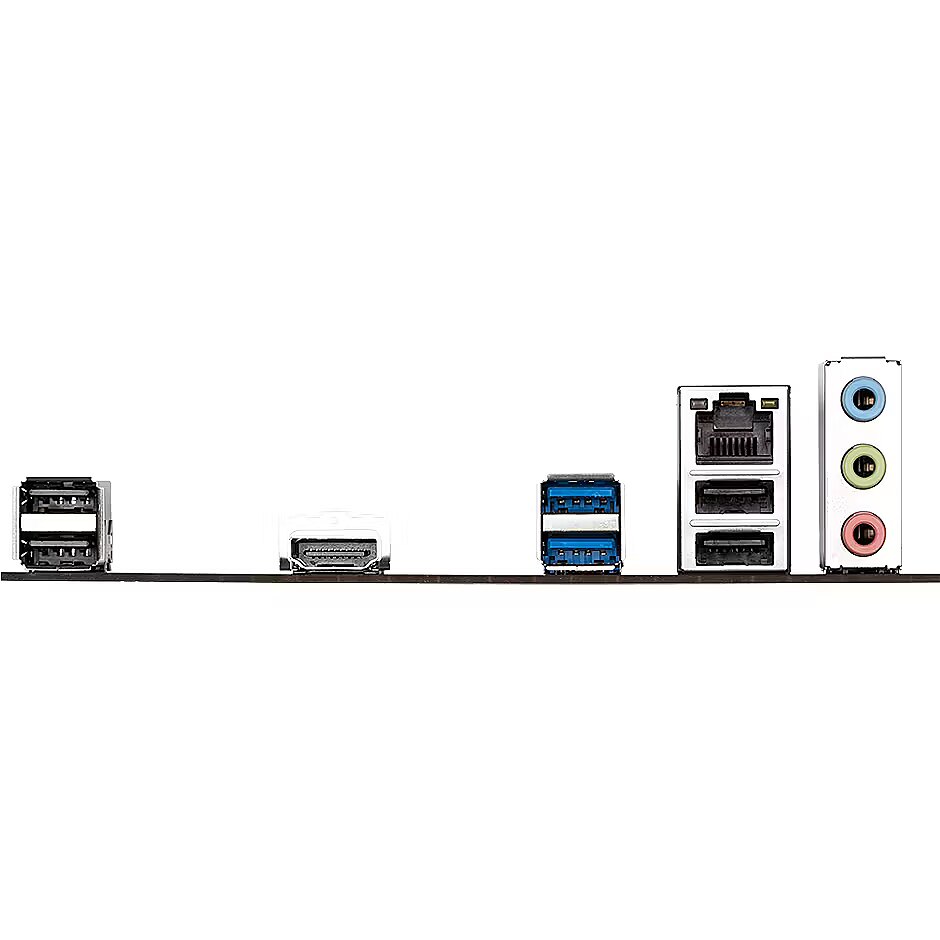

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - No
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.636 kg
Shipping Box Width Shipping/Package Box Dimensions - 23.5 cm
ShortSummaryDescription - Gigabyte H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, DDR4-SDRAM, 64 GB, DIMM
sizeX - 270
sizeY - 240
sizeZ - 55
Socket - LGA1700
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 1
Storage controllers - Number of storage drives supported - 3
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.59 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - Gigabyte H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.235
Unit Brutto Volume - 0.00349 cubm
Unit Gross Weight - 0.636 kg
Unit Net Weight - 0.6 kg
URL - https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 24
warrantyType - G
Weight - 0,63
Weight - 0.64
weight - 640
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - H610M K DDR4
category - Mainboards Intel Mainboards
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
code - H610M K DDR4
Code - H610M K DDR4
Description - PCIe 4.0* Design, Gen3 x4 M.2 , Realtek Gaming LAN , Anti-Sulfur Resistor, Smart Fan 6 - Supports 13th/12th Gen Intel® Core™ Series Processors? - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs? - GbE LAN with Bandwidth Management? - NVMe PCIe 3.0 x4 M.2? - High Quality Audio Capacitors and Audio Noise Guard? - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP? - GIGABYTE APP Center, Simple and Easy Use? - Anti-Sulfur Resistors Design?
dimensionalWeight - 712
EAN - 4719331851675
ean - 4719331851675
EAN_code - 4719331851675
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|TPM Header
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.79 kg
GTIN - 4719331851675
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Power fan connector - Yes
Internal I/O - Total number of SATA connectors - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - Gigabyte H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M K DDR4
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Maximum RDIMM memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory slots - 2
Memory type - DDR4
Model - H610M K DDR4
MPN - H610M K DDR4
Name - 1700 Gigabyte H610M K mATX D4
Name - GIGABYTE H610M K DDR4 - Socket 1700 - motherboard
name - GIGABYTE H610M K DDR4, Intel H610 Mainboard - Sockel 1700, DDR4
Name - Gigabyte | H610M K DDR4 1.0 M/B | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel H610 Express | Micro ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross depth master carton - 570 mm
Package features > Gross height (mm) - 55.00 mm
Package features > Gross height master carton - 285 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Gross width master carton - 285 mm
Package features > Net weight master carton - 8.02 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 400 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.787 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 717 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - Intel H610 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
producerCode - H610M K DDR4
Producer product name - H610M K DDR4 1.0 M/B
productName - Gigabyte H610M K DDR4 1.0 motherboard Intel H610 Express LGA 1700 micro ATX
ProductName - H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - No
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.636 kg
Shipping Box Width Shipping/Package Box Dimensions - 23.5 cm
ShortSummaryDescription - Gigabyte H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, DDR4-SDRAM, 64 GB, DIMM
sizeX - 270
sizeY - 240
sizeZ - 55
Socket - LGA1700
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 1
Storage controllers - Number of storage drives supported - 3
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.59 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - Gigabyte H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.235
Unit Brutto Volume - 0.00349 cubm
Unit Gross Weight - 0.636 kg
Unit Net Weight - 0.6 kg
URL - https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 24
warrantyType - G
Weight - 0,63
Weight - 0.64
weight - 640
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
