ID: 906122
Product code: PRO Q670M-C-CSM
Can be ordered 31 units Availability: 14 days after order approval
Warranty: 3 years

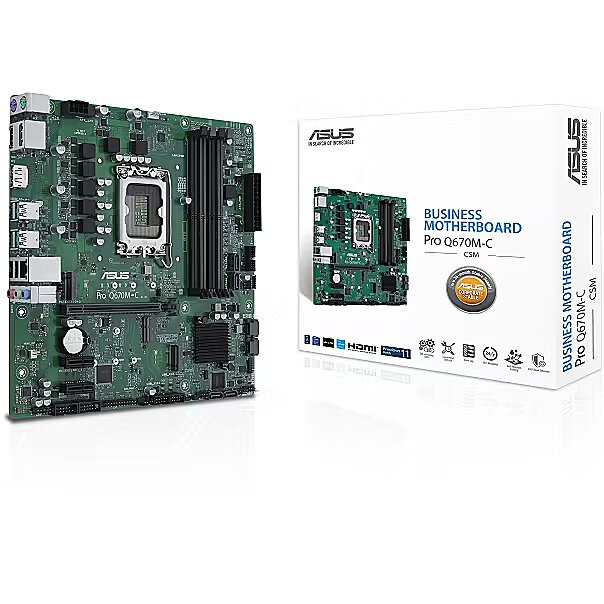

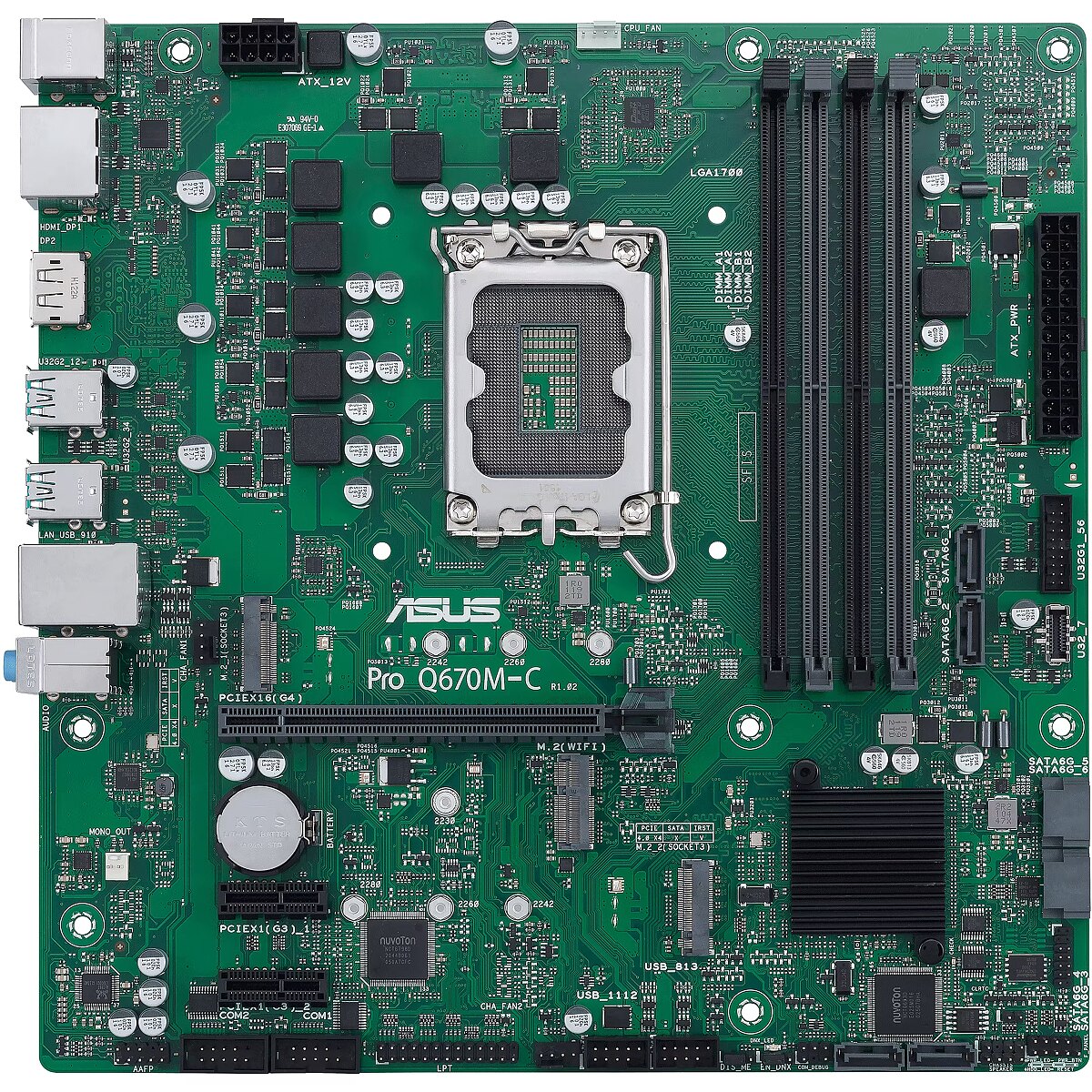

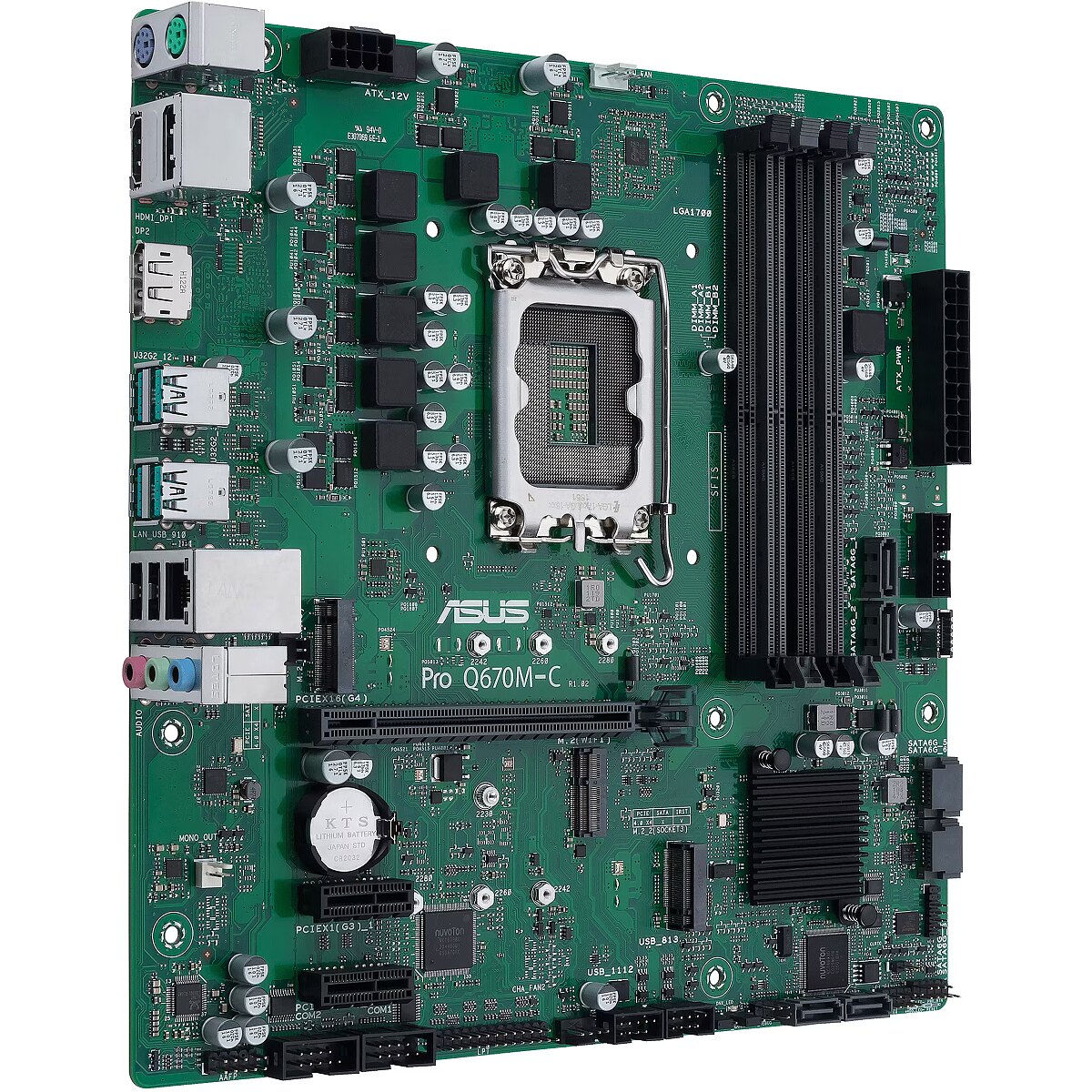

Asus PRO Q670M-C-CSM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 24.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 24.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 24.05.2024
- Delivery to address in Riga 3.99 €: 24.05.2024
- Delivery to address in Latvia 6.99 €: 24.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 22.05.2024 after 15:00
Main product parameters All parameters
- Series: ASUS Business
- CPU Socket: LGA 1700
- Chipset: Intel Q670
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: ASUS Business
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Q670
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 4800
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 2
Integrated sound card
: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 4
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 6
More detailed specification
BIOS - BIOS memory size - 256 Mbit
Brand - ASUS
BrandPartCode - 90MB19E0-M0EAYC
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 90MB19E0-M2EAYC
dimensionalWeight - 801
ean - 4711081518389
EAN - 4711081518389
Eans - 4711081518389
EAN_code - 4711081518389
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Compatible operating systems - Windows® 11 64-bit, Windows® 10 64-bit
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel Q670
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Number of mounting holes - 8
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Gross Weight Kg - 0,8
GTIN - 4711081518389
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 2
Internal I/O - Number of SATA III connectors - 6
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.ASUS Corporate Stable ModelASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.ASUS Control Center ExpressASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60DDR5 SupportThis business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.PCIe 4.0This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.ASUS Boot Defender ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It’s designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks.ProtectionProvide advanced BIOS protection and resiliency through ASUS Defender controllerDetectionIdentifies corrupted or tampered BIOS codes at start upRecovery Automatically repairs corrupted BIOS with a backup copy of the ASUS BIOSThe ASUS Defender controller uses hardware-based Root-of-Trust (ROT) with immutable and non-bypassable boot firmware to form a chain of trust (COT) with integrity for a secure computing system.* The system with ASUS Boot Defender will be automatically shut down after BIOS update via ASUS EZ Flash. Please press the power button to turn it on.ASUS Self-recovering BIOSWith ASUS Self-recovering BIOSThe user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.ASUS RELIANTEnsures consistent performance with the finest components and rigorous reliability testingAnti-moisture CoatingProtection against moisture and corrosionAn innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.Anti-sulfur ResistorsConsider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.Stainless-Steel Back I/O3X corrosion-resistance for greater durabilityCorrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.Overvoltage ProtectionWorld-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.ESD GuardsElectrostatic discharge protectionASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.LANGuardPumped-up throughput. 2.5X higher surge tolerance.ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.24/7 Reliability TestOptimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.ASUS Commercial BIOS KitASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!ASUS SERVICEABILITYFacilitate the assembly process and enable efficient troubleshootingQ-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.ASUS COM Debug HeaderThis 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.*Third-party debug card sold separately.Box HeadersAll USB headers are box style, enabling fast connector installation and preventing pin damage.Fixed-position ConnectorsConnector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.
LongProductName - Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability
LongSummaryDescription - ASUS PRO Q670M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB19E0-M2EAYC
Manufacturer Name - Asustek
Manufacturer_code - 90MB19E0-M2EAYC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 4GB, 8GB, 16GB, 32GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR5-SDRAM
MPN - 90MB19E0-M0EAYC
Name - 1700 ASUS PRO Q670M-C-CSM LGA1700 DDR5
Name - ASUS PRO Q670M-C-CSM
name - ASUS PRO Q670M-C-CSM, Intel Q670 Mainboard, Sockel 1700, DDR5
Name - ASUS PRO Q670M-C-CSM - Socket 1700 - motherboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Weight - 634 g
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Processor - Compatible processor series - Intel Pentium G
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Producer - Asus
producerCode - 90MB19E0-M0EAYC
ProducerCode - PRO Q670M-C-CSM
productName - ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
ProductName - PRO Q670M-C-CSM
productSize - Normal
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Short description - ASUS PRO Q670M-C-CSM S1700/DDR5/2xDP+HDMI/vPro/24-7/µATX
ShortDescription - Socket 1700| Chipset Intel Q670 | DDR5 |
ShortSummaryDescription - ASUS PRO Q670M-C-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, 128 GB, DDR5-SDRAM
sizeX - 275
sizeY - 265
sizeZ - 55
Storage controllers - Number of HDDs supported - 6
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical_details - The ASUS PRO Q670M-C-CSM motherboard is based on the Intel® Z790 chipset and supports Intel® processors for Socket 1700. It has four DDR5 DIMM slots in dual-channel operation for up to 192 GB of RAM . The ASUS PRO Q670M-C-CSM's additional features include a PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. The ASUS PRO Q670M-C-CSM also has 8-channel sound, a Gigabit LAN interface, six SATA3 ports, three M.2 ports and a number of USB interfaces. Item no.: 100019978 EAN 4711081518389 Manufacturer no. 90MB19E0-M2EAYC Base 1700 Max. supported CPUs 1 Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S) , Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S) Chipset Intel® Q670 Slots PCIe x16 1x (of which: 1x PCIe x16) USB 2.0 4 BIOS 256 Mb Flash ROM Form factor µATX Power supply ATX12V (24-pin + 8-pin) Memory maximum 192 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 6 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller Intel® Q670 USB controller Intel® Q670 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. LAN Intel® 1Gb Ethernet Further information In order to support the latest processor cores, a BIOS update may be required.
Title - ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
URL - https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-Q670M-C-CSM/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,95
Weight - 0.94
weight - 950
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 51 mm
Weight & dimensions - Width - 244 mm
