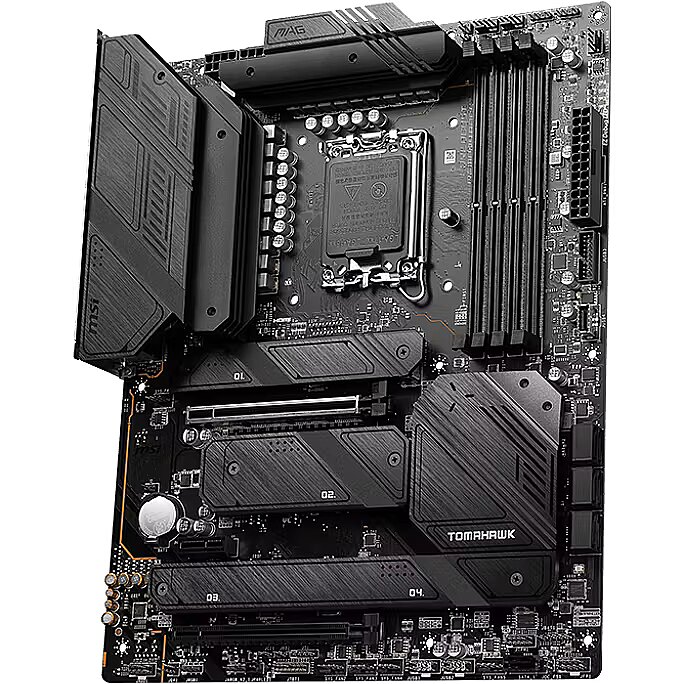

MSI MAG Z790 TOMAHAWK WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
OUTLET
ID: 905586 Product code: MAG Z790 TOMAHAWK WIFI
In stock 24 units / In office 1 units
Warranty: 3 years
258.99 €
Delivery options More about shipping
  • Delivery to Omniva parcel machine free of charge: on Wednesday, 17.07.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: on Wednesday, 17.07.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: on Wednesday, 17.07.2024
  • Delivery to address in Riga 3.99 €: on Wednesday, 17.07.2024
  • Delivery to address in Latvia 6.99 €: on Wednesday, 17.07.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: tomorrow, 15.07.2024 sākot no 9:00
Main product parameters All parameters
  • Series: MSI MAG
  • CPU Socket: LGA 1700
  • Chipset: Intel Z790
  • Form factor: ATX
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
Basic information
Series : MSI MAG
CPU Socket LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel Z790

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600 (OC 7200)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 1
Integrated sound card : Realtek ALC4080
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 2
External USB 2.0 : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 6
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Port : 4
SATA3 ports : 7
More detailed specification
Accessories included -
ARTIKEL1 - MAG Z790 TOMAHAWK WIFI
ARTIKEL2 - INTEL MB LGA1700 DDR5
Audio port Input/Output connectors - 5
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - EFI AMI
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MAG Z790 TOMAHAWK WIFI
Breite - 0.27
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - INTEL Z790
code - 7D91-009R
Code - MAG Z790 TOMAHAWK WIFI
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket - Supports DDR5 Memory, up to 7200+(OC) MHz - Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 - Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works - AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience - High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Description - MAG Z790 TOMAHAWK WIFI Supports 12th/13th generation Intel Core, Pentium Gold and Celeron processors with LGA 1700 socket Support for DDR5 memory up to 7200+ MHz (overclocking) Improved power supply design: 16+1+1-phase power layout compliant with Mirrored Power Arrangement, two 8-pin CPU power connectors, Core Boost and Memory Boost technologies Extreme gaming speed: PCIe 5.0, Lightning Gen 4 x4 M.2 connectors, USB 3.2 Gen 2x2 ports Premium cooling system: Enhanced Extended Heatsink design and M.2 Shield Frozr protection for high system performance and continuous uninterrupted operation AUDIO BOOST 5 sound system: generating studio-quality sound for exceptional gaming immersion. Top quality circuit board: 6-layer PCB with two ounces of layered copper made from server-grade materials All-in-one Standing always at the side of gamers, the MAG series boards will help them fight honourably on the virtual battlefield.
With additional elements inspired by military styling, the new gaming line has been reborn as a symbol of solid quality and exceptional durability.
Cooling: Extended Heatsink - The Extended Heatsink features a larger heat dissipation area, allowing even high-end CPUs to run at full speed on the board. M.2 Shield Frozr System - The M.2 drive cooling system prevents the appearance of thermal throttling effects on data transmission, allowing drives to run much faster. Solid metal heatsink that cools the VRM voltage regulator moduleThe heatsink located on the VRM voltage regulator module also cools the MOS transistors and helps dissipate heat. Heat sink with 7W/mK thermal pads and additional thermal pads on the chokes. High-quality 7W/mK thermal pads located on the MOSFET power transistors and additional thermal pads located on the chokes ensure stable operation of all CPU cores and allow them to run at high speeds on the board. Optimised for water cooling The motherboard is designed to work with the most popular all-in-one water cooling systems and custom liquid cooling systems on the market. Dedicated for water pump interoperability, the PIN connector supports devices that draw up to 3 amps, giving you full control over the speed of the water pump. A clearly marked keep-out-zone allows for easy and safe cooling installation and perfect matching of equipment. System for assemblers 2.0 - integration into the system environment Connect and position the components of the MSI cooling system in the computer case in an optimal way. You can do this thanks to strategically placed slots, including a connector that is dedicated to the pump fan of the liquid cooling system. Power supply 16+1+1-phase power system compliant with Mirrored Power Arrangement Unleash power and enjoy maximum performance with the premium VRM voltage regulator module design, using a total of 16+1+1 power phases compliant with the Duet Rail Power System (DRPS). The combination of dual connectors and power stage design makes MAG Z790 TOMAHAWK WIFI DDR4 series motherboards ready to meet the challenges of running the highest-end CPUs. Optimised PCB design The PCB design has been optimised for higher bandwidth and transfer speeds, which also benefits reliable transmission in the circuitry. EZ M.2 Clip Having trouble unscrewing and twisting screws? MSI's innovative EZ M.2 clip will help you install your M.2 SSD quickly and with minimal effort. Driver tool installer Once connected to the internet, the MSI Driver Utility Installer app will automatically detect and display on-screen a list of drivers and utilities that you can download and install in just a few clicks. Find out more *Please make sure your computer is connected to the Internet, otherwise the Driver Utility Installer will not start automatically. *MSI Driver Utility Installer is also prepared to work with Windows 11 build 22H2. Flash BIOS Button Have you encountered problems while updating the BIOS or somehow corrupted it? Don't worry, MSI motherboards offer plenty of options to help you reboot your system successfully. Lightning Gen 5 PCI-E and Steel Armor compatible connectors LIGHTNING GEN 5 PCI-E Double the previous generation's x16 interface bandwidth to achieve 128GB/s data transfer rates SMT-MOUNTED PCIE 5.0 SLOT Advanced SMT (Surface Mount Technology) for PCIE slot mounting reduces interference and electrical noise, allowing full PCI-E 5.0 signal support. REINFORCED, ROBUST SOLDER JOINTS The motherboard has been secured with additional solder points. Now, heavy and large graphics cards can be placed in its PCIE slots without problems. Fast and future-ready storage MSI MPG series motherboards support all the latest storage standards, allowing users to plug in any ultra-fast storage device. Launch games faster, load levels faster and gain a real advantage over your enemies. Latest DDR5 memory installed in SMT-mounted connectors AOgreat step forward in DDR memory performance has been taken with the latest DDR5 memory. Combined with a dedicated SMT surface mount process and MSI Memory Boost technology, MA Z790 TOMAHAWK WiFi series motherboards are poised to offer users remarkable memory performance. The advanced SMT (Surface Mount Technology) surface mount process reduces slot soldering errors, electromagnetic interference and interference, allowing for the delivery of an undistorted, clean signal. This mounting, combined with MSI's exclusive Memory Boost technology, allows MSI motherboards to deliver a clean, high-frequency DDR5 signal. Easy overclocking with XMP profiles XMP (Extreme Memory Profiles) profiles, which are available in the BIOS of MSI motherboards, are tested and certified by MSI's overclocking lab. With automatic performance-enhancing settings, it's easy to enable them and thus achieve the highest speed and stability for your memory system. MSI Center Offered under the name MSI Center, MSI's new software combines MSI's existing suite of diverse utilities into one centralised application. Take control of advanced motherboard functions and unleash their limitless possibilities. Clikck BIOS 5 Enjoy a BIOS full of diverse features designed for ease of use. Tune your motherboard for gaming performance, efficiency or overclocking and break world records! XMP Use predefined XMP profiles and automatically overclock compatible DDR memory. VMD (Volume Management Device) Allows direct control and management of NVMe SSDs over the PCIe bus without the need for additional hardware adapters./li> M-FLASH A feature that allows for a convenient, in an instant, traditional BIOS flash or update from the CMOS Setup Utility menu. HARDWARE MONITOR Get instant access to critical real-time hardware information such as temperature, memory capacity, clock speed and voltage. MEMORY TRY IT FUNCTION Extract extreme speed from RAM modules and get better system performance. SEARCH and FAVORITES FUNCTIONS The search function and favourite options located in the top right corner of the BIOS menu will quickly take you to the tab you need at the moment. Exclusive add-on application AIDA64 Extreme When you buy an MSI motherboard, you get 60 days free access to the AIDA64 Extreme application MSI edition. AIDA64 Extreme is an exclusive utility software that collects system information and also allows you to perform system diagnostics, tests and benchmarks. With the application, you can monitor your hardware and the software installed on your computer in detail and save the collected information to a file in multiple formats, such as CSV and HTML. Resizable BAR Resizable BAR (Re-Size BAR) is an advanced feature associated with the PCI Express bus that allows the entire frame buffer to be accessed simultaneously by the processor and graphics chip, so that graphics generation performance can be increased. Expand the capabilities of your RGB backlighting system with ease Add, if you wish, more colours and colours! Mystic Light Extension compatible pin connectors allow you to intuitively control additional RGB ribbons and other RGB backlit peripherals added to your system, without the need for a separate RGB controller. High-bandwidth, low-latency networking MSI's top-notch network solution delivers incredible data transfer speeds that will satisfy all demanding users. Wi-Fi 6E Bluetooth 5.3 2.5G network
Detailed data on disk/drive interfaces - 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G (Qty)
dimensionalWeight - 1309
dimension depth - 72 mm
dimension height - 271 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1876 g
dimension width - 345 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377025492
ean - 4711377025492
EANCode - 4711377025492
Eans - 4711377025492
EAN_code - 4711377025492
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - 2 x PCIe 4.0 x 4
Expansion slots - 2 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2

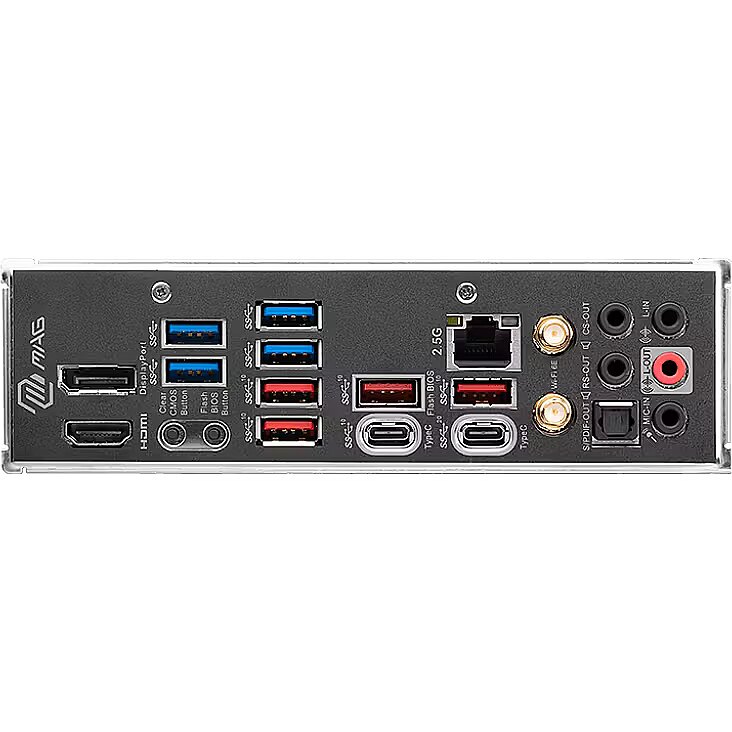

External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Side Speaker
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 3.0
External connectors - 4 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|8xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Gewicht - 1.89
Graphics - 1x HDMI HDMITM 2.1 support with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort DP 1.4 support, maximum resolution of 8K 60Hz*. *Only available for processors with integrated graphics. Graphics specifications may vary depending on the processor installed.
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
GTIN - 4711377025492
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - MSI COMPUTER
Hoehe - 0.08
HSTNUMMER - 7D91-009R
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA II connectors - 6
Internal I/O - Number of SATA III connectors - 7
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 7
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Laenge - 0.35
Link - https://www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-WIFI
LongDesc - The MAG series fights alongside gamers in pursuit of honor.With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.OPTIMIZED FOR WATER COOLINGDesigned to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20GUsing USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
LongProductName - MAG Z790 TOMAHAWK WIFI Intel LGA 1700 ATX Motherboard, 4x DDR5128GB, 1x PCI-E x 16, 1x PCI-E x 14, 4x M.2, 7x SATA, 10x USB 3.2,
LongSummaryDescription - MSI MAG Z790 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7D91-009R
Max. number of ATA devices - 0
Max. number of SATA devices - 7
Max memory size - 192 GB
Memory - ECC - No
Memory - Maximum internal memory - 128 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000 MHz
Memory - Supported memory clock speeds - 7200
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - MAG Z790 TOMAHAWK WIFI
MPN - 7D91-009R
Name - 1700 MSI MAG Z790 Tomahawk WIFI
name - Motherboard MAG Z790 TOMAHAWK WIFI s1700 4DDR5 DP/HDMI ATX
Name - MSI MAG Z790 TOMAHAWK WIFI
name - MSI MAG Z790 Tomahawk WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - MSI MAG Z790 TOMAHAWK WIFI - 1700
Name - MSI | MAG Z790 TOMAHAWK WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 7
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel 2.5Gbps LAN
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 7
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 6 x 4pin wentylator obudowy
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 2
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - MSI
Producer - MSI
producerCode - 7D91-009R
ProducerCode - MAG Z790 TOMAHAWK WIFI
Producer product name - MAG Z790 TOMAHAWK WIFI
ProductName - MAG Z790 TOMAHAWK WIFI
productName - MSI MAG Z790 TOMAHAWK WIFI motherboard Intel Z790 LGA 1700 ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.88 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - MSI MAG Z790 TOMAHAWK WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 192 GB, DDR5-SDRAM
sizeX - 340
sizeY - 70
sizeZ - 275
Socket - LGA1700
Software -
Sound card - Realtek ALC4080 codec 7.1 channel high performance USB audio Supports S/PDIF output Supports up to 32-bit/384 kHz front panel playback
Special functions -
Stck_Kart - 5
Stck_Pal - 10
Storage controllers - Internal storage capacity - 10 GB
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 5, 10
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Storno - N
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI MAG Z790 TOMAHAWK WIFI motherboard Intel Z790 LGA 1700 ATX
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.345
Unit Box Width - 0.275
Unit Brutto Volume - 0.007116 cubm
Unit Gross Weight - 1.88 kg
Unit Net Weight - 1.4 kg
URL - https://www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-WIFI
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 8
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.msi.com/Motherboard/MAG-Z790-TOMAHAWK-WIFI
vendpn - MAG Z790 TOMAHAWK WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,87
Weight - 1.9
weight - 1800
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
Weight & dimensions - Width - 304.8 mm
WiFi Interface - Yes
258.99 €
MSI MAG Z790 TOMAHAWK WIFI
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
