ID: 904235
Product code: Z790 AORUS MASTER
In stock 6 units
Warranty: 3 years

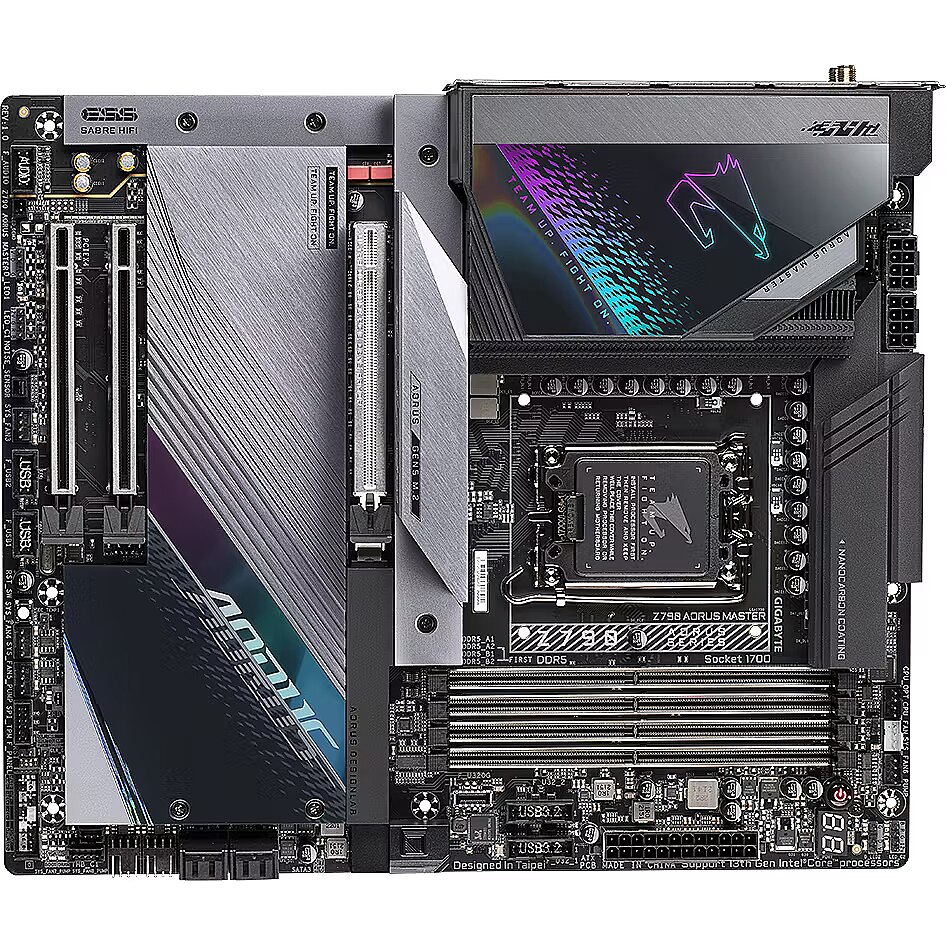

Gigabyte Z790 AORUS MASTER
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 14.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 14.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 14.05.2024
- Delivery to address in Riga 3.99 €: 14.05.2024
- Delivery to address in Latvia 6.99 €: 14.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 10.05.2024 after 15:00
Main product parameters All parameters
- Series: Gigabyte AORUS
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: Extended ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: Gigabyte AORUS
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Extended ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 8000)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 0
DisplayPort
: 1
Integrated sound card
: Realtek ALC1220
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 3
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 7
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 5
SATA3 ports
: 4
More detailed specification
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - Gigabyte
BrandPartCode - Z790 AORUS MASTER
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express
code - Z790 AORUS MASTER
Code - Z790 AORUS MASTER
COM connector / port - No
CPU socket - LGA1700
Description - With technology changing rapidly, GIGABYTE is always keeping up with the latest trends and providing customers with advanced features and the latest technology. GIGABYTE motherboards are equipped with an enhanced power solution, the latest storage standards and exceptional connectivity to ensure optimised gaming performance.
Description - Z790 AORUS MASTER (rev. 1.0) - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Direct 20+1+2 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors - Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance - EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design - Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC - Fast Networks:Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax with DCT - Extended Connectivity:DP, USB-C® 10Gb/s, Front and Dual Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Detailed data on disk/drive interfaces - CPU: 1 x M.2 connector (slot 3, M key, support for 25110/2280 PCIe 5.0 x4/x2 type SSDs) (M2C_CPU) 1 x M.2 connector (slot 3, M key, support for SSD type 22110/2280 PCIe 4.0 x4/x2) (M2A_CPU) Chipset: 1 x M.2 connector (slot 3, M key, support for 22110/2280 PCIe 4.0 x4/x2 type SSDs) (M2Q_SB) 1 x M.2 connector (slot 3, M button, supports 2280/2260 PCIe 4.0 x4/x2 type SSDs) (M2P_SB) 1 x M.2 connector (Socket 3, M button, supports 2280/2260 and PCIe 4.0 x4/x2 SSDs) (M2M_SB) 4 SATA 6Gb/s connectors Supports RAID 0, RAID 1, RAID5 and RAID 10 for NVMe SSD storage devices Supports RAID 0, RAID 1, RAID5 and RAID 10 for SATA storage devices
dimensionalWeight - 1628
dimension depth - 80 mm
dimension height - 295 mm
Dimensions - 30.5 x 26.0 cm
dimension weight - 3200 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331848934
ean - 4719331848934
Eans - 4719331848934
EAN_code - 4719331848934
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 slots - 3
External connectors - 1 x DisplayPort
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 3 x USB 3.1 Type-C
External connectors - 4 x RJ-45
External connectors - 4 x USB 3.0
External connectors - 7 x USB 3.1
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Noise, Temperature, Voltage, Water cooling
Features - PC health monitoring - Noise
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Form Factor - EATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/8000 MHz
Full Description Line - Intel Z790|LGA1700|EATX|DDR5|8000/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 5.0 16x|5xM.2|1xDisplayPort|1xAudio-In|1xAudio-Out|7xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video Depending on CPU|LAN 10 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor support Intel HD graphics: 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz * Supports DisplayPort version 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Crossfire
Gross weight - 1.56 kg
Gross Weight Kg - 3,54
GTIN - 0889523033647
GTIN - 889523033647
GTIN - 4719331848934
guarantee - 36
guarantee_type - normal
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 10 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10#kf
LongDesc - UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.OUTSTANDING THERMAL DESIGNGIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.CONNECTIVITYGIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.PERSONALIZATIONGIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.ULTRA DURABLEGIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
LongProductName - E-ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR5, Wi-Fi 6E, AMI UEFI BIOS
LongSummaryDescription - Gigabyte Z790 AORUS MASTER. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - GigaByte
Manufacturer Code - Z790 AORUS MASTER
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 AORUS MASTER
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800 MHz
Memory - Supported memory clock speeds - 7900
Memory - Supported memory clock speeds - 7950
Memory - Supported memory clock speeds - 8000
Memory - Supported memory clock speeds - 8000,7950,7900,7800,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 AORUS MASTER
Name - Gigabyte Z790 AORUS MASTER
name - GIGABYTE Z790 Aorus Master, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - GigaByte Z790 AORUS MASTER - 1700
Name - Gigabyte Z790 AORUS MASTER 1.0 M/B Processor family Intel Processor socket LGA1700 DDR5 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel Z790 Expres E-ATX
name - Motherboard Z790 AORUS MASTER S1700 4DDR5 USB/DP M.2 E-ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Marvell AQtion AQC113C
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Killer Wi-Fi 6E AX1690
Network interface - 1 x 10Gbit/s 10GBase-T
Network interface - Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 9
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 10
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x temperature sensor
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 360.00 mm
Package features > Gross height (mm) - 28.00 mm
Package features > Gross width (mm) - 310.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 553 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790 Expres
Performance > Motherboard form factor - E-ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - Gigabyte
Producer - Gigabyte
producerCode - Z790 AORUS MASTER
ProducerCode - Z790 AORUS MASTER
Producer product name - Z790 AORUS MASTER 1.0 M/B
productName - Gigabyte Z790 AORUS MASTER motherboard Intel Z790 LGA 1700 Extended ATX
ProductName - Z790 AORUS MASTER
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RF-Out Input/Output connectors - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.206 kg
Shipping Box Width Shipping/Package Box Dimensions - 29.5 cm
Short description - GIGA Z790 AORUS MASTER S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - Gigabyte Z790 AORUS MASTER, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 345
sizeY - 295
sizeZ - 80
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC1220-VB codec * Front panel line output supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High-quality sound 2/4/5.1 channel S/PDIF output support
Special functions -
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.36 kg
Technical details > Warranty - 36 month(s)
Title - Gigabyte Z790 AORUS MASTER motherboard Intel Z790 LGA 1700 Extended ATX
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.35
Unit Box Width - 0.295
Unit Brutto Volume - 0.00826 cubm
Unit Gross Weight - 3.21 kg
Unit Net Weight - 2.6 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10
USB-C Input/Output connectors - 3
USB 3.2 Input/Output connectors - 7
USB ports at back panel - 14
USB ports on motherboard - 9
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10#kf
vendpn - Z790 AORUS MASTER
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 3,22
weight - 3200
Weight & dimensions - Depth - 260 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - Gigabyte
BrandPartCode - Z790 AORUS MASTER
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Express
code - Z790 AORUS MASTER
Code - Z790 AORUS MASTER
COM connector / port - No
CPU socket - LGA1700
Description - With technology changing rapidly, GIGABYTE is always keeping up with the latest trends and providing customers with advanced features and the latest technology. GIGABYTE motherboards are equipped with an enhanced power solution, the latest storage standards and exceptional connectivity to ensure optimised gaming performance.
Description - Z790 AORUS MASTER (rev. 1.0) - Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Direct 20+1+2 Phases Digital VRM Solution - Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support - Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors - Fins-Array III & M.2 Thermal Guard III:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance - EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design - Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC - Fast Networks:Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax with DCT - Extended Connectivity:DP, USB-C® 10Gb/s, Front and Dual Rear USB-C® 20Gb/s - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Detailed data on disk/drive interfaces - CPU: 1 x M.2 connector (slot 3, M key, support for 25110/2280 PCIe 5.0 x4/x2 type SSDs) (M2C_CPU) 1 x M.2 connector (slot 3, M key, support for SSD type 22110/2280 PCIe 4.0 x4/x2) (M2A_CPU) Chipset: 1 x M.2 connector (slot 3, M key, support for 22110/2280 PCIe 4.0 x4/x2 type SSDs) (M2Q_SB) 1 x M.2 connector (slot 3, M button, supports 2280/2260 PCIe 4.0 x4/x2 type SSDs) (M2P_SB) 1 x M.2 connector (Socket 3, M button, supports 2280/2260 and PCIe 4.0 x4/x2 SSDs) (M2M_SB) 4 SATA 6Gb/s connectors Supports RAID 0, RAID 1, RAID5 and RAID 10 for NVMe SSD storage devices Supports RAID 0, RAID 1, RAID5 and RAID 10 for SATA storage devices
dimensionalWeight - 1628
dimension depth - 80 mm
dimension height - 295 mm
Dimensions - 30.5 x 26.0 cm
dimension weight - 3200 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331848934
ean - 4719331848934
Eans - 4719331848934
EAN_code - 4719331848934
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 slots - 3
External connectors - 1 x DisplayPort
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 3 x USB 3.1 Type-C
External connectors - 4 x RJ-45
External connectors - 4 x USB 3.0
External connectors - 7 x USB 3.1
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Noise, Temperature, Voltage, Water cooling
Features - PC health monitoring - Noise
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Form Factor - EATX
Frequency speed - 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/8000 MHz
Full Description Line - Intel Z790|LGA1700|EATX|DDR5|8000/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/4800/4000 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 5.0 16x|5xM.2|1xDisplayPort|1xAudio-In|1xAudio-Out|7xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|2xRF-Out|SATA|Bluetooth|WiFi|Video Depending on CPU|LAN 10 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor support Intel HD graphics: 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz * Supports DisplayPort version 1.2 and HDCP 2.3. (Graphics specifications may vary depending on processor support.)
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Crossfire
Gross weight - 1.56 kg
Gross Weight Kg - 3,54
GTIN - 0889523033647
GTIN - 889523033647
GTIN - 4719331848934
guarantee - 36
guarantee_type - normal
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 10 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10#kf
LongDesc - UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.OUTSTANDING THERMAL DESIGNGIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.CONNECTIVITYGIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.PERSONALIZATIONGIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.ULTRA DURABLEGIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
LongProductName - E-ATX, LGA 1700 socket, Intel Z790 Express chipset, 4x DDR5, Wi-Fi 6E, AMI UEFI BIOS
LongSummaryDescription - Gigabyte Z790 AORUS MASTER. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - GigaByte
Manufacturer Code - Z790 AORUS MASTER
Manufacturer Name - Gigabyte
Manufacturer_code - Z790 AORUS MASTER
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800 MHz
Memory - Supported memory clock speeds - 7900
Memory - Supported memory clock speeds - 7950
Memory - Supported memory clock speeds - 8000
Memory - Supported memory clock speeds - 8000,7950,7900,7800,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4000 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 AORUS MASTER
Name - Gigabyte Z790 AORUS MASTER
name - GIGABYTE Z790 Aorus Master, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - GigaByte Z790 AORUS MASTER - 1700
Name - Gigabyte Z790 AORUS MASTER 1.0 M/B Processor family Intel Processor socket LGA1700 DDR5 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel Z790 Expres E-ATX
name - Motherboard Z790 AORUS MASTER S1700 4DDR5 USB/DP M.2 E-ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Marvell AQtion AQC113C
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Killer Wi-Fi 6E AX1690
Network interface - 1 x 10Gbit/s 10GBase-T
Network interface - Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 9
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 10
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x temperature sensor
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 360.00 mm
Package features > Gross height (mm) - 28.00 mm
Package features > Gross width (mm) - 310.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 553 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel Z790 Expres
Performance > Motherboard form factor - E-ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - Gigabyte
Producer - Gigabyte
producerCode - Z790 AORUS MASTER
ProducerCode - Z790 AORUS MASTER
Producer product name - Z790 AORUS MASTER 1.0 M/B
productName - Gigabyte Z790 AORUS MASTER motherboard Intel Z790 LGA 1700 Extended ATX
ProductName - Z790 AORUS MASTER
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RF-Out Input/Output connectors - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.206 kg
Shipping Box Width Shipping/Package Box Dimensions - 29.5 cm
Short description - GIGA Z790 AORUS MASTER S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - Gigabyte Z790 AORUS MASTER, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 345
sizeY - 295
sizeZ - 80
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC1220-VB codec * Front panel line output supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High-quality sound 2/4/5.1 channel S/PDIF output support
Special functions -
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.36 kg
Technical details > Warranty - 36 month(s)
Title - Gigabyte Z790 AORUS MASTER motherboard Intel Z790 LGA 1700 Extended ATX
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.35
Unit Box Width - 0.295
Unit Brutto Volume - 0.00826 cubm
Unit Gross Weight - 3.21 kg
Unit Net Weight - 2.6 kg
URL - https://www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10
USB-C Input/Output connectors - 3
USB 3.2 Input/Output connectors - 7
USB ports at back panel - 14
USB ports on motherboard - 9
Vendor Homepage - www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10#kf
vendpn - Z790 AORUS MASTER
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 3,22
weight - 3200
Weight & dimensions - Depth - 260 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
