ID: 903892
Product code: Z790 STEEL LEGEND WIFI
In stock 8 units
Warranty: 3 years

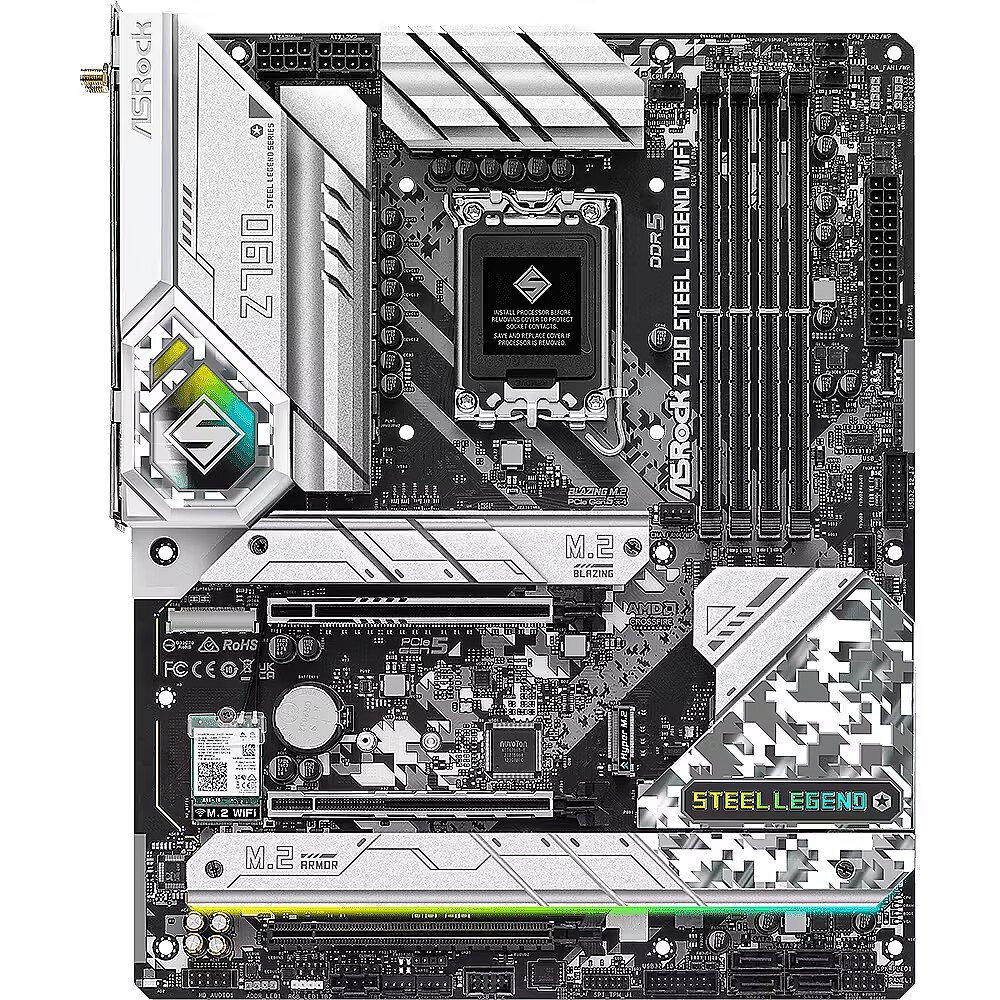

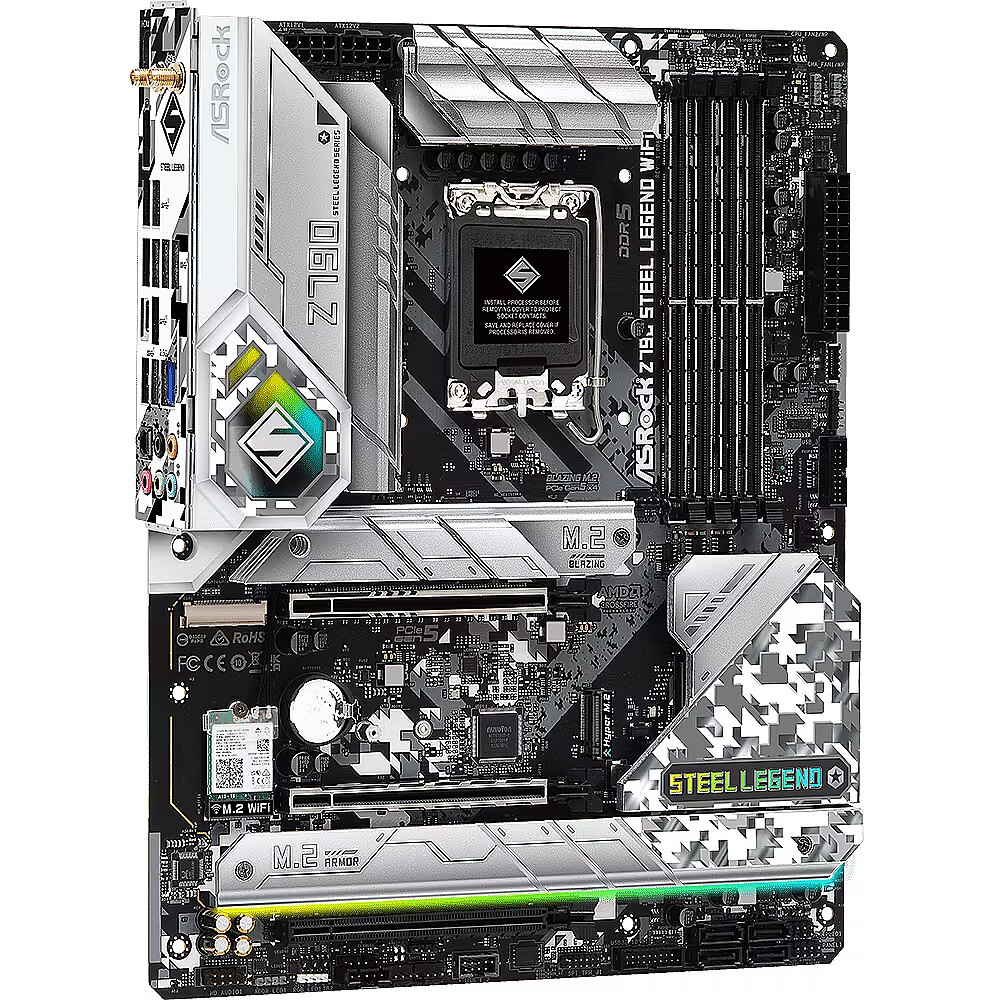

Asrock Z790 Steel Legend WiFi
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 16.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 16.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 16.05.2024
- Delivery to address in Riga 3.99 €: 16.05.2024
- Delivery to address in Latvia 6.99 €: 16.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 14.05.2024 after 15:00
Main product parameters All parameters
- Series: ASRock Steel Legend
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASRock Steel Legend
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 6800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 0
External USB 3.0 (USB 3.2 Gen1)
: Eight Core
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 5
SATA3 ports
: Eight Core
More detailed specification
Accessories included - 1 x User manual 2 x SATA data cables 1 x ASRock WiFi 2.4/5/6 GHz antenna 4 x Screws for M.2 slots 1 x Graphics card holder
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - Mainboards Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBKD0-A0UAYZ
COM connector / port - No
CPU socket - LGA1700
Description - Z790 Steel Legend WiFi motherboard Supports 13th and 12th generation Intel Core processors 16+1+1 phase power design, SPS for VCore+GT 4 x DDR5 DIMM, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI, 1 DisplayPort, eDP 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front) Realtek 2.5G LAN 802.11ax Wi-Fi 6E + Bluetooth
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gbps)* mode. 1 x Blazing M.2 slot (M2_2, Key M), supports 2260/2280 PCIe Gen5x4 (128 Gbps) mode*. Chipset: 1 x Hyper M.2 slot (M2_3, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gbps)* type. 1 x Hyper M.2 slot (M2_4, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x Hyper M.2 slot (M2_5, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* 8 x SATA3 6.0Gb/s connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drives If M2_2 is occupied, PCIE1 will downgrade to x8 mode. Either M2_1 or M2_2 can be used at any given time.
dimensionalWeight - 2290
dimension depth - 95 mm
dimension height - 320 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2340 g
dimension width - 385 mm
ean - 4710483940859
EAN - 4710483940859
Eans - 4710483940859
EAN_code - 4710483940859
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 8 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - Intel Xe graphics architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBKD0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 6800 MHz
Memory type - DDR5
Model - Z790 Steel Legend WIFI
MPN - 90-MXBKD0-A0UAYZ
Name - 1700 ASRock Z790 STEEL LEGEND WIFI
Name - ASRock Z790 Steel Legend WiFi
name - ASRock Z790 Steel Legend WIFI, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASRock Z790 STEEL LEGEND WIFI, motherboard - 1700
name - Z790 STEEL LEGEND WIFI S1700 4DDR5 USB 3.2 ATX
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual user-friendly user interface Visual network usage statistics Optimised default settings for game, browser and streaming modes User customisable priority control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 12
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Other information -
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790 STEEL LEGEND WiFi
ProducerCode - Z790 Steel Legend WiFi
productName - Asrock Z790 Steel Legend WiFi Intel Z790 LGA 1700 ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR5 |
sizeX - 382
sizeY - 94
sizeZ - 319
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 10
USB ports on motherboard - 9
vendpn - Z790 STEEL LEGEND WIFI
warrantyLength - 36
warrantyType - G
Weight - 2,30
Weight - 2.32
weight - 2361
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - Mainboards Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBKD0-A0UAYZ
COM connector / port - No
CPU socket - LGA1700
Description - Z790 Steel Legend WiFi motherboard Supports 13th and 12th generation Intel Core processors 16+1+1 phase power design, SPS for VCore+GT 4 x DDR5 DIMM, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI, 1 DisplayPort, eDP 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front) Realtek 2.5G LAN 802.11ax Wi-Fi 6E + Bluetooth
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gbps)* mode. 1 x Blazing M.2 slot (M2_2, Key M), supports 2260/2280 PCIe Gen5x4 (128 Gbps) mode*. Chipset: 1 x Hyper M.2 slot (M2_3, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gbps)* type. 1 x Hyper M.2 slot (M2_4, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x Hyper M.2 slot (M2_5, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* 8 x SATA3 6.0Gb/s connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drives If M2_2 is occupied, PCIE1 will downgrade to x8 mode. Either M2_1 or M2_2 can be used at any given time.
dimensionalWeight - 2290
dimension depth - 95 mm
dimension height - 320 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2340 g
dimension width - 385 mm
ean - 4710483940859
EAN - 4710483940859
Eans - 4710483940859
EAN_code - 4710483940859
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 8 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - Intel Xe graphics architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBKD0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 6800 MHz
Memory type - DDR5
Model - Z790 Steel Legend WIFI
MPN - 90-MXBKD0-A0UAYZ
Name - 1700 ASRock Z790 STEEL LEGEND WIFI
Name - ASRock Z790 Steel Legend WiFi
name - ASRock Z790 Steel Legend WIFI, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASRock Z790 STEEL LEGEND WIFI, motherboard - 1700
name - Z790 STEEL LEGEND WIFI S1700 4DDR5 USB 3.2 ATX
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual user-friendly user interface Visual network usage statistics Optimised default settings for game, browser and streaming modes User customisable priority control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 12
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Other information -
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790 STEEL LEGEND WiFi
ProducerCode - Z790 Steel Legend WiFi
productName - Asrock Z790 Steel Legend WiFi Intel Z790 LGA 1700 ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR5 |
sizeX - 382
sizeY - 94
sizeZ - 319
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 10
USB ports on motherboard - 9
vendpn - Z790 STEEL LEGEND WIFI
warrantyLength - 36
warrantyType - G
Weight - 2,30
Weight - 2.32
weight - 2361
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
