ID: 1297321
Product code: 90MB1MCP-M0EAYC
In stock 28 units
Warranty: 3 years

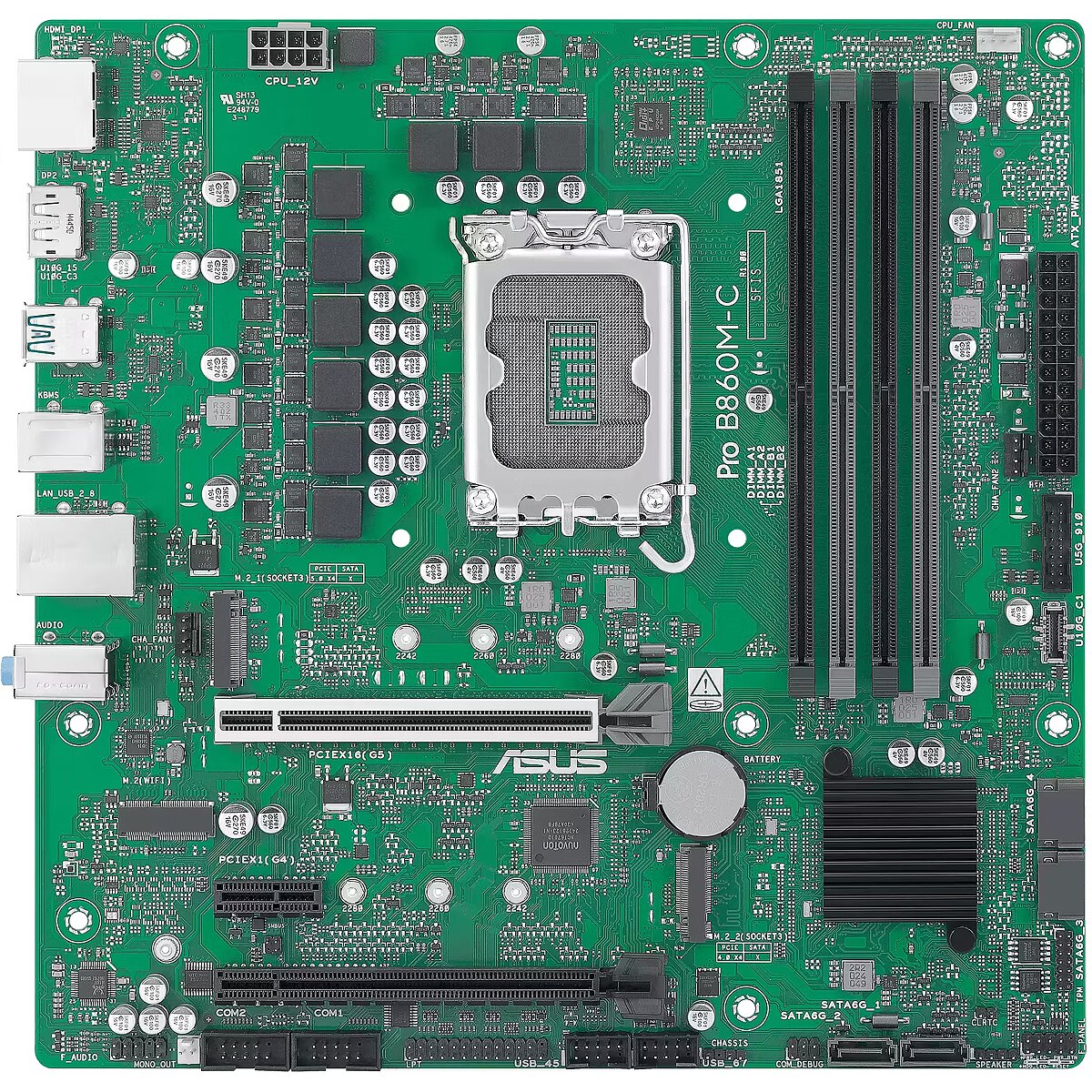

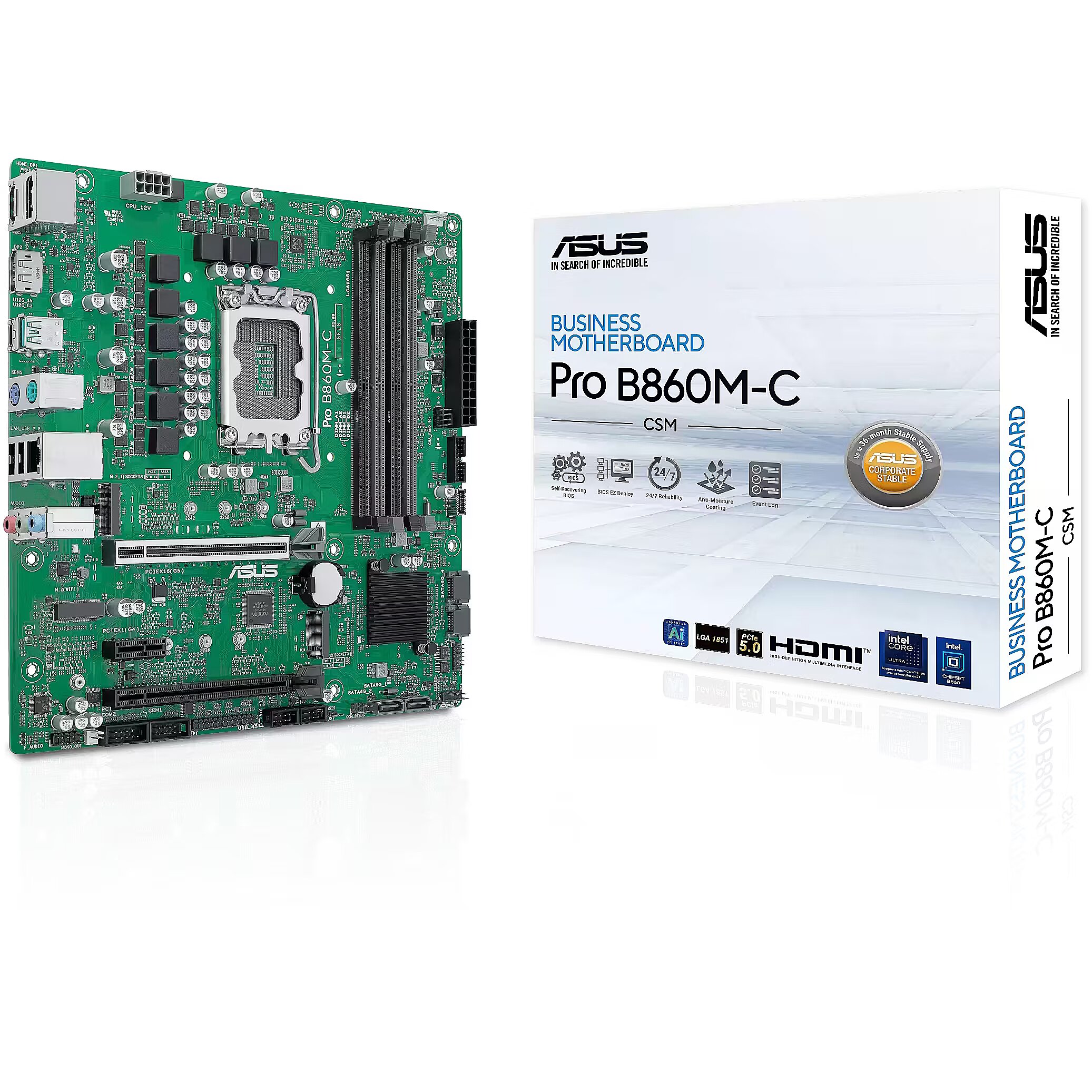

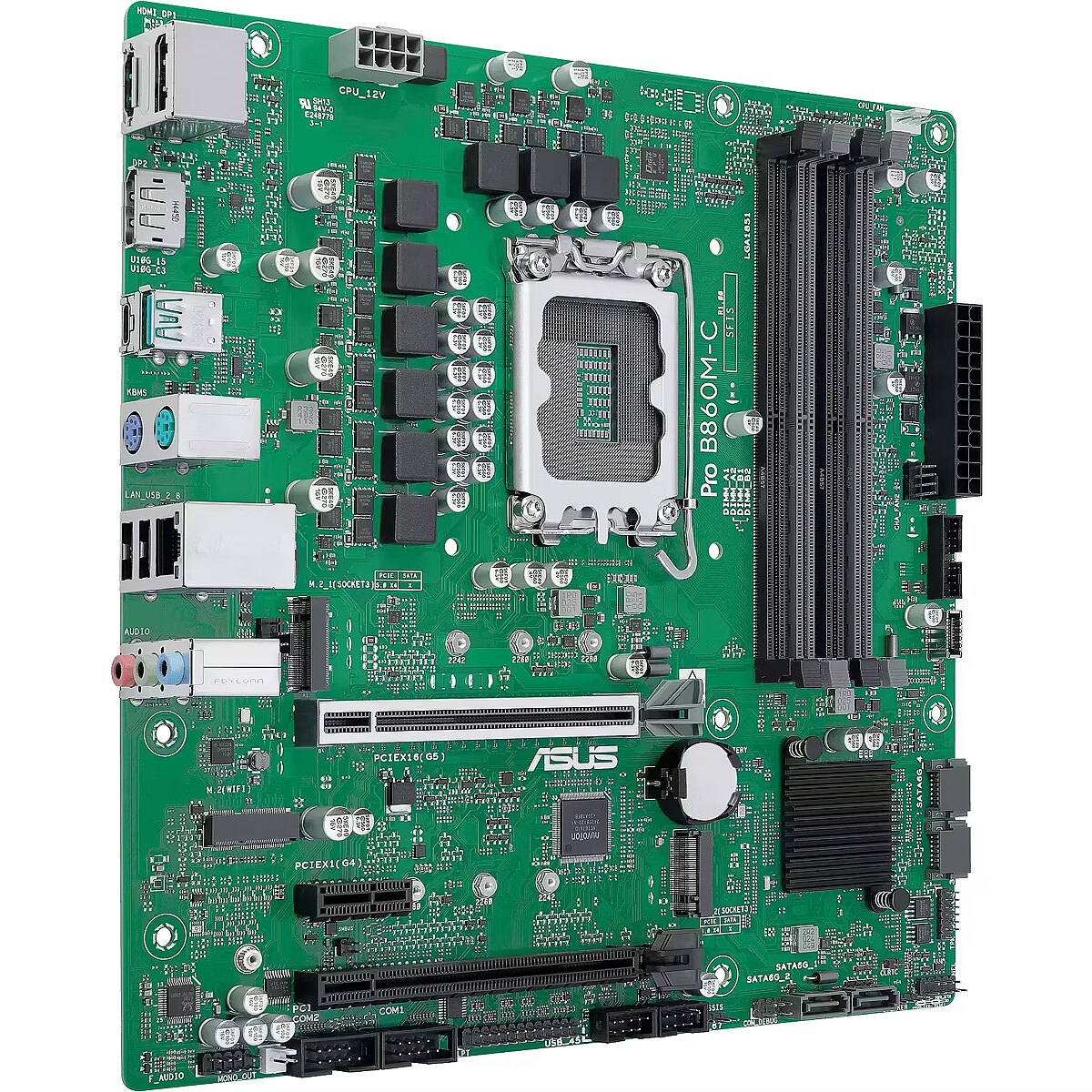

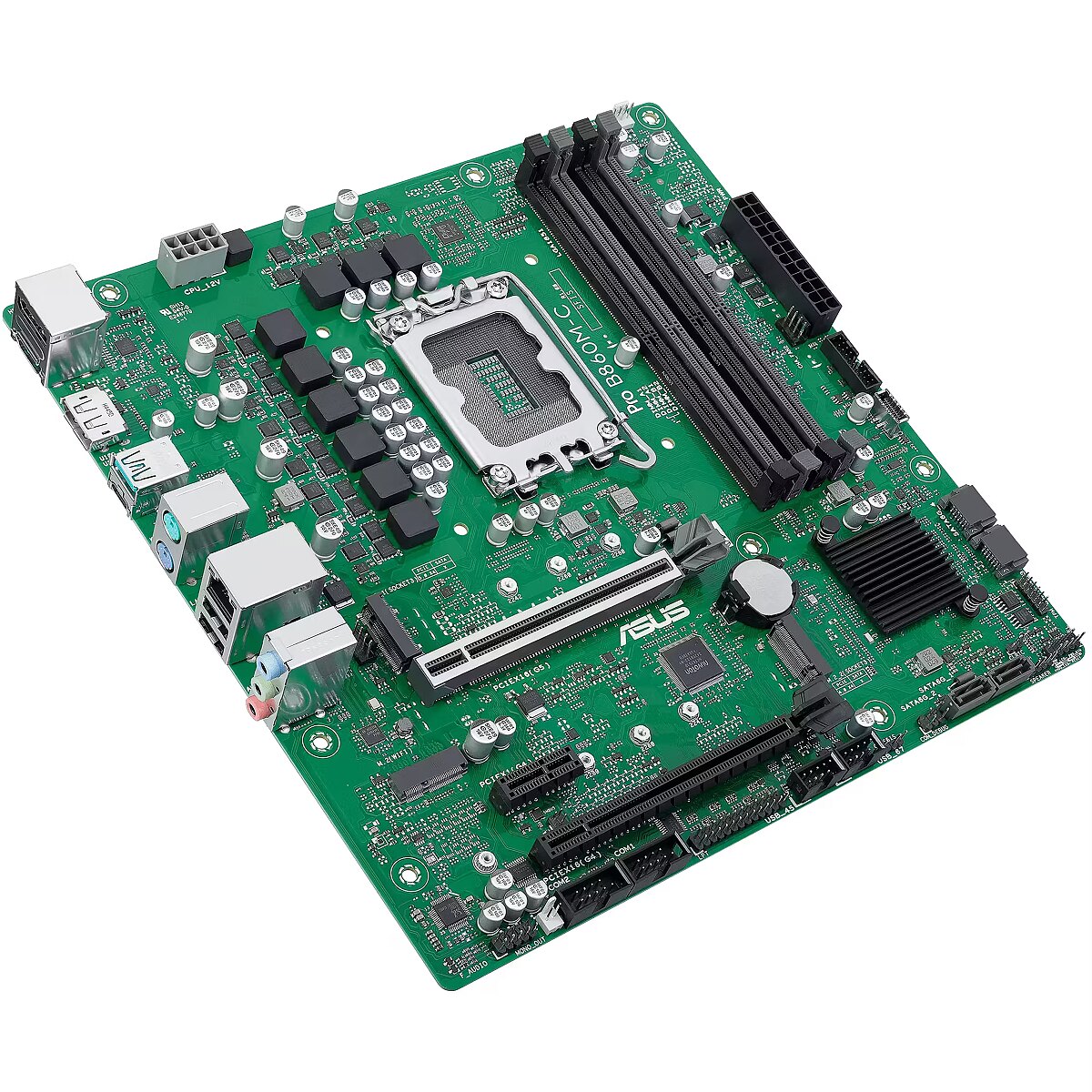

Asus Pro B860M-C-CSM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Unisend parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Series: None
- CPU Socket: LGA 1851
- Chipset: Intel B860
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: None
Basic information
Series
: None
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B860
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 8666)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 2
Integrated sound card
: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth
: There isn't
Built-in Wi-Fi
: None
Wi-Fi standard
: Nav Wi-Fi
External ports
External USB Type-C
: 1
LAN port speed
: 1G
Number of LAN ports
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 0
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2280
12V power connector Internal I/O - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1MCP-M0EAYC
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1851
Chassis intrusion connector Internal I/O - Yes
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
Cooling type Features - Passive
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applicationsIntel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboardsASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administrationEnhanced System Security: A self-recovering BIOS, NIST SP 800-193 complianceConsistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environmentsEfficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenanceBetter Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processesUltrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-CDIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
DisplayPorts quantity Rear panel I/O ports - 2
DisplayPort version Rear panel I/O ports - 1.4
EAN - 4711636114684
EAN_code - 4711636114684
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Product colour - Green
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 1,3
GTIN - 0199291114685
GTIN - 199291114685
GTIN - 4711636114684
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 2
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Line-in Rear panel I/O ports - Yes
LongDesc - ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
LongProductName - Micro-ATX B860 business motherboard with enhanced security, reliability, manageability and serviceability
LongSummaryDescription - ASUS PRO B860M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1MCP-M0EAYC
Manufacturer Name - Asustek
Manufacturer_code - 90MB1MCP-M0EAYC
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 3840 x 2160 pixels
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8666 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
MPN - 90MB1MCP-M0EAYC
Name - 1851 ASUS B860M-C-CSM
Name - ASUS PRO B860M-C-CSM, motherboard - Socket 1851
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 2
Number of CPU fan connectors Internal I/O - 1
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 6

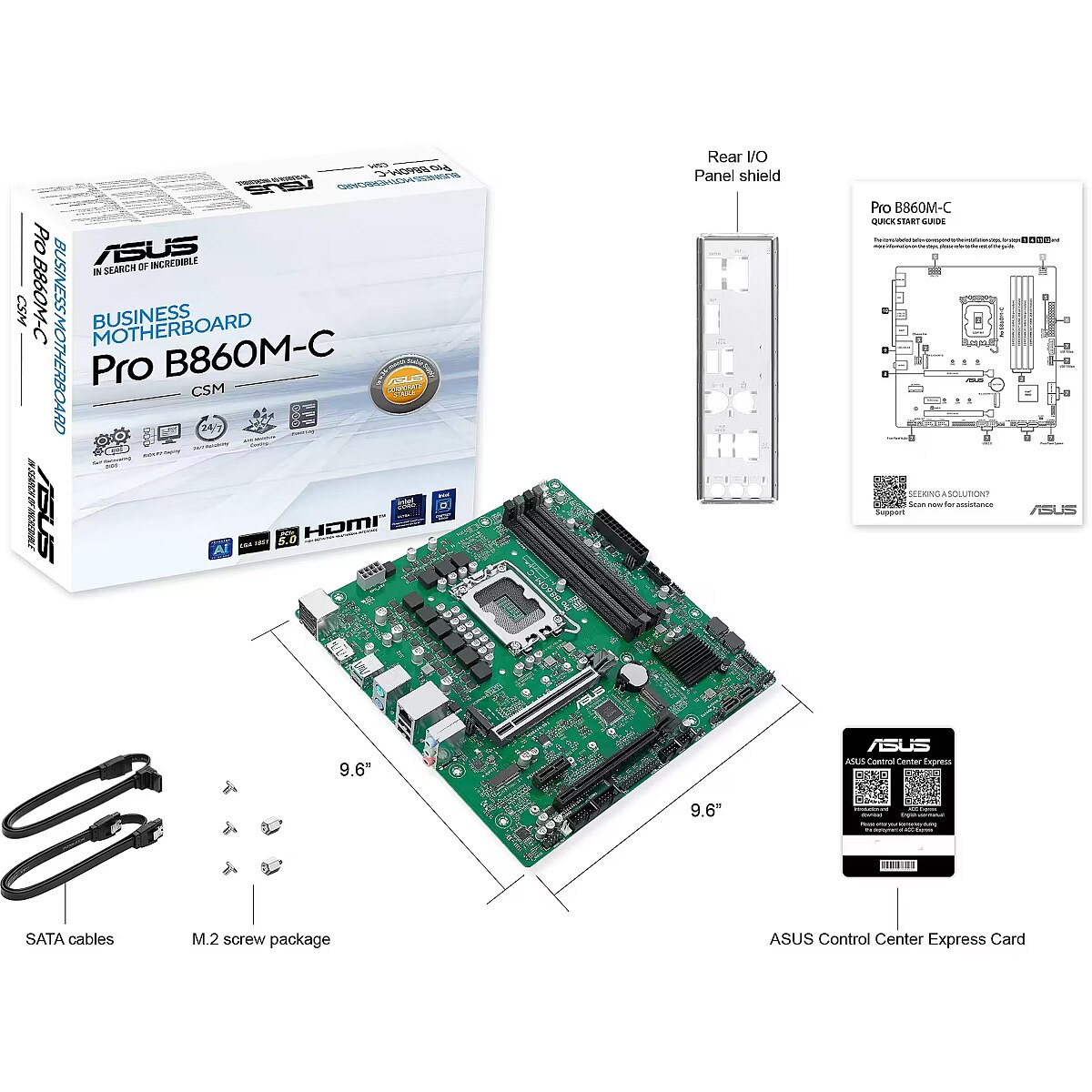

Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Parallel processing technology support Graphics - Not supported
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Product colour Features - Green
ProductName - PRO B860M-C-CSM
Product Net Weight ELKO Logistics Data - 1 kg
PS/2 ports quantity Rear panel I/O ports - 2
RAID levels Storage controllers - 0, 1, 5, 10
RAID support Storage controllers - Yes

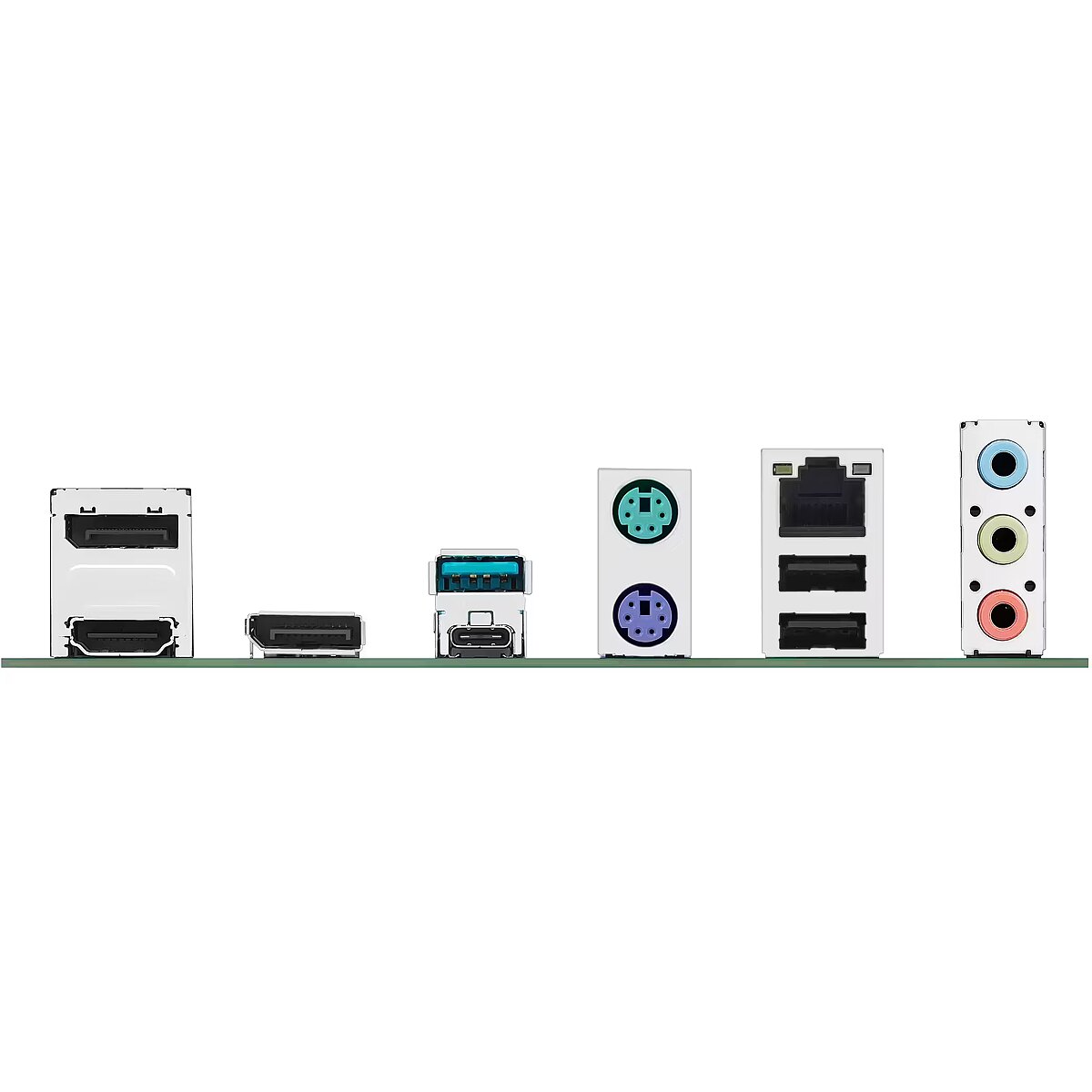

Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Screws included Packaging content - Yes
Shipping Box Depth ELKO Internal Logistics Data - 56 cm
Shipping Box Height ELKO Internal Logistics Data - 29.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 10.3000001907349 kg
Shipping Box Width ELKO Internal Logistics Data - 29 cm
Short description - ASUS PRO B860M-C-CSM S1851/DDR5/2xDP-HDMI/2xM.2/24-7/µATX
ShortSummaryDescription - ASUS PRO B860M-C-CSM, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS PRO B860M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
Supported memory clock speed (max) Memory - 8666 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - LGA 1851
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
Title - ASUS PRO B860M-C-CSM Intel B860 LGA 1851 (Socket V1) micro ATX
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.275
Unit Calculated Volume ELKO Internal Logistics Data - 0.004791 cubm
Unit Calculated Weight ELKO Logistics Data - 1.03 kg
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 10
URL - https://www.asus.com/motherboards-components/motherboards/csm/pro-b860m-c-csm/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
Vendor Homepage - https://www.asus.com/motherboards-components/motherboards/csm/pro-b860m-c-csm/
Warranty - 36 months
WarrantyInfo -
Weight - 0,60
Weight - 0.934
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2280
12V power connector Internal I/O - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1MCP-M0EAYC
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1851
Chassis intrusion connector Internal I/O - Yes
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
Cooling type Features - Passive
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applicationsIntel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboardsASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administrationEnhanced System Security: A self-recovering BIOS, NIST SP 800-193 complianceConsistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environmentsEfficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenanceBetter Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processesUltrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-CDIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
DisplayPorts quantity Rear panel I/O ports - 2
DisplayPort version Rear panel I/O ports - 1.4
EAN - 4711636114684
EAN_code - 4711636114684
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Product colour - Green
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 1,3
GTIN - 0199291114685
GTIN - 199291114685
GTIN - 4711636114684
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 2
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Line-in Rear panel I/O ports - Yes
LongDesc - ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
LongProductName - Micro-ATX B860 business motherboard with enhanced security, reliability, manageability and serviceability
LongSummaryDescription - ASUS PRO B860M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1MCP-M0EAYC
Manufacturer Name - Asustek
Manufacturer_code - 90MB1MCP-M0EAYC
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 3840 x 2160 pixels
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8666 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
MPN - 90MB1MCP-M0EAYC
Name - 1851 ASUS B860M-C-CSM
Name - ASUS PRO B860M-C-CSM, motherboard - Socket 1851
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 2
Number of CPU fan connectors Internal I/O - 1
Number of EPS power connectors (8-pin) Internal I/O - 1
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 6
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Parallel processing technology support Graphics - Not supported
PCI Express x1 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Product colour Features - Green
ProductName - PRO B860M-C-CSM
Product Net Weight ELKO Logistics Data - 1 kg
PS/2 ports quantity Rear panel I/O ports - 2
RAID levels Storage controllers - 0, 1, 5, 10
RAID support Storage controllers - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Screws included Packaging content - Yes
Shipping Box Depth ELKO Internal Logistics Data - 56 cm
Shipping Box Height ELKO Internal Logistics Data - 29.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 10.3000001907349 kg
Shipping Box Width ELKO Internal Logistics Data - 29 cm
Short description - ASUS PRO B860M-C-CSM S1851/DDR5/2xDP-HDMI/2xM.2/24-7/µATX
ShortSummaryDescription - ASUS PRO B860M-C-CSM, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS PRO B860M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
Supported memory clock speed (max) Memory - 8666 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - LGA 1851
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
Title - ASUS PRO B860M-C-CSM Intel B860 LGA 1851 (Socket V1) micro ATX
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.275
Unit Calculated Volume ELKO Internal Logistics Data - 0.004791 cubm
Unit Calculated Weight ELKO Logistics Data - 1.03 kg
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 10
URL - https://www.asus.com/motherboards-components/motherboards/csm/pro-b860m-c-csm/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
Vendor Homepage - https://www.asus.com/motherboards-components/motherboards/csm/pro-b860m-c-csm/
Warranty - 36 months
WarrantyInfo -
Weight - 0,60
Weight - 0.934
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11
