ID: 1287446
Product code: B860M E
In stock 6 units
Warranty: 3 years

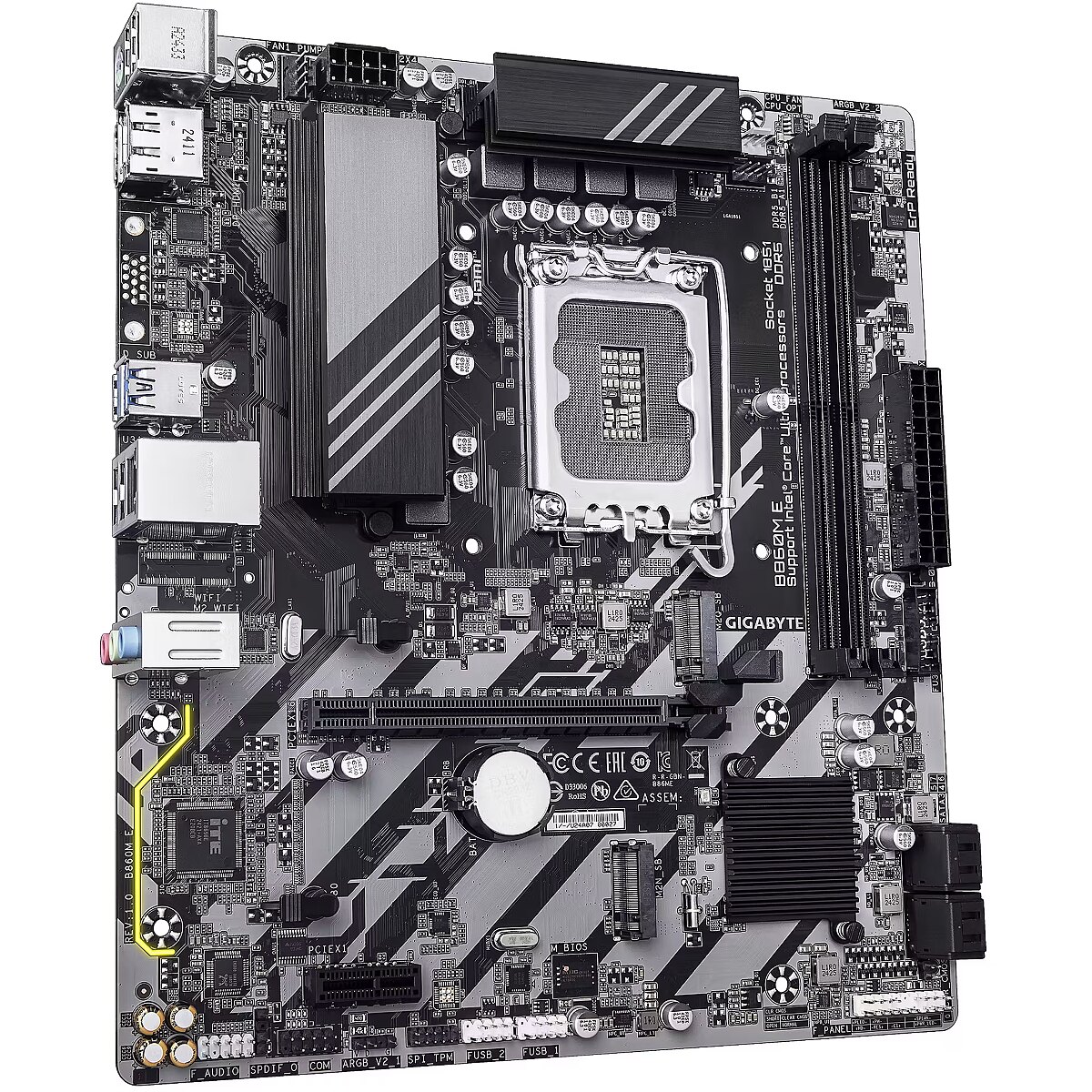

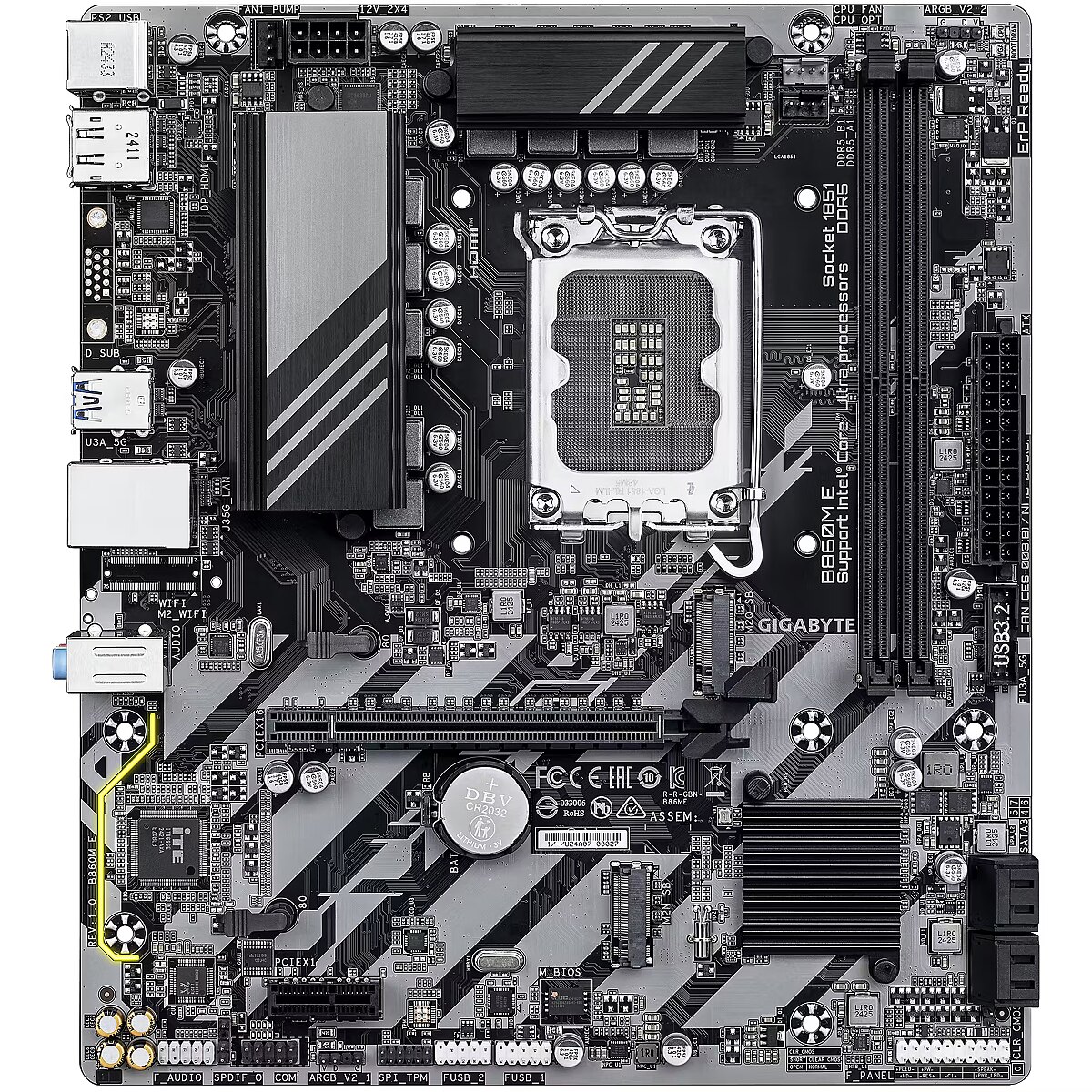

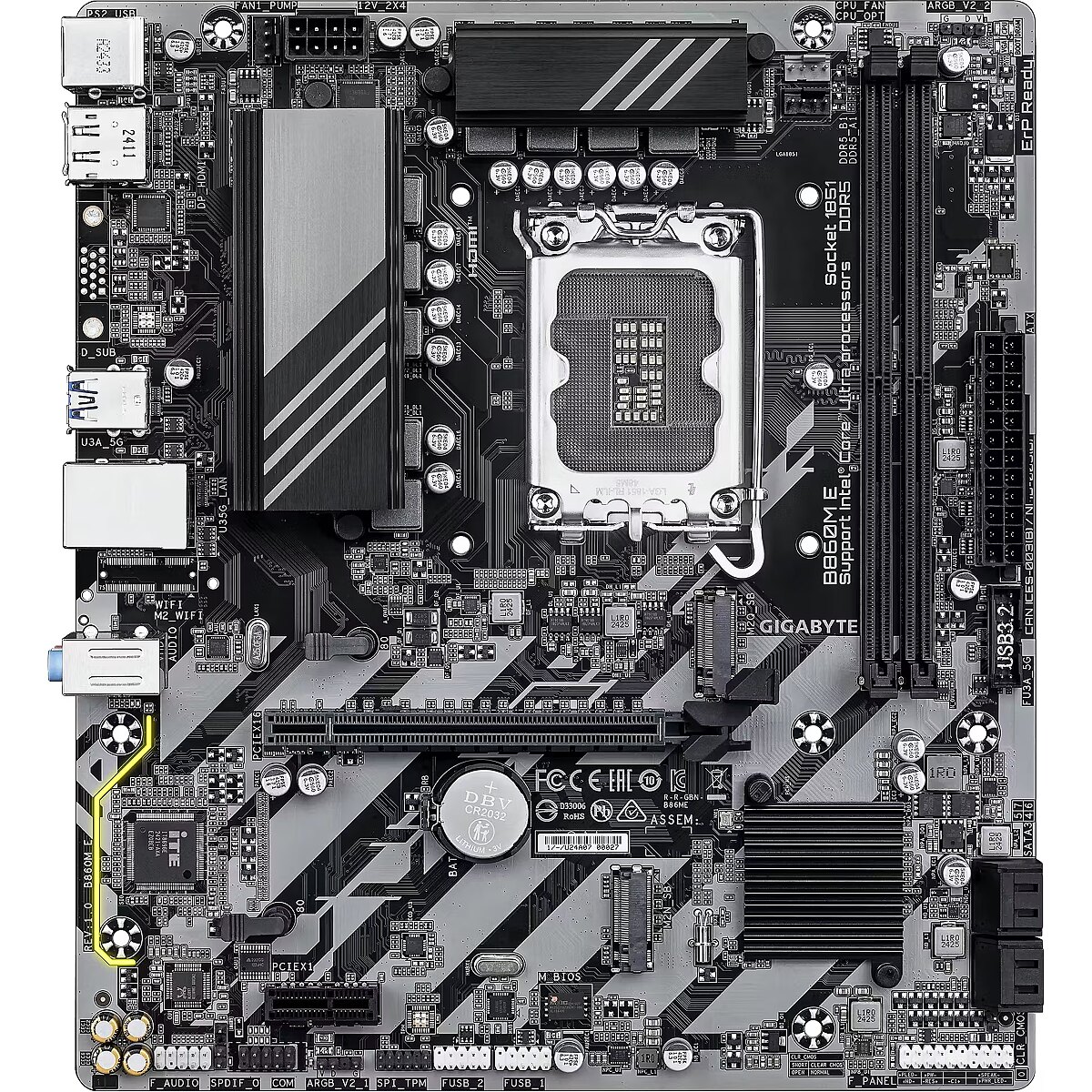

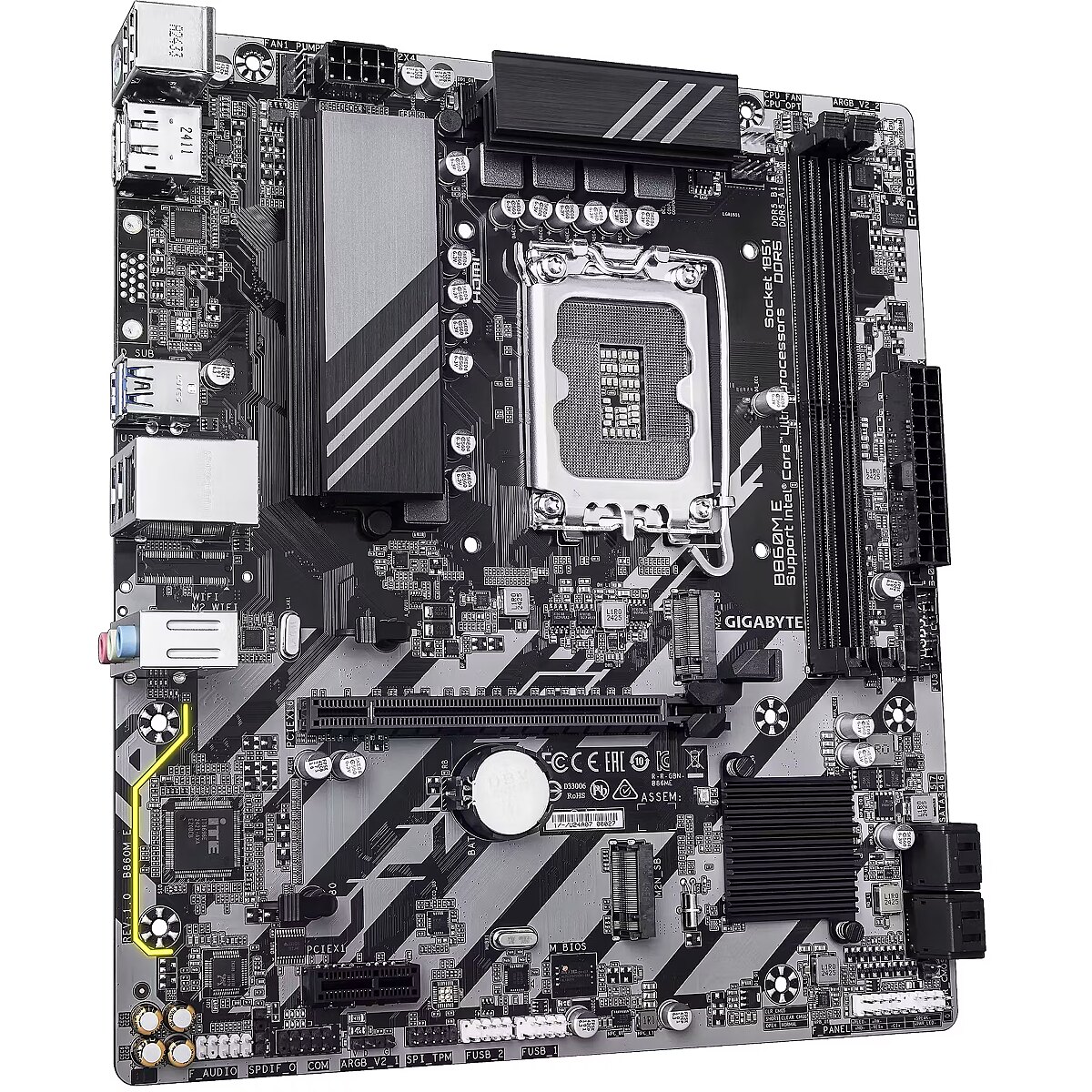

Gigabyte B860M E
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1851
- Chipset: Intel B860
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B860
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 8800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav

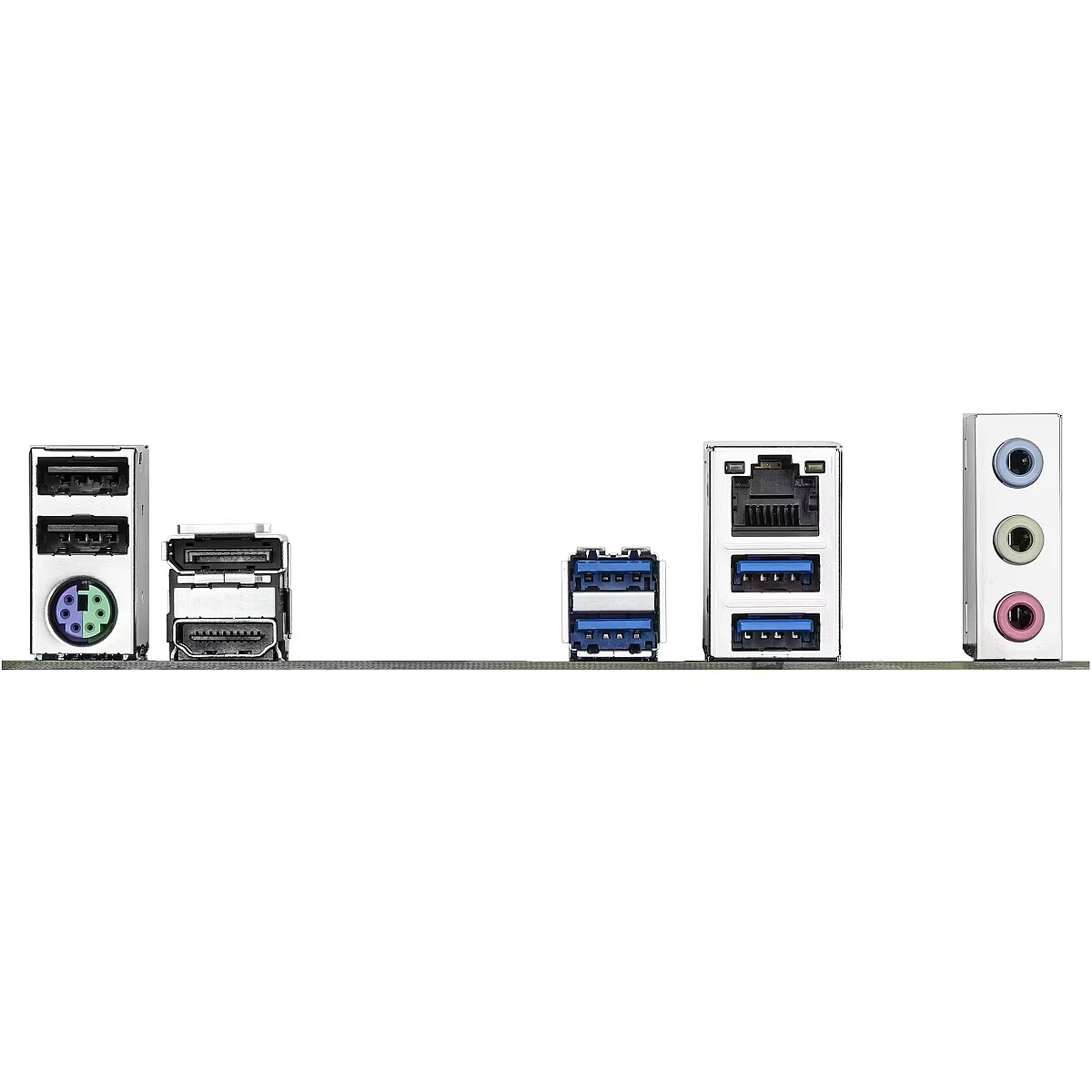

External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category Code - MBI
category_en - Computers & Components > Computer components > PC Cases
category_lv - Datortehnika > Datoru komponentes > Datoru korpusi
category_ru - Datortehnika > Datoru komponentes > Datoru korpusi
Chipset - Intel B860 Express
CnCode - 84733020
Code - B860M E
Description - Supports Intel® Core™ Ultra processors (Series 2) Hybrid 4+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users EZ-Latch : PCIe x16 Slot with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors Fast Networking : GbE LAN Extended Connectivity : HDMI, DisplayPort
description_en - The Gigabyte B860M E 1.0 motherboard is designed for Intel processors using the LGA1851 socket and the Intel B860 chipset. It supports DDR5 memory, offers two DIMM slots, two PCIe 4.0 M.2 connectors, multiple expansion slots, and a full range of connectivity options. Its microATX form factor makes it suitable for compact yet powerful PC builds.
SpecificationsModel: Gigabyte B860M E 1.0Device type: MotherboardCPU socket: Intel LGA1851Chipset: Intel B860Form factor: microATX
MemoryType: DDR5Slots: 2× DIMMChannel mode: Dual ChannelMax capacity: 128 GBProfile support: Intel XMPSupported speeds: high-frequency OC support (module-dependent)
Storage2× M.2 PCIe 4.0 x4 (2280)4× SATA 6 Gb/sRAID support: 0 / 1 / 5 / 10
Expansion1× PCIe 4.0 x162× PCIe 3.0 x1
Graphics (via CPU iGPU)HDMI: up to 4K resolutionDisplayPort: high refresh rate support (CPU-dependent)
Networking & audioLAN: 1× Gigabit EthernetAudio: HD Audio, Realtek codec
USBUSB 3.2 Gen1: rear + internalUSB 2.0: rear + internal
Other featuresRGB/ARGB headersDiagnostic LEDsReinforced power connectorsOptimized VRM coolingEZ-Latch PCIe retention system
Board dimensions24.4 cm × 21.5 cm
Physical parametersWeight: 0.8 kgGross weight: 1.7 kgPackage dimensionsLength, m: 0.2750Height, m: 0.0700Width, m: 0.2701
description_lv - Gigabyte B860M E 1.0 mātesplate paredzēta Intel LGA1851 procesoriem, izmantojot B860 čipsetu. Tā atbalsta DDR5 atmiņu divos DIMM slotos, divus PCIe 4.0 M.2 savienotājus un nodrošina plašas savienojamības un paplašināšanas iespējas microATX formātā.
Modelis: Gigabyte B860M E 1.0Ierīces tips: MātesplateProcesora ligzda: Intel LGA1851Čipsets: Intel B860Form-faktors: microATX
AtmiņaTips: DDR5Sloti: 2× DIMMRežīms: Dual ChannelMaksimālais apjoms: 128 GBProfili: Intel XMP atbalstsFrekvences: augstas OC frekvences (atkarīgs no moduļiem)
Krātuve2× M.2 PCIe 4.0 x4 (2280)4× SATA 6 Gb/sRAID režīmi: 0 / 1 / 5 / 10
Paplašināšana1× PCIe 4.0 x162× PCIe 3.0 x1
Grafika (izmantojot CPU iGPU)HDMI: līdz 4K izšķirtspējaiDisplayPort: augsta atsvaidzes ātruma atbalsts
Tīkls un audioLAN: 1× GigaEthernetAudio: HD Audio ar Realtek kodeku
USBUSB 3.2 Gen1: aizmugure + iekšējie headeriUSB 2.0: aizmugure + iekšējie headeri
Citas iespējasRGB/ARGB pieslēgvietasDiagnostikas LEDPastiprināti strāvas savienotājiOptimizēta VRM dzesēšanaEZ-Latch PCIe stiprinājums
Plates izmēri24.4 cm × 21.5 cm
Fiziskie parametriSvars: 0.8 kgBruto svars: 1.7 kgIepakojuma izmēriGarums, m: 0.2750Augstums, m: 0.0700Platums, m: 0.2701
description_ru - Материнская плата Gigabyte B860M E 1.0 создана для процессоров Intel с разъёмом LGA1851 и основана на чипсете Intel B860. Она поддерживает память DDR5, имеет два слота DIMM, несколько линий PCIe, два разъёма M.2 PCIe 4.0 и расширенный набор интерфейсов. Форм-фактор microATX обеспечивает совместимость с широким спектром корпусов и позволяет собрать компактную, но производительную систему.
ХарактеристикиМодель: Gigabyte B860M E 1.0Тип устройства: Материнская платаСокет: Intel LGA1851Чипсет: Intel B860Форм-фактор: microATX
ПамятьТип памяти: DDR5Количество слотов: 2× DIMMРежим работы: Dual ChannelМаксимальный объём: 128 ГБПоддержка профилей: Intel XMP / совместимые профили DDR5Поддерживаемые частоты: вплоть до высоких OC частот (зависит от модулей и процессора)
Хранение данныхM.2: 2× M.2 (PCIe 4.0 x4), формат 2280SATA: 4× SATA 6 Гбит/сПоддержка RAID: 0 / 1 / 5 / 10
Слоты расширения1× PCIe 4.0 x162× PCIe 3.0 x1
Графика (через встроенное ядро процессора)HDMI: поддержка разрешений до 4KDisplayPort: поддержка высоких частот обновления (в зависимости от CPU)
Сеть и звукLAN: 1× Gigabit EthernetАудио: многоканальный HD Audio, аудиокодек RealtekАудиоразъёмы: стандартный набор на задней панели
USBUSB 3.2 Gen1: несколько портов на задней панели и через внутренние разъёмыUSB 2.0: задняя панель + внутренний вывод
Прочие функцииПоддержка RGB/ARGB подсветки через соответствующие разъёмыДиагностические индикаторыУсиленные разъёмы питанияОптимизированная схема охлажденияЗащищённые PCIe-фиксаторы (EZ-Latch)
Размеры платы24.4 см × 21.5 см
Физические параметрыВес: 0.8 кгВес брутто: 1.7 кгРазмеры упаковкиДлина, м: 0.2750Высота, м: 0.0700Ширина, м: 0.2701
DisplayPort Input/Output connectors - 1
EAN - 4719331868260
Form Factor - Micro-ATX
Frequency speed - 5600/6400/6600/6800/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
gross_weight - 1.7 kg
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B860M-E
M.2 Expansion slots - 2
Memory > Supported memory types - DDR5
Memory slots - 4
Memory type - DDR5
Model -
Model - B860M E 1.0
Name - Gigabyte B860M E | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 327.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 145 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
Producer - Gigabyte
Product Net Weight - 0.8 kg
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Socket - LGA1851
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B860M E
title_en - Gigabyte B860M E 1.0 Motherboard Intel LGA1851 / B860 / DDR5 / 4×DIMM / microATX
title_lv - Gigabyte B860M E 1.0 Mātesplate Intel LGA1851 / B860 / DDR5 / 4×DIMM / microATX
title_ru - Gigabyte B860M E 1.0 Материнская плата Intel LGA1851 / B860 / DDR5 / 4×DIMM / microATX
TPM - Header
Unit Calculated Volume - 0.004032 cubm
Unit Calculated Weight - 1.9 kg
Units per Shipping Box - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - https://www.gigabyte.com/Motherboard/B860M-E
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
weight - 0.8 kg
