ID: 1179466
Product code: B860M AORUS ELITE WF6E ICE
In stock 19 units
Warranty: 3 years
Gigabyte B860M AORUS ELITE WIFI6E ICE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Series: Gigabyte AORUS
- CPU Socket: LGA 1851
- Chipset: Intel B860
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: Gigabyte AORUS
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B860
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 9200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2580
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 25110
Accessories included -
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.3
Brand - GIGABYTE
BrandPartCode - B860M A ELT WF6E ICE
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Płyty główne - Intel 1851
Chipset manufacturer - Intel
Chipset type - Intel B860 Express Chipset
Clear CMOS jumper BIOS - Yes
Code - B860M A ELT WF6E ICE
code - B860M AORUS ELITE WF6E ICE
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 1)/Intel Core Ultra (Series 2)
Component for Features - PC
Cooling type Features - Passive
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 244 mm
Description - B860M A ELT WF6E ICE Motherboard Supports Intel Core Ultra 2-Series Processors 12+1+2 Phase Digital VRM Dual-Channel DDR5 Memory: 4 DIMMs with XMP Memory Module Support D5 Bionic Corsa for Unlimited Memory Performance AI Perfdrive: Provides an optimal and customized BIOS profile for users EZ-Latch Plus: Quick-Release PCIe and M.2 Slots with a Screwless Design EZ-Latch Click: M.2 Heatsinks with a Screwless Design Sensor Panel Link: Onboard Video Port for Seamless Panel Configuration User-Friendly Interface: Multi-Theme, AIO Fan Control, and Automatic Q-Flash Scanning in BIOS and Software Ultra-Fast Storage: 3 M.2 Slots, Including 1 PCIe 5.0 x4 Efficient Cooling: Thermal Armor Advanced and M.2 Thermal VRM Guard Ext. High-speed networking: 2.5 GbE LAN and Wi-Fi 6E with a directional, ultra-high-gain antenna. Expanded connectivity: USB 4 Type-C with DP-Alt, HDMI, and DisplayPort.
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeTwin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRMDual Channel DDR5：4*DIMMsPCIe 5.0 x16 with PCIE UD Slot & EZ-Latch PlusEZ-Latch Plus for M.2 SSDs installationFully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch ClickRealtek 2x2 Wi-Fi 6E with WIFI EZ-Plug2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-CQ-Flash Plus
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Expansion connectors
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
SATA connectors
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Digital audio optical out Rear panel I/O ports - 1
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1670 g
dimension width - 270 mm
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 2.1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
EAN - 4719331867164
ean - 4719331867164
Eans - 4719331867164
EAN_code - 4719331867164
ECC ?ompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2580
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 25110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

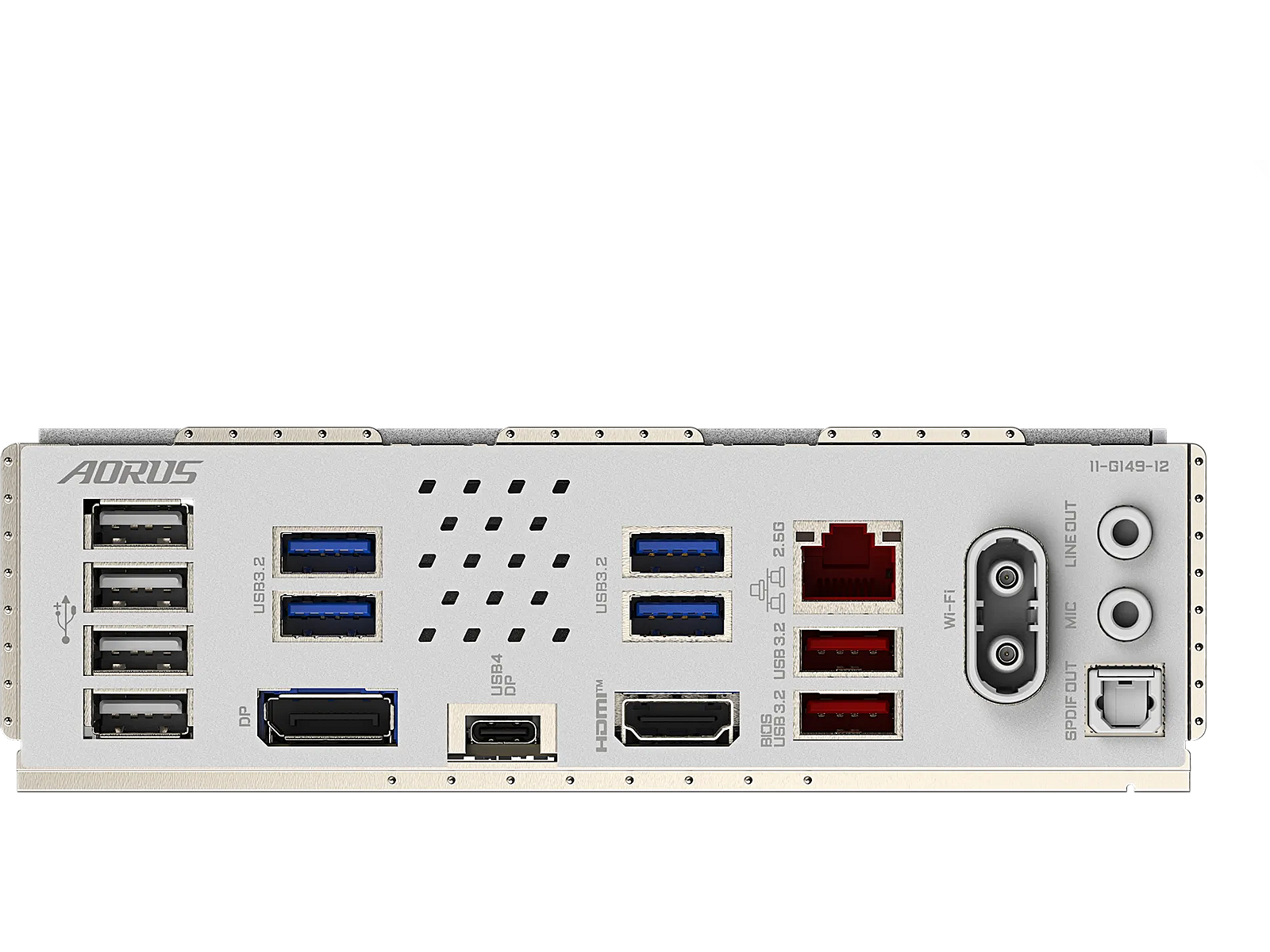

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Supports HDMI 2.1 and HDCP 2.3. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz *Supports HDMI 1.4. (Graphics specifications may vary depending on processor support.) Supports up to four displays simultaneously
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,17
GTIN - 4719331867164
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 2.5GbE LAN)
LAN controller Network - Realtek RTL8125
Line-in Rear panel I/O ports - Yes
Link - https://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
LongSummaryDescription - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B860M AORUS ELITE WF6E ICE
Manufacturer Name - Gigabyte
Manufacturer_code - B860M A ELT WF6E ICE
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2160 pixels
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 5600,6400,9200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 9200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Model - B860M A ELT WF6E ICE
Model - B860M AORUS ELITE WIFI6E ICE
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
MPN - B860M AORUS ELITE WF6E ICE
Name - Gigabyte B860M A ELT WF6E ICE
Name - GIGABYTE B860M AORUS ELITE WIFI6E ICE - Socket 1851 - motherboard (white)
name - GIGABYTE B860M Aorus Elite WiFi6E ICE Mainboard, Sockel LGA 1851, Intel B860, mATX, DDR5
Name - Gigabyte B860M AORUS ELITE WIFI6E ICE | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - LGA1851 Gigabyte B860M AORUS ELITE WF6E ICE
name - Motherboard B860M A ELT WF6E ICE
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX211
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless communication module
Intel Wi-Fi 6E AX211 (PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 4
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 3
Number of memory slots Memory - 4
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Number of water pump connectors Internal I/O - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.7 kg
Other information -
Package depth Packaging data - 268 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 327.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 145 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package weight Packaging data - 1902.5 g
Package width Packaging data - 270 mm
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.9 kg
Packaging data - Package width - 270 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8800 (PC5-70400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-9200 (PC5-73600)
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
ProducerCode - B860M A ELT WF6E ICE
Product colour Features - White
ProductName - B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
Product Net Weight - 1.4 kg
Products per shipping (inner) case Logistics data - 1 pc(s)
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Screws included Packaging content - Yes
Short description - GIGA B860M AORUS ELITE WF6E ICE S1851/DDR5/µATX
ShortDescription - Socket 1851| Chipset Intel B860| DDR5 |
ShortSummaryDescription - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) Memory - 9200 MHz
Supported memory clock speeds Memory - 5600/6400/9200 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1851
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B860M AORUS ELITE WIFI6E ICE
Title - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
Top Wi-Fi standard Network - Wi-Fi 6E (802.11ax)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.27
Unit Box Length - 0.275
Unit Box Width - 0.07
Unit Calculated Volume - 0.004032 cubm
Unit Calculated Weight - 1.9 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 2
USB4 Gen 2x2 ports quantity Rear panel I/O ports - 1
USB ports at back panel - 11
USB ports on motherboard - 7
Vendor Homepage - https://www.gigabyte.com/
vendpn - B860M A ELT WF6E ICE
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
Weight - 1,70
Weight - 1.684
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
Weight Other features - 1700 g
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Width Weight & dimensions - 244 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 11 x64
WLAN controller model Network - Intel Wi-Fi 6E AX211
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB4
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2580
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 25110
Accessories included -
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.3
Brand - GIGABYTE
BrandPartCode - B860M A ELT WF6E ICE
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Płyty główne - Intel 1851
Chipset manufacturer - Intel
Chipset type - Intel B860 Express Chipset
Clear CMOS jumper BIOS - Yes
Code - B860M A ELT WF6E ICE
code - B860M AORUS ELITE WF6E ICE
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 1)/Intel Core Ultra (Series 2)
Component for Features - PC
Cooling type Features - Passive
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 244 mm
Description - B860M A ELT WF6E ICE Motherboard Supports Intel Core Ultra 2-Series Processors 12+1+2 Phase Digital VRM Dual-Channel DDR5 Memory: 4 DIMMs with XMP Memory Module Support D5 Bionic Corsa for Unlimited Memory Performance AI Perfdrive: Provides an optimal and customized BIOS profile for users EZ-Latch Plus: Quick-Release PCIe and M.2 Slots with a Screwless Design EZ-Latch Click: M.2 Heatsinks with a Screwless Design Sensor Panel Link: Onboard Video Port for Seamless Panel Configuration User-Friendly Interface: Multi-Theme, AIO Fan Control, and Automatic Q-Flash Scanning in BIOS and Software Ultra-Fast Storage: 3 M.2 Slots, Including 1 PCIe 5.0 x4 Efficient Cooling: Thermal Armor Advanced and M.2 Thermal VRM Guard Ext. High-speed networking: 2.5 GbE LAN and Wi-Fi 6E with a directional, ultra-high-gain antenna. Expanded connectivity: USB 4 Type-C with DP-Alt, HDMI, and DisplayPort.
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeTwin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRMDual Channel DDR5：4*DIMMsPCIe 5.0 x16 with PCIE UD Slot & EZ-Latch PlusEZ-Latch Plus for M.2 SSDs installationFully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch ClickRealtek 2x2 Wi-Fi 6E with WIFI EZ-Plug2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-CQ-Flash Plus
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Expansion connectors
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
SATA connectors
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Digital audio optical out Rear panel I/O ports - 1
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1670 g
dimension width - 270 mm
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 2.1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
EAN - 4719331867164
ean - 4719331867164
Eans - 4719331867164
EAN_code - 4719331867164
ECC ?ompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2580
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 25110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Supports HDMI 2.1 and HDCP 2.3. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz *Supports HDMI 1.4. (Graphics specifications may vary depending on processor support.) Supports up to four displays simultaneously
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,17
GTIN - 4719331867164
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 2.5GbE LAN)
LAN controller Network - Realtek RTL8125
Line-in Rear panel I/O ports - Yes
Link - https://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
LongSummaryDescription - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B860M AORUS ELITE WF6E ICE
Manufacturer Name - Gigabyte
Manufacturer_code - B860M A ELT WF6E ICE
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2160 pixels
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 5600,6400,9200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 9200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Model - B860M A ELT WF6E ICE
Model - B860M AORUS ELITE WIFI6E ICE
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B860
Motherboard form factor Features - micro ATX
MPN - B860M AORUS ELITE WF6E ICE
Name - Gigabyte B860M A ELT WF6E ICE
Name - GIGABYTE B860M AORUS ELITE WIFI6E ICE - Socket 1851 - motherboard (white)
name - GIGABYTE B860M Aorus Elite WiFi6E ICE Mainboard, Sockel LGA 1851, Intel B860, mATX, DDR5
Name - Gigabyte B860M AORUS ELITE WIFI6E ICE | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - LGA1851 Gigabyte B860M AORUS ELITE WF6E ICE
name - Motherboard B860M A ELT WF6E ICE
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX211
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless communication module
Intel Wi-Fi 6E AX211 (PCB rev. 1.0) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) Wi-Fi a, b, g, n, ac, and ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Supports the 11ax 160MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 4
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 3
Number of memory slots Memory - 4
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Number of water pump connectors Internal I/O - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.7 kg
Other information -
Package depth Packaging data - 268 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 327.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 145 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package weight Packaging data - 1902.5 g
Package width Packaging data - 270 mm
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.9 kg
Packaging data - Package width - 270 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8800 (PC5-70400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-9200 (PC5-73600)
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
ProducerCode - B860M A ELT WF6E ICE
Product colour Features - White
ProductName - B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
Product Net Weight - 1.4 kg
Products per shipping (inner) case Logistics data - 1 pc(s)
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Screws included Packaging content - Yes
Short description - GIGA B860M AORUS ELITE WF6E ICE S1851/DDR5/µATX
ShortDescription - Socket 1851| Chipset Intel B860| DDR5 |
ShortSummaryDescription - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) Memory - 9200 MHz
Supported memory clock speeds Memory - 5600/6400/9200 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1851
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B860M AORUS ELITE WIFI6E ICE
Title - GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4
Top Wi-Fi standard Network - Wi-Fi 6E (802.11ax)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.27
Unit Box Length - 0.275
Unit Box Width - 0.07
Unit Calculated Volume - 0.004032 cubm
Unit Calculated Weight - 1.9 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 2
USB4 Gen 2x2 ports quantity Rear panel I/O ports - 1
USB ports at back panel - 11
USB ports on motherboard - 7
Vendor Homepage - https://www.gigabyte.com/
vendpn - B860M A ELT WF6E ICE
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
Weight - 1,70
Weight - 1.684
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
Weight Other features - 1700 g
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Width Weight & dimensions - 244 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 11 x64
WLAN controller model Network - Intel Wi-Fi 6E AX211
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB4
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
