ID: 1018339
Product code: 7E07-014R
In stock 16 units
Warranty: 3 years

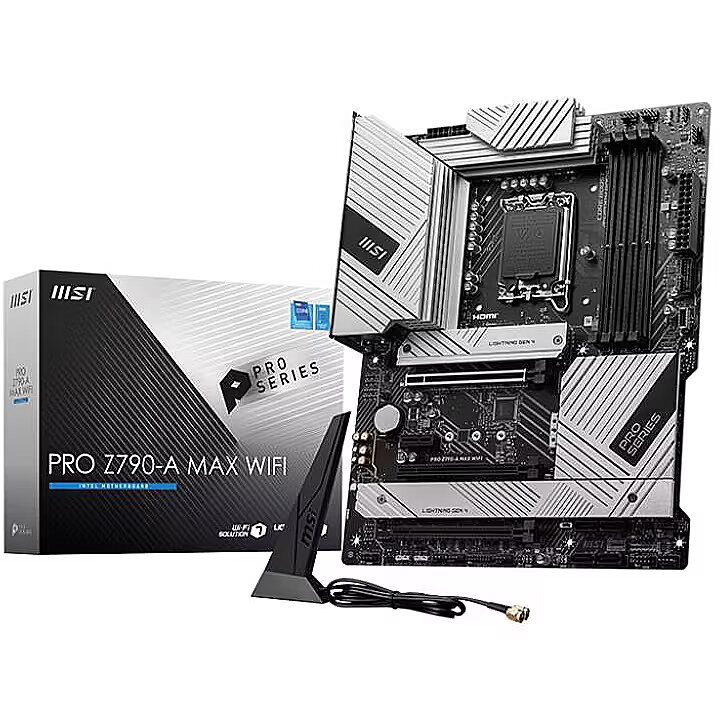

MSI PRO Z790-A MAX WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 16.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 16.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 16.05.2024
- Delivery to address in Riga 3.99 €: 16.05.2024
- Delivery to address in Latvia 6.99 €: 16.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 14.05.2024 after 15:00
Main product parameters All parameters
- Series: MSI PRO
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: MSI PRO
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC4080
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 3
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 6
More detailed specification
Accessories included -
Audio port Input/Output connectors - 5
BIOS -
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Desktop Management Interface (DMI) version - 6.4
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO Z790-A MAX WIFI
category - Mainboards Intel Mainboards
Category - Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 7E07-014R
Code - PRO Z790-A MAX WIFI
COM connector / port - No
CPU socket - LGA1700
Description - PRO Z790-A MAX WIFI - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC) - Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 - Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds - 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - Płyta główna PRO Z790-A MAX WiFi Obsługa procesorów Intel Core 14./13./12. generacji, procesorów Intel Pentium Gold i Celeron dla gniazda LGA 1700\ Obsługuje pamięć DDR5, dwukanałowy DDR5 7800+MHz (OC) Ulepszona konstrukcja zasilania: 16+1+1 DRPS z 80A SPS, podwójne 8-pinowe złącza zasilania procesora, wzmocnienie rdzenia, zwiększenie pamięci. Rozwiązanie termiczne klasy premium: rozszerzony radiator, podkładki termiczne MOSFET o mocy 7 W/mK, dodatkowe podkładki termiczne z dławikami i złącze M.2 Shield Frozr zapewniają wysoką wydajność systemu i nieprzerwaną rozgrywkę Wysokiej jakości PCB: 6-warstwowa płytka drukowana wykonana z miedzi o grubości 2 uncji i materiału klasy serwerowej Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, złącze Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Intel Turbo USB 3.2 Gen 2: Obsługiwany przez kontroler Intel USB 3.2 Gen2, Turbo USB zapewnia nieprzerwane połączenie z większą stabilnością i największą szybkością USB Rozwiązanie LAN 2,5G z Wi-Fi 7: Ulepszone rozwiązanie sieciowe do zastosowań profesjonalnych i multimedialnych. Zapewnia bezpieczne, stabilne i szybkie połączenie sieciowe Audio Boost 5: Studyjna jakość dźwięku, aby uzyskać najbardziej wciągające wrażenia z gry
description_en - Series: MSI PRO
Connector: LGA 1700
Chipset: Intel Z790
Board size: ATX
Memory type: DDR5
Memory slots: 4
Built-in Wi-Fi: Yes
description_lv - Sērija: MSI PRO
Ligzda (socket): LGA 1700
Mikroshēmu kopne (chipset): Intel Z790
Plates izmērs: ATX
Atmiņas tips: DDR5
Atmiņas sloti: 4
Iebūvēts Wi-Fi: Ir
description_ru - Серия: MSI PRO
Разъем: LGA 1700
Чипсет: Intel Z790
Размер платы: ATX
Тип памяти: DDR5
Слоты памяти: 4
Встроенный Wi-Fi: Да
Detailed data on disk/drive interfaces - 4x M.2 Źródło M.2_1 (z procesora) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 22110/2280/2260/2242 Źródło M.2_2 (z chipsetu) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 2280/2260/2242 Źródło M.2_3 (z chipsetu) obsługuje tryb PCIe 4.0 x4 / SATA, obsługuje urządzenia 2280/2260/2242 Źródło M.2_4 (z chipsetu) obsługuje tryb PCIe 4.0 x4 / SATA, obsługuje urządzenia 2280/2260/2242 6x SATA 6G
dimension depth - 75 mm
dimension height - 273 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 2030 g
dimension width - 373 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377139939
ean - 4711377139939
EAN_code - 4711377139939
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - Number of M.2 (M) slots - 4
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.0
External connectors - 3 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - 1xHDMI Obsługa HDMI 2.1 z HDR, maksymalna rozdzielczość 4K 60 Hz 1x DisplayPort Obsługa DP 1.4, maksymalna rozdzielczość 8K 60 Hz
Gross weight - 1.64 kg
gross_weight - 1.64 kg
GTIN - 0824142337301
GTIN - 824142337301
GTIN - 4711377139939
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LongDesc - PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORSTo provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
LongProductName - LGA 1700, Z790, 4x DDR5, Wi-Fi 6E, 2.5G LAN, AMI UEFI BIOS
LongSummaryDescription - MSI PRO Z790-A MAX WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E07-014R
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 UDIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Pro Max Z790-A
Model - Pro Z790-A
Model - PRO Z790-A MAX WIFI
name - MSI Pro Z790-A Max WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - MSI PRO Z790-A MAX WIFI - Socket 1700 - motherboard
Name - MSI | PRO Z790-A MAX WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6
name - PRO Z790-A MAX WIFI s1700 4DDR5 HDMI/DP ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network interface - Bluetooth
Network interface - Sieć LAN Intel 2,5 Gb/s Wi-Fi 7 Moduł bezprzewodowy jest wstępnie zainstalowany w gnieździe M.2 (Key-E). Obsługuje MU-MIMO TX/RX, 2,4 GHz / 5 GHz / 6 GHz (320 MHz) do 5,8 Gb/s Obsługuje 802.11 a/b/g/n/ac/ax/be Obsługuje Bluetooth 5.4, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
Producer product name - PRO Z790-A MAX WIFI
ProductName - PRO Z790-A MAX WIFI
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
ShortSummaryDescription - MSI PRO Z790-A MAX WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB
Socket - LGA1700
Software -
Sound card - Kodek Realtek ALC4080 7.1-kanałowy dźwięk USB o wysokiej wydajności Obsługuje wyjście S/PDIF
Special functions -
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO Z790-A MAX WIFI motherboard Intel Z790 LGA 1700 ATX
title_en - MSI Pro Max Z790-A WiFi-Motherboard
title_lv - MSI Pro Max Z790-A WiFi-Mātestplate
title_ru - MSI Pro Max Z790-A WiFi-Материнская Плата
TPM - Header
Unit Box Height - 0.072
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.007977 cubm
Unit Gross Weight - 2.15 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
Vendor Homepage - www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
vendpn - PRO Z790-A MAX WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
weight - 1.5 kg
Weight - 2,00
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 304.8 mm
WiFi Interface - Yes
Audio port Input/Output connectors - 5
BIOS -
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Desktop Management Interface (DMI) version - 6.4
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO Z790-A MAX WIFI
category - Mainboards Intel Mainboards
Category - Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 7E07-014R
Code - PRO Z790-A MAX WIFI
COM connector / port - No
CPU socket - LGA1700
Description - PRO Z790-A MAX WIFI - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC) - Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 - Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds - 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - Płyta główna PRO Z790-A MAX WiFi Obsługa procesorów Intel Core 14./13./12. generacji, procesorów Intel Pentium Gold i Celeron dla gniazda LGA 1700\ Obsługuje pamięć DDR5, dwukanałowy DDR5 7800+MHz (OC) Ulepszona konstrukcja zasilania: 16+1+1 DRPS z 80A SPS, podwójne 8-pinowe złącza zasilania procesora, wzmocnienie rdzenia, zwiększenie pamięci. Rozwiązanie termiczne klasy premium: rozszerzony radiator, podkładki termiczne MOSFET o mocy 7 W/mK, dodatkowe podkładki termiczne z dławikami i złącze M.2 Shield Frozr zapewniają wysoką wydajność systemu i nieprzerwaną rozgrywkę Wysokiej jakości PCB: 6-warstwowa płytka drukowana wykonana z miedzi o grubości 2 uncji i materiału klasy serwerowej Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, złącze Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Intel Turbo USB 3.2 Gen 2: Obsługiwany przez kontroler Intel USB 3.2 Gen2, Turbo USB zapewnia nieprzerwane połączenie z większą stabilnością i największą szybkością USB Rozwiązanie LAN 2,5G z Wi-Fi 7: Ulepszone rozwiązanie sieciowe do zastosowań profesjonalnych i multimedialnych. Zapewnia bezpieczne, stabilne i szybkie połączenie sieciowe Audio Boost 5: Studyjna jakość dźwięku, aby uzyskać najbardziej wciągające wrażenia z gry
description_en - Series: MSI PRO
Connector: LGA 1700
Chipset: Intel Z790
Board size: ATX
Memory type: DDR5
Memory slots: 4
Built-in Wi-Fi: Yes
description_lv - Sērija: MSI PRO
Ligzda (socket): LGA 1700
Mikroshēmu kopne (chipset): Intel Z790
Plates izmērs: ATX
Atmiņas tips: DDR5
Atmiņas sloti: 4
Iebūvēts Wi-Fi: Ir
description_ru - Серия: MSI PRO
Разъем: LGA 1700
Чипсет: Intel Z790
Размер платы: ATX
Тип памяти: DDR5
Слоты памяти: 4
Встроенный Wi-Fi: Да
Detailed data on disk/drive interfaces - 4x M.2 Źródło M.2_1 (z procesora) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 22110/2280/2260/2242 Źródło M.2_2 (z chipsetu) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 2280/2260/2242 Źródło M.2_3 (z chipsetu) obsługuje tryb PCIe 4.0 x4 / SATA, obsługuje urządzenia 2280/2260/2242 Źródło M.2_4 (z chipsetu) obsługuje tryb PCIe 4.0 x4 / SATA, obsługuje urządzenia 2280/2260/2242 6x SATA 6G
dimension depth - 75 mm
dimension height - 273 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 2030 g
dimension width - 373 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377139939
ean - 4711377139939
EAN_code - 4711377139939
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - Number of M.2 (M) slots - 4
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.0
External connectors - 3 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - 1xHDMI Obsługa HDMI 2.1 z HDR, maksymalna rozdzielczość 4K 60 Hz 1x DisplayPort Obsługa DP 1.4, maksymalna rozdzielczość 8K 60 Hz
Gross weight - 1.64 kg
gross_weight - 1.64 kg
GTIN - 0824142337301
GTIN - 824142337301
GTIN - 4711377139939
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LongDesc - PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORSTo provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
LongProductName - LGA 1700, Z790, 4x DDR5, Wi-Fi 6E, 2.5G LAN, AMI UEFI BIOS
LongSummaryDescription - MSI PRO Z790-A MAX WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E07-014R
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 UDIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Pro Max Z790-A
Model - Pro Z790-A
Model - PRO Z790-A MAX WIFI
name - MSI Pro Z790-A Max WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - MSI PRO Z790-A MAX WIFI - Socket 1700 - motherboard
Name - MSI | PRO Z790-A MAX WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6
name - PRO Z790-A MAX WIFI s1700 4DDR5 HDMI/DP ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network interface - Bluetooth
Network interface - Sieć LAN Intel 2,5 Gb/s Wi-Fi 7 Moduł bezprzewodowy jest wstępnie zainstalowany w gnieździe M.2 (Key-E). Obsługuje MU-MIMO TX/RX, 2,4 GHz / 5 GHz / 6 GHz (320 MHz) do 5,8 Gb/s Obsługuje 802.11 a/b/g/n/ac/ax/be Obsługuje Bluetooth 5.4, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
Producer product name - PRO Z790-A MAX WIFI
ProductName - PRO Z790-A MAX WIFI
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
ShortSummaryDescription - MSI PRO Z790-A MAX WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB
Socket - LGA1700
Software -
Sound card - Kodek Realtek ALC4080 7.1-kanałowy dźwięk USB o wysokiej wydajności Obsługuje wyjście S/PDIF
Special functions -
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO Z790-A MAX WIFI motherboard Intel Z790 LGA 1700 ATX
title_en - MSI Pro Max Z790-A WiFi-Motherboard
title_lv - MSI Pro Max Z790-A WiFi-Mātestplate
title_ru - MSI Pro Max Z790-A WiFi-Материнская Плата
TPM - Header
Unit Box Height - 0.072
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.007977 cubm
Unit Gross Weight - 2.15 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
Vendor Homepage - www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
vendpn - PRO Z790-A MAX WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
weight - 1.5 kg
Weight - 2,00
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 304.8 mm
WiFi Interface - Yes
