MSI MAG X670E TOMAHAWK WIFI

Accessories included -
Audio port Input/Output connectors - 5
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MAG X670E TOMAHAWK WIFI
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD X670
Chipset manufacturer - AMD
Chipset type - AMD X670
code - 7E12-001R
Code - MAG X670E TOMAHAWK WIFI
COM connector / port - No
CPU socket - Socket AM5
Description - - Supports AMD Ryzen™ 7000 Series Desktop Processors - Supports DDR5 Memory, up to 6000+(OC) MHz - Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2 - Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience - High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
Description - MAG X670E TOMAHAWK WIFI Supports AMD Ryzen 7000 series desktop processors Supports DDR5 memory, up to 6000+(OC) MHz Improved Power Design: 14+2+1 Duet Rail Power System, Dual 8-Pin CPU Power Connectors, Core Boost, Memory Boost Lightning-fast gaming speed: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2 Ultimate thermal solution: Extended heatsink design and M.2 Shield Frozr are designed for high system performance and non-stop operation Enhanced Audio: Studio quality audio for the ultimate gaming experience High-quality PCB: 8-layer PCB made of thickened 2oz copper and server-grade material
Detailed data on disk/drive interfaces - 4x M.2: M.2_1 (from CPU) supports up to PCIe 5.0 x4, supports 22110/2280 M.2_2 (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 M.2_3 (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 M.2_4 (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 4 x SATA 6G
dimensionalWeight - 1323
dimension depth - 72 mm
dimension height - 270 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1957 g
dimension width - 345 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377076562
ean - 4711377076562
Eans - 4711377076562
EAN_code - 4711377076562
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 2
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

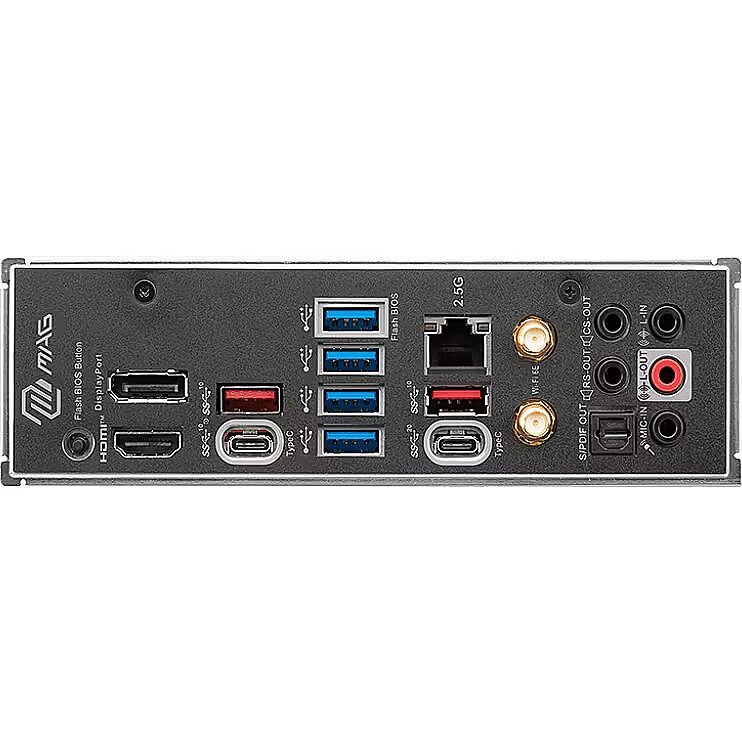

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC1200
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X670
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000 MHz
Full Description Line - AMD X670|SAM5|ATX|DDR5|6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1200|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - HDMI port - Supports HDMI 2.1 FRL, max resolution 4K 120Hz* DisplayPort - Supports DP 1.4, max resolution 4K 60Hz* Type-C DisplayPort - Supports DisplayPort 1.4 with HBR3, 4K 120Hz max resolution *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Gross weight - 1.64 kg
GTIN - 4711377076562
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1200
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
LongDesc - MAG UNITE AS ONEThe MAG series fights alongside gamers in pursuit of honor.With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.EXCLUSIVE FEATURE- Core Boost Technology- 8 Layer PCB with 2oz Thickened Copper- Digital PWM- Steel ArmorPREMIUM THERMAL SOLUTION- Extented Heatsink- M.2 Shield Frozr- Pump Fan Support- Heatsink with 7W/mK Thermal PadHIGH-SPEED TRANSMISSION- 2.5G Network Solution- Wi-Fi 6E- Memory Boost- Lightning Gen 5HARDWARECOOLINGCOOLING OVERVIEWExtended HeatsinkExtended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.FULLY FAN CONTROLCONTROL IN ONE CLICKMSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.AUTO DETECT YOUR FANMSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.WATER COOLINGOPTIMIZED FOR WATER COOLINGDesigned to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.SYSTEM COOLINGDIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.POWER SOLUTIONSTRUCTURE14+2+1 DUET RAIL POWER SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.DIGITALL POWER DESIGNA fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.DOUBLE POWER CONNECTORSTwo 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.CORE BOOSTPremium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.PCB DESIGNOPTIMIZED PCB SOLUTIONThe PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.- 8 PCB layers- IT-170GR PCB material- 2oz Thickened CopperEZ OC TUNINGPERFORMANCE SWITCHPerformance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI’s own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.PBO THERMAL POINTMSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.CONFIG TDPConfig TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don’t need to modify settings manually for each TDP.MORE FOR PERFORMANCE1-SECOND OVERCLOCKING!MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.LOAD-LINE CALIBRATIONWhat you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.OVERVOLTAGE PROTECTIONPrevents potential short-circuit damage to the CPU and other critical components.DIY FRIENDLYEZ M.2 CLIPHave trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.MSI DRIVER UTILITY INSTALLEROnce connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.FLASH BIOS BUTTONRun into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.MORE FOR DIY FRIENDLYWINDOWS 11 CERTIFIEDWith MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.PRE-INSTALLED I/O SHIELDThe design protect your IO ports and makes your installation process easier and safer.XL CLIPThe enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.EZ DEBUG LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.KEEP OUT ZONEMSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.PERFORMANCEEXPANSIONLIGHTNING GEN 5 PCI-ELIGHTNING GEN 5 PCI-E WITH STEEL ARMORLIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED, HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.STORAGEFAST AND FUTURE-READY STORAGEMSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.USBLIGHTNING USB 20GDOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20GUsing USB 3.2 devices has never been faster! MAG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.FRONT USB TYPE-CUSB FRONT TYPE-CMSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.MEMORYDDR5LATEST DDR5 MEMORY WITH SMT SLOTA huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X670E TOMAHAWK WIFI is ready to deliver the world class memory performance.The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.EXPOEASY OVERCLOCKING WITH EXPO PROFILEMSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.BIOS & SOFTWARECLICK BIOS 5Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!EXPO (EXTENDED PROFILES FOR OVERCLOCKING)Choose from a preset EXPO profile and automatically overclock compatible DDR memory.GAME BOOSTQuickly overclock your CPU with a single button for more performance.M-FLASHConveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.HARDWARE MONITORGet immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.MEMORY TRY ITGet extreme speed out of your system memory and get more performance.SEARCH & FAVORITESA permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.MSI CENTERMSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.Mystic LightCreate your own colorful masterpiece with ease. Splash any color you want with just a few clicks!True ColorOptimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.User ScenarioOne click for setting your computer, even customize own profile as your preference.Hardware MonitoringGet immediate access to your critical hardware information in real-time.Profile SettingTune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.Fan CenterAssume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.System DiagnosisRestore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.AIDA64EXCLUSIVE UI OF AIDA64 EXTREMEMSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.NORTON 360OPT-IN TO CYBER SAFETY WITH NORTON 360 DELUXEMultiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.- Up to 50 GB PC cloud backup- Real time Threat protection and Smart Firewall- Password manager- PC SafeCamRESIZABLE BARResizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.CONNECTIVITYAUDIOAUDIO BOOST- HIGH DEFINITION ALC1200 AUDIO PROCESSOR- HIGH QUALITY AUDIO CAPACITORS- HIGH QUALITY AUDIO JACKS WITH S/PDIF- DEDICATED HEADPHONE AMPLIFIER- ISOLATED AUDIO SIGNAL- DE-POP PROTECTIONMYSTIC LIGHTSYNCHRONIZEEXTEND YOUR RGB EXPERIENCE WITH EASEAdd more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.A-RAINBOW V2Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.RGBSupports 12V RGB devices.AMBIENT LINKSynchronize lighting theme with compatible lighting devices.NETWORKING2.5G LAN & WI-FI 6EHIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.- Wi-Fi 6E- Bluetooth 5.3- 2.5G LAN
LongProductName - AMD X670, 4x DDR5, 128GB, PCIe 5.0 slot, Lightning Gen5 M.2, SATA, USB 3.2, Wi-Fi 6E, Bluetooth 5.3, 243.84 x 304.8 mm
LongSummaryDescription - MSI MAG X670E TOMAHAWK WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E12-001R
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - No
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - MAG X670E TOMAHAWK WIFI
MPN - 7E12-001R
Name - AM5 MSI X670E Tomahawk WIFI ATX
name - Motherboard MAG X670E TOMAHAWK WIFI AM5 4DDR5 HDMI/DP ATX
Name - MSI MAG X670E TOMAHAWK WIFI
name - MSI MAG X670E Tomahawk WiFi, AMD X670E Mainboard - Sockel AM5
Name - MSI MAG X670E TOMAHAWK WIFI, motherboard
Name - MSI | MAG X670E TOMAHAWK WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN: Realtek RTL8125BG 2.5Gbps LAN Wireless communication: AMD WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz, 160MHz in 2.4GHz/5GHz or 6GHz bands Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3
Network interface - Wi-Fi 802.11a/b/g/n/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x System panel header
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Onboard connectors - 6 x 4pin wentylator obudowy
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - AMD Opteron series - 7000
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 7
producer - MSI
Producer - MSI
producerCode - 7E12-001R
ProducerCode - MAG X670E TOMAHAWK WIFI
Producer product name - MAG X670E TOMAHAWK WIFI
ProductName - MAG X670E TOMAHAWK WIFI
productName - MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.946 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket AM5 | Chipset AMD X670E | DDR5
ShortSummaryDescription - MSI MAG X670E TOMAHAWK WIFI, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 128 GB
sizeX - 350
sizeY - 270
sizeZ - 70
Socket - SAM5
Software -
Sound card - Realtek ALC1200 Codec 7.1-Channel High Definition Audio S/PDIF out
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI MAG X670E TOMAHAWK WIFI motherboard AMD X670 Socket AM5 ATX
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.006426 cubm
Unit Gross Weight - 1.95 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Motherboard/MAG-X670E-TOMAHAWK-WIFI/Overview
USB-C Input/Output connectors - 2
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 9
Vendor Homepage - www.msi.com/Motherboard/MAG-X670E-TOMAHAWK-WIFI/Overview
vendpn - MAG X670E TOMAHAWK WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,95
Weight - 1.8
weight - 1954
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
