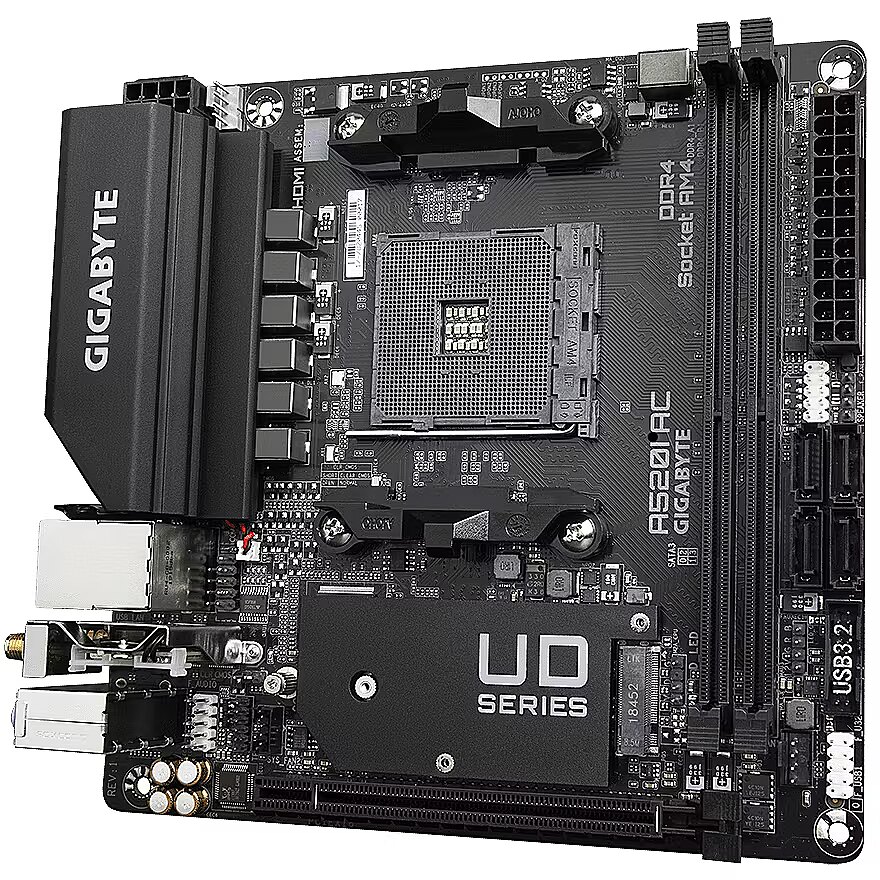

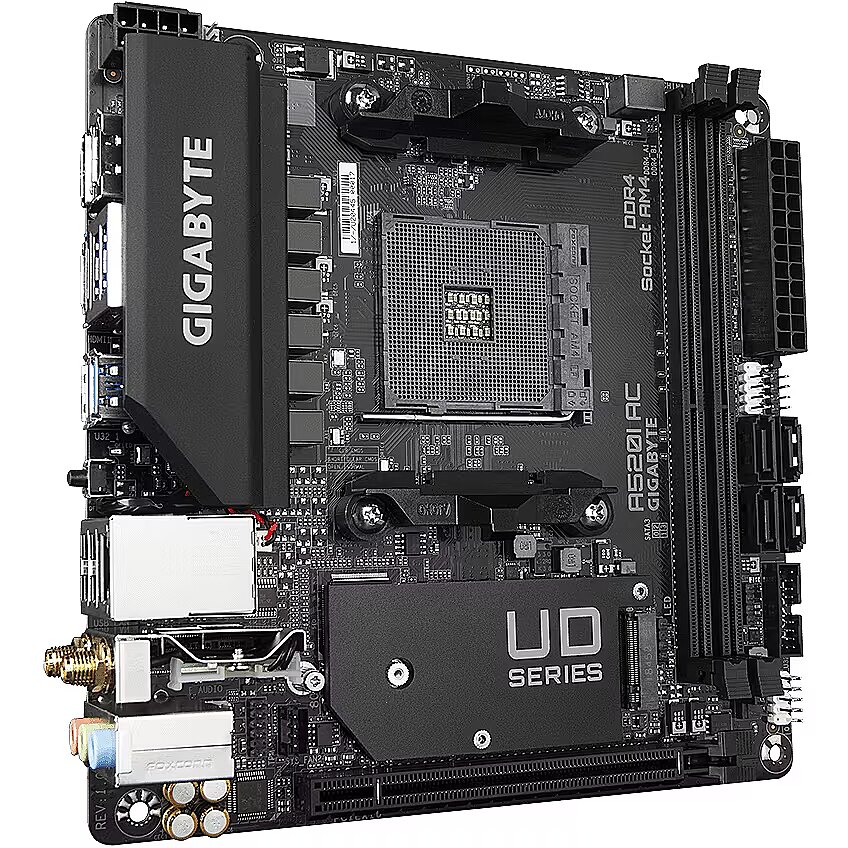

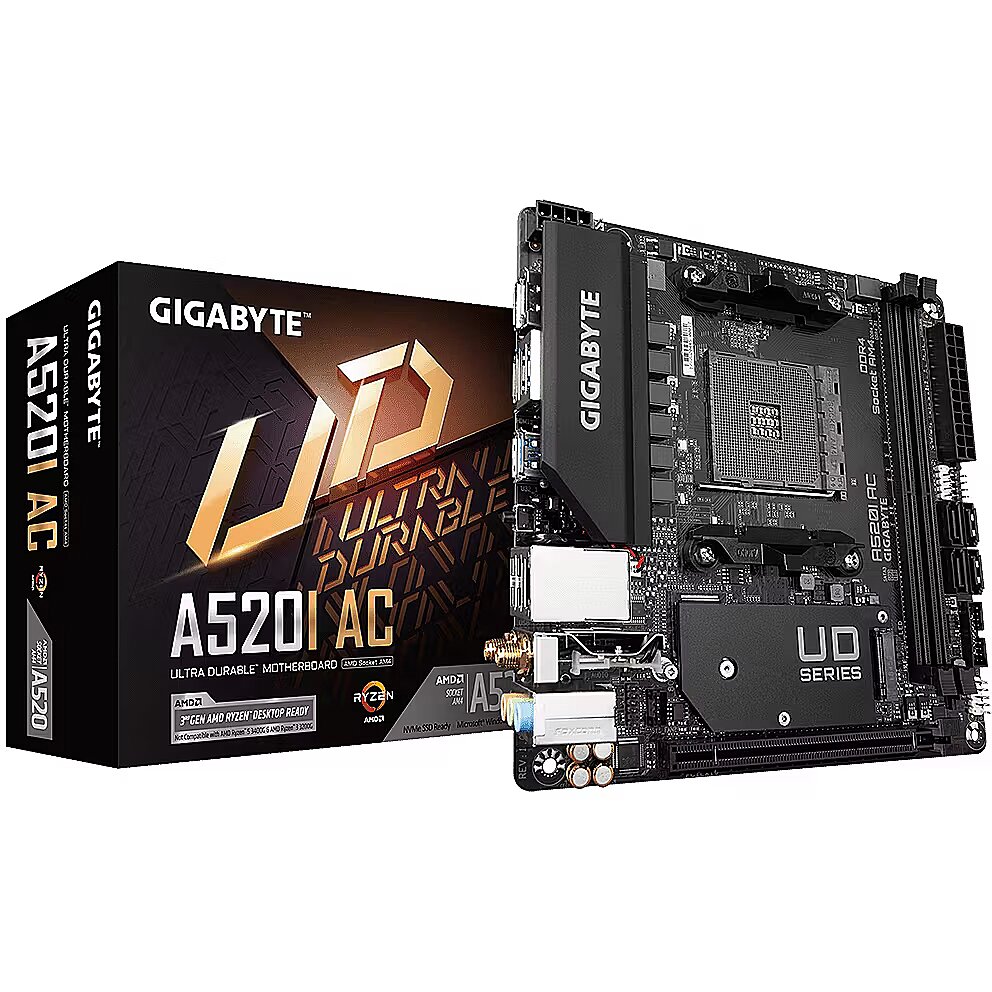

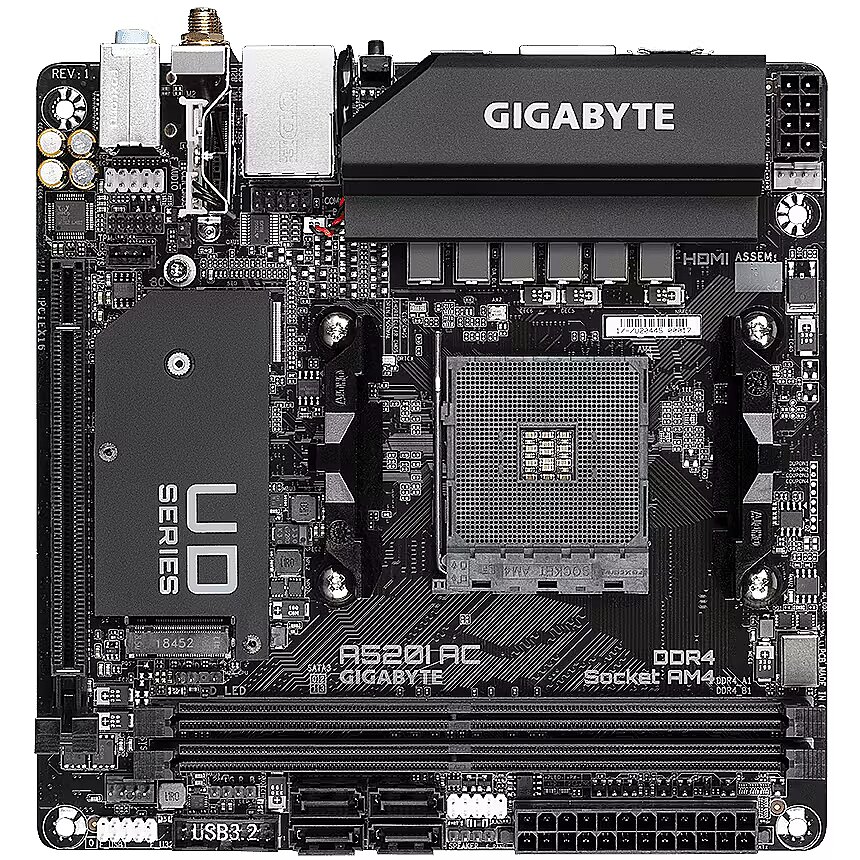

Gigabyte A520I AC

Accessories included -
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - A520I AC
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset manufacturer - AMD
Chipset type - AMD A520
Code - A520I AC
COM connector / port - Yes
CPU socket - Socket AM4
Description - AMD A520 Mini-ITX Ultra Durable motherboard with Direct 6 Phases Digital VRM, integrated Intel 802.11ac Wi-Fi, Realtek GbE LAN with bandwidth management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0 , Q-Flash Plus Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series processors Dual-channel ECC/non-ECC unbuffered DDR4 memory, 2 DIMMs Direct 6-phase digital VRM with 55A DrMOS Ultra-fast NVMe PCIe 3.0 x4 M.2 connector Built-in Intel Dual Band 802.11ac WIFI and BT 4.2 with Ultra Durable Antenna Realtek GbE LAN with bandwidth management DisplayPort, dual HDMI for multiple displays RGB FUSION 2.0 with support for addressable LED strips and RGB LEDs Smart Fan 5 is equipped with multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus Update BIOS without installing CPU, memory and graphics card Design of anti-sulfur resistors
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Integrated in the CPU 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
dimensionalWeight - 731
dimension depth - 80 mm
dimension height - 200 mm
Dimensions - 17 x 17 cm
dimension weight - 800 g
dimension width - 220 mm
EAN - 4719331809867
ean - 4719331809867
Eans - 4719331809867
EAN_code - 4719331809867
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 slots - 1

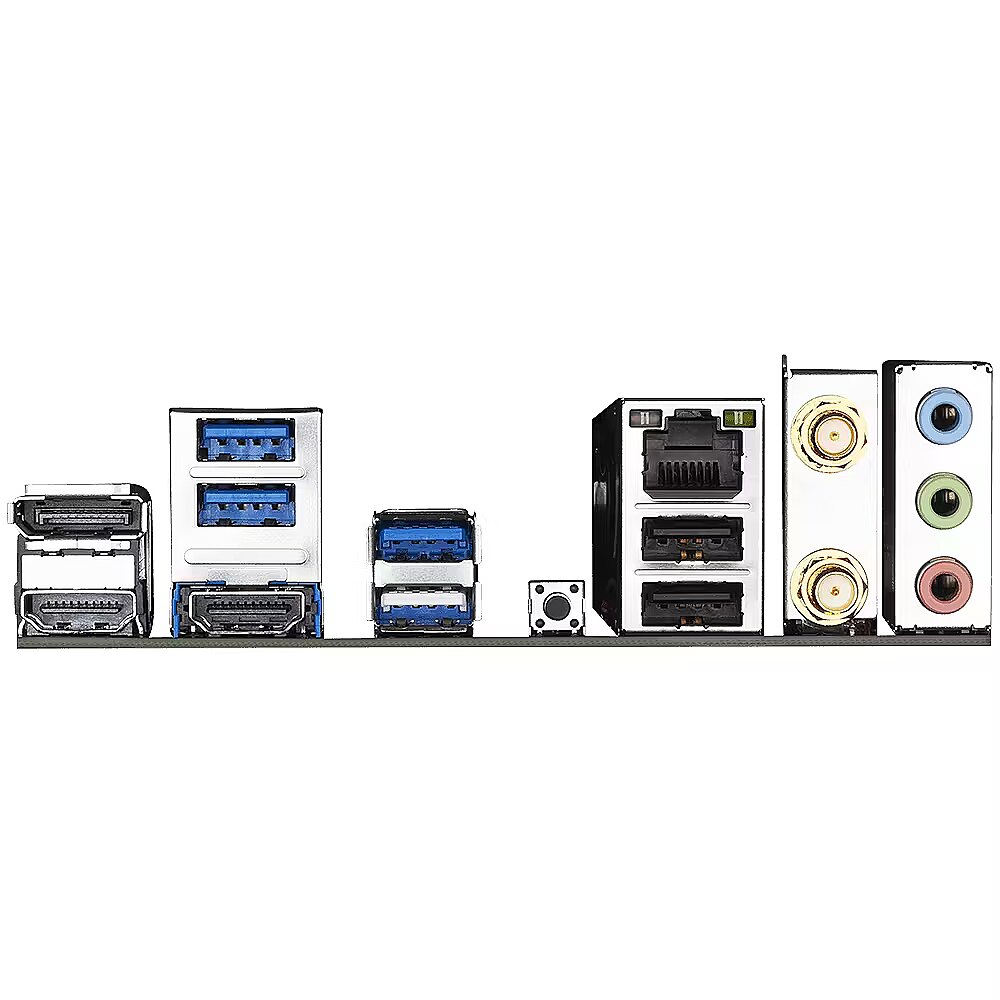

External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 2 x HDMI
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC887
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A520
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - mini ITX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
FireWire (IEEE 1394) - No
Form factor - mini ITX
Graphics - 1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz * Support for DisplayPort 1.4, HDCP 2.3 and HDR versions. 2 HDMI ports supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR versions. Support for up to 3 displays simultaneously Maximum shared memory 16 GB
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
Graphics - Number of displays supported - 3
Gross weight - 1.00 kg
GTIN - 0889523023785
GTIN - 889523023785
GTIN - 4719331809867
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Link - https://www.gigabyte.com/Motherboard/A520I-AC-rev-1x/sp#sp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - PERFORMANCEDirect 6 Phases Digital VRM Solution with 55A DrMOSA520I AC motherboard uses a Direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.- Digital PWM Controller delivers appropriate voltage to the CPU.- Direct 6 Phases DrMOS, each power phase connects directly to the CPU. With capability to handle up to 330 Amps current in total.- All-solid capacitors to improve Transient response and minimize oscillation.- 8pin Solid Pin CPU Power Connector.Faster and Better Coverage with Dual Band 802.11ac WIFI & BT4.2 ModuleThe onboard 802.11ac WIFI module from Intel® supports the Dual Band and up to 433 Mbps transition speed, 3x faster than 802.11n and also support BLUETOOTH 4.2.The brand new of Ultra Durable™ Antenna supports Dual Band 802.11ax/ac 2.4GHz & 5GHz with 4dBi signal gained. It featured with better signal strength as compared to traditional antenna design and the magnetic base is the best design for signal strength direction and location.Exclusive Realtek 8118 Gaming LANHigh Speed Gigabit LAN with Automatic Bandwidth AllocationRealtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.NVMe PCIe Gen3 x4 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 SupportHDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.The Industry's Leading LAN Static-Electricity & Surge ProtectionGIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.COOLINGSmart Fan 5With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.- 5 Temperature Sensors- 3 Fan Pin Headers- All Fan Pin Headers Upgraded to Hybrid Fan Headers- Interoperable Fans and Sensors- Intuitive UI for Fan ControlFAN STOPAchieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.Hybrid Fan Pin HeadersAssume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.New Smart Fan 5 SoftwareChoose from different modes, Quiet to Full Speed, to match your system usage preferences.For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.LIGHTINGRGB FUSION 2.0With A520 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.With A520 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.RGB Fusion 2.0 SoftwareWith an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.ULTRA DURABLEQ-Flash PlusUpdate the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!Solid Pin Power ConnectorsA520 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.Solid Pin Power connector advantages- Larger contact area for electricity- More metal quantity to sustain higher power and generated heat- Ultra durable and longer lifespanSTART SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.GIGABYTE EXCELLENCERefreshed BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.APP CENTERGIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.EasyTune™GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.@BIOSThe GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
LongProductName - Mini-ITX, AMD A520 chipset, Socket AM4, 2xDDR4 DIMM slots, 7.1ch audio, Gigabit LAN, Wi-Fi, Bluetooth
LongSummaryDescription - Gigabyte A520I AC. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer_code - A520I AC
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4866
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5100 MHz
Memory - Supported memory clock speeds - 5200
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5100 MHz
Memory bus frequency - 5200 MHz
Memory type - DDR4
Model - A520I AC
name - A520I AC AM4 2DDR4 DP/2HDMI mITX
Name - Gigabyte A520I AC
Name - GIGABYTE A520I AC - Socket AM4 - mainboard
Name - Gigabyte | A520I AC | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Number of SATA connectors 4 | Chipset AMD A | Mini ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 4.2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Bluetooth
Network interface - Realtek GbE LAN chip (10/100/1000 Mbit) Wireless communication module Intel Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3) / Intel Wi-Fi AC 9260 (For PCB rev. 1.1) / Realtek Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) (For PCB rev. 1.4) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.
Network interface - Wi-Fi 802.11a/b/g/n/ac
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information - Voltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 250.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 200.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 432 pc(s)
Package features > Paper/Pasteboard - 328.00 g
Package features > Plastic (No PET) - 70.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Bundled software - Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Performance > Chipset - AMD A
Performance > Motherboard form factor - Mini ITX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
producerCode - A520I AC
ProducerCode - A520I AC
Producer product name - A520I AC
ProductName - A520I AC
productName - Gigabyte A520I AC motherboard AMD A520 Socket AM4 mini ITX
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - WiFi-AP antenna jack - 2
ShortDescription - Socket AM4 | Chipset AMD A520
ShortSummaryDescription - Gigabyte A520I AC, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., Socket AM4, DDR4-SDRAM, 64 GB
sizeX - 223
sizeY - 193
sizeZ - 85
Software - Norton Internet Security (wersja OEM) LAN bandwidth management software
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Special functions - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS support EasyTune ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Q-Flash support support for Xpress Install
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.60 kg
Technical details > Producer - Gigabyte
Title - Gigabyte A520I AC motherboard AMD A520 Socket AM4 mini ITX
URL - https://www.gigabyte.com/Motherboard/A520I-AC-rev-1x
USB ports at back panel - 6
USB ports on motherboard - 4
vendpn - A520I AC
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,81
weight - 800
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
