Accessories included -
Audio port Input/Output connectors - 3
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - B450M K
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD B450
Chipset manufacturer - AMD
Chipset type - AMD B450
code - B450M K
Code - B450M K
COM connector / port - No
CPU socket - Socket AM4
Description - AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, ?PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design? - Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors? - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs? - PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support? - GbE LAN with Bandwidth Management? - 8-Channel HD Audio with High Quality Audio Capacitors? - Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers? - GIGABYTE APP Center, Simple and Easy Use?
Description - AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-sulfide Resistor Design Supports AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 3rd Gen / Ryzen 2nd Gen / Ryzen 1st Gen / Ryzen 2nd Gen with Radeon Vega Graphics / Ryzen 1st Gen with Radeon Vega Graphics / Athlon CPUs graphics Radeon Vega Dual channel DDR4 unbuffered non-ECC memory, 2 DIMMs PCIe Gen3 x4 M.2 with support for PCIe NVMe and SATA mode GbE LAN with bandwidth management 8-channel HD audio with high-quality audio capacitors Smart Fan 5 includes 5 temperature sensors and 2 hybrid fan connectors GIGABYTE Application Center, simple and easy to use
Detailed data on disk/drive interfaces - 1 x M.2 connector (Slot 3, M Key, type 22110/2280/2260/2242 SATA and support PCIe 3.0 x4/x2 SSD) 4 SATA 6Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices Support for RAID 0, RAID 1 and RAID 10 for SATA storage devices
dimensionalWeight - 648
dimension depth - 50 mm
dimension height - 235 mm
Dimensions - 24.4 x 19.5cm
dimension weight - 648 g
dimension width - 270 mm
EAN - 4719331849801
ean - 4719331849801
Eans - 4719331849801
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 2.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3466/3600 MHz
Full Description Line - AMD B450|SAM4|Micro-ATX|DDR4|3600/3466/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 2.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xHDMI|2xUSB 2.0|4xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - 1 x HDMI port supporting a maximum resolution of 4096x2160 @ 60Hz * Support for HDMI 2.0 and HDCP 2.2. Maximum shared memory 16 GB
Graphics - HDCP - Yes
Graphics - Maximum graphics card memory - 16000 MB
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.76 kg
GTIN - 4719331849801
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LongDesc - NVMe PCIe Gen 3x4 22110 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.GbE LAN with Bandwidth ManagementGbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.Smart Fan 5With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.Hybrid Fan Pin HeadersAssume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.New Smart Fan 5 SoftwareChoose from different modes, Quiet to Full Speed, to match your system usage preferences.For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.START SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.The Industry's Leading Surge ProtectionGIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.Humidity Protection Glass Fabric PCBThere is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.High Temperature Protection Lower RDS(on) MOSFETs DesignGIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.New User InterfaceAll new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.My FavoritesAdd constantly used items into the favorite menu for quick access.Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.APP CENTERGIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.EasyTuneGIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.@BIOSThe GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
LongProductName - AMD B450, AM4, 2x DDR4 DIMM, M.2, SATA III, USB 3.1, Micro ATX, 244x195 mm
LongSummaryDescription - Gigabyte B450M K (rev. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Athlon, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 10. Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - Gigabyte
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3466,3600 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - B450M K
MPN - B450M K
Name - AM4 Gigabyte B450M K
name - B450M K AM4 2DDR4 HDMI USB 3.2 M.2 uATX
name - GIGABYTE B450M-K, AMD B450 Mainboard - Sockel AM4, DDR4
Name - Gigabyte B450M K
Name - Gigabyte | B450M K 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 52.00 mm
Package features > Gross width (mm) - 235.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 534 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 25.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 2.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 5
Processor - Compatible processor series - 2nd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Athlon
Processor - Compatible processor series - AMD Athlon, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - Gigabyte
Producer - Gigabyte
producerCode - B450M K
ProducerCode - B450M K
Producer product name - B450M K 1.0
ProductName - B450M K (rev. 1.0)
productName - Gigabyte B450M K (rev. 1.0) AMD B450 Socket AM4 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 2
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes

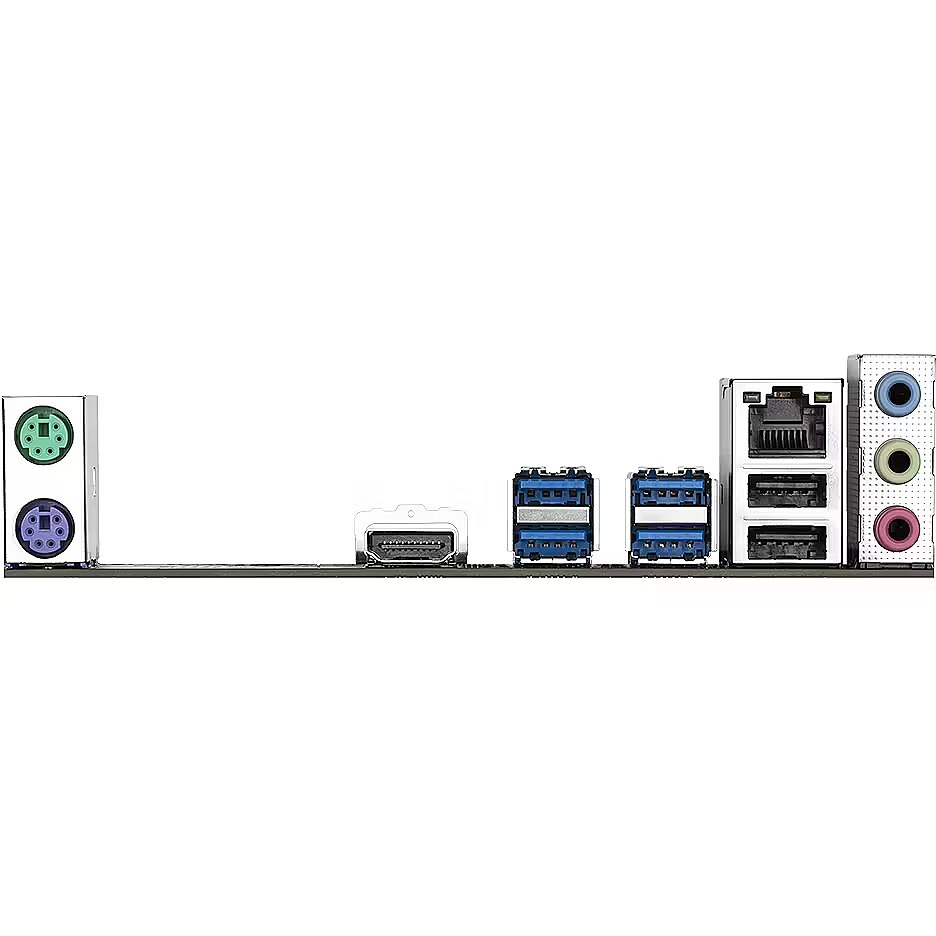

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.672 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
ShortDescription - Socket AM4 | Chipset AMD B450
ShortSummaryDescription - Gigabyte B450M K (rev. 1.0), AMD, Socket AM4, AMD Athlon, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD..., DDR4-SDRAM, 64 GB, DIMM
sizeX - 240
sizeY - 50
sizeZ - 270
Socket - SAM4
Software -
Sound card - Realtek audio codec Support for High Definition Audio Number of audio channels 2/4/5.1/7.1 *To configure 7.1 audio channels, use the front panel audio connector and make the appropriate settings in the sound options)
Special functions - Support for APP Center Support @ BIOS EasyTune Smart Backup System Information Viewer Q Flash support support for Xpress Install
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - SATA III
Supported operating systems - Windows 7
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.53 kg
Technical details > Producer - Gigabyte
Title - Gigabyte B450M K (rev. 1.0) AMD B450 Socket AM4 micro ATX
TPM - Header
Unit Box Height - 0.24
Unit Box Length - 0.27
Unit Box Width - 0.055
Unit Brutto Volume - 0.003564 cubm
Unit Gross Weight - 0.672 kg
Unit Net Weight - 0.5 kg
URL - https://www.gigabyte.com/Motherboard/B450M-K-rev-10#kf
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/B450M-K-rev-10#kf
vendpn - B450M K
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.66
weight - 650
Weight & dimensions - Depth - 195 mm
Weight & dimensions - Width - 244 mm
