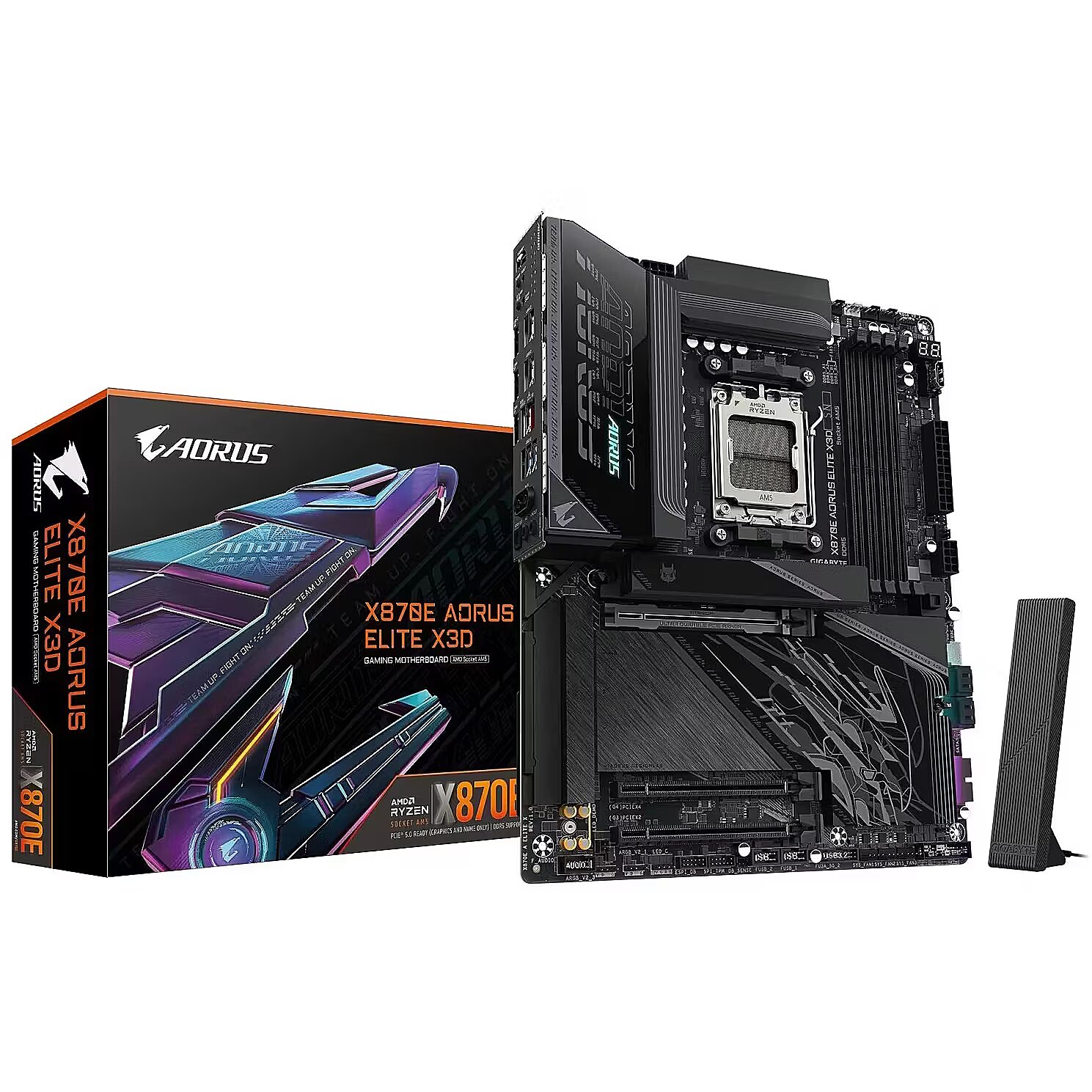

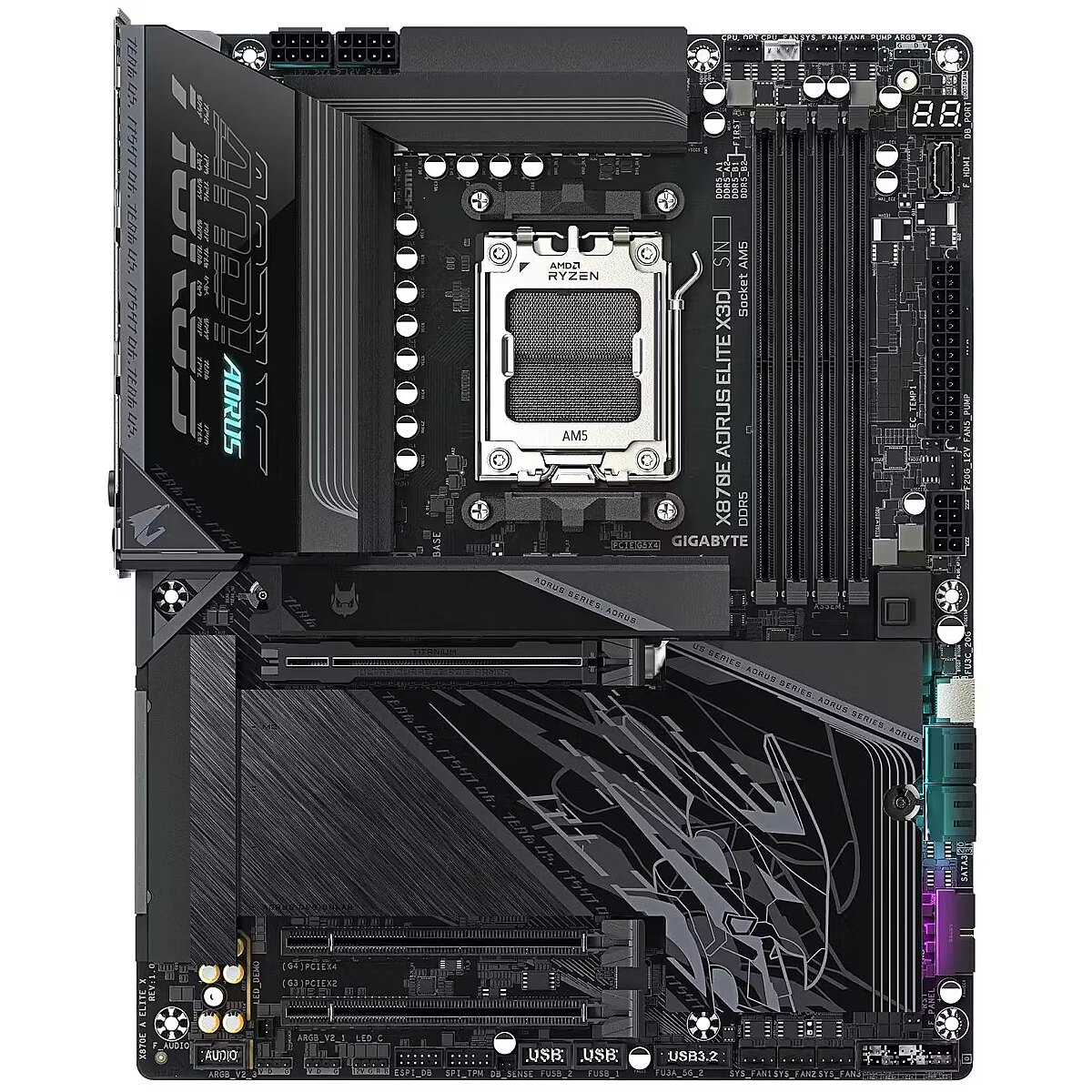

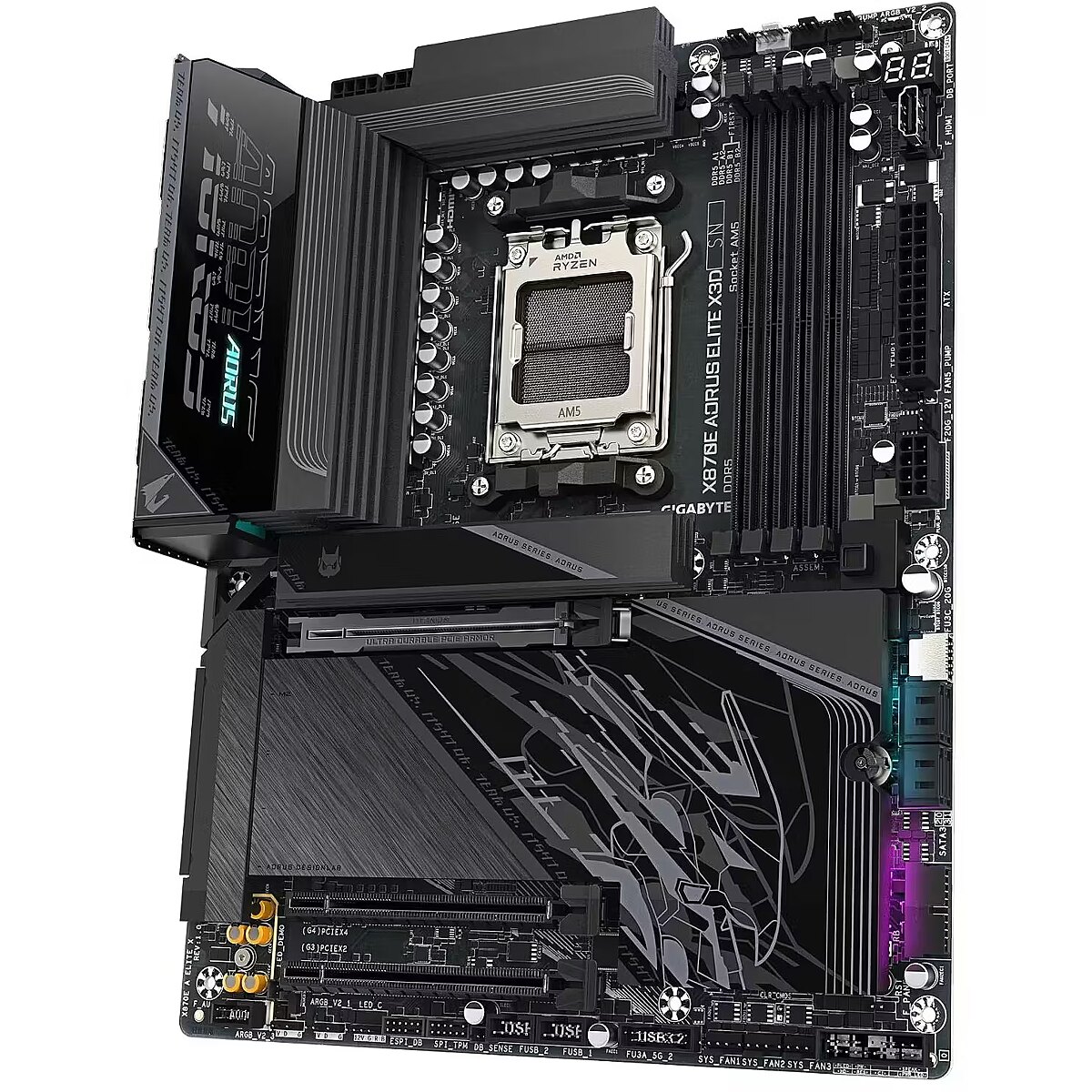

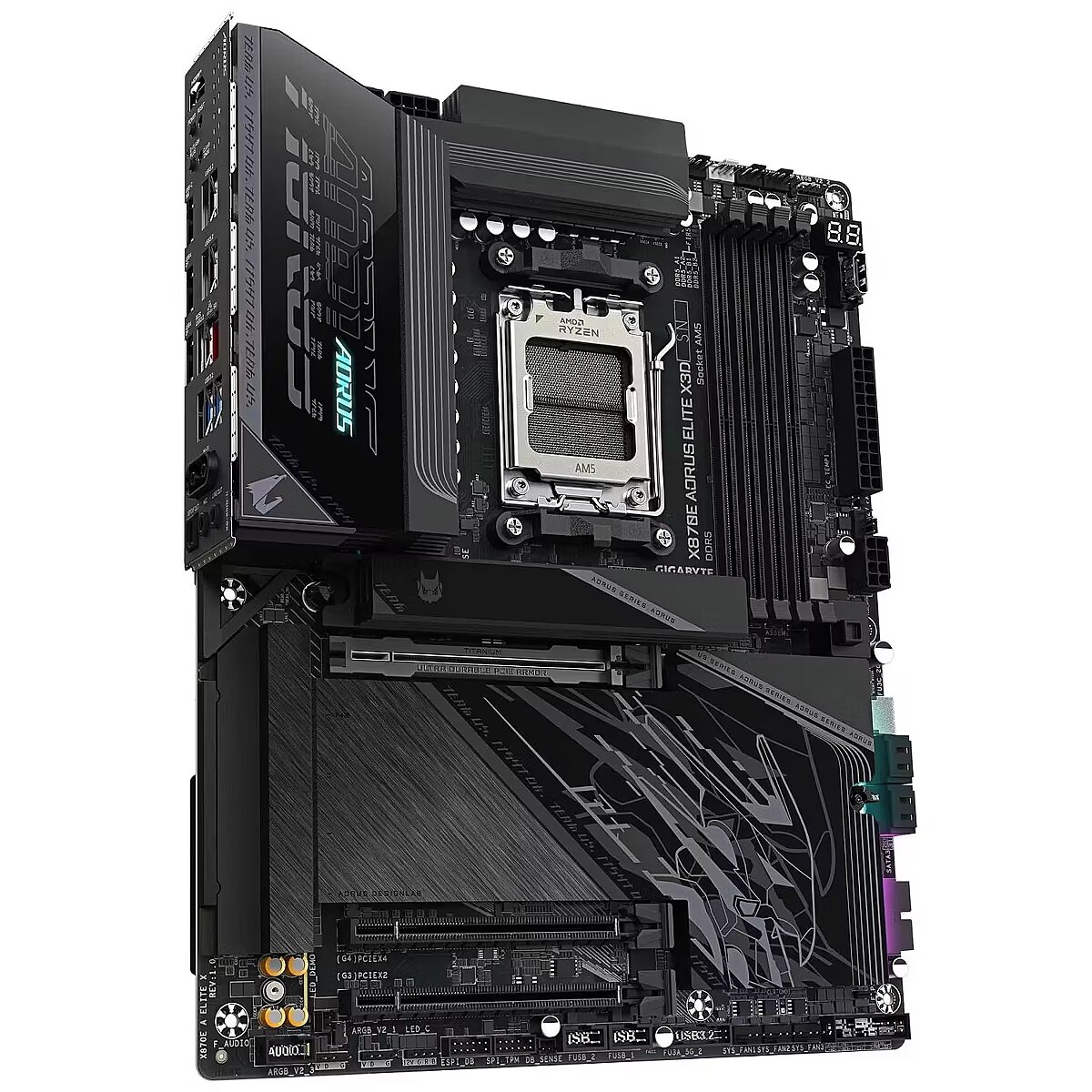

Gigabyte X870E AORUS ELITE X3D

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1280440 Product code: X870E A ELITE X
In stock 1 units
Warranty: 3 years
378.61 €
Ready for dispatch
on Thuesday, 16.12.2025
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
Main product parameters All parameters
  • Series: Gigabyte AORUS
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : Gigabyte AORUS
Plate size ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MHz (9000MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1220
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir

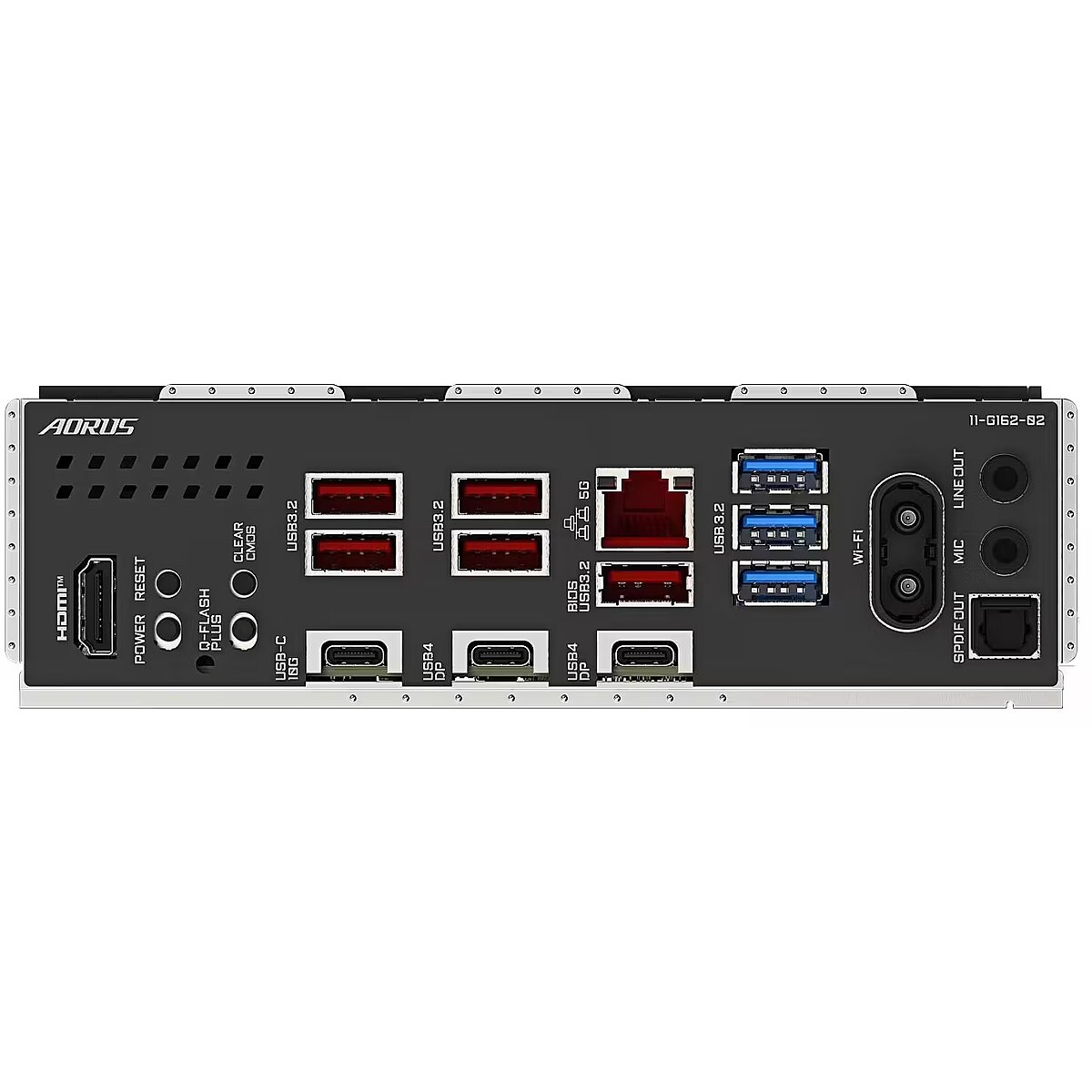

External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 3
External USB 3.1 (USB 3.2 Gen2) : 5
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 4
Power supply units (PSU)
  • Alternatives
  • Alternatives
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Gigabyte X870E AORUS ELITE X3D
1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 25110
2nd M.2 highest PCI Express generation Expansion slots - 5.0
2nd M.2 largest key size Expansion slots - 22110
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 22110
4th M.2 highest PCI Express generation Expansion slots - 4.0
4th M.2 largest key size Expansion slots - 22110
ACPI version BIOS - 5.0
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1220-VB
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 512 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
Brand - GIGABYTE
BrandPartCode - X870E A ELITE X
Bundled software Packaging content - Norton® Internet Security (OEM version)
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
CnCode - 84733020
Compatible processor series Processor - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Component for Features - PC
Cooling type Features - Passive
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
Dane techniczne: Chipset płyty głównej - AMD X870E
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Description - GIGABYTE X870E A ELITE X Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology. X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution M.2 EZ-Flex: high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4 Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
Desktop Management Interface (DMI) version BIOS - 2.7
Digital audio optical out Rear panel I/O ports - 1
DirectX version Graphics - 12.0
DisplayPort version Rear panel I/O ports - 1.4
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220 7.1)
Eans - 4719331876470
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC1220-VB
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331876470
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of noise detection headers - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of temperature sensor headers - 2
Internal I/O - Number of water pump connectors - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 5GbE LAN)
LAN controller Network - Realtek RTL8126
Line-in Rear panel I/O ports - Yes
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - X870E AORUS ELITE X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
LongSummaryDescription - GIGABYTE X870E AORUS ELITE X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Maximum internal memory Memory - 256 GB
Maximum internal memory per slot Memory - 64 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9000 MHz
Memory - Supported memory clock speeds - 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Model - X870E A ELITE X
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD X870E
Motherboard form factor Features - ATX
Name - Gigabyte X870E AORUS ELITE X3D
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Qualcomm QCNCM865
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 6
Number of CPU fan connectors Internal I/O - 2
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 4
Number of memory slots Memory - 4
Number of noise detection headers Internal I/O - 1
Number of RGB LED pin headers Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 8
Number of temperature sensor headers Internal I/O - 2
Number of water pump connectors Internal I/O - 3
Other features - Weight - 2.98 kg
Package depth Packaging data - 294 mm
Package height Packaging data - 80 mm
Package weight Packaging data - 3410 g
Package width Packaging data - 345 mm
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
Packaging content - Screws included - Yes
Packaging data - Package depth - 294 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 3.41 kg
Packaging data - Package width - 345 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8800 (PC5-70400)
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - CPU/Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
Producer - Gigabyte
ProducerCode - X870E A ELITE X
Product colour Features - Black
ProductName - X870E AORUS ELITE X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
Products per shipping (inner) case Logistics data - 1 pc(s)
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
Screws included Packaging content - Yes
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - GIGABYTE X870E AORUS ELITE X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE X870E AORUS ELITE X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Supported memory clock speed (max) Memory - 9000 MHz
Supported memory clock speeds Memory - 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - Socket AM5
Supported storage drive interfaces Storage controllers - M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE X870E AORUS ELITE X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Calculated Volume - 0.01048 cubm
Unit Calculated Weight - 2.65 kg
Units per Shipping Box - 1
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB4 Gen 2x2 ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.gigabyte.com/Motherboard/X870E-AORUS-ELITE-X3D
Warranty - 36 months
WarrantyInfo - 3 years
Warranty period Technical details - 3 year(s)
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Weight Other features - 2980 g
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 11 x64
WLAN controller model Network - Qualcomm QCNCM865
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB4
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 5 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
378.61 €

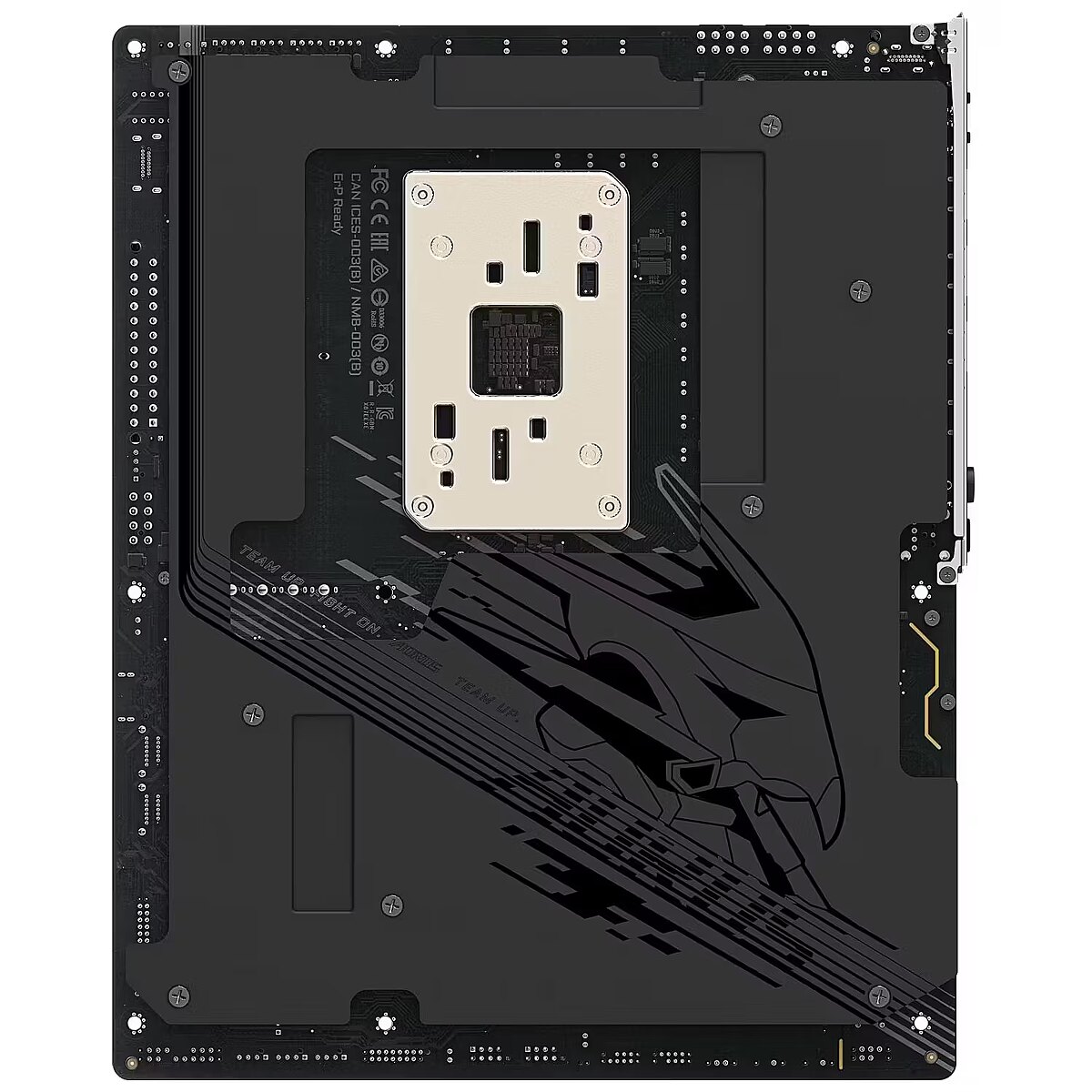

Gigabyte X870E AORUS ELITE X3D
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
