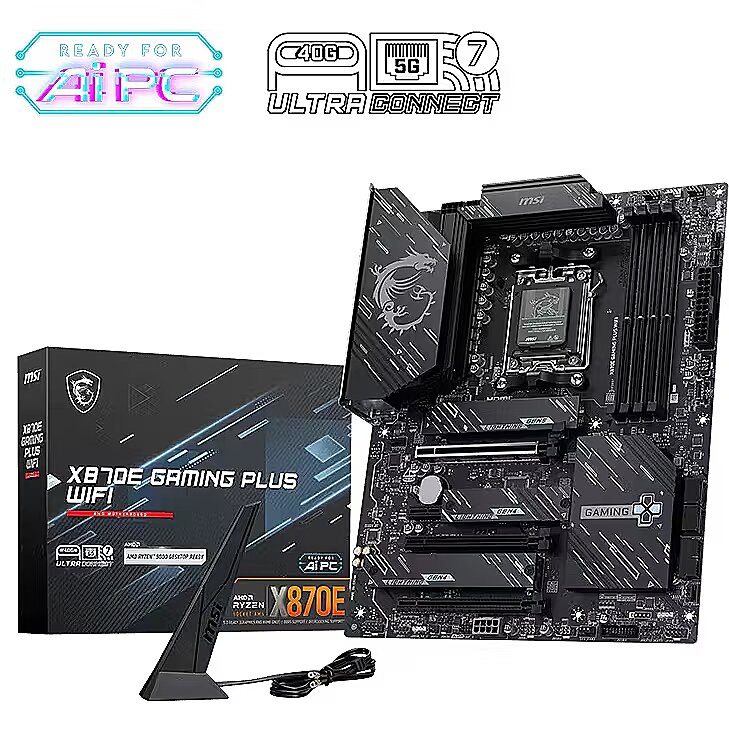

MSI X870E GAMING PLUS WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1236895 Product code: X870E GAMING PLUS WIFI
In stock 32 units
Warranty: 3 years
267.61 €
Ready for dispatch
on Thursday, 26.03.2026
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Unisend parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
Main product parameters All parameters
  • Series: MSI Gaming
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Is
  • M.2 ports: 3
Basic information
Series : MSI Gaming
Plate size ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Is
Built-in Wi-Fi : Is
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 1
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 3
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website MSI X870E GAMING PLUS WIFI
-
-
-
-
- 4711377347594
- https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI
- MSI X870E GAMING PLUS WIFI
- MSI X870E GAMING PLUS WIFI - Socket AM5 - motherboard black
- MSI X870E GAMING PLUS WIFI motherboard AMD X870E Socket AM5 ATX
- MSI X870E GAMING PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
- X870E GAMING PLUS WIFI
- X870E GAMING PLUS WIFI
Antenna included Packaging content -
ATX Power connector (24-pin) Internal I/O -
Audio output channels Features -
Bluetooth Network -
Bluetooth version Network -
Brand -
Cables included Packaging content -
- Motherboards
- Root/Electronics/PC parts/Motherboards
-
- Motherboards
-
Chassis intrusion connector Internal I/O -
-
-
- X870E GAMING PLUS WIFI
-
Compatible processor series Processor -
Component for Features - PC
CPU fan connector Internal I/O -
Dane techniczne: Chipset płyty głównej -
Dane techniczne: Grupa produktowa -
Dane techniczne: Gwarancja -
Dane techniczne: Producent -
Dane techniczne: Przeznaczenie -
Dane techniczne: Standard płyty -
Depth Weight & dimensions -
Description - X870E GAMING PLUS WIFI X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen 9000 series processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Description - X870E GAMING PLUS WIFI
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. ULTRA PERFORMANCE 14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870E GAMING PLUS WIFI is ready for the challenge of high-end processors. OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance. Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed. Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation. DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users. THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices. AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency. MSI AI LAN MANAGER
Automatically prioritizes games above other applications
Allows to change applications' traffic priority
Allows to customize bandwidth for each application
Analysis Wi-Fi signals to select the best source. Experience
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp. BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
Designation - CE+WEEE
- 3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices 4 x SATA 6G
-
- 70 mm
-
Dimensions -
-
-
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
- 4711377347594
- 4711377347594
Eans - 4711377347594
- 4711377347594
ECC сompatibility Memory -
EPS power connector (8-pin) Internal I/O -
Ethernet interface type Network -
Ethernet LAN (RJ-45) ports Rear panel I/O ports -
Ethernet LAN Network -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 1 x USB 3.2 Gen 2x2 Type-C
-
- PC
-
-
-
-
-
Front panel audio connector Internal I/O -
Front panel connector Internal I/O -
- 1 x HDMI - Support HDMITM 2.1, maximum resolution of 4K 60Hz 1 x Type-C DisplayPort - USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
-
-
-
-
-
HDMI ports quantity Rear panel I/O ports -
HDMI version Rear panel I/O ports -
Headphone outputs Rear panel I/O ports -
-
-
-
-
-
-
-
-
-
-
Internal I/O - Number of RGB LED pin headers -
-
Internal I/O - Number of water pump connectors -
-
-
-
-
-
-
-
-
-
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych -
Komunikacja: Transmisja danych -
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 8126VB 5G LAN)
- X870E GAMING PLUS WIFIX870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.ULTRA PERFORMANCE14+2+1 DRPS POWER DESIGNUnleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870E GAMING PLUS WIFI is ready for the challenge of high-end processors.OPTIMIZED PCB SOLUTIONThe PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.THE NEXT GEN WI-FI SOLUTION – WI-FI 7Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.AI LAN ManagerMSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.MSI AI LAN MANAGERAutomatically prioritizes games above other applicationsAllows to change applications' traffic priorityAllows to customize bandwidth for each applicationAnalysis Wi-Fi signals to select the best source.ExperienceThe Isolated Analogy Structure for Audio ConnectorsTo provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
- AMD Socket AM5, AMD X870E Chipset, 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots, USB, Wi-Fi 7, Bluetooth 5.4
- MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive types: HDD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
-
-
- 7E70-001R
-
Maximum internal memory Memory -
Maximum resolution Graphics -
-
-
-
-
-
-
-
-
-
-
-
Memory channels Memory -
Memory slots type Memory -
Microphone in Rear panel I/O ports -
- X870E GAMING PLUS WIFI
Motherboard chipset family Features -
Motherboard chipset Features -
Motherboard form factor Features -
- Motherboard X870E GAMING PLUS WIFI AM5 4DDR5 ATX
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- LAN: Realtek 8126VB 5G LAN Wireless: Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Number of chassis fan connectors Internal I/O -
Number of COM connectors Internal I/O -
Number of CPU fan connectors Internal I/O -
-
Number of M.2 (M) slots Expansion slots -
Number of memory slots Memory -
Number of RGB LED pin headers Internal I/O -
Number of SATA III connectors Internal I/O -
-
-
Number of water pump connectors Internal I/O -
On-board graphics card Graphics -
-
-
-
-
-
-
-
-
-
-
-
- 1 x 8-pin PCIe
-
-
- 1 x EZ Memory Detection LED
-
-
-
-
-
- 6 x USB 2.0/1.1
-
-
-
-
-
- 70 mm
-
-
-
-
-
- 0.08 kg
- Accumulator
-
-
-
-
-
-
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci -
Pamięć: Obsługiwana pamięć -
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Parallel processing technology support Graphics -
PCI Express x1 slots Expansion slots -
PCI Express x16 (Gen 3.x) slots Expansion slots -
Procesor: Gniazdo procesora -
Procesor: Maks. ilość obsługiwanych procesorów -
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
-
-
-
- AMD Ryzen 8000 Series
-
-
-
-
-
-
Processor manufacturer Processor -
Processor socket Processor -
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV
EScience Park Eindhoven 5706
5692 ER Son Eindhoven -
-
- X870E GAMING PLUS WIFI
ProducerCode - X870E GAMING PLUS WIFI
Product colour Features -
productName - MSI X870E GAMING PLUS WIFI motherboard AMD X870E Socket AM5 ATX
- X870E GAMING PLUS WIFI
-
-
RAID levels Storage controllers -
RAID support Storage controllers -
-
-
-
-
-
Rear panel I/O ports - Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports -
-
-
-
-
RGB LED pin header Internal I/O -
Screws included Packaging content -
ShortDescription -
- MSI X870E GAMING PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
-
-
-
-
-
-
-
-
-
-
-
-
Summary - MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive types: HDD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Supported memory types Memory -
-
Supported processor sockets Processor -
Supported storage drive types Storage controllers -
-
-
-
- X870E GAMING PLUS WIFI
Top Wi-Fi standard Network -
TPM connector Internal I/O -
Unbuffered memory Memory -
-
-
- 0.27
Unit Calculated Volume -
Unit Calculated Weight -
Units per Pallet -
Units per Shipping Box -
URL - https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI/Specification?_gl=1*16v5afp*_up*MQ..*_ga*MTE1NDE3MjMyNy4xNzQ2NzgxMjg0*_ga_2FQZ8W9D09*czE3NDY3ODEyODEkbzEkZzAkdDE3NDY3ODEyODEkajAkbDAkaDA.
USB 2.0 connectors Internal I/O -
USB 2.0 ports quantity Rear panel I/O ports -
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O -
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O -
-
-
Vendor Homepage - https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI/Specification?_gl=1*16v5afp*_up*MQ..*_ga*MTE1NDE3MjMyNy4xNzQ2NzgxMjg0*_ga_2FQZ8W9D09*czE3NDY3ODEyODEkbzEkZzAkdDE3NDY3ODEyODEkajAkbDAkaDA.
Warranty -
Warranty -
Warranty -
-
-
-
-
- 2030
-
-
Wi-Fi Network -
Wi-Fi standards Network -
Width Weight & dimensions -
Wymiary: Szerokość -
Wymiary: Wysokość -
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów -
Złącza: Złącza na płycie głównej -
Złącza: Złącza na płycie głównej -
Złącza: Złącza na płycie głównej -
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu -
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu -
Złącza: Złącza PCI-E (liczba slotów) -
Złącza: Złącza PCI-E (liczba slotów) -
267.61 €
MSI X870E GAMING PLUS WIFI
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
