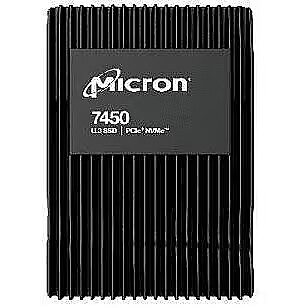

Micron SSD|MICRON|SSD series 7450 MAX|3.2TB|PCIE|NVMe|NAND flash technology TLC|Write speed 5300 MBytes/sec|Read speed 6800 MBytes/sec|Form Factor U.3|TBW 17500 TB|MTFDKCC3T2TFS-1BC1ZABYYR

Category Code - SSP
Color - Not applicable
Component for Features - Server/workstation
Depth - 15 mm
Description - Drive SSD 7450MAX The Micron 7450 SSD with NVMe is the worlds most advanced 176-layer NAND data center SSD, delivering exceptional latency and PCIe Gen4 with extensive deployment options.
Description - The Micron 7450 SSD with NVMe™ is the world’s most advanced 176-layer NAND data center SSD, delivering exceptional latency and PCIe Gen4 with extensive deployment options. World’s Most Advanced NAND in a Data Center SSD
The Micron 7450 SSD enables flexible cloud and data center designs to support a wide variety of workloads. The 7450 SSD is built on Micron’s state-of-the-art, 176-layer NAND. Available in the broadest range of PCIe® Gen4 SSD form factors enabling you to use the Micron 7450 for all major platform functions (boot, cache and main data storage). The Micron 7450 SSD consistently delivers 2ms and lower latency for 99.9999% QoS1 and offers next-generation security features such as Micron’s unique Secure Execution Environment.2 It is designed for high-capacity SSD needs and includes a PCIe Gen4 M.2 22x80mm with power-loss protection model — specifically designed for server boot use. Improves Storage Performance Across Data Center Workloads
The Micron 7450 SSD utilizes Micron's innovative 176-layer NAND, which combines the highest layer count with Micron CMOS-under-array technology and PCIe Gen4 to provide industry-leading performance,3 enabling faster booting and improved application responsiveness. Enables Rapid, Reliable and Responsive Data Center Workloads
The Micron 7450 SSD consistently delivers 2ms and lower latency for 99.9999% QoS4 improving performance in databases such as Microsoft SQL Server, Oracle, MySQL, RocksDB, Cassandra and Aerospike.5 Supports a Wide Variety of Data Centers - Reducing Qualification Time, Cost and Complexity
Capacities range from 400GB to 15.36TB5— including an industry-leading 8TB E1.@ capacity and a new 15.36TB capacity. It has the industry’s broadest variety of form factors to meet evolving power and thermal needs — U.3, M.2, E1.S — including the only PCIe Gen4 U.3 SSD with both 15mm and 7mm thicknesses available.
Designation - CE+WEEE
dimensionalWeight - 44
dimension depth - 16 mm
dimension height - 97 mm
dimension weight - 150 g
dimension width - 131 mm
Disk type - SSD
Drive type - Internal
ean - 649528926494
Features - Component for - Server/workstation
Features - DWPD - 3
Features - Hardware encryption - Yes
Features - Harmonized System (HS) code - 84717070
Features - Interface - PCI Express 4.0
Features - Memory type - 3D TLC NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Product series - 7450 MAX
Features - Random read (4KB) - 1000000 IOPS
Features - Random write (4KB) - 390000 IOPS
Features - Read latency - 80 µs
Features - SSD capacity - 3.2 TB
Features - SSD form factor - U.3
Features - Target workload - Mixed Use (MU)
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Features - Write latency - 15 µs
Form factor (width) - U.3
guarantee - 60
guarantee_type - normal
Hardware encryption Features - Yes
Harmonized System (HS) code Logistics data - 84717070
HDD capacity - 3.2 TB
HDD interface - PCIe 4.0
Interface Features - PCI Express 4.0
Memory type Features - 3D TLC NAND
Model - 7450MAX
name - Drive SSD 7450MAX 3200GB NVMe U.3 MTFDKCC3T2TFS-1BC1ZABYY Non-SED
NVMe Features - Yes
NVMe version Features - 1.4
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
PCI Express interface data lanes Features - x4
producer - Micron
producerCode - MTFDKCC3T2TFS-1BC1ZABYYR
productName - SSD Micron 7450 MAX 3.2TB U.3 (15mm) NVMe PCI 4.0 MTFDKCC3T2TFS-1BC1ZABYYR (DWPD 3)
productSize - Normal
Random read (4KB) Features - 1000000 IOPS
Random read IOPS (max) - 1000 K
Random write (4KB) Features - 390000 IOPS
Random write IOPS (max) - 390 K
Reading speed - 6800 MB/s
Read latency Features - 80 µs
sizeX - 130
sizeY - 100
sizeZ - 17
SSD capacity Features - 3.2 TB
SSD form factor Features - U.3
SSD series - 7450 MAX
Summary - Micron 7450 MAX. SSD capacity: 3.2 TB, SSD form factor: U.3, Component for: Server/workstation
Target workload Features - Mixed Use (MU)
TBW - 17500 TB
Uncorrectable Bit Error Rate (UBER) Features - < 1 per 10^17 bits read
Unit Box Height - 0.015
Unit Box Length - 0.13
Unit Box Width - 0.1
Unit Calculated Volume - 0.000195 cubm
Unit Calculated Weight - 0.15 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.micron.com/products/ssd/product-lines/7450
vendpn - MTFDKCC3T2TFS-1BC1ZABYYR
Warranty - 60L months
warrantyLength - 60
warrantyType - G
weight - 150
Write latency Features - 15 µs
Writing speed - 5300 MB/s
