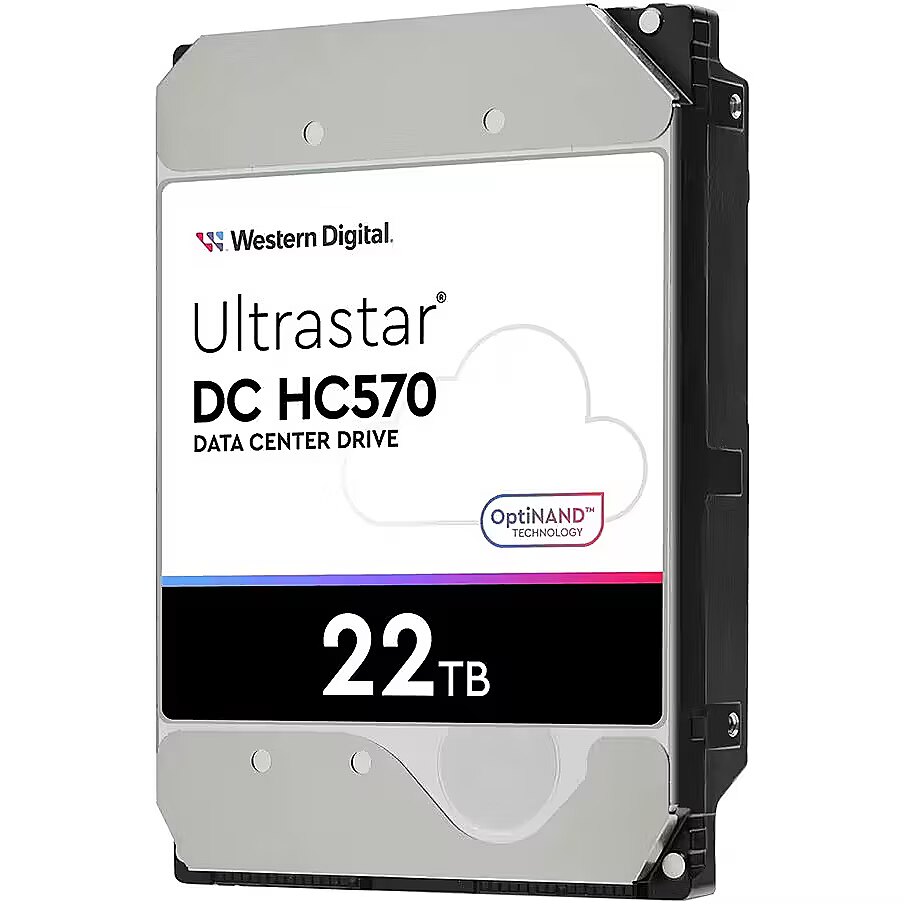

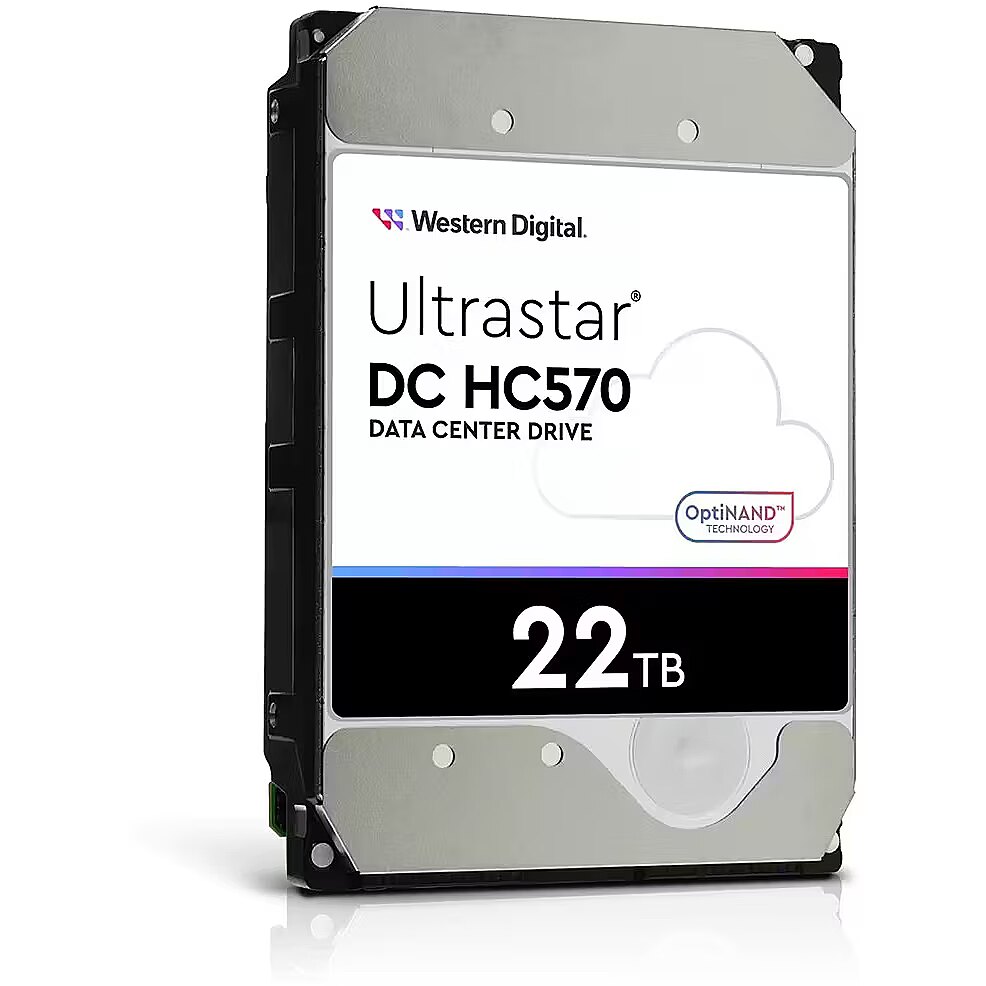

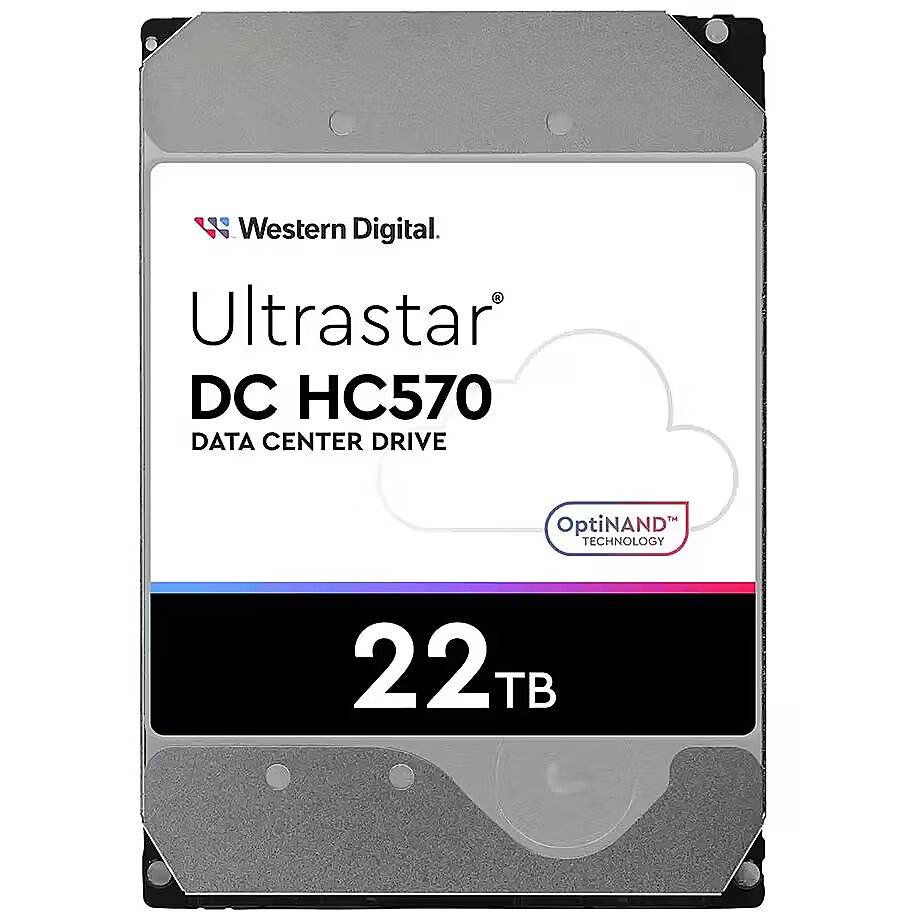

Western Digital ULTRASTAR DC HC570 22TB 3.5 SAS 512MB 7200RPM 512E SE P3 DC

24/7 operation Features - Yes
Access time Features - 4.16 ms
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HDC
Component for Features - Server/workstation
Depth Weight & dimensions - 147 mm
Description - Grow your data, not your footprint
The explosive growth of data from AI/ML, 5G networks, IoT, connected vehicles, and more is fueling growth in data centers. HDD innovation drives the ability to capture, store, analyze, and protect much of this data. Higher-capacity HDDs deliver higher data density, enabling data center expansion and efficiency. 22TB to Fuel Data Center Expansion
The explosive growth of data from AI/ML, 5G networks, IoT, connected vehicles, and more is fueling growth in data centers. HDD innovation drives the ability to capture, store, analyze, and protect much of this data. Higher-capacity HDDs deliver higher data density, enabling data center expansion and efficiency. The Ultrastar DC HC570 22TB data center HDD with OptiNAND™ technology is the next leap in data density. This 22TB data center HDD enables an incredible 22.44PB of raw storage in a typical rack3. This higher volumetric density allows data centers to maximize their storage, especially in footprint- and power-constrained environments. The Ultrastar DC HC570 combines several industry-first technologies on a 10-disk CMR drive, delivering the performance, quality, and reliability that data center customers require. Low Power for Lower Operating Costs
Ultrastar HDDs are designed for optimal power over a variety of workloads. The DC HC570 features low power sequential read/write and mixed random read/write workloads. OptiNAND Technology Benefits
The Ultrastar DC HC570 is the 2nd-generation platform with OptiNAND technology, which integrates an iNAND Universal Flash Storage (UFS) Embedded Flash Drive (EFD) with traditional spinning disk media. Western Digital’s 2.2TB/disk areal density leadership is extended to a new 10-disk platform, delivering 22TB capacity with CMR recording format. More disks and high areal density work together to maximize data storage efficiency. OptiNAND improves drive resiliency in the event of an emergency power off (EPO) by increasing the amount of non-volatile memory (NVM) available to flush critical metadata to the iNAND. ArmorCache is a feature enabled by OptiNAND that combines the performance of write cache enabled (WCE) mode and the data protection of write cache disabled (WCD) mode, offering the best of both scenarios. When operating in WCE mode, ArmorCache ensures that the DRAM cache will be safely written in event of an EPO and no data is lost. When operating in WCD mode, the drive will ensure that all user data in DRAM is safely written upon EPO, and the drive will operate with WCE-equivalent performance. Performance and data protection are now identical across both WCE and WCD modes. Trusted Reliability and Quality for Data at Scale
The Ultrastar DC HC570 meets modern data center reliability requirements with 2.5M MTBF (projected) and a 5-year limited warranty. It is performance-optimized for heavy application workloads and is designed to handle workloads up to 550TB per year. It offers security and encryption options to help protect data from unauthorized use, including SED models. Trust Western Digital and the Ultrastar DC HC570 hard drive to deliver the highest capacity and greatest value for your data center.
Cloud & hyperscale storageMassive scale-out (MSO), high-density data centersDistributed File SystemsBulk storage using object storage solutions like Ceph and OpenStack SwiftPrimary and secondary storage for Apache Hadoop for Big Data Analytics
dimensionalWeight - 73
EAN - 8717306635547
Features - HDD capacity - 22 TB
Features - HDD interface transfer rate - 12 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - Interface - SAS
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Gross Weight Kg - 0,33
Harmonized System (HS) code Logistics data - 84717050
HDD average transfer rate Features - 1200 MB/s
HDD capacity Features - 22 TB
HDD Family name - Ultrastar DC HC570
HDD interface transfer rate Features - 12 Gbit/s
HDD size Features - 3.5"
HDD speed Features - 7200 RPM
HDD sustained transfer rate Features - 291 MiB/s
Height Weight & dimensions - 26.1 mm
Interface Features - SAS
Manufacturer - Western Digital
Manufacturer Code - 0F48052
Manufacturer Name - Western Digital
Mean time between failures (MTBF) Features - 2500000 h
MPN - 0F48052
Name - 22TB WD Ultrastar DH HC570 7200 RPM 512MB
Non-operating shock Operational conditions - 200 G
Non-operating vibration Operational conditions - 1.04 G
Operating shock Operational conditions - 40 G
Operating temperature (T-T) Operational conditions - 5 - 60 °C
Operating vibration Operational conditions - 0.7 G
Operating voltage Power - 5 / 12 V
Operational conditions - Non-operating shock - 200 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 40 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.7 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 6 W
Power - Power consumption (typical) - 9.6 W
Power consumption (idle) Power - 0.27 W
Power consumption (read) Power - 9.6 W
Power consumption (typical) Power - 6 W
Power consumption (write) Power - 9.6 W
producerCode - 0F48052
productName - WESTERN DIGITAL HDD ULTRASTAR 22TB SAS 0F48052
productSize - Normal
Short description - WD HD3.5" SAS3 22TB WUH722222AL5204/512e (Di)
sizeX - 140
sizeY - 25
sizeZ - 105
Start/stop cycles Features - 6000000
Storage drive buffer size Features - 512 MB
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Western Digital Ultrastar DH HC570. HDD capacity: 22 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: SAS
Type Features - HDD
Uncorrectable Bit Error Rate (UBER) Features - < 1 per 10^15 bits read
Unit Box Height - 0.03
Unit Box Length - 0.1
Unit Box Width - 0.14
Unit Calculated Volume - 0.00042 cubm
Unit Calculated Weight - 0.8 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-dc-hc570-hdd#0F48052
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0.65
weight - 680
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 670 g
Weight & dimensions - Width - 101.6 mm
Weight Weight & dimensions - 670 g
Width Weight & dimensions - 101.6 mm
