Category Code - SSP
Color - Black
Description -

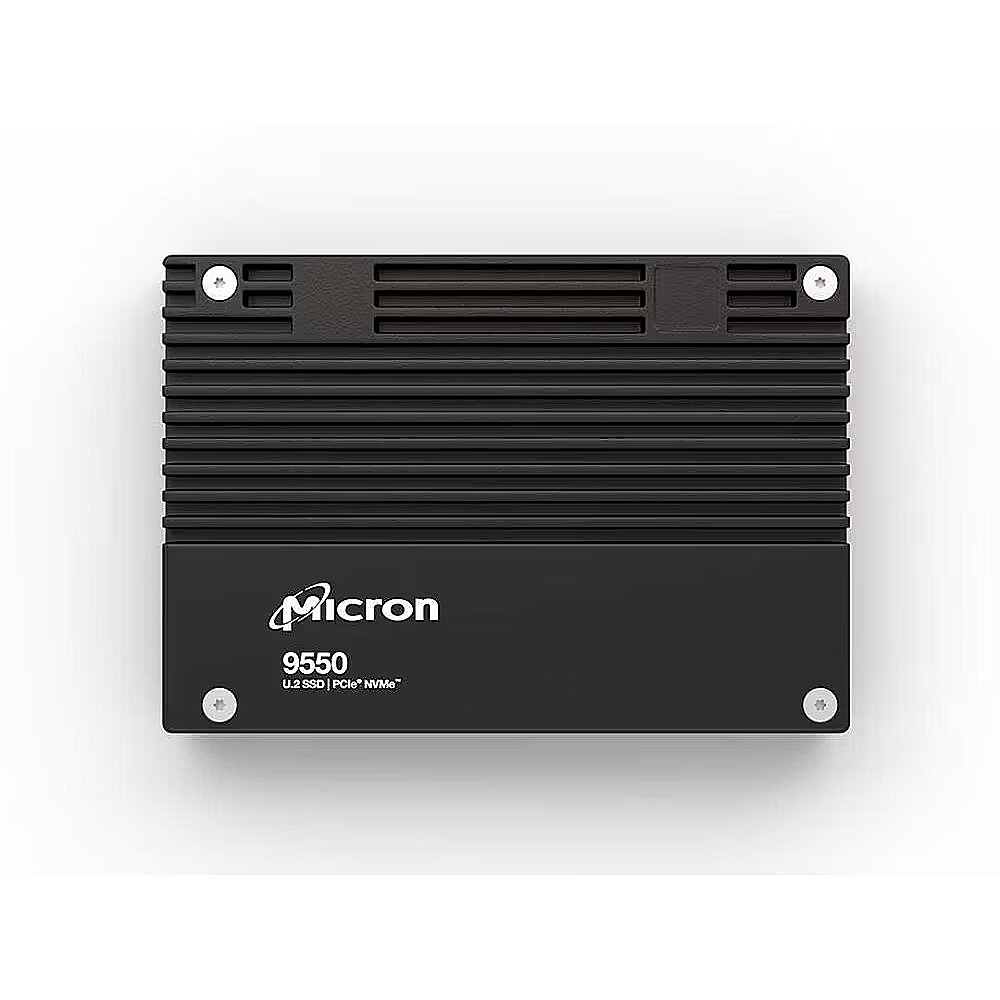

Description - Micron 9550 PRO 7680GB NVMe U.2 (15mm) Enterprise SSD The Micron® 9550 SSD leads the pack of data center PCIe Gen5 SSDs for AI-critical workloads. The secret to success in the AI race is training AI models faster. The difference between winning and losing can be measured in microseconds. For Graph Neural Network (GNN) training, the Micron 9550 offers up to 60% faster performance and 43% less energy than the competition. When combined with form factor (U.2 and E3.S) and capacity (3.2 to 30.72TB3) flexibility, users can tailor their system architecture to best meet their growing AI needs. These gains in performance and efficiency would not be possible without a fully vertically integrated solution, leveraging Micron-designed controller ASIC, 8th-generation NAND, and DRAM.
Designation - CE+WEEE
dimensionalWeight - 90
dimension depth - 20 mm
dimension height - 130 mm
Dimensions - 100.45 x 70.10 x 15mm
dimension weight - 150 g
dimension width - 100 mm
Disk type - SSD
Drive thickness - 15mm
Drive type - Internal
ean - 649528945679
Features - Component for - Server/workstation
Features - Interface - PCI Express 5.0
Features - Memory type - 3D TLC NAND
Features - NVMe - Yes
Features - NVMe version - 2.0b
Features - Random read (4KB) - 3300 IOPS
Features - Random write (4KB) - 380 IOPS
Features - Read latency - 60 µs
Features - SSD capacity - 7.68 TB
Features - SSD form factor - U.2
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Features - Write latency - 15 µs
Form Factor - U.2
Form factor (width) - U.2
guarantee - 60
guarantee_type - normal
HDD capacity - 7.68 TB
HDD interface - PCIe 5.0
Model - 9550PRO
Model - MTFDLAL7T6THA-1BK1DABYYR
name - SSD Disk 9550PRO 7680GB NVMe U.2 15mm Single Pack
NAND flash technology - 3D TLC
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Other features - Warranty period - 5 year(s)
Packaging data - Quick start guide - Yes
PCIe Gen5 Interface - Yes
Power - Average power consumption (read) - 18 W
Power - Average power consumption (write) - 16 W
producer - Micron
producerCode - MTFDLAL7T6THA-1BK1DABYYR
productName - Micron 9550 PRO 7.68 TB U.2 PCI Express 5.0 NVMe 3D TLC NAND
Product Net Weight - 0.188 kg
productSize - Normal
Random read IOPS (max) - 3300 K
Random write IOPS (max) - 400 K
Reading speed - 14000 MB/s
Read speed - 14000 MBytes/sec
sizeX - 150
sizeY - 100
sizeZ - 30
SSD Capacity - 7.68TB
SSD series - 9550 PRO
TBW - 14.016 TB
Unit Box Height - 0.015
Unit Box Length - 0.13
Unit Box Width - 0.1
Unit Calculated Volume - 0.000195 cubm
Unit Calculated Weight - 0.202 kg
Units per Shipping Box - 1
Vendor Homepage - www.micron.com/products/storage/ssd/data-center-ssd/9550-ssd
vendpn - MTFDLAL7T6THA-1BK1DABYYR
Warranty - 60L months
warrantyLength - 60
warrantyType - G
weight - 220
Write speed - 10000 MBytes/sec
Writing speed - 10000 MB/s
