Accessories included - Installation guide, Toolless mounting kit, Vertical mounting brackets

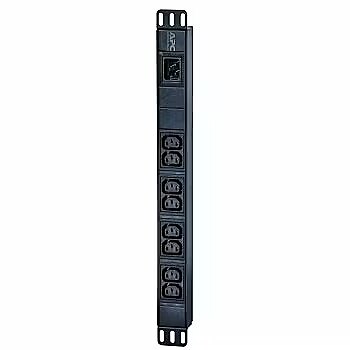

ARTIKEL1 - EASY PDU BASIC ZEROU 16A 230V
ARTIKEL2 - (20)C13 AND (4)C19 IEC309
Brand - APC
BrandPartCode - EPDU1116B
Breite - 0.17
Cable length - 3 m
Category - Power Distribution Units (PDUs)
Color - Black
Depth, mm - 44
Description - APC EASY PDU,BASIC,ZEROU,16A,230V,(20)C13 & (4)C19, IEC309
Description - Provides a number of outlets to bring power to rack equipment at an affordable price. Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Design - Housing material - Aluminium
Design - Mounting - Vertical
Design - On/off switch - No
Design - PDU types - Basic
Design - Product colour - Black
Design - Rack capacity - 0U
Design - Type - Single-phase
dimension depth - 1200 mm
dimension height - 100 mm
Dimensions - 90,2 x 6,2 x 4,4 cm
dimension weight - 3500 g
dimension width - 180 mm
ean - 731304405016
EANCode - 0731304405016
Features - Cable length - 3 m
Gewicht - 3.16
GRUPPE1 - Power Protection
GRUPPE2 - Power Product Cpnt
GTIN - 0731304405016
GTIN - 731304405016
guarantee - 12
guarantee_type - external
Height - 109.000000
Height, mm - 902
HERSTELLER - APC
Hoehe - 0.11
HSTNUMMER - EPDU1116B
Input frequency, Hz - 50/60
Laenge - 1.33
Length - 1315.000000
LongDesc - Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.Toolless Rack Mounting CapabilitiesServer cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.Zero U Rack Mounting AbilitiesVertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.AgilityRack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.Wide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.Single input power sourceSupply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.Cost SavingsLow Cost Power DistributionProvides a number of outlets to bring power to rack equipment at an affordable price.
LongProductName - EPDU1116B, Zero U, 16A, 230V, 20x C13, 4x C19, 62x902x44 mm, Black
LongSummaryDescription - APC EPDU1116B. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Width: 62 mm, Depth: 44 mm, Height: 902 mm
Manufacturer - APC
ManufacturerPartNumber - EPDU1116B
Mounting - Rack
Mounting - Wall
name - EPDU1116B PDU Easy Basic 0U,16A,20xC13,4xC19
No. of C13 sockets - 20
No. of C19 sockets - 4
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Operating relative humidity range, % - 5-95
Operating temperature range (T-T), °C - 0-45
Operational conditions - Non-operating altitude - 0 - 9000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 65 °C
Other features - Nominal Output Voltage: 230V Maximum Input Current: 16A Input socket type: IEC 309 16A 2P + E
Packaging content - Manual - Yes
Packaging data - Package depth - 110 mm
Packaging data - Package height - 1320 mm
Packaging data - Package weight - 2.98 kg
Packaging data - Package width - 160 mm
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 24 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Power plug - IEC 60309
Power - AC input frequency - 50 - 60 Hz
Power - Load capacity - 3680 VA
Power - Maximum current - 16 A
Power - Maximum input current per phase - 16 A
Power - Maximum power - 3680 W
Power - Nominal input voltage - 200/208/230 V
Power - Nominal output voltage - 230 V
producer - APC
ProductName - EPDU1116B
ShortSummaryDescription - APC EPDU1116B, Basic, 0U, Single-phase, Vertical, Aluminium, Black
Stck_Kart - 1
Stck_Pal - 0
Storage temperature range (T-T), °C - -25-65
Storno - Y
Title - APC EPDU1116B power distribution unit (PDU) 24 AC outlet(s) 0U Black
URL - https://www.apc.com/shop/lr/en/products/Easy-PDU-Basic-ZeroU-16A-230V-20-C13-4-C19-IEC309/P-EPDU1116B
vendpn - EPDU1116B
WarrantyInfo - 1 year repair or replace
Weight - 2.2 kg
Weight - 3.020000
Weight & dimensions - Depth - 44 mm
Weight & dimensions - Height - 902 mm
Weight & dimensions - Weight - 2.2 kg
Weight & dimensions - Width - 62 mm
Weight, kg - 2.2
Width - 158.000000
Width, mm - 62
