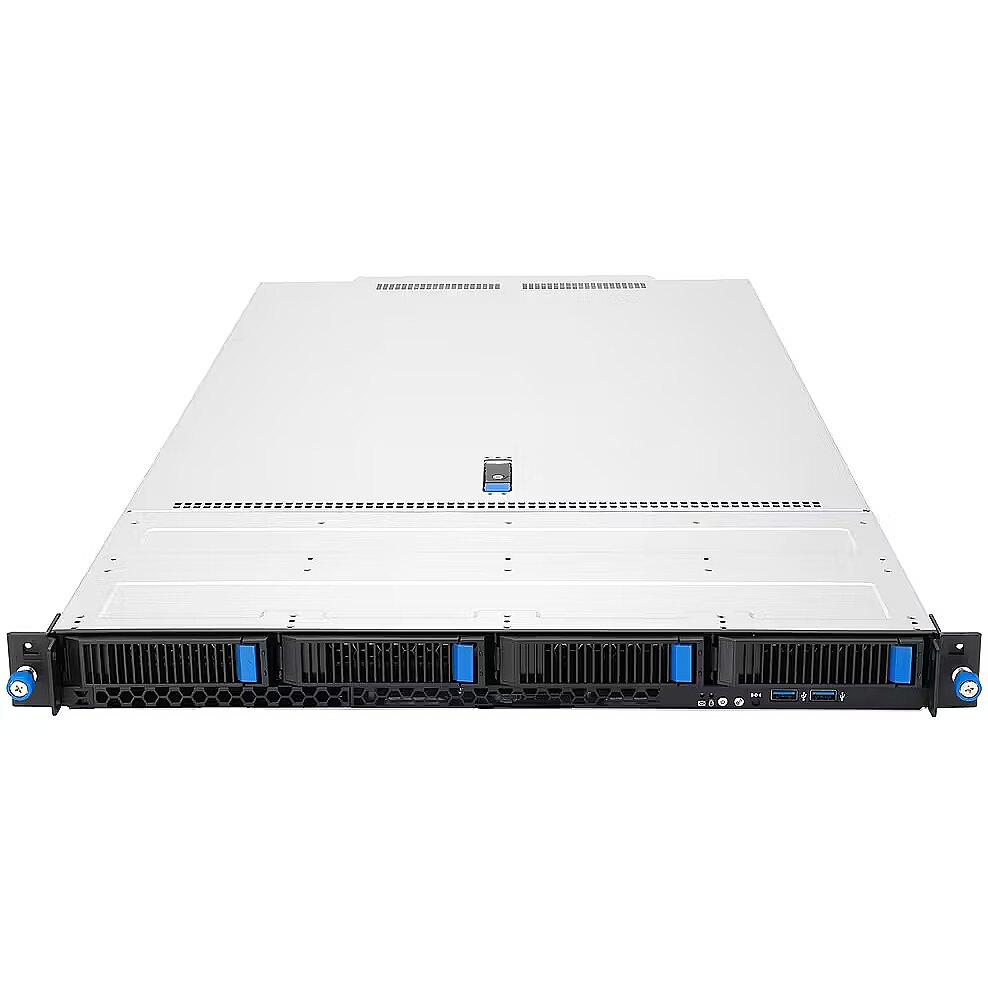

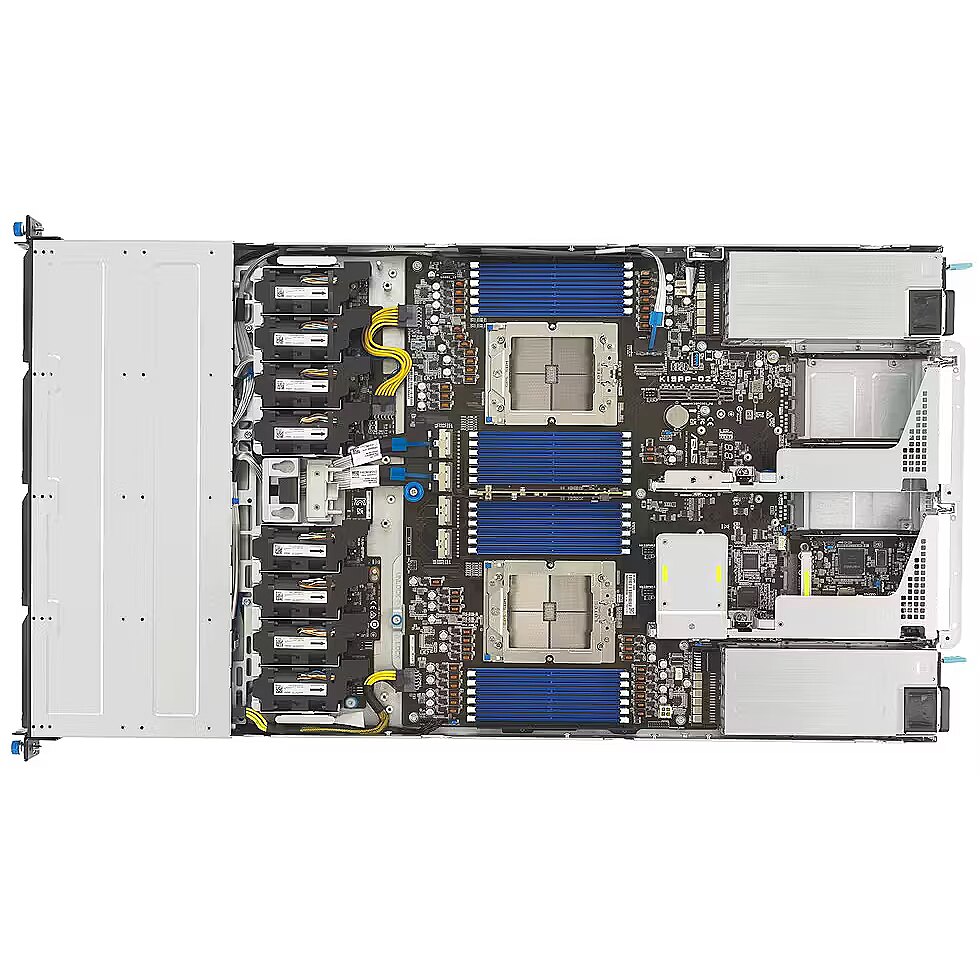

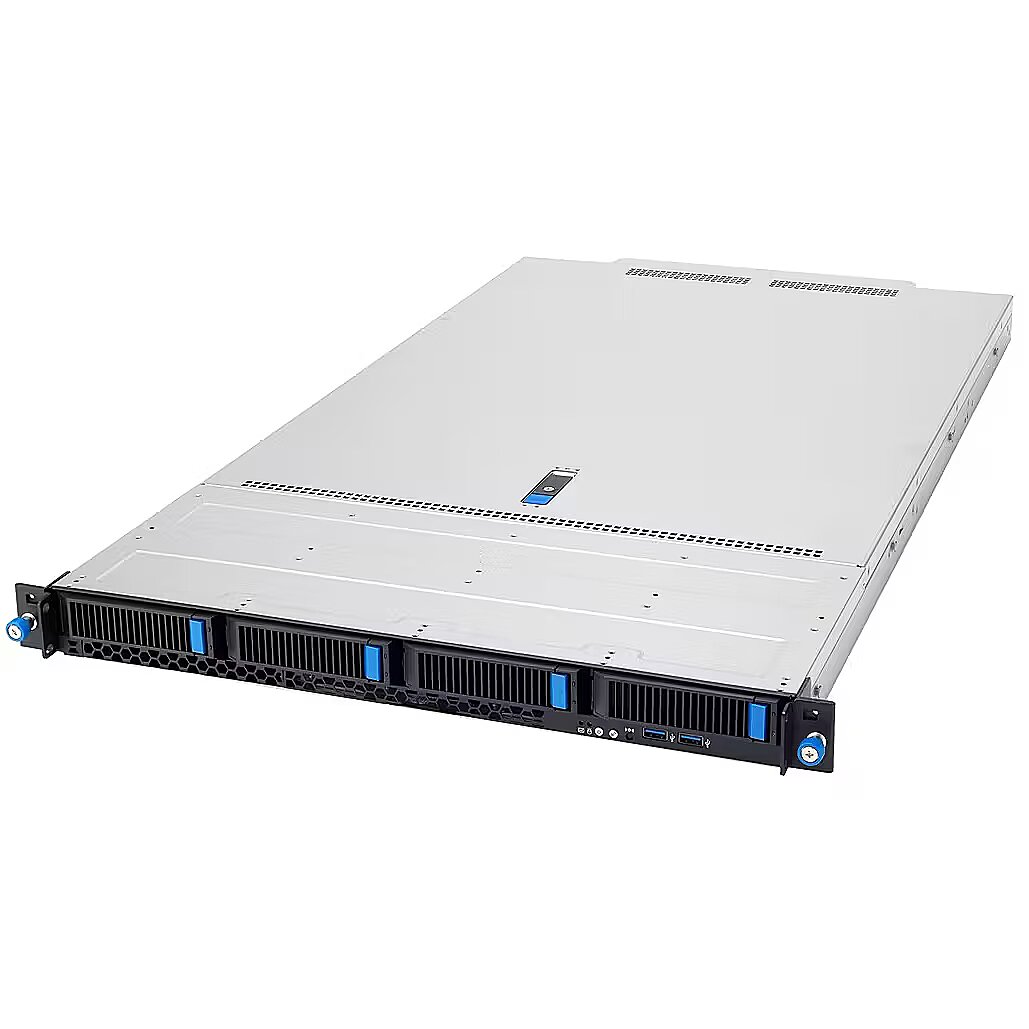

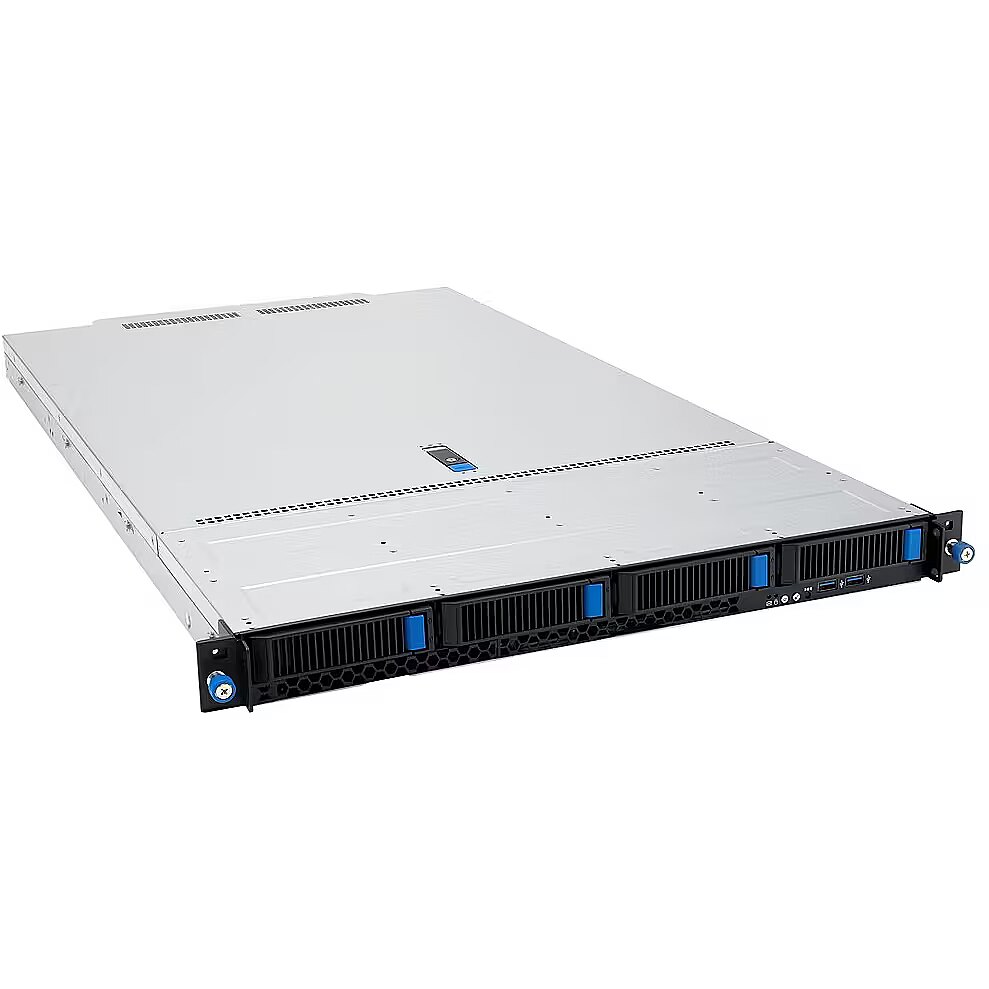

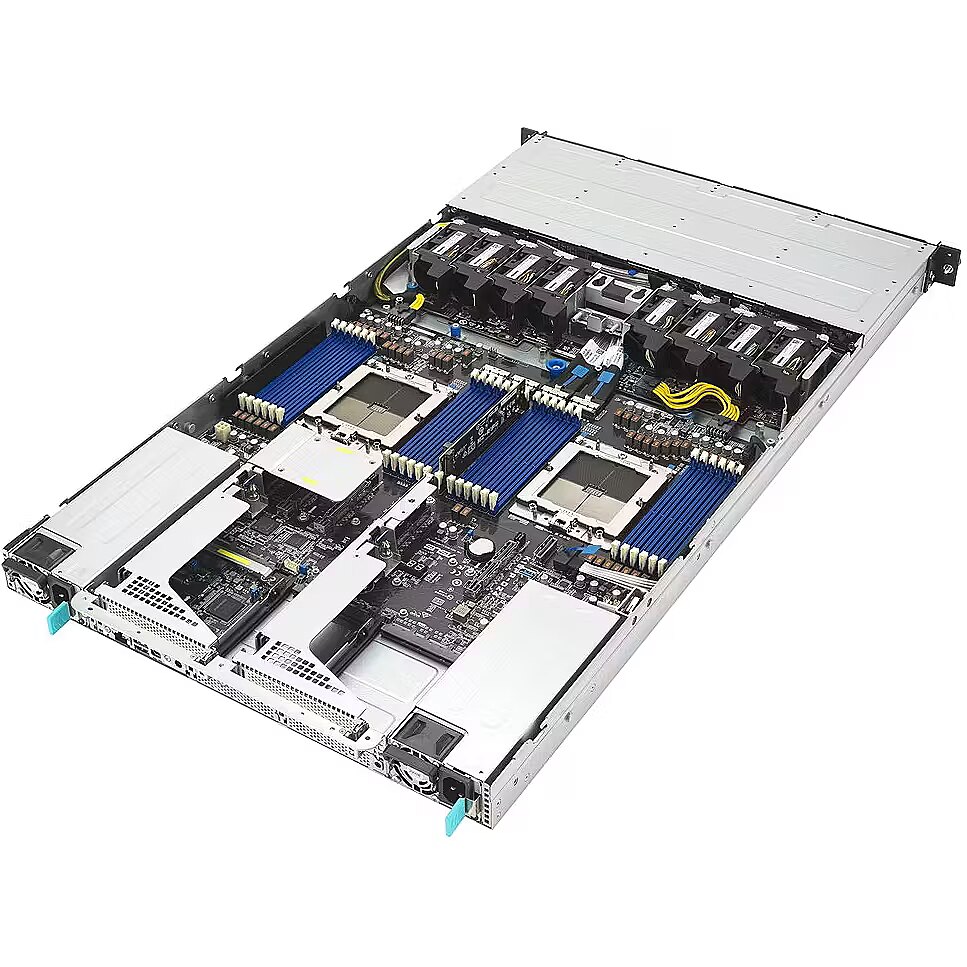

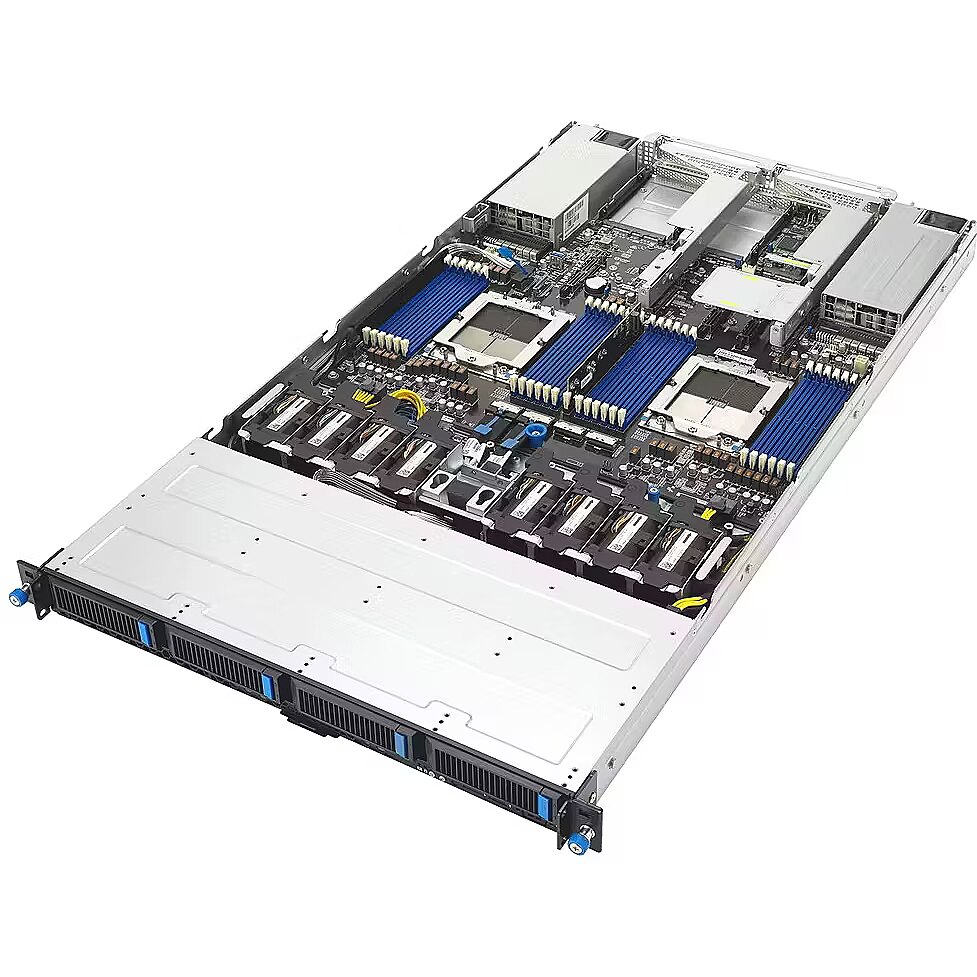

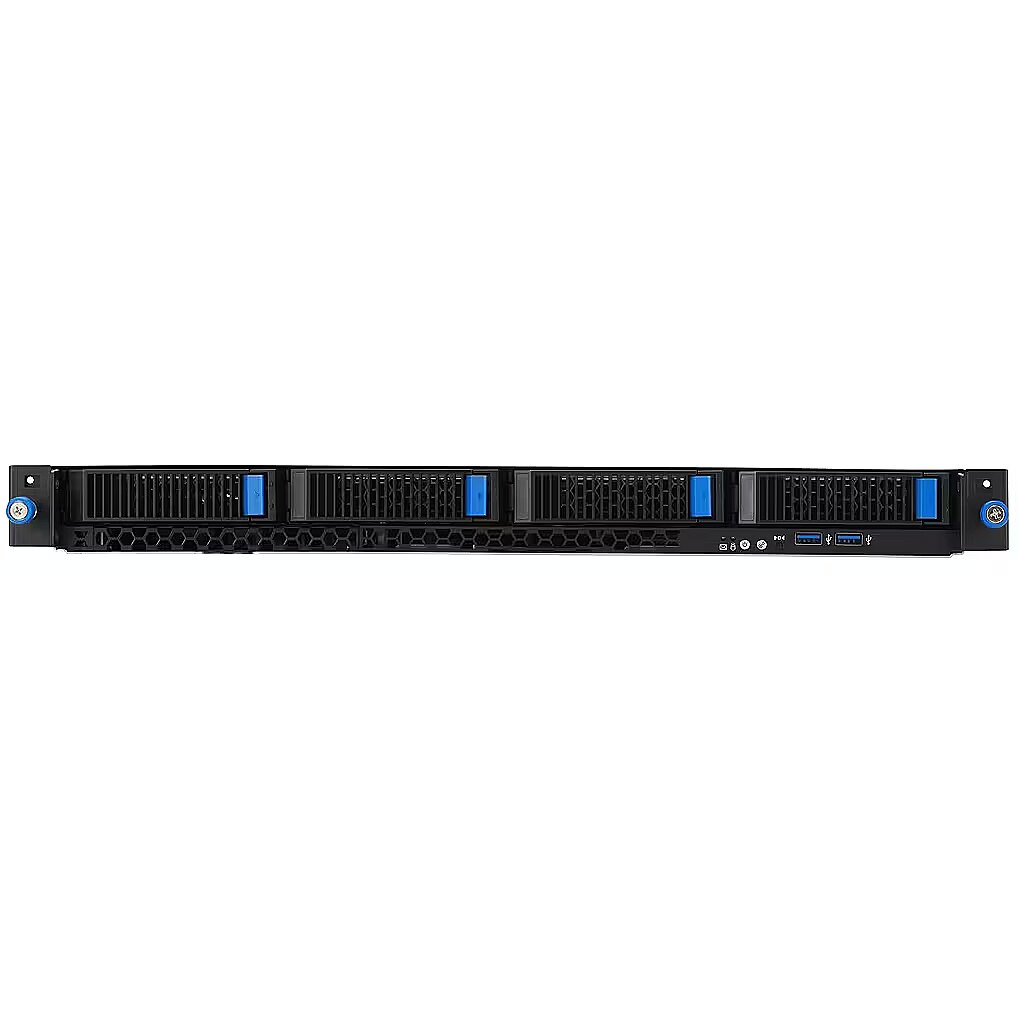

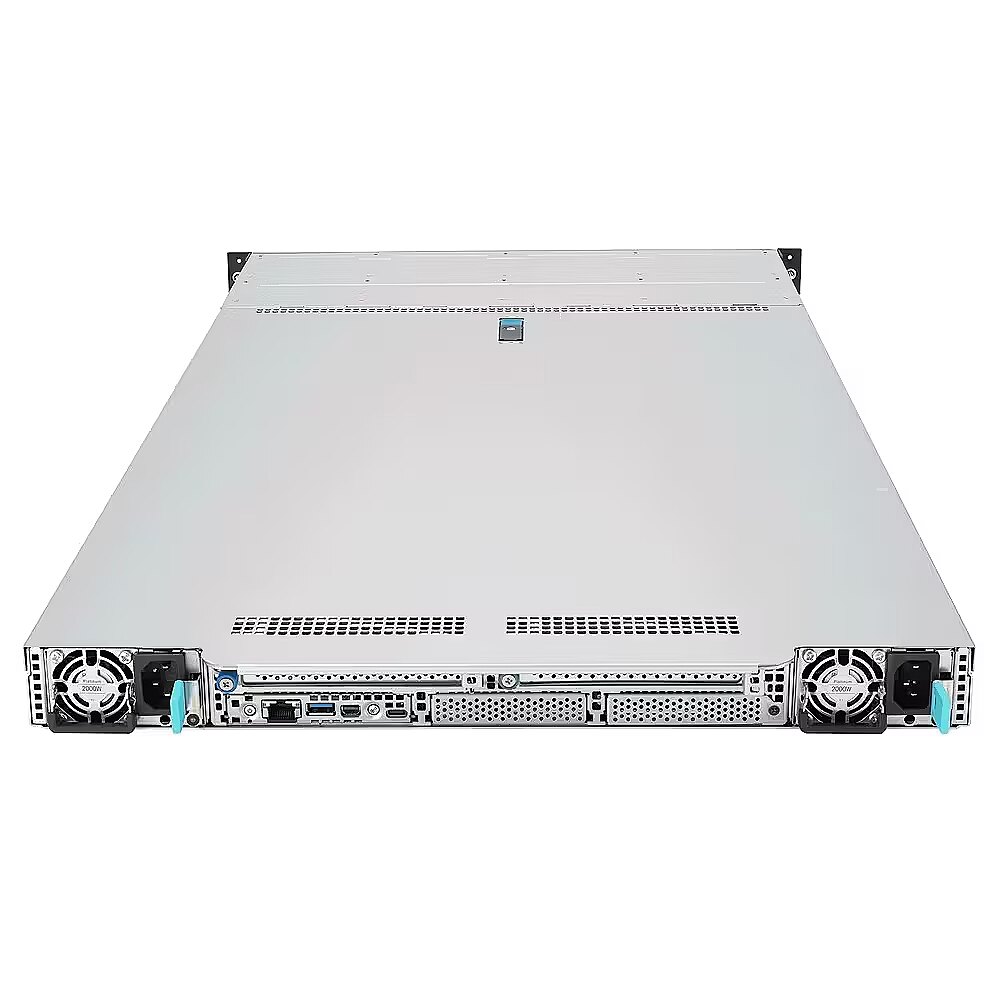

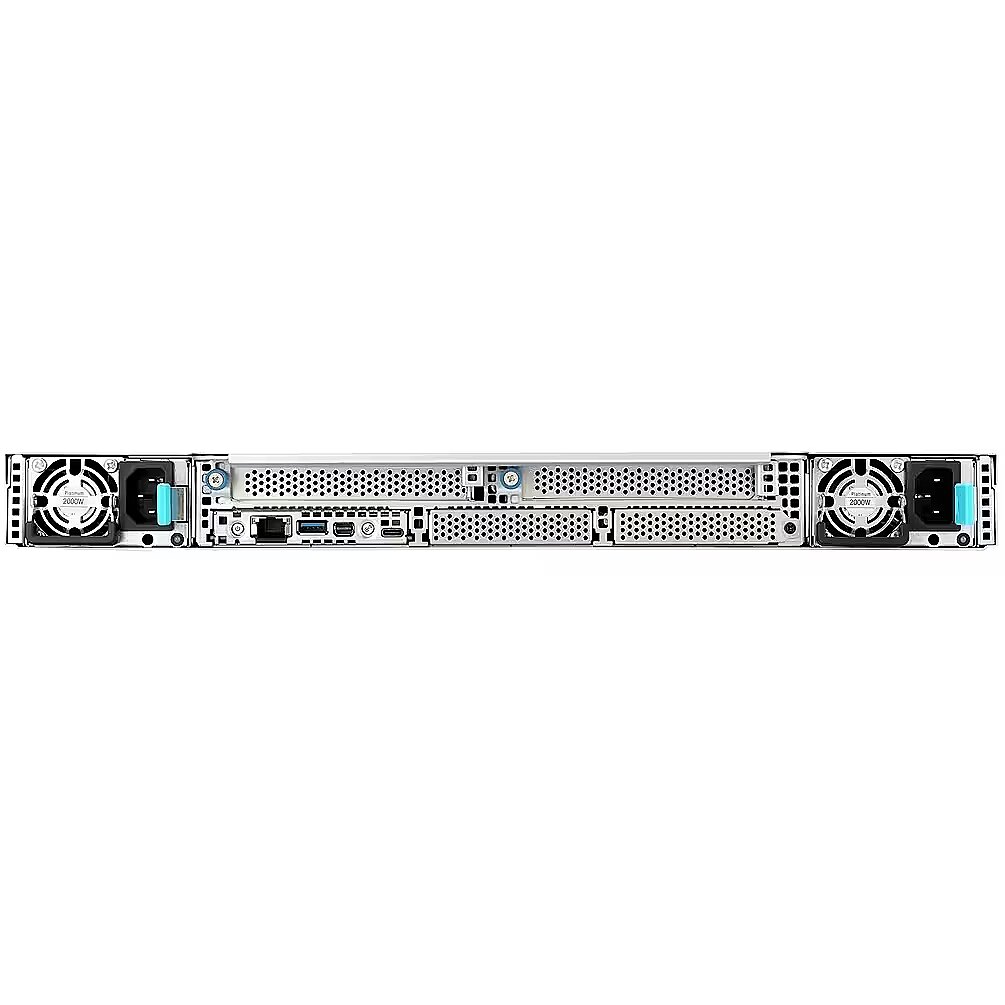

Asus Platforma Asus Rack (1U) AMD RS700A-E13-RS4U

Design - Certification - BSMI, CE, CB, RCM, FCC(Class A), ISED
Design - Chassis type - Rack (1U)
Design - LED indicators - Yes
Design - Number of fans - 8 fan(s)
dimensionalWeight - 30373
Expansion slots - Number of OCP3.0 ports - 2
Expansion slots - PCI Express slots version - 5.0
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Features - Integrated BMC with IPMI - Yes
Features - Trusted Platform Module (TPM) - Yes
Features - Trusted Platform Module (TPM) version - 2.0
Graphics - On-board graphics card memory - 64 MB
Graphics - On-board graphics card model - Aspeed AST2600
Memory - Maximum RDIMM memory - 3.07 TB
Memory - Number of DIMM slots - 24
Memory - Supported DIMM module capacities - 32GB
Memory - Supported DIMM module capacities - 64GB
Memory - Supported DIMM module capacities - 96GB
Memory - Supported DIMM module capacities - 128GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Supported RDIMM clock speeds - 5600
Memory - Supported RDIMM clock speeds - 6400 MHz
Network - Ethernet LAN - Yes
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging data - Package weight - 16.7 kg
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Mini DisplayPorts quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Power - 80 PLUS certification - 80 PLUS Titanium
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 127/220 - 240 V
Power - Input current - 12A / 10A
Power - Number of main power supplies - 2
Power - Power supply - 2000 W
Processor - Compatible processor series - AMD EPYC 9005
Processor - Number of processors supported - 2
Processor - Processor socket - Socket SP5
producerCode - 90SF0451-M000N0
productName - Asus Rack Platform (1U) AMD RS700A-E13-RS4U
productSize - Normal
sizeX - 260
sizeY - 590
sizeZ - 990
Storage - Hot-swap HDD bays - Yes
Storage - Number of 2.5"/3.5" bays - 4
Storage - Number of 3.5" bays - 4
Storage - Number of storage drives supported - 4
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5"
Storage - Supported storage drive types - HDD & SSD
warrantyLength - 36
warrantyType - G
weight - 26490
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 43.2 mm
Weight & dimensions - Weight - 13.8 kg
Weight & dimensions - Width - 821,7 mm
