Accessories included -
ARTIKEL1 - ST50 V3 XEON E-2414 SW RAID
ARTIKEL2 - 2X960GB 5400 PRO SSD 16GB
Battery backup - No
Brand - Lenovo
BrandPartCode - 7DF3A010EA
Category - Servers
Certificates - 80 PLUS certification - 80 PLUS Platinum
Chipset type - Intel Rocket Lake PCH-S, C266
Color - Black
CPU - other information - Intel Xeon E-2414
CPU frequency - 2.6 GHz
CPU model - E-2414
CPU series - Intel Xeon
Depth - 315 mm

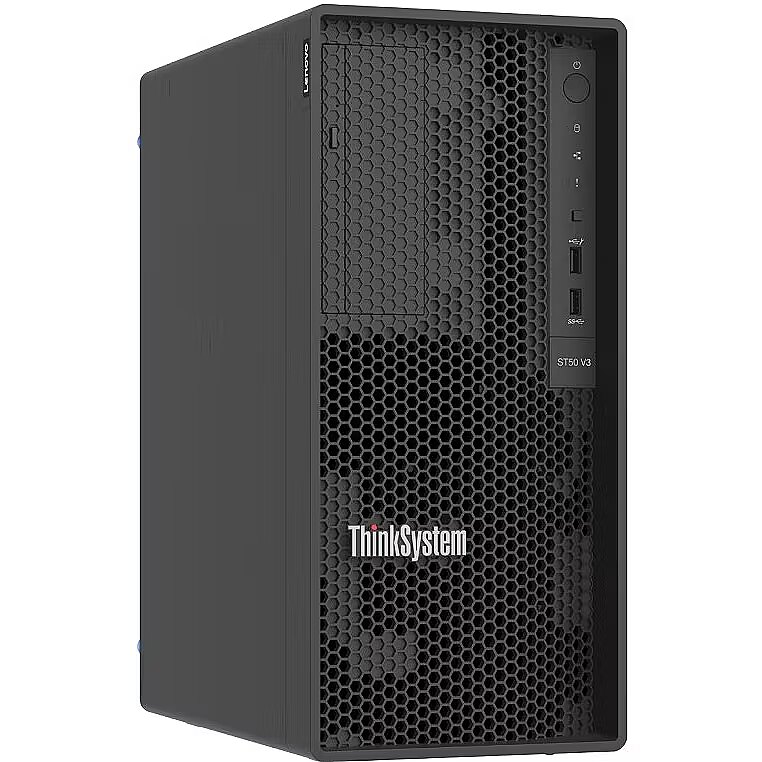

Description - The Lenovo ThinkSystem ST50 V3 is a cost-effective, single-socket tower server that can also be rack-mounted as a rack server. It is ideal for small and medium-sized businesses, remote offices, branch offices, banking, and the public sector. The server supports the new Intel Xeon E-2400 series processors, previously codenamed Raptor Lake.
Design - Chassis type - Tower
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 545 mm
dimension height - 420 mm
dimension weight - 8440 g
dimension width - 280 mm
Disk controller - Software
ean - ABEAN-RS71035
EANCode - 0889488784226
Expansion slots - 1 x PCIe 5.0 x 16
Form factor (width) - 2,5'' (SFF)
Form factor of installed disc (width) - 2,5'' (SFF)
Graphics -
Graphics - Maximum graphics card memory - 16 MB
Graphics - On-board graphics card - Yes
GRUPPE1 - Computer Systems
GRUPPE2 - Server
GTIN - 0889488784226
GTIN - 889488784226
guarantee - 36
guarantee_type - external
HDD interface - SATA
Height - 370 mm
HERSTELLER - LENOVO
Hot-plug fans support - No
Hot-plug power supply support - No
Hot-swapping support - No
Housing - Tower
HSTNUMMER - 7DF3A010EA
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x RJ-45 (management)
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 5 x USB 3.2 Type-A Gen 1
Internal backup device support - No
Kind of memory - ECC
LongDesc - The Lenovo ThinkSystem ST50 V3 is a value 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".This product guide provides essential presales information to understand the ThinkSystem ST50 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V3 and consider its use in IT solutions.
LongProductName - Intel Xeon E-2414 (12MB Cache, 2.6GHz), 16GB DDR5-SDRAM (4400MHz), 1920GB HDD, LAN (Broadcom BCM5720), 500W
LongSummaryDescription - Lenovo ThinkSystem ST50 V3. Processor family: Intel Xeon E, Processor frequency: 2.6 GHz, Processor model: E-2414. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 16 GB. Total storage capacity: 1.92 TB, HDD interface: SATA. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 500 W. Chassis type: Tower
Max. number of disks in current configuration - 3
Max. number of power supplies - 1
Max memory size - 128 GB
Max supported number of processors - 1
Memory - ECC - Yes
Memory - Internal memory - 16 GB
Memory - Internal memory type - DDR5-SDRAM
Memory - Maximum internal memory - 128 GB
Memory - Memory clock speed - 4400 MHz
Memory - Memory layout (slots x size) - 1 x 16 GB
Memory - Memory slots - 4x DIMM
Memory frequency - 4400 MHz
Memory type - DDR5
Model - ThinkSystem ST50 V3
Motherboard -
name - Server ST50v3 E-2414 16GB 2x960GB 7DF3A010EA
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Broadcom BCM5720
Network card - other information -
Network interface - 2 x 10/100/1000 Mbit/s
Number of available memory slots - 3
Number of cores - 4C
Number of CPUs installed - 1
Number of fans - 3
Number of HDDs installed - 2
Number of memory slots used - 1
Number of power supplies installed - 1
Operational conditions - Operating altitude - 0 - 3050 m
Operational conditions - Storage relative humidity (H-H) - 8 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Optical disk drive - None
Performance - Trusted Platform Module (TPM) - Yes
Performance - Trusted Platform Module (TPM) version - 2.0
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 5
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Power supply - 500 W
Power - Power supply input frequency - 50/60 Hz
Power - Power supply input voltage - 100 - 240 V
Power supply output current - 500 W
Processor - Motherboard chipset - Intel C266
Processor - Number of processors installed - 1
Processor - Performance cores - 4
Processor - Processor boost frequency - 4.5 GHz
Processor - Processor cache - 12 MB
Processor - Processor cores - 4
Processor - Processor family - Intel Xeon E
Processor - Processor frequency - 2.6 GHz
Processor - Processor manufacturer - Intel
Processor - Processor model - E-2414
producer - Lenovo
ProductName - ST50 V3
RAM - other information -
RAM memory installed - 16 GB
ShortSummaryDescription - Lenovo ThinkSystem ST50 V3, 2.6 GHz, E-2414, 16 GB, DDR5-SDRAM, 1.92 TB, Tower
Software - Compatible operating systems - Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Stck_Kart - 1
Stck_Pal - 4
Storage - HDD capacity - 960 GB
Storage - HDD interface - SATA
Storage - Internal drive bays - 3
Storage - Number of HDDs installed - 2
Storage - Optical drive type - No
Storage - Supported storage drive interfaces - Serial ATA
Storage - Total storage capacity - 1.92 TB
Storno - Y
Technical details - Supported storage drives form factor (internal) - 3.5"
Title - Lenovo ThinkSystem ST50 V3 server 1.92 TB Tower Intel Xeon E E-2414 2.6 GHz 16 GB DDR5-SDRAM 500 W
Total capacity of all disks installed - 2 TB
Total number of memory slots - 4
Tower to rack conversion support - Yes
URL - https://lenovopress.lenovo.com/lp1907-thinksystem-st50-v3-server
vendpn - 7DF3A010EA
Warranty -
WarrantyInfo -
Weight - 11.96 kg
Weight & dimensions - Depth - 370 mm
Weight & dimensions - Height - 376 mm
Weight & dimensions - Weight - 12 kg
Weight & dimensions - Width - 170 mm
Width - 170 mm
