ID: 967773
Product code: BN331
Can be ordered 97 units Availability: 14 days after order approval
Warranty: 2 years

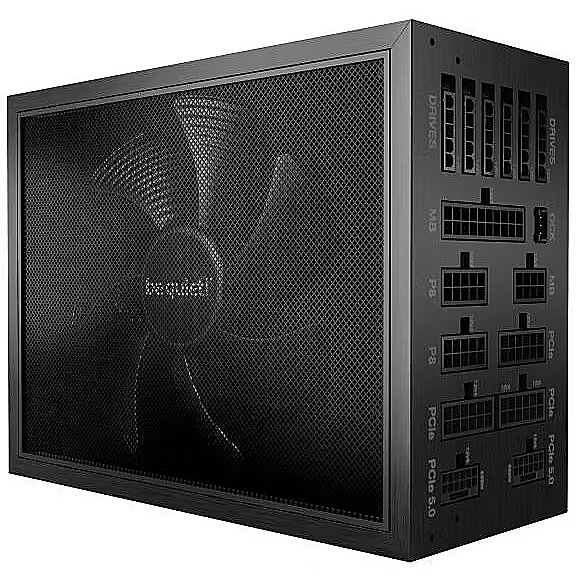

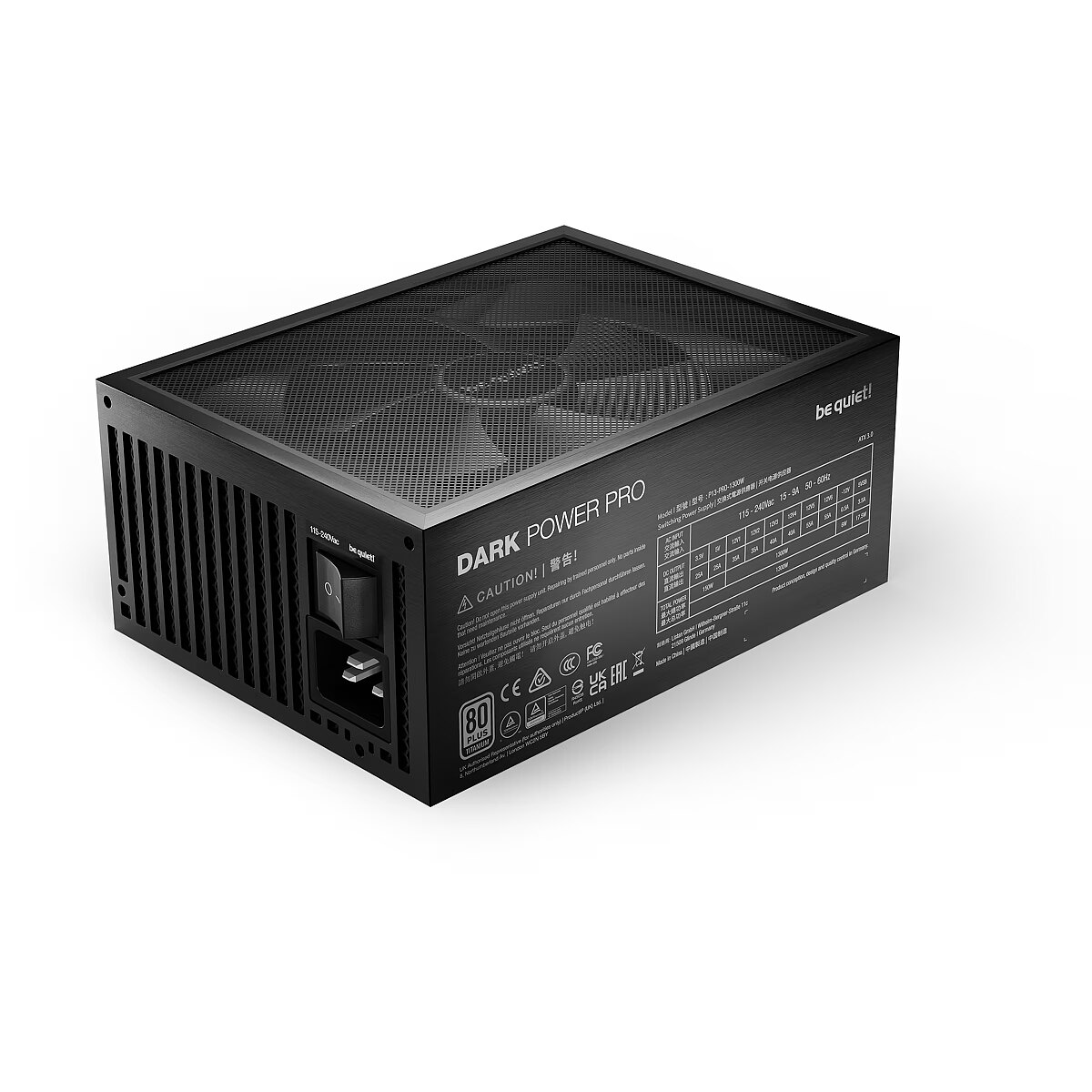

Be Quiet Dark Power Pro 13, 1300W, ATX 3.0, 80PLUS Titanium
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 1300W
- 80 PLUS certification: 80 PLUS Titanium
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Description
We offer to purchase a Be Quiet power supply unit with a power capacity of 1300W, which has received the 80 PLUS Titanium energy efficiency certification.
The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.
80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 2 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This power supply manufacturer is Be Quiet. See all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Titanium
Total amperage (+12V)
: 260A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: 2 x 600W 12VHPWR (5.0)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 6 x 6+2pin
SATA cconnectors
: 16
4pin Molex
: 5
Case
More detailed specification
8-pin 12V power connectors - 1
80 PLUS certification Performance - 80 PLUS Titanium
Accessories included - Speed screws Screws Cable ties Velcro cable ties User manual in CN, DE, EN, ES, FR, JP, PL, RU, TW, KR OCK switch on the spleen
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 115 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version - 3.1
ATX version Performance - 3.0
Bearing technology Performance - FDB
Brand - be quiet!
BrandPartCode - BN331
Cables included Packaging content - CPU,PCIe,Peripheral (Molex),SATA
Cable tie(s) included Packaging content - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - CCC, CE, Federal Communications Commission (FCC), UKCA
Certificates 80+ - 80 PLUS Titanium
code - BN331
Combined power (+3.3V) Power - 150 W
Combined power (+5V) Power - 150 W
Combined power (+5Vsb) Power - 17.5 W
Combined power (+12V) Power - 1300 W
Combined power (-12V) Power - 6 W
Compliance certificates Certificates - CCC/CE/Federal Communications Commission (FCC)/UKCA
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Funkcja PFC - nie
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Maks. głośność - 23.2 dB
Dane techniczne: Moc - 1300 W
Dane techniczne: Model - be quiet! Dark Power 13
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 25 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 35 A
Dane techniczne: Natężenie przy napięciu +12V2 - 35 A
Dane techniczne: Natężenie przy napięciu +12V3 - 40 A
Dane techniczne: Natężenie przy napięciu +12V4 - 40 A
Dane techniczne: Natężenie przy napięciu +12V5 - 55 A
Dane techniczne: Natężenie przy napięciu +12V6 - 55 A
Dane techniczne: Natężenie przy napięciu -12V - 0.5 A
Dane techniczne: Odłączane przewody - nie
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 200 mm
Dane techniczne: Typ PFC - aktywne
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.41 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 5 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 16 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 140 mm
Depth Weight & dimensions - 200 mm
Description - CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.80 PLUS Titanium efficiency (up to 94.4%)ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectorsHandles massive power excursionsFully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stabilityImproved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loadsFull mesh PSU front with funnel-shaped air inletOverclocking key switches between six 12V rails and one massive 12V railJapanese 105°C capacitors ensure highest stability and reliability2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUsAluminum case and modular individually sleeved cables for magnificent appearance
Description - Dark Power Pro 13 1300W Titanium CUTTING-EDGE TECHNOLOGY AND PERFORMANCE The be quiet! Dark Power Pro 13 1300W power supply offers 80 PLUS Titanium efficiency, world-class performance and ATX 3.0 compatibility for next-generation GPUs. 80 PLUS Titanium efficiency (up to 94.4%) ATX 3.0 power supply with full support for PCIe 5.0 graphics cards and with PCIe 6+2 connectors Supports high power surges Fully digital control and full LLC bridge for unmatched signal stability Virtually inaudible operation due to patented Silent Wings frameless fan Overclocking key switches between 6 12V lines and one power line Aluminium chassis and modular single braided cabling for a great look 10-year manufacturer's warranty
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 3498
dimension depth - 150 mm
dimension height - 255 mm
Dimensions - 200 x 150 x 86 mm
dimension weight - 6500 g
dimension width - 420 mm
ean - 4260052189368
EAN - 4260052189368
Eans - 4260052189368
EAN_code - 4260052189368
Efficiency Power - 94.5 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - Yes
EPS version Performance - 2.92
Fan - 13.5 cm
Fan diameter Design - 135 mm
Fan speed (max) - 2400 rpm
Floppy power connectors - 0
GTIN - 4260052189368
guarantee - 120
guarantee_type - normal
Height Weight & dimensions - 86 mm
Hold time Power - 18 ms
Input current Power - 15 - 9 A
Logistics data - Products per shipping (inner) case - 2 pc(s)
Logistics data - Shipping (inner) case height - 28.3 cm
Logistics data - Shipping (inner) case length - 44 cm
Logistics data - Shipping (inner) case net weight - 14.4 kg
Logistics data - Shipping (inner) case width - 32.5 cm
Logistics data - Warranty period - 10 year(s)
LongDesc - CUTTING EDGE TECHNOLOGIES AND PERFORMANCEThe be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
LongProductName - 1300W, 80 PLUS Titanium, ATX 3.0, PCIe 5.0, 6+2 pin, 100-240 V, 50-60 Hz, Black
LongSummaryDescription - be quiet! Dark Power Pro 13 | 1300W. Total power: 1300 W, AC input voltage: 115 - 240 V, Peak power: 1400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN331
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3.5 A
Max output current (+12V1) Power - 35 A
Max output current (+12V2) Power - 35 A
Max output current (+12V3) Power - 40 A
Max output current (+12V4) Power - 40 A
Max output current (-12V) Power - 0.5 A
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) Performance - 100000 h
Model name - Dark Power Pro 13 1300W
Modular power supply - Yes
MOLEX power connectors - 0
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - BN331
Name - 1300W be quiet! Dark Power PRO 13 | 80+ Titanium ATX 3.0
Name - be quiet! Dark Power Pro 13 1300W
Name - be quiet! Dark Power Pro 13 1300W, PC power supply (black, 1300 watts)
name - be quiet! Dark Power Pro 13 Netzteil 80 PLUS Titanium, ATX 3.1, PCIe 5.1 - 1300 Watt
name - Dark Power Pro 13 1300W Titanium
Noise level Performance - 23.2 dB
Number of connectors PATA - 5
Number of fans Design - 1 fan(s)
Number of PATA power connectors Ports & interfaces - 5
Number of power connectors 12VHPWR - 2
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Number of SATA power connectors Ports & interfaces - 16
Other features - OTP temperature protection OCP overcurrent protection OPP overload protection SCP short circuit protection OVP over-voltage protection UVP under-voltage protection SIP (protection against surge currents)
Package depth Packaging data - 417 mm
Package height Packaging data - 152 mm
Package weight Packaging data - 6800 g
Package width Packaging data - 253 mm
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 417 mm
Packaging data - Package height - 152 mm
Packaging data - Package weight - 6.8 kg
Packaging data - Package width - 253 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 6
Peak power Power - 1400 W
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 23.2 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 1050/600/750/900 mm
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 5
Ports & interfaces - Number of SATA power connectors - 16
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 600,750,900,1050 mm
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power cable length - 900 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1050 mm
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 500,600,750,800,900,950,1050 mm
Ports & interfaces - SATA power cable length - 600 mm
Ports & interfaces - SATA power cable length - 750 mm
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 900 mm
Ports & interfaces - SATA power cable length - 950 mm
Ports & interfaces - SATA power cable length - 1050
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1300 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 94.5%
Power - Hold time - 18 ms
Power - Input current - 15 - 9 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V1) - 35 A
Power - Max output current (+12V2) - 35 A
Power - Max output current (+12V3) - 40 A
Power - Max output current (+12V4) - 40 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1400 W
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1300 W
Power factor Power - 0.99
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply - 1300 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - be quiet!Listan GmbHWilhelm-Bergner-Str 11C21509 Glinde / HamburgNiemcyEmail: bequietcee@bequiet.com
producer - Be quiet!
Producer - be quiet!
producerCode - BN331
ProducerCode - BN331
Product colour Design - Black
productName - be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
ProductName - Dark Power Pro 13 | 1300W
productSize - Normal
Products per shipping (inner) case Logistics data - 2 pc(s)
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power cable length Ports & interfaces - 1050/500/600/750/800/900/950 mm
SATA power connectors - 16
Shipping (inner) case height Logistics data - 283 mm
Shipping (inner) case length Logistics data - 440 mm
Shipping (inner) case net weight Logistics data - 14400 g
Shipping (inner) case width Logistics data - 325 mm
ShortDescription - 1300 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 175mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power Pro 13 | 1300W, 1300 W, 115 - 240 V, 1400 W, 50 - 60 Hz, 15 - 9 A, 150 W
sizeX - 428
sizeY - 262
sizeZ - 156
Summary - be quiet! Dark Power Pro 13 | 1300W. Total power: 1300 W, AC input voltage: 115 - 240 V, Peak power: 1400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Sustainability compliance Technical details - Yes
Technical details - Compliance certificates - CCC
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - UKCA
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
Total power Power - 1300 W
Unit Box Height - 0.255
Unit Box Length - 0.42
Unit Box Width - 0.155
Unit Calculated Volume - 0.0166 cubm
Unit Calculated Weight - 6.6 kg
Units per Shipping Box - 1
URL - https://www.bequiet.com/en/powersupply/4394
Vendor Homepage - https://www.bequiet.com/en/powersupply/4394
vendpn - BN331
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 60
Warranty period Logistics data - 10 year(s)
warrantyType - G
Weight - 2.41 kg
Weight - 6,57
Weight - 6.53
weight - 6600
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.41 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2410 g
Width Weight & dimensions - 150 mm
80 PLUS certification Performance - 80 PLUS Titanium
Accessories included - Speed screws Screws Cable ties Velcro cable ties User manual in CN, DE, EN, ES, FR, JP, PL, RU, TW, KR OCK switch on the spleen
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 115 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version - 3.1
ATX version Performance - 3.0
Bearing technology Performance - FDB
Brand - be quiet!
BrandPartCode - BN331
Cables included Packaging content - CPU,PCIe,Peripheral (Molex),SATA
Cable tie(s) included Packaging content - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - CCC, CE, Federal Communications Commission (FCC), UKCA
Certificates 80+ - 80 PLUS Titanium
code - BN331
Combined power (+3.3V) Power - 150 W
Combined power (+5V) Power - 150 W
Combined power (+5Vsb) Power - 17.5 W
Combined power (+12V) Power - 1300 W
Combined power (-12V) Power - 6 W
Compliance certificates Certificates - CCC/CE/Federal Communications Commission (FCC)/UKCA
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Funkcja PFC - nie
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Maks. głośność - 23.2 dB
Dane techniczne: Moc - 1300 W
Dane techniczne: Model - be quiet! Dark Power 13
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 25 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 35 A
Dane techniczne: Natężenie przy napięciu +12V2 - 35 A
Dane techniczne: Natężenie przy napięciu +12V3 - 40 A
Dane techniczne: Natężenie przy napięciu +12V4 - 40 A
Dane techniczne: Natężenie przy napięciu +12V5 - 55 A
Dane techniczne: Natężenie przy napięciu +12V6 - 55 A
Dane techniczne: Natężenie przy napięciu -12V - 0.5 A
Dane techniczne: Odłączane przewody - nie
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 200 mm
Dane techniczne: Typ PFC - aktywne
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.41 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 5 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 16 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 140 mm
Depth Weight & dimensions - 200 mm
Description - CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.80 PLUS Titanium efficiency (up to 94.4%)ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectorsHandles massive power excursionsFully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stabilityImproved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loadsFull mesh PSU front with funnel-shaped air inletOverclocking key switches between six 12V rails and one massive 12V railJapanese 105°C capacitors ensure highest stability and reliability2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUsAluminum case and modular individually sleeved cables for magnificent appearance
Description - Dark Power Pro 13 1300W Titanium CUTTING-EDGE TECHNOLOGY AND PERFORMANCE The be quiet! Dark Power Pro 13 1300W power supply offers 80 PLUS Titanium efficiency, world-class performance and ATX 3.0 compatibility for next-generation GPUs. 80 PLUS Titanium efficiency (up to 94.4%) ATX 3.0 power supply with full support for PCIe 5.0 graphics cards and with PCIe 6+2 connectors Supports high power surges Fully digital control and full LLC bridge for unmatched signal stability Virtually inaudible operation due to patented Silent Wings frameless fan Overclocking key switches between 6 12V lines and one power line Aluminium chassis and modular single braided cabling for a great look 10-year manufacturer's warranty
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 3498
dimension depth - 150 mm
dimension height - 255 mm
Dimensions - 200 x 150 x 86 mm
dimension weight - 6500 g
dimension width - 420 mm
ean - 4260052189368
EAN - 4260052189368
Eans - 4260052189368
EAN_code - 4260052189368
Efficiency Power - 94.5 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - Yes
EPS version Performance - 2.92
Fan - 13.5 cm
Fan diameter Design - 135 mm
Fan speed (max) - 2400 rpm
Floppy power connectors - 0
GTIN - 4260052189368
guarantee - 120
guarantee_type - normal
Height Weight & dimensions - 86 mm
Hold time Power - 18 ms
Input current Power - 15 - 9 A
Logistics data - Products per shipping (inner) case - 2 pc(s)
Logistics data - Shipping (inner) case height - 28.3 cm
Logistics data - Shipping (inner) case length - 44 cm
Logistics data - Shipping (inner) case net weight - 14.4 kg
Logistics data - Shipping (inner) case width - 32.5 cm
Logistics data - Warranty period - 10 year(s)
LongDesc - CUTTING EDGE TECHNOLOGIES AND PERFORMANCEThe be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
LongProductName - 1300W, 80 PLUS Titanium, ATX 3.0, PCIe 5.0, 6+2 pin, 100-240 V, 50-60 Hz, Black
LongSummaryDescription - be quiet! Dark Power Pro 13 | 1300W. Total power: 1300 W, AC input voltage: 115 - 240 V, Peak power: 1400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN331
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3.5 A
Max output current (+12V1) Power - 35 A
Max output current (+12V2) Power - 35 A
Max output current (+12V3) Power - 40 A
Max output current (+12V4) Power - 40 A
Max output current (-12V) Power - 0.5 A
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) Performance - 100000 h
Model name - Dark Power Pro 13 1300W
Modular power supply - Yes
MOLEX power connectors - 0
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - BN331
Name - 1300W be quiet! Dark Power PRO 13 | 80+ Titanium ATX 3.0
Name - be quiet! Dark Power Pro 13 1300W
Name - be quiet! Dark Power Pro 13 1300W, PC power supply (black, 1300 watts)
name - be quiet! Dark Power Pro 13 Netzteil 80 PLUS Titanium, ATX 3.1, PCIe 5.1 - 1300 Watt
name - Dark Power Pro 13 1300W Titanium
Noise level Performance - 23.2 dB
Number of connectors PATA - 5
Number of fans Design - 1 fan(s)
Number of PATA power connectors Ports & interfaces - 5
Number of power connectors 12VHPWR - 2
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Number of SATA power connectors Ports & interfaces - 16
Other features - OTP temperature protection OCP overcurrent protection OPP overload protection SCP short circuit protection OVP over-voltage protection UVP under-voltage protection SIP (protection against surge currents)
Package depth Packaging data - 417 mm
Package height Packaging data - 152 mm
Package weight Packaging data - 6800 g
Package width Packaging data - 253 mm
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 417 mm
Packaging data - Package height - 152 mm
Packaging data - Package weight - 6.8 kg
Packaging data - Package width - 253 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 6
Peak power Power - 1400 W
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 23.2 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 1050/600/750/900 mm
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 5
Ports & interfaces - Number of SATA power connectors - 16
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 600,750,900,1050 mm
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power cable length - 900 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1050 mm
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 500,600,750,800,900,950,1050 mm
Ports & interfaces - SATA power cable length - 600 mm
Ports & interfaces - SATA power cable length - 750 mm
Ports & interfaces - SATA power cable length - 800
Ports & interfaces - SATA power cable length - 900 mm
Ports & interfaces - SATA power cable length - 950 mm
Ports & interfaces - SATA power cable length - 1050
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1300 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 94.5%
Power - Hold time - 18 ms
Power - Input current - 15 - 9 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V1) - 35 A
Power - Max output current (+12V2) - 35 A
Power - Max output current (+12V3) - 40 A
Power - Max output current (+12V4) - 40 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1400 W
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1300 W
Power factor Power - 0.99
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply - 1300 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - be quiet!Listan GmbHWilhelm-Bergner-Str 11C21509 Glinde / HamburgNiemcyEmail: bequietcee@bequiet.com
producer - Be quiet!
Producer - be quiet!
producerCode - BN331
ProducerCode - BN331
Product colour Design - Black
productName - be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
ProductName - Dark Power Pro 13 | 1300W
productSize - Normal
Products per shipping (inner) case Logistics data - 2 pc(s)
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power cable length Ports & interfaces - 1050/500/600/750/800/900/950 mm
SATA power connectors - 16
Shipping (inner) case height Logistics data - 283 mm
Shipping (inner) case length Logistics data - 440 mm
Shipping (inner) case net weight Logistics data - 14400 g
Shipping (inner) case width Logistics data - 325 mm
ShortDescription - 1300 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 175mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power Pro 13 | 1300W, 1300 W, 115 - 240 V, 1400 W, 50 - 60 Hz, 15 - 9 A, 150 W
sizeX - 428
sizeY - 262
sizeZ - 156
Summary - be quiet! Dark Power Pro 13 | 1300W. Total power: 1300 W, AC input voltage: 115 - 240 V, Peak power: 1400 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,600,750,800,900,950,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Sustainability compliance Technical details - Yes
Technical details - Compliance certificates - CCC
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - UKCA
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
Total power Power - 1300 W
Unit Box Height - 0.255
Unit Box Length - 0.42
Unit Box Width - 0.155
Unit Calculated Volume - 0.0166 cubm
Unit Calculated Weight - 6.6 kg
Units per Shipping Box - 1
URL - https://www.bequiet.com/en/powersupply/4394
Vendor Homepage - https://www.bequiet.com/en/powersupply/4394
vendpn - BN331
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 60
Warranty period Logistics data - 10 year(s)
warrantyType - G
Weight - 2.41 kg
Weight - 6,57
Weight - 6.53
weight - 6600
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.41 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2410 g
Width Weight & dimensions - 150 mm
