MSI MPG A1000G PCIE5, 1000W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Recommended
ID: 913875 Product code: MPG A1000G PCIE5
In stock 6 units
Warranty: 3 years
212.71 €
Delivery options More about shipping
  • Delivery to Omniva parcel machine free of charge: 22.07.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 22.07.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 22.07.2024
  • Delivery to address in Riga 3.99 €: 22.07.2024
  • Delivery to address in Latvia 6.99 €: 22.07.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 18.07.2024 after 15:00
Main product parameters All parameters
  • Producer: MSI
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 7 x 6+2pin
Description

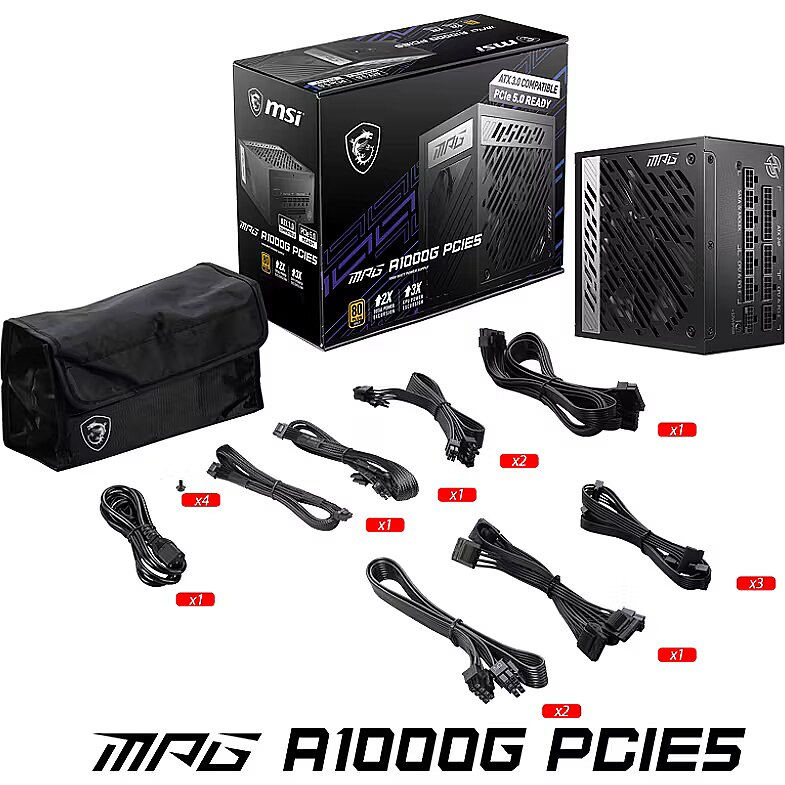

MSI MPG A1000G PCIE5 contents

Compatible with ATX 3.0

The MSI MPG A1000G PCIE5 is PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0 compliant. The 100μs power supply is capable of running at double the power (2000W), while the graphics card can even run at 3x the power (1800W).

Ready for the latest technologies

This power supply features a 16-pin PCIe 5.0 ( 12VHPWR) connection and is specifically designed to work with NVIDIA GeForce RTX 40 Series graphics cards. It can deliver up to 600W of power for the most powerful PCIe 5.0 graphics cards.

MSI 16-pin PCIE5

80PLUS Gold certified

The efficiency of the power supply has a direct impact on the performance, power consumption and longevity of your computer system. 80 PLUS Gold certification guarantees lower power consumption and higher efficiency.

Single-rail design

With a single powerful 12V line, the power supply can adequately provide the power needed for the most demanding video cards and processors.

Wide compatibility

The MSI MPG series power supply supports all NVIDIA and AMD graphics cards and is ready for the most demanding requirements. The wide range of MPG power supply connections supports versatile connection options to suit the power plug design of different graphics cards.

Fans with hydrodynamic bearing and 0% RPM mode

This PSU uses a Fluid Dynamic Bearing (FDB), which guarantees longer fan life and quieter operation. The 0% RPM Mode control switch is located on the back of the PSU. When activated, the fan will not run until the PSU load exceeds 40% or 400W. This guarantees complete silence, saves power and extends the life of the fan.

MSI Zero Fan Switch MSI 0% RPM

Fully modular design

The modularity of the PSU allows you to use only the cables required for your specific PC configuration. This reduces the clutter of cables in the case, improves airflow and simplifies the system assembly process.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics Standard ++
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 83.3A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular

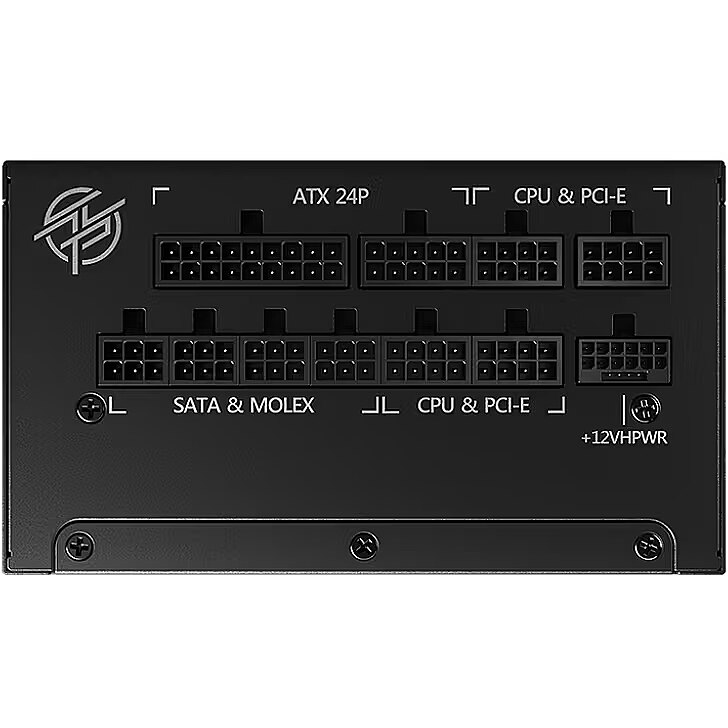

Ports and equipment
PCI-E 5.0 : 1 x 600W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 7 x 6+2pin
SATA cconnectors : 12
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - MSI
BrandPartCode - MPG A1000G PCIE5
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
code - 306-7ZP7C11-CE0
Code - MPGA1000GPCIE51000W
Colour - Black
Cooling System - 13.5cm fan
Desc - Jauda: 1000 W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 135mm, SATA pieslēgumi: 12, MOLEX PATA pieslēgumi: 4, PCI-E: 6 x 6 + 2 PIN, Garantija: 2 gadi
Description - - Supports Nvidia® GeForce RTX® 40 Series graphics cards - Full modular design - Flat cables - 80 Plus Gold certified for high efficiency - 100% all Japanese 105oCcapacitor - Active PFC design - Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP - LLC Half Bridge Topology with DC-DC module design
Description - MSI HARDWARE Build and build your most powerful build with MSI hardware and components, including PC cases, motherboards, liquid cooling systems, graphics cards, and power supplies. 80 PLUS GOLD CERTIFICATE The efficiency of the power supply directly affects the performance of the computer system and power consumption. The 80 PLUS Gold certified power supply offers lower power consumption and higher efficiency. 0% RPM MODE The 0 RPM (0 rpm) mode allows you to stop the power supply fan when the TDP (Thermal Design Power) value, i.e. the maximum value of power consumption planned by the designers for heat dissipation, drops below 40%. Thanks to this, you can enjoy the game in absolute silence. 100% JAPANESE CAPACITORS 105°C Striving for uncompromising product quality and stability, MPG A1000G series gaming power supplies feature 100% Japanese 105°C capacitors and solid cap polymer-aluminum capacitors. USE WHAT YOU NEED The MPG A1000G's fully modular design means you can only use the connectors you actually need to power your computer's installed components. In this way, it is possible to significantly reduce the clutter of cables inside the housing and greatly simplify the overall construction of the system. MONO SUPPLY Using a single power rail, the MPG A1000G can effortlessly deliver the power you need. This power is more than enough to power the MPG A1000G with high-performance graphics cards and processors, as well as 5 PCI-E slots. COMPACT SIZE The power supply is smaller than typical power supplies available on the market. The compact size of the new ATX power supplies makes them a perfect fit for most computer cases.
description_en - Power: 1000W
Energy efficiency: 80 Plus Gold
PFC: Active
Fan: 135 mm
SATA connectors: 12
MOLEX PATA connectors: 4
PCI-E: 6 x 6 + 2 PIN
description_lv - Jauda: 1000W
Energoefektivitāte: 80 Plus Gold
PFC: Aktīvs
Ventilatori: 135 mm
SATA savienotāji: 12
MOLEX PATA savienotāji: 4
PCI-E: 6 x 6 + 2 PIN
description_ru - Мощность: 1000 Вт
Энергоэффективность: 80 Plus Gold
PFC: Активный
Вентилятор: 135 мм
Разъемы SATA: 12
Разъемы MOLEX PATA: 4
PCI-E: 6 х 6 + 2 контакта
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1802
dimension depth - 130 mm
dimension height - 236 mm
Dimensions - 150 x 150 x 86 mm
dimension weight - 3523 g
dimension width - 295 mm
EAN - 4719072972196
ean - 4719072972196
Eans - 4719072972196
Efficiency - 80 PLUS GOLD
Fan - 13.5 cm
Floppy power connectors - 1
Full Description Line - MPG A1000G PCIE5|1000 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|Colour Black
gross_weight - 2.04 kg
GTIN - 4719072972196
guarantee - 120
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_103349_1.jpg
LargeDescHTML -
LongDesc - GO AHEAD, POP YOUR STYLEThe MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.The MPG power supply showcases unique styles and color schemes with laser-like lines to create a masterful art piece with indivuality, fully expressing the charm of MPG.ATX 3.0 compatibleIt has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion. level up your GAMEWith native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards. 80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency. SINGLE-RAILED DESIGNThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty. GPU SUPPORT FOR ALLThe gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.100% JAPANESE 105°C CAPACITORSAiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors. FULLY MODULARThe power supply's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.COMPACT SIZINGSmaller than typical PSUs on the market, the power supply’s compact sizing makes it an excellent fit for most PC cases.ALL THE MORE ORGANIZEDAll of the power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.
LongProductName - 1000W, 80 PLUS Gold, 135 mm, FDB, 100-240 VAC, 50-60 Hz, 150 x 150 x 86 mm
LongSummaryDescription - MSI MPG A1000G PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,650,700,850 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Manufacturer - MSI
MB power connector - 20 + 4 pin
Model - MPGA1000GPCIE51000W
Model name - MPG A1000G PCIE5
Modular power supply - Yes
MOLEX power connectors - 4
MPN - 306-7ZP7C11-CE0
Name - 1000W MSI MPG A1000G PCIE5 80 + Gold
Name - Barošanas bloks MSI MPG A1000G 1000W
name - MPG A1000G PCIE5 1000W 80PLUS GOLD F.MODULAR PSU
Name - MSI MPG A1000G PCIE5
name - MSI MPG A1000G PCIe5 Netzteil, 80 PLUS Gold, vollmodular, PCIe 5.0 - 1000 Watt
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Other features - Protection: OCP / OVP / OPP / OTP / SCP / UVP
Other features - EPS cable length - 70 cm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 650 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1100
Ports & interfaces - Peripheral (Molex) power cable length - 1100,500,650,700,850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 500,650,700,850 mm
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
producer - MSI
Producer - MSI
producerCode - 306-7ZP7C11-CE0
ProducerCode - MPG A1000G PCIE5
ProductName - MPG A1000G PCIE5
productName - MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black
productSize - Normal
PSU Output Power - 1000 Watts
SATA power connectors - 12
Shipping Box Depth Shipping/Package Box Dimensions - 30 cm
Shipping Box Height Shipping/Package Box Dimensions - 23.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.48 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortDescription - 1000 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 150mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MPG A1000G PCIE5, 1000 W, 100 - 240 V, 50 - 60 Hz, Active, 120 W, 1000 W
sizeX - 130
sizeY - 235
sizeZ - 295
Title - MSI MPG A1000G PCIE5 power supply unit 1000 W 20+4 pin ATX ATX Black
title_en - MSI MPG A1000G 1000W Power supply unit
title_lv - MSI MPG A1000G 1000W Barošanas bloks
title_ru - MSI MPG A1000G 1000W Блок питания
Unit Box Height - 0.235
Unit Box Length - 0.3
Unit Box Width - 0.13
Unit Brutto Volume - 0.009165 cubm
Unit Gross Weight - 3.48 kg
Unit Net Weight - 2.5 kg
URL - https://www.msi.com/Power-Supply/MPG-A1000G-PCIE5/Overview
Vendor Homepage - www.msi.com/Power-Supply/MPG-A1000G-PCIE5
vendpn - MPG A1000G PCIE5
Warranty - 24 months
WarrantyInfo - 10 year limited
warrantyLength - 120
warrantyType - G
weight - 2 kg
Weight - 3.481
weight - 3450
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
