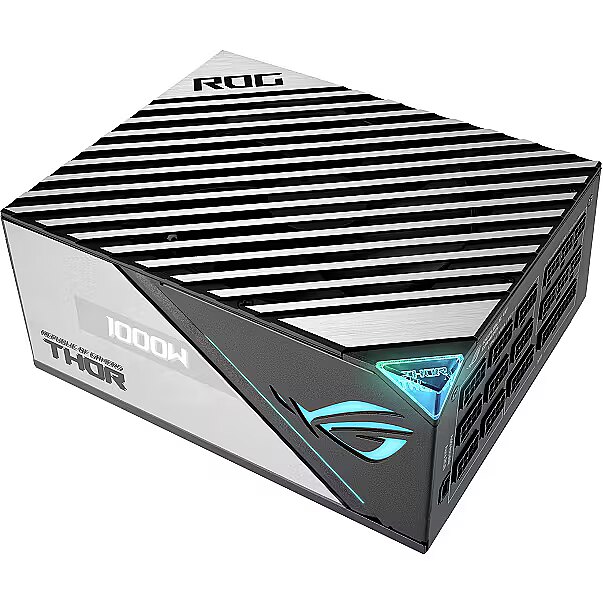

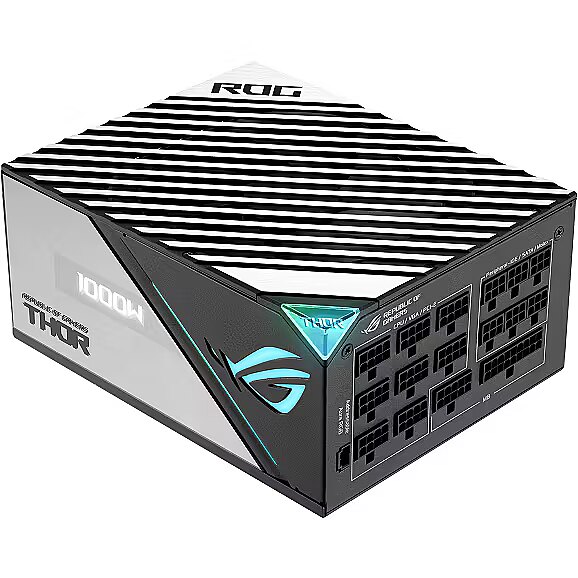

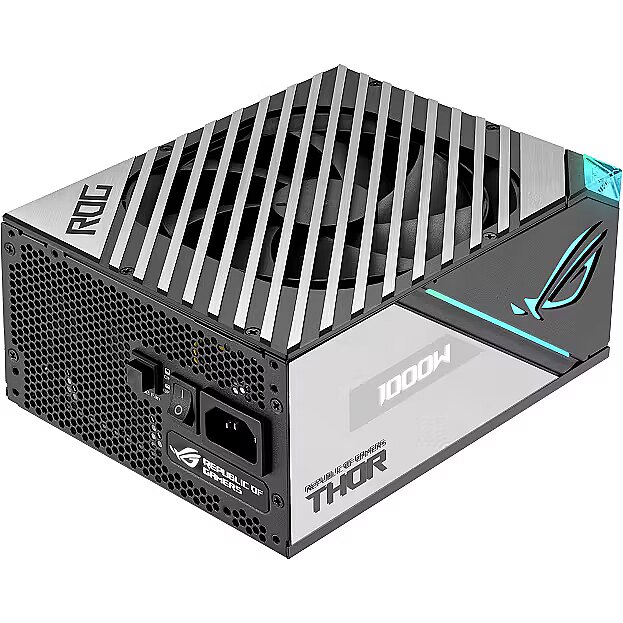

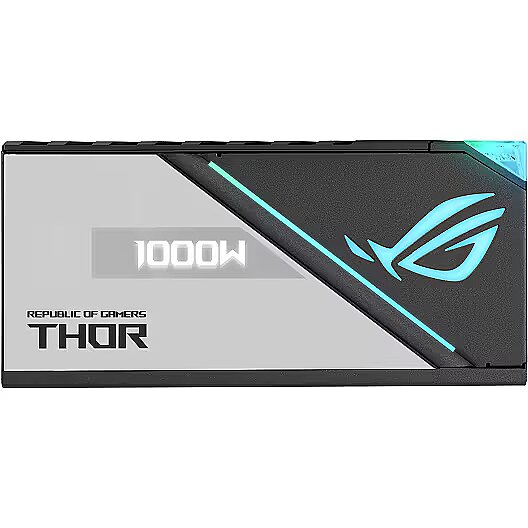

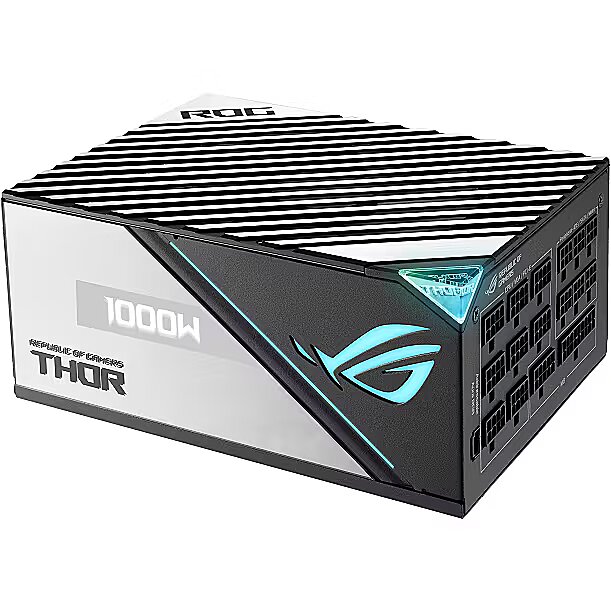

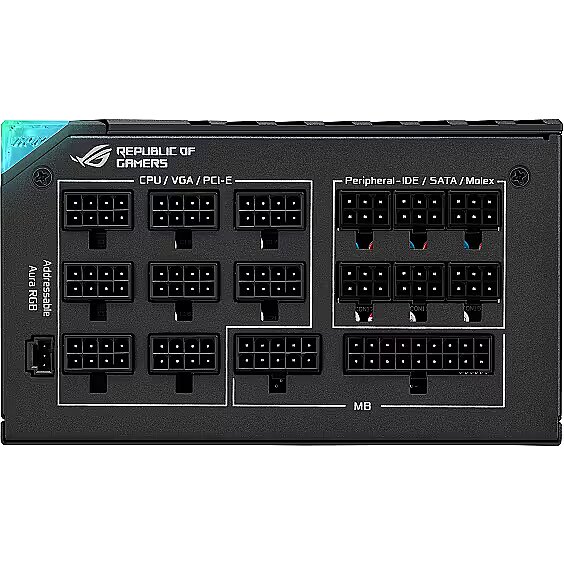

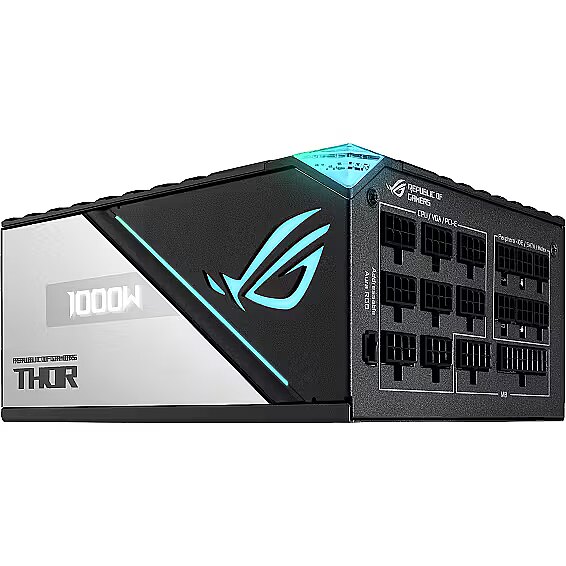

Asus ROG Thor Platinum II, 1000W, 80PLUS Platinum

8-pin 12V power connectors - 0
Accessories included - Przewód zasilający Kabel zasilający płyty głównej (610 mm) 2 x Kabel procesora (650 mm) Kabel PCIE 16-pinowy (675 mm) 4 x Kabel PCIE 1-do-1 (675 mm) 2 x Kabel PCIE 1-do-2 (675+75 mm) 3 x Kabel SATA 1-do-4 (400+120+120+120 mm) 2 x Kabel peryferyjny 1-do-3 (450+120+120 mm) Kabel adresowalny RGB (800 mm) Naklejka ROG 6 x Opaska kablowa ROG 4 x Opaska grzebieniowa do kabli (6-pinowa) 10 x Opaska grzebieniowa do kabli (8-pinowa) 2 x Opaska grzebieniowa do kabli (24-pinowa) Śruby do obudowy (pakiet) 12 x Opaska kablowa Instrukcja obsługi
Brand - ASUS
BrandPartCode - 90YE00L4-B0NA00
category - Energy Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
code - 90YE00L4-B0NA00
Cooling System - 13.5cm fan
Description -
Description - ROG-THOR-1000P2-GAMING ROG Thor 1000W Platinum II is the quietest PSU in its class. - Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth. - ROG heatsinks cover critical components, delivering lower temperatures and reduced noise. - A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check. - Built with 100% Japanese capacitors and other premium components to achieve 80 Plus Platinum Certification. - OLED display monitors power draw in real time. - Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
Design - Cooling type - Active
Design - Illumination - Yes
Design - LED indicators - Yes
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
Design features - Bundled with a 16-pin PCIe cable (up to 600W)
dimensionalWeight - 2462
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 190 x 150 x 86 mm
dimension weight - 3875 g
dimension width - 370 mm
ean - 4711081746294
Eans - 4711081746294
EAN_code - 4711081746294
Efficiency - 80 PLUS PLATINIUM
Fan - 13.5 cm
Floppy power connectors - 0
Full Description Line - ROG-THOR-1000P2-GAMING|For gaming/Braided cables/Display|Bundled with a 16-pin PCIe cable (up to 600W)|1000 Watts|Cooling System 13.5cm fan|80 PLUS PLATINIUM|PFC Active
GTIN - 4711081746294
guarantee - 120
guarantee_type - normal
LongDesc - The Quietest 1000W Power SupplyBack with a vengeance, the second iteration of the ROG Thor 1000W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED displayROG HeatsinksROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.Axial-tech Fan DesignA 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.Dual Ball Fan BearingsThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.​Lambda A++ CertificationThor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.80 Plus Platinum CertificationThe ROG Thor 1000W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.OLED Power DisplayThe built-in OLED panel makes it easy to tune your system for best performance and efficiency.Aura SyncCustomize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.Sleeved CablesA range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.PCIe Gen 5.0 ReadyEach ROG Thor 1000W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
LongProductName - ROG Thor 1000W Platinum II , 80Plus Platinum, OPP/OVP/UVP/SCP/OCP/OTP, 100-240Vac, ROG Thermal Solution, +3.3V +5V +12V -12V +5Vsb, 25A 25A 83A 0.3A 3A, 125W 125W 996W 3.6W 15W, 2.37KG, ARGB, 0dB Fan
LongSummaryDescription - ASUS ROG THOR 1000P2-GAMING. Total power: 1000 W, AC input voltage: 100 - 240 V, Maximum input current (@220V): 83 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, 80 PLUS certification: 80 PLUS Platinum, Certification: ROHS. Product colour: Black, Silver, Cooling type: Active. Cables included: CPU, DC, PCIe, Peripheral (Molex), SATA
Manufacturer - Asus
Manufacturer_code - 90YE00L4-B0NA00
MB power connector - 20 + 4 pin
Model name - ROG-THOR-1000P2-GAMING
Modular power supply - Yes
MOLEX power connectors - 6
Name - ASUS ROG-THOR-1000P2-GAMING
Name - ASUS ROG-THOR-1000P2-GAMING 1000W, PC power supply (black, with Aura Sync and an OLED display, 1000 Watt)
name - ASUS ROG Thor 1000P2 Platinum II, 80 PLUS Platinum Netzteil, modular, PCIe 5.0 - 1000 Watt
name - Power supply Rog Thor 1000W Platinum II OLED/Aura 80+
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 8
Other features -
Packaging content - Cables included - CPU, DC, PCIe, Peripheral (Molex), SATA
Packaging content - Cable tie(s) included - Yes
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - Certification - ROHS
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 2
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 8
Ports & interfaces - PCI Express power connectors (8-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 996 W
Power - Combined power (-12V) - 3.6 W
Power - Maximum input current (@220V) - 83 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 125 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overdischarge, Short circuit, Under voltage
Power - Power protection features - Overdischarge
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
producer - Asus
Producer - Asus
producerCode - 90YE00L4-B0NA00
ProducerCode - 90YE00L4-B0NA00
productName - ASUS ROG THOR 1000P2-GAMING power supply unit 1000 W 20+4 pin ATX Black, Silver
ProductName - THOR 1000P2-GAMING
productSize - Normal
PSU features - Braided cables/Display/For gaming
PSU Output Power - 1000 Watts
SATA power connectors - 12
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 24.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 5.12 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortDescription - 1000 | ATX | 135mm | 20 + 4 pin | 80 Plus Platinum| 190 x 150 x 86 mm |
ShortSummaryDescription - ASUS ROG THOR 1000P2-GAMING, 1000 W, 100 - 240 V, 83 A, 125 W, 996 W, 125 W
sizeX - 380
sizeY - 135
sizeZ - 240
Technical details - Sustainability certificates - RoHS
Title - ASUS ROG THOR 1000P2-GAMING power supply unit 1000 W 20+4 pin ATX Black, Silver
Unit Box Height - 0.245
Unit Box Length - 0.38
Unit Box Width - 0.13
Unit Brutto Volume - 0.0121 cubm
Unit Gross Weight - 5.12 kg
Unit Net Weight - 2.37 kg
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1000p2-gaming-model/
Vendor Homepage - rog.asus.com/power-supply-units/rog-thor/rog-thor-1000p2-gaming-model/
vendpn - 90YE00L4-B0NA00
Warranty - 36 months
WarrantyInfo - 10-year
warrantyLength - 72
warrantyType - G
Weight - 5,13
weight - 5135
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.37 kg
Weight & dimensions - Width - 190 mm
