ID: 772934
Product code: R-PM750D-FA0B-EU
In stock 50 units
Warranty: 3 years

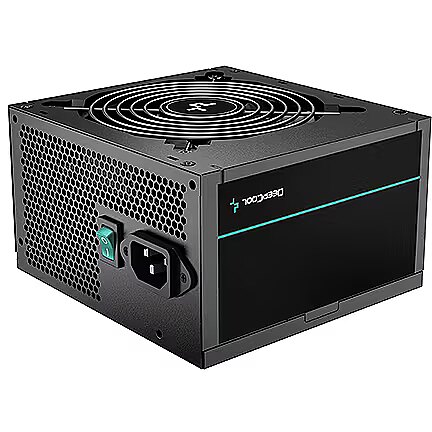

Deepcool PM750D, 750W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 09.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 09.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 09.05.2024
- Delivery to address in Riga 3.99 €: 09.05.2024
- Delivery to address in Latvia 6.99 €: 09.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 07.05.2024 after 15:00
Main product parameters All parameters
- Producer: Deepcool
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold

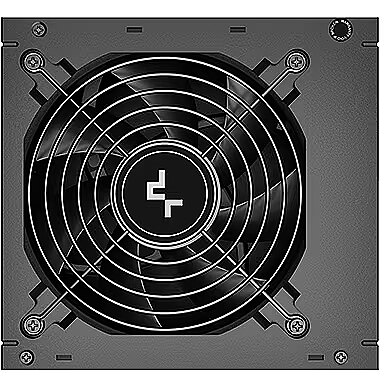

- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
We offer to buy Deepcool the power supply unit with 750W the power supply capacity and 120 mm cooling.
Thanks to the 3 x 6+2pin PCI-Express power lines and 750W capacity this power supply unit is intended for computers with several video cards both in SLI/Crossfire connections and 3D/CAD the software Quattro/FireGL card applications. Prior to selecting this unit verify the minimum requirements of graphic cards are regards the capacity of 12V power lines. You should buy a unit with the capacity of 12V power lines slightly above these requriements.
Active PFC (power factor correction) makes this power supply unit more environment friendly thanks to the fact that this unit uses only the effective power component in the power network without creating artificial consumption on the account of noise and fluctuations. This feature does not provide any direct advantages or disadvantages to the user.
This power supply unit has modular cables providing a possibility to connect the video cards, the hard disc and other additional cables as required from the range included in the kit. In this way the tangle of wires in the computer is considerably reduced improving the ventilation and the esthetic factor (it is of particular importance for those who buy a transparent enclosure).
The 12cm diameter of the cooler of this power unit is the industry standard for ensuring silent operation of average class computers. If you wish to have an especially silent unit you should look for a unit with the ventilator diameter of 13.5cm or 14cm.
Thanks to the 3 x 6+2pin PCI-Express power lines and 750W capacity this power supply unit is intended for computers with several video cards both in SLI/Crossfire connections and 3D/CAD the software Quattro/FireGL card applications. Prior to selecting this unit verify the minimum requirements of graphic cards are regards the capacity of 12V power lines. You should buy a unit with the capacity of 12V power lines slightly above these requriements.
Active PFC (power factor correction) makes this power supply unit more environment friendly thanks to the fact that this unit uses only the effective power component in the power network without creating artificial consumption on the account of noise and fluctuations. This feature does not provide any direct advantages or disadvantages to the user.
This power supply unit has modular cables providing a possibility to connect the video cards, the hard disc and other additional cables as required from the range included in the kit. In this way the tangle of wires in the computer is considerably reduced improving the ventilation and the esthetic factor (it is of particular importance for those who buy a transparent enclosure).
The 12cm diameter of the cooler of this power unit is the industry standard for ensuring silent operation of average class computers. If you wish to have an especially silent unit you should look for a unit with the ventilator diameter of 13.5cm or 14cm.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > 80 PLUS certification - 80 PLUS GOLD
Code - R-PM750D-FA0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1210
EAN - 6933412709510
EAN_code - 6933412709510
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PM750D-80-PLUS-Gold-Power-Supply/2021/12995.shtml
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Deepcool
Manufacturer_code - R-PM750D-FA0B-EU
Name - DeepCool PM750D 750W 12V ATX ??black
Name - Deepcool PSU PM750D 80 PLUS GOLD 750 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions > Operating temperature (T-T) - 0-40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270 mm
Package features > Gross depth master carton - 560 mm
Package features > Gross height (mm) - 195 mm
Package features > Gross height master carton - 220 mm
Package features > Gross width (mm) - 115 mm
Package features > Gross width master carton - 363 mm
Package features > Net weight master carton - 12.654 kg
Package features > Packing quantity - 6 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 700.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > Tare weight master carton - 0.76 kg
Package features > Volume (m3) - 0.00605475 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - Hypro Bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Mean time between failures (MTBF) - 100,000 h
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 2
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 750 W
Power > Nominal power - 750 W
producerCode - R-PM750D-FA0B-EU
Producer product family - PSU
Producer product name - PM750D 80 PLUS GOLD
productName - DeepCool PM750D power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 115
sizeY - 195
sizeZ - 270
Technical details > Gross weight - 2.109 kg
Technical details > Net weight - 1.109 kg
Technical details > Warranty - 60 month(s)
Technical_details - PM750D 750W, PC power supply The non-modular PC power supply DeepCool PM750D 750W from the PM-D series is certified with 80 PLUS Gold and offers an efficient power supply with high performance. All of this is available at an affordable price. For solid performance and minimal signal noise, the PM-D series power supplies feature a full-bridge LLC topology with DC-DC conversion that offers excellent reliability. Each PM-D power supply meets modern design standards for consistent voltage stability and also conforms to Intel's PSU guidelines, allowing for instant power-up from hibernation or standby. Type: PC power supply Color: Black EAN code: 6933412709510 Manufacturer part number: R-PM750D-FA0B-EU Series: PM-D Performance: Total | 750W Power: +12V total | 750W Power: +3.3V/+5V total | 110W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 62.5A Amperages: +12 V1 | 62.5A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 3x 4-pin 5.25", 3x 6+2-pin graphics, 6x 15-pin SATA Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 60
warrantyLength - 60
warrantyType - G
Weight - 2,06
weight - 2115
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Category_2 - Computer Power Supplies
Certificates > 80 PLUS certification - 80 PLUS GOLD
Code - R-PM750D-FA0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1210
EAN - 6933412709510
EAN_code - 6933412709510
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PM750D-80-PLUS-Gold-Power-Supply/2021/12995.shtml
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Deepcool
Manufacturer_code - R-PM750D-FA0B-EU
Name - DeepCool PM750D 750W 12V ATX ??black
Name - Deepcool PSU PM750D 80 PLUS GOLD 750 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions > Operating temperature (T-T) - 0-40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270 mm
Package features > Gross depth master carton - 560 mm
Package features > Gross height (mm) - 195 mm
Package features > Gross height master carton - 220 mm
Package features > Gross width (mm) - 115 mm
Package features > Gross width master carton - 363 mm
Package features > Net weight master carton - 12.654 kg
Package features > Packing quantity - 6 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 700.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > Tare weight master carton - 0.76 kg
Package features > Volume (m3) - 0.00605475 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - Hypro Bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Mean time between failures (MTBF) - 100,000 h
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 2
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 750 W
Power > Nominal power - 750 W
producerCode - R-PM750D-FA0B-EU
Producer product family - PSU
Producer product name - PM750D 80 PLUS GOLD
productName - DeepCool PM750D power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 115
sizeY - 195
sizeZ - 270
Technical details > Gross weight - 2.109 kg
Technical details > Net weight - 1.109 kg
Technical details > Warranty - 60 month(s)
Technical_details - PM750D 750W, PC power supply The non-modular PC power supply DeepCool PM750D 750W from the PM-D series is certified with 80 PLUS Gold and offers an efficient power supply with high performance. All of this is available at an affordable price. For solid performance and minimal signal noise, the PM-D series power supplies feature a full-bridge LLC topology with DC-DC conversion that offers excellent reliability. Each PM-D power supply meets modern design standards for consistent voltage stability and also conforms to Intel's PSU guidelines, allowing for instant power-up from hibernation or standby. Type: PC power supply Color: Black EAN code: 6933412709510 Manufacturer part number: R-PM750D-FA0B-EU Series: PM-D Performance: Total | 750W Power: +12V total | 750W Power: +3.3V/+5V total | 110W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 62.5A Amperages: +12 V1 | 62.5A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 3x 4-pin 5.25", 3x 6+2-pin graphics, 6x 15-pin SATA Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 60
warrantyLength - 60
warrantyType - G
Weight - 2,06
weight - 2115
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
