ID: 766173
Product code: BDK-650FC
In stock 5 units
Warranty: 2 years

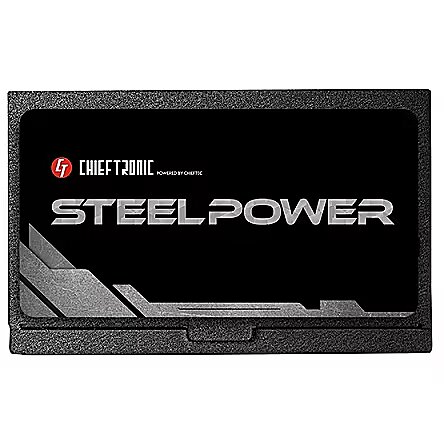

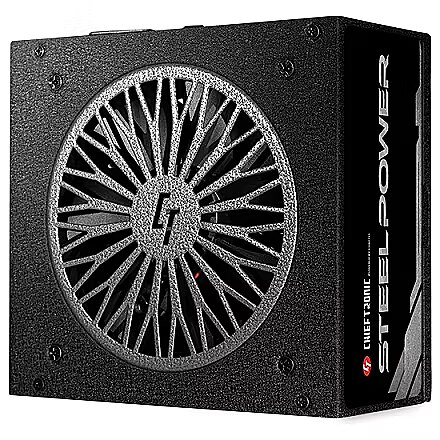

Chieftec SteelPower Series, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 09.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 09.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 09.05.2024
- Delivery to address in Riga 3.99 €: 09.05.2024
- Delivery to address in Latvia 6.99 €: 09.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 07.05.2024 after 15:00
Main product parameters All parameters
- Producer: Chieftec
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to buy Chieftec the power supply unit with 650W the power supply capacity and 120 mm cooling.
Thanks to the 4 X 6+2pin PCI-Express power lines and 650W capacity this power supply unit is intended for computers with several video cards both in SLI/Crossfire connections and 3D/CAD the software Quattro/FireGL card applications. Prior to selecting this unit verify the minimum requirements of graphic cards are regards the capacity of 12V power lines. You should buy a unit with the capacity of 12V power lines slightly above these requriements.
Active PFC (power factor correction) makes this power supply unit more environment friendly thanks to the fact that this unit uses only the effective power component in the power network without creating artificial consumption on the account of noise and fluctuations. This feature does not provide any direct advantages or disadvantages to the user.
This power supply unit has modular cables providing a possibility to connect the video cards, the hard disc and other additional cables as required from the range included in the kit. In this way the tangle of wires in the computer is considerably reduced improving the ventilation and the esthetic factor (it is of particular importance for those who buy a transparent enclosure).
The 12cm diameter of the cooler of this power unit is the industry standard for ensuring silent operation of average class computers. If you wish to have an especially silent unit you should look for a unit with the ventilator diameter of 13.5cm or 14cm.
Thanks to the 4 X 6+2pin PCI-Express power lines and 650W capacity this power supply unit is intended for computers with several video cards both in SLI/Crossfire connections and 3D/CAD the software Quattro/FireGL card applications. Prior to selecting this unit verify the minimum requirements of graphic cards are regards the capacity of 12V power lines. You should buy a unit with the capacity of 12V power lines slightly above these requriements.
Active PFC (power factor correction) makes this power supply unit more environment friendly thanks to the fact that this unit uses only the effective power component in the power network without creating artificial consumption on the account of noise and fluctuations. This feature does not provide any direct advantages or disadvantages to the user.
This power supply unit has modular cables providing a possibility to connect the video cards, the hard disc and other additional cables as required from the range included in the kit. In this way the tangle of wires in the computer is considerably reduced improving the ventilation and the esthetic factor (it is of particular importance for those who buy a transparent enclosure).
The 12cm diameter of the cooler of this power unit is the industry standard for ensuring silent operation of average class computers. If you wish to have an especially silent unit you should look for a unit with the ventilator diameter of 13.5cm or 14cm.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
Brand - Chieftec
BrandPartCode - BDK-650FC
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1873
Eans - 0753263077424
EAN_code - 0753263077424
GTIN - 753263077424
GTIN - 0753263077424
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.
LongProductName - 650W, FDB 12cm fan, 80 PLUS® Bronze
LongSummaryDescription - Chieftec BDK-650FC. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - Chieftronic
Manufacturer_code - BDK-650FC
Name - Chieftec BDK-650FC
Name - Chieftronic BDK-650FC - BDK-650FC
Packaging data - Package weight - 2.2 kg
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Bearing technology - FDB
Performance - Certification - CB
EAC
FCC
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
Producer - Chieftec
producerCode - BDK-650FC
ProducerCode - BDK-650FC
ProductName - BDK-650FC
productName - Chieftec BDK-650FC power supply unit 650 W 20+4 pin ATX ATX Black
productSize - Normal
ShortDescription - 650 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | retail | standard| 80 PLUS Bronze |
ShortSummaryDescription - Chieftec BDK-650FC, 650 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 110 W
sizeX - 313
sizeY - 232
sizeZ - 129
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - CE, ErP, RoHS
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - Chieftec BDK-650FC power supply unit 650 W 20+4 pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/504/SteelPower_SERIES/506/BDK-650FC
WarrantyInfo - 60 Months
warrantyLength - 24
warrantyType - G
Weight - 2,44
weight - 2420
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.65 kg
Weight & dimensions - Width - 150 mm
