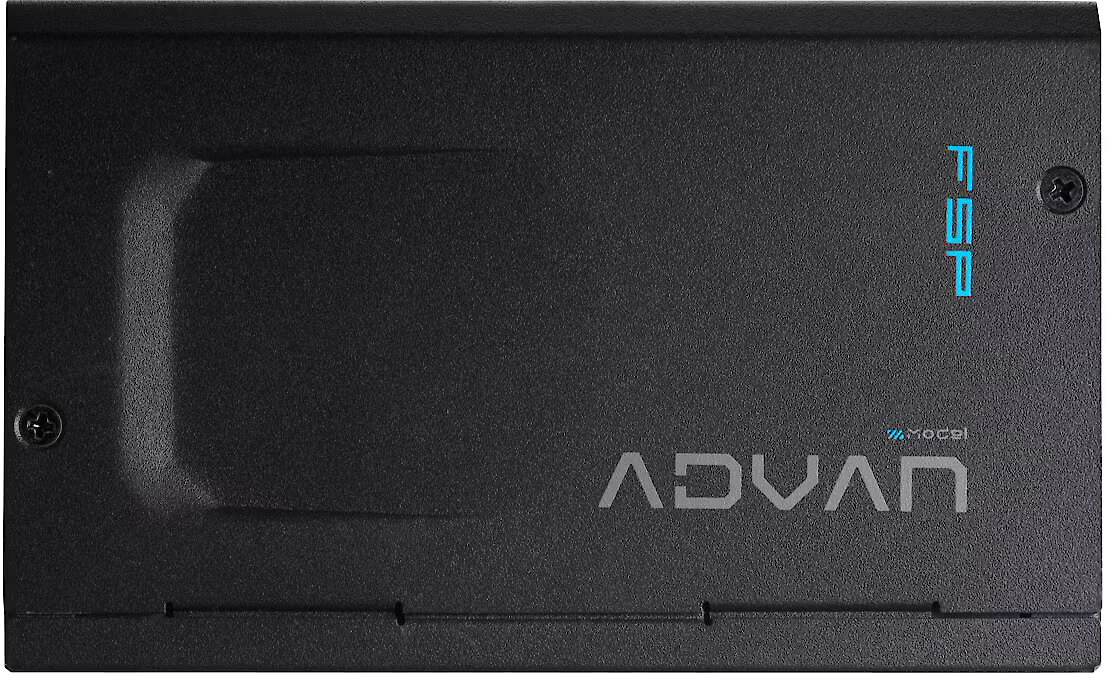

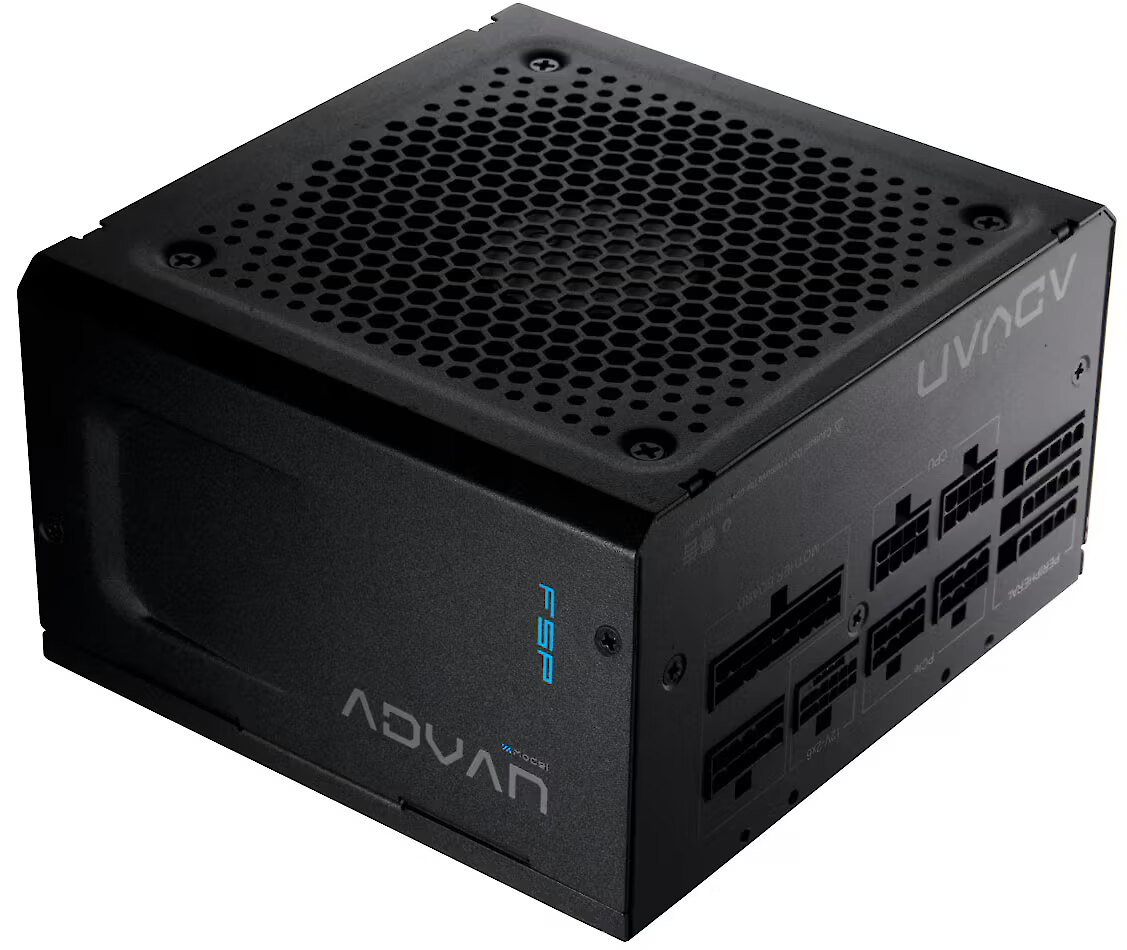

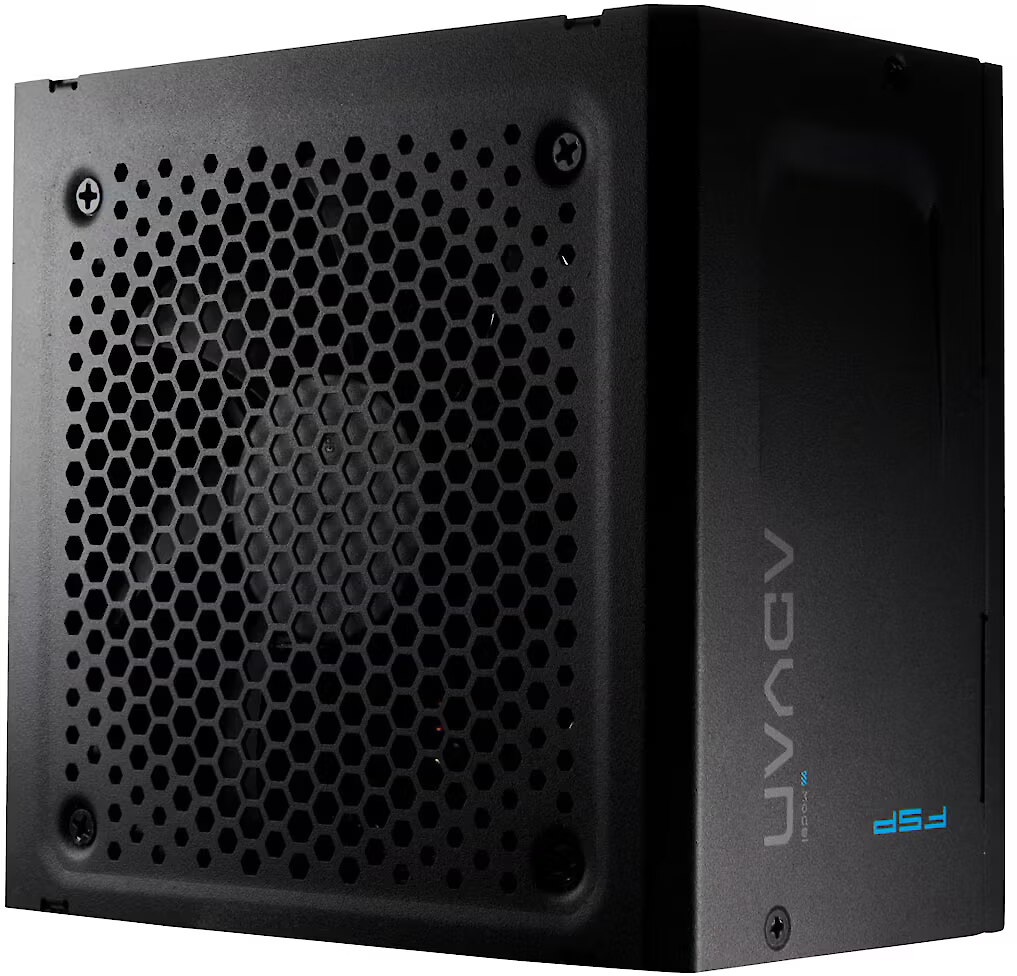

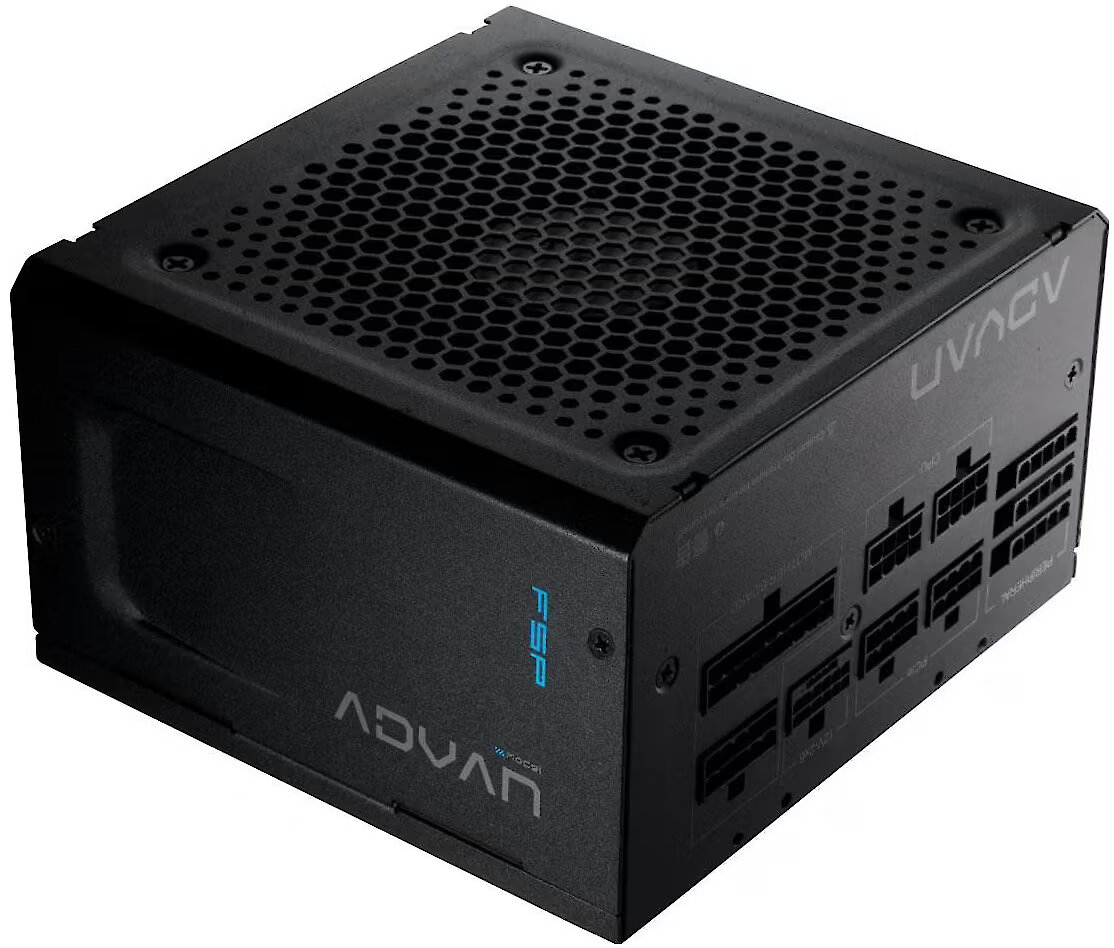

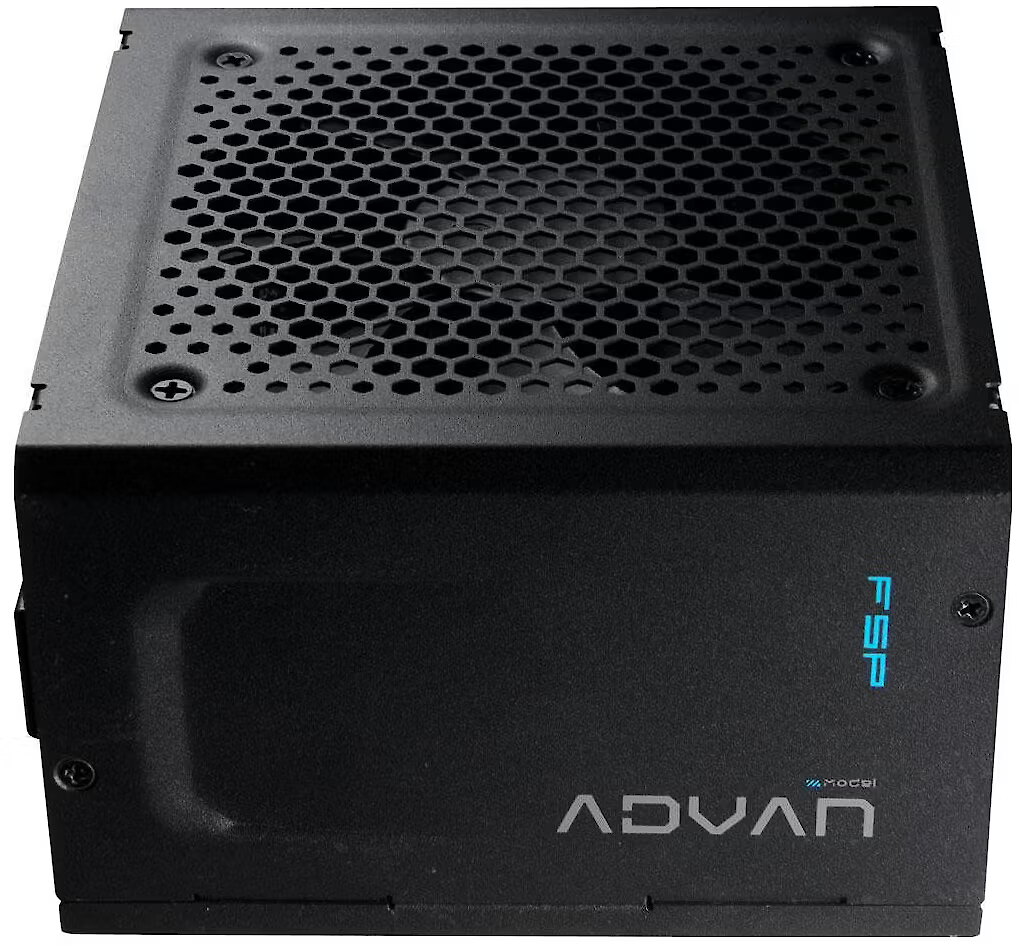

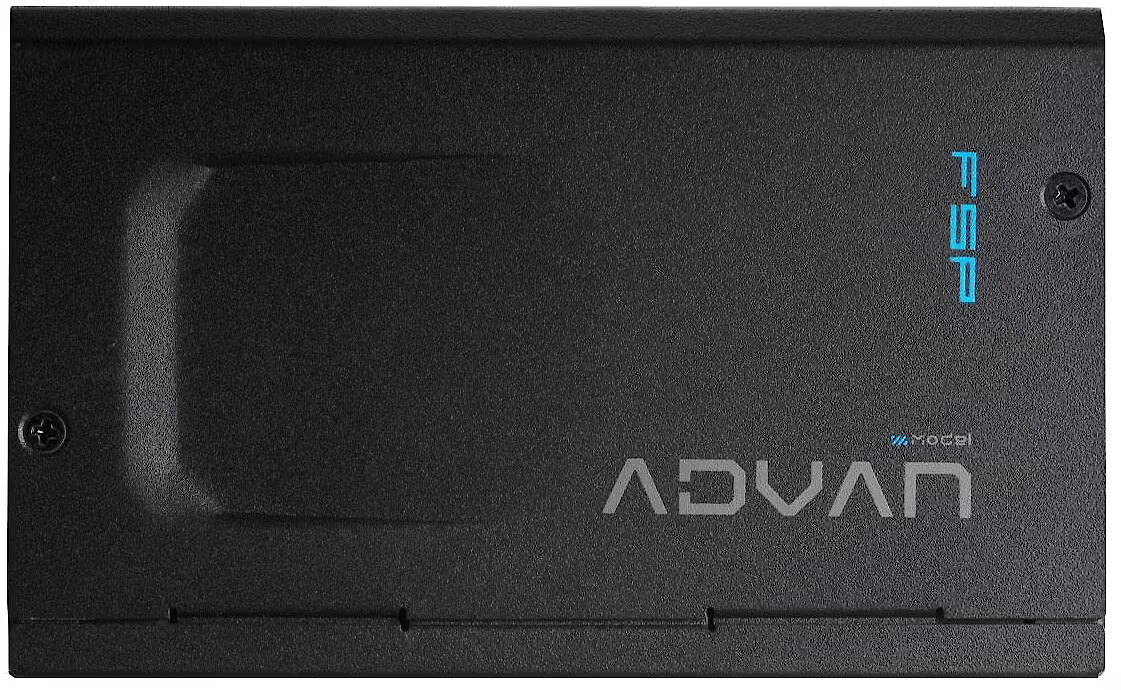

FSP ADVAN GM, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
-
Receiving goods at the Dateks office0.00 €
-
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 €
-
Parcel terminalWithin 1-2 working days0.00 €
-
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 €
-
SmartPosti parcel terminalWithin 1-2 working days0.00 €
-
Unisend parcel terminalWithin 1-2 working days0.00 €
-
Delivery throughout Latvia.Within 1-2 working days4.99 €
- Producer: FSP
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
This Fortron brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

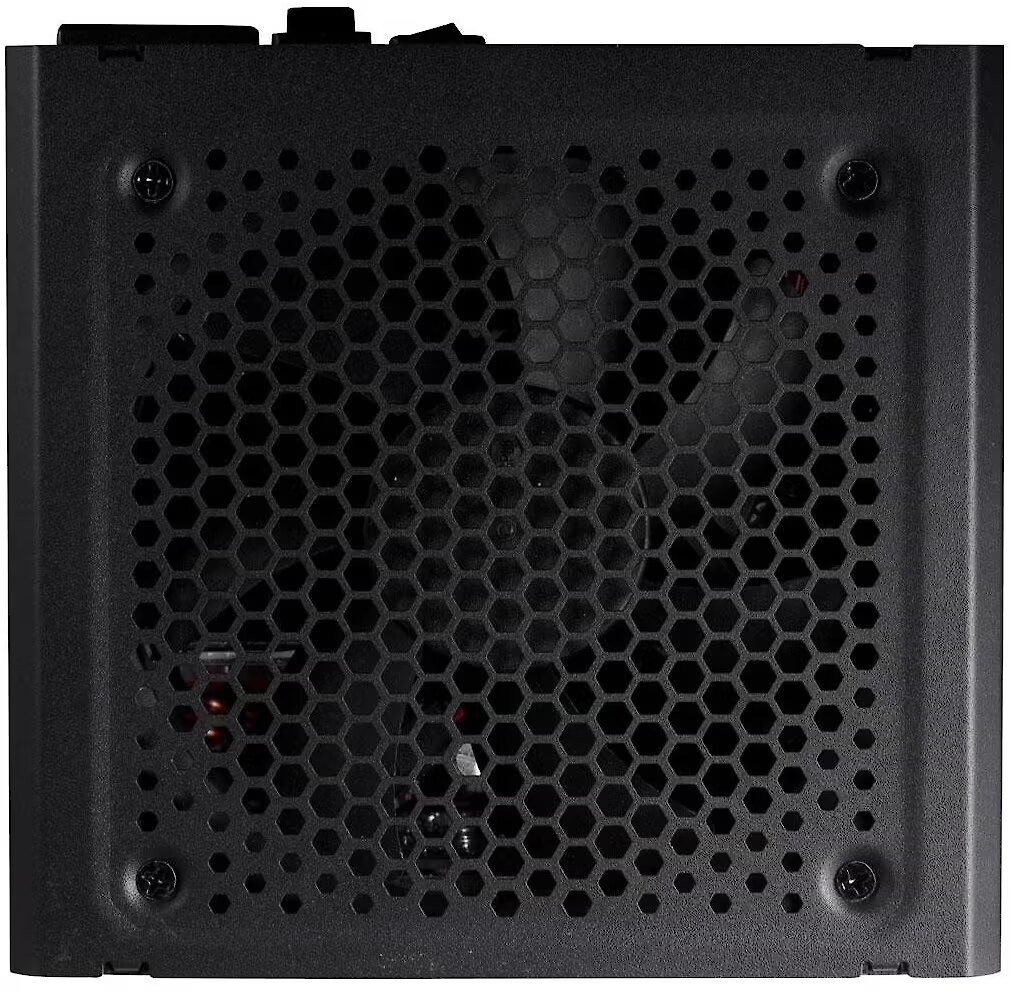

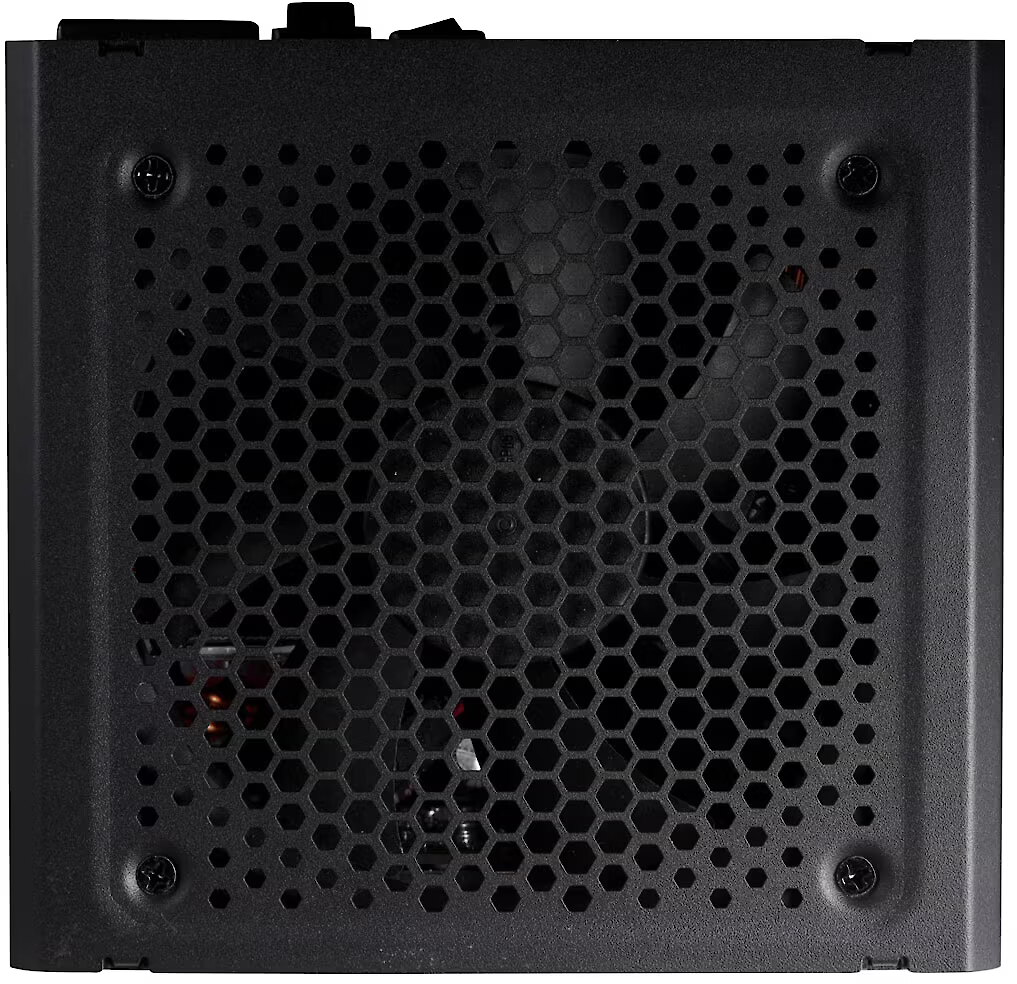

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
BrandPartCode - PPA8504800
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - FSP/Fortron ADVAN
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.83 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Fortron
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 4 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - NLO
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Eans - 4711498480781
GTIN - 4711498480781

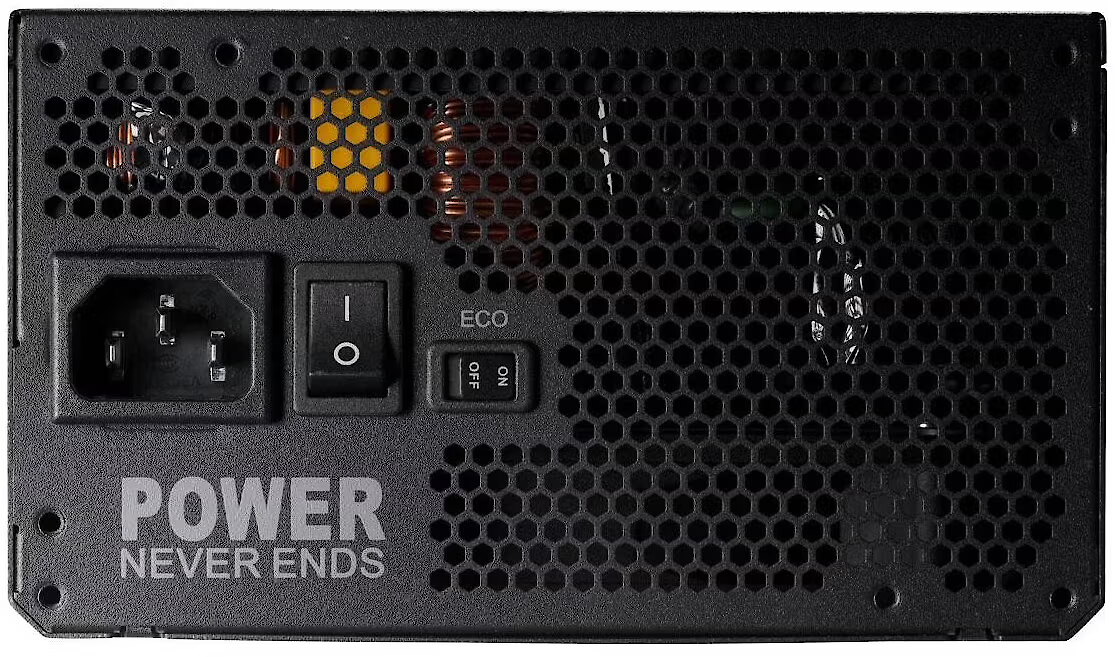

LongDesc - Complies with Intel® Power Design Guide ATX 3.1ADVAN GM series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.LLC Resonant-converter Topology with Synchronous RectifierReducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.High Efficiency in Gold-certifiedCertified by world-class organizations 80 PLUS ® and Cybenetics gold certified for lower power loss, less heat, and quieter operation.ECO Switch with ZERO RPM Silent OperationActivating the eco semi-fanless fan control switch, when the PSU operates at less than 40% capacity, will ensure the fan does not run, resulting in silent operation.120 mm Hydraulic Bearing (HYB) FanQuality bearing keeps fan noise to a minimum while providing maximum cooling performance.Fully Modular Cabling DesignTo make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.The Force Comes with YouDual PCIe 6+2Pin cables and a versatile 12V-2x6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.+5V & 3.3V DC to DC Circuit DesignIncrease the efficiency and stabilize the output voltage to ensure system stability.Powerhouse Single +12V RailThis high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.105°C Japanese Bulk CapacitorMaximize reliability and performance by using top-quality Japanese electrolytic capacitors for a longer lifespan.Premium, Black Embossed CablesFeaturing improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
LongProductName - ADVAN GM 850W
LongSummaryDescription - FSP ADVAN GM 850W Power supply unit ATX ATX3.1 Black. Total power: 850 W, AC input voltage: 100 - 240 V, Input current: 5.5 A. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power cable length: 70 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Name - FSP/Fortron ADVAN-850GM
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 5.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.83 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 850 W
Producer - Fortron
ProducerCode - PPA8504800
ProductName - ADVAN GM 850W Power supply unit ATX ATX3.1 Black
ShortDescription - 850 | ATX | 120 mm | 24 pin | 86mm x 150mm x 140mm| 2x PCI-E| 80 Plus Gold| modularny|
ShortSummaryDescription - FSP ADVAN GM 850W Power supply unit ATX ATX3.1 Black, 850 W, 100 - 240 V, 5.5 A, Active, 100 W, 850 W
Title - FSP ADVAN GM 850W Power supply unit ATX ATX3.1 Black
URL - https://www.fsplifestyle.com/en/product/ADVANGM750W.html
WarrantyInfo -
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
