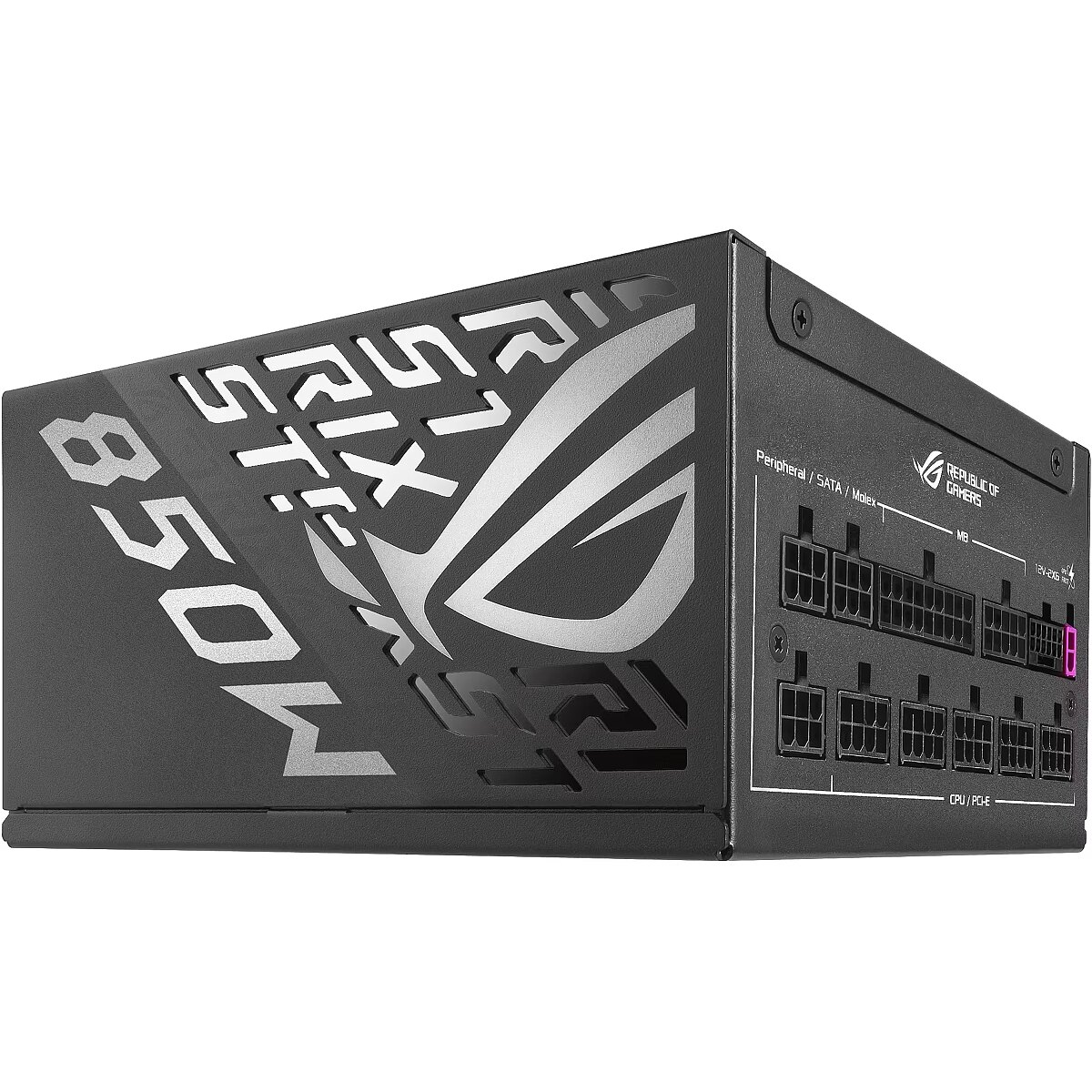

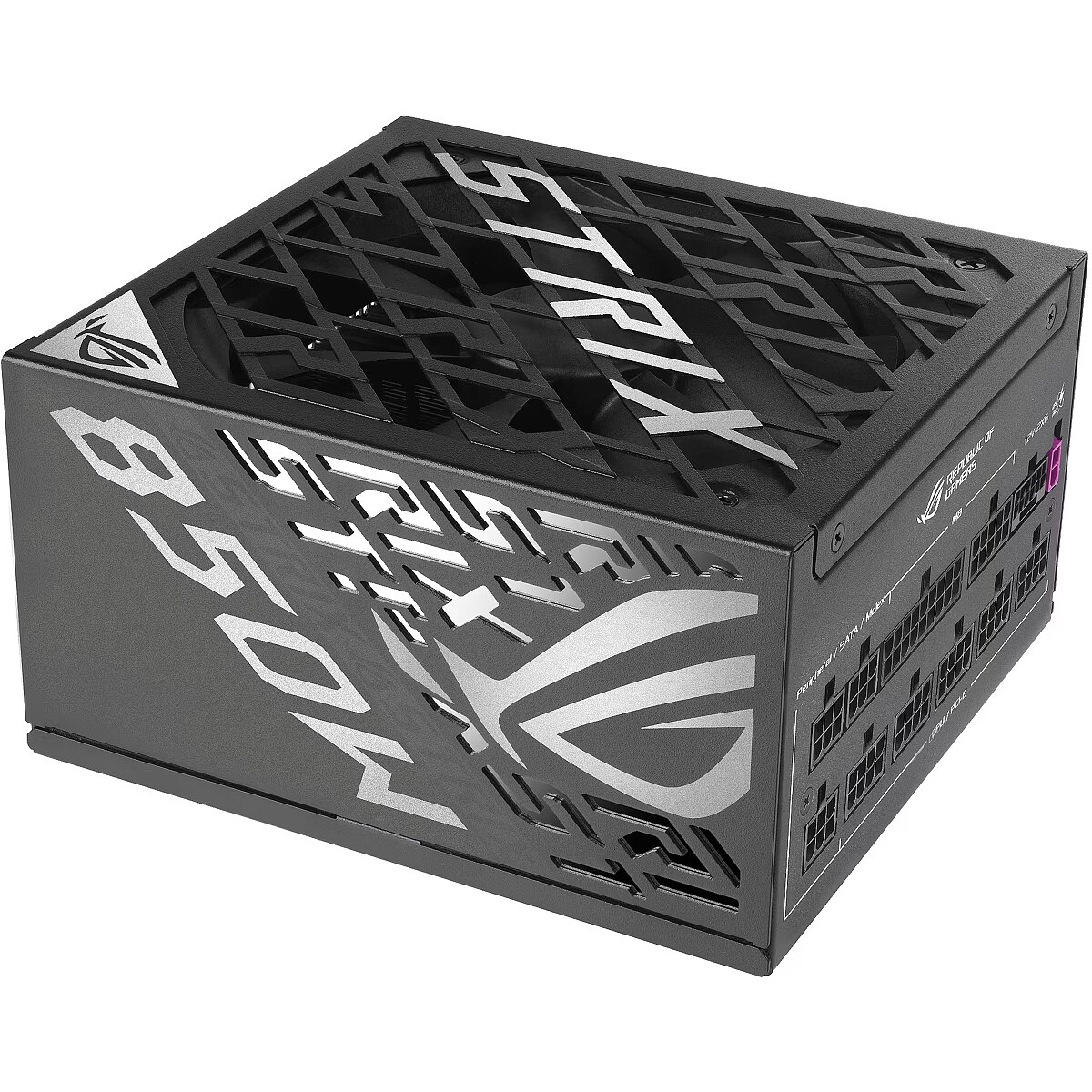

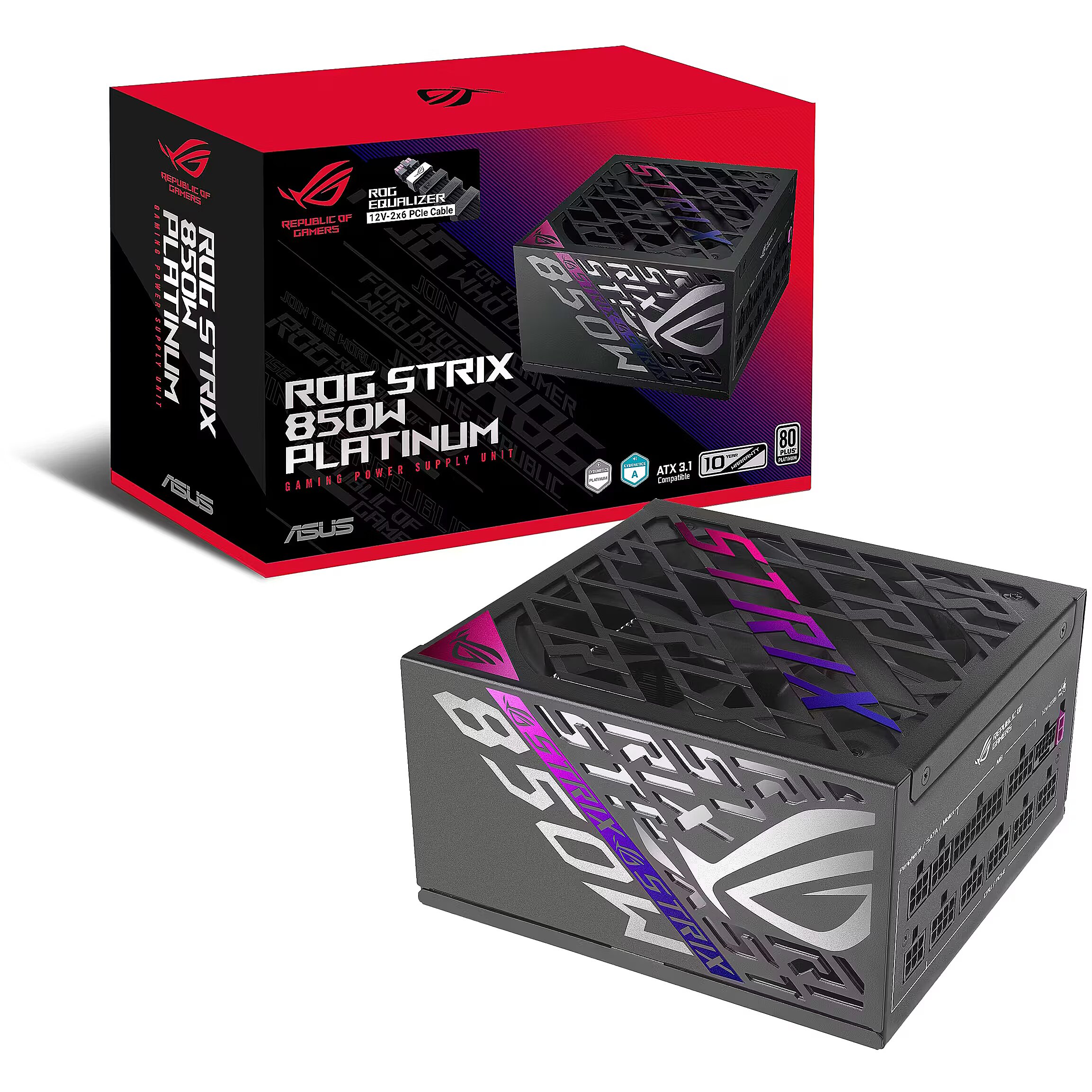

Asus ROG Strix 850W Platinum (ROG Equalizer), 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1432037 Product code: 90YE00W8-B0NA00
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
273.24 €
Ready for dispatch
15.07.2026
starting from 0 € with VAT
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Unisend parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
Main product parameters All parameters
  • Producer: Asus
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Asus brand power supply unit has an 80 PLUS Platinum energy efficiency certificate and a power output of 850W.

This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

The power supply has a Cybenetics A noise level certificate, which means that its noise level is 20-25 dB.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

The manufacturer of this power supply unit is Asus. Check out all Asus power supply units here.

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 70.8A
Fan size : 135 mm
Functionality
Cable colour : Black
Lighting : None
Color : Black
Modular cables : Fully-Modular

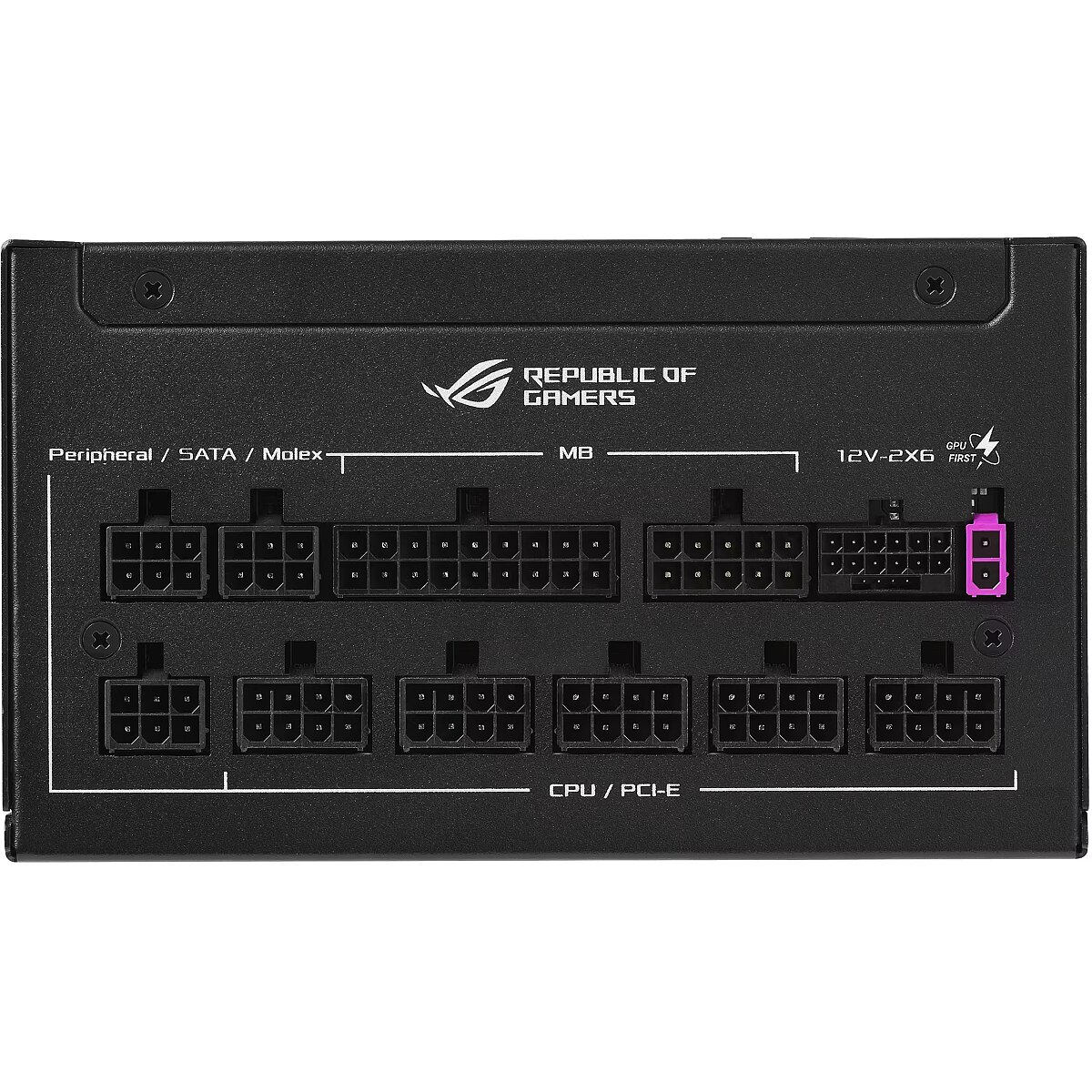

Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
Brand - ASUS
BrandPartCode - 90YE00W8-B0NA00
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN_code - 4711636451390
GTIN - 4711636451390
LongDesc - ROG STRIX 850W PLATINUM (ROG EQUALIZER)Superior Stability.Next-Level EfficiencyThe ROG Strix 850W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.The ROG Strix 850W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
LongProductName - ROG Strix 850W Platinum (ROG Equalizer)
LongSummaryDescription - ASUS ROG -STRIX-850P-GAMING-E. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Manufacturer - Asus
Manufacturer_code - 90YE00W8-B0NA00
Name - ASUS ROG-STRIX-850P-GAMING-E (zero watts)
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Packaging data - Package depth - 200 mm
Packaging data - Package height - 108 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.51 kg
Packaging data - Package width - 320 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400,120 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Power - Total power - 850 W
ProductName - ROG-STRIX-850P-GAMING-E
ShortSummaryDescription - ASUS ROG -STRIX-850P-GAMING-E, 850 W, 100 - 240 V, Active, 130 W, 850 W, 130 W
Title - ASUS ROG -STRIX-850P-GAMING-E power supply unit 850 W 20+4 pin ATX ATX Black
URL - https://rog.asus.com/power-supply-units/rog-strix/rog-strix-850p-gaming-e/
WarrantyInfo -
Weight - 0,00
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.78 kg
Weight & dimensions - Width - 160 mm
273.24 €
