ID: 1384157
Product code: 90YE04A0-B0NC00
Can be ordered 9 units Availability: 14 days after order approval
Warranty: 3 years

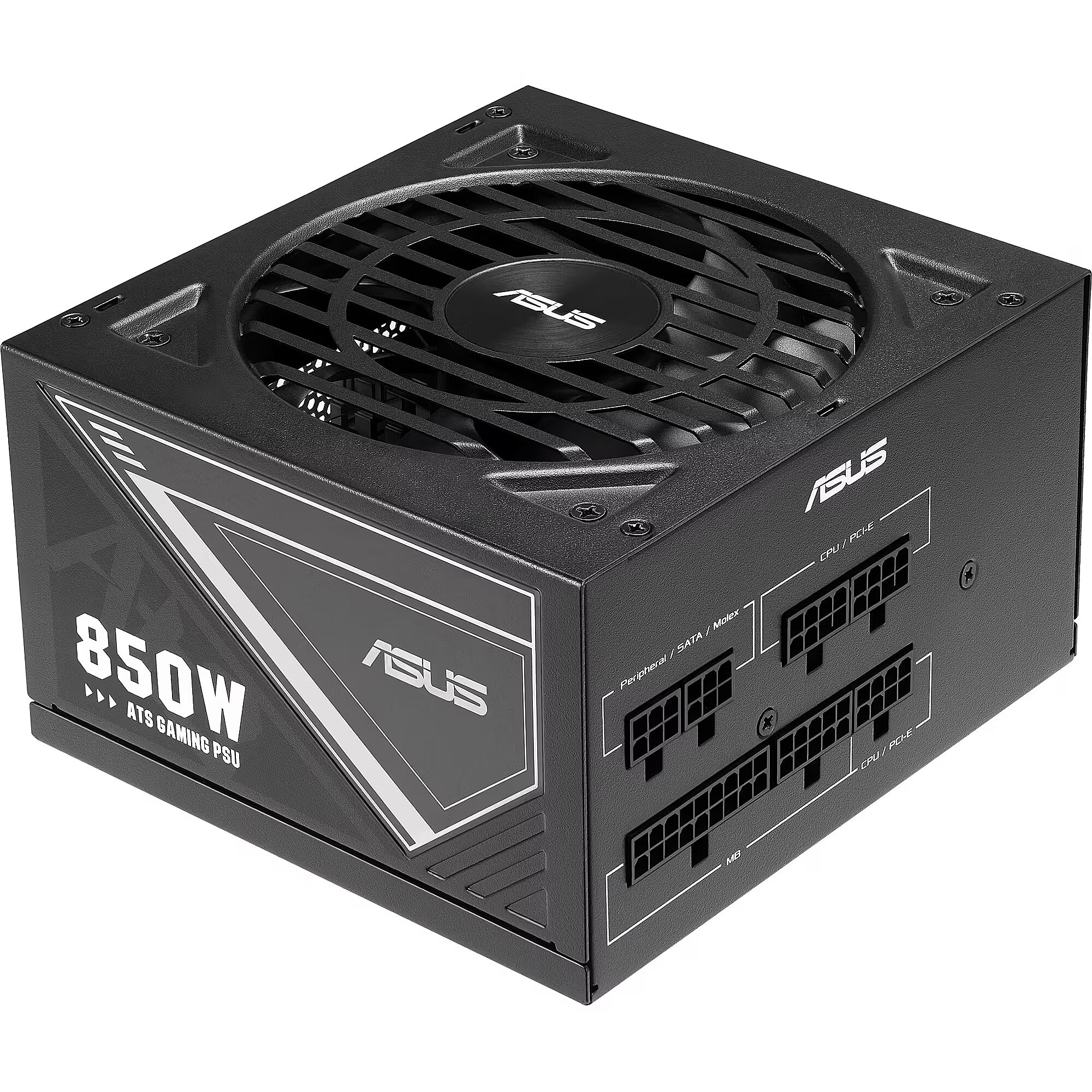

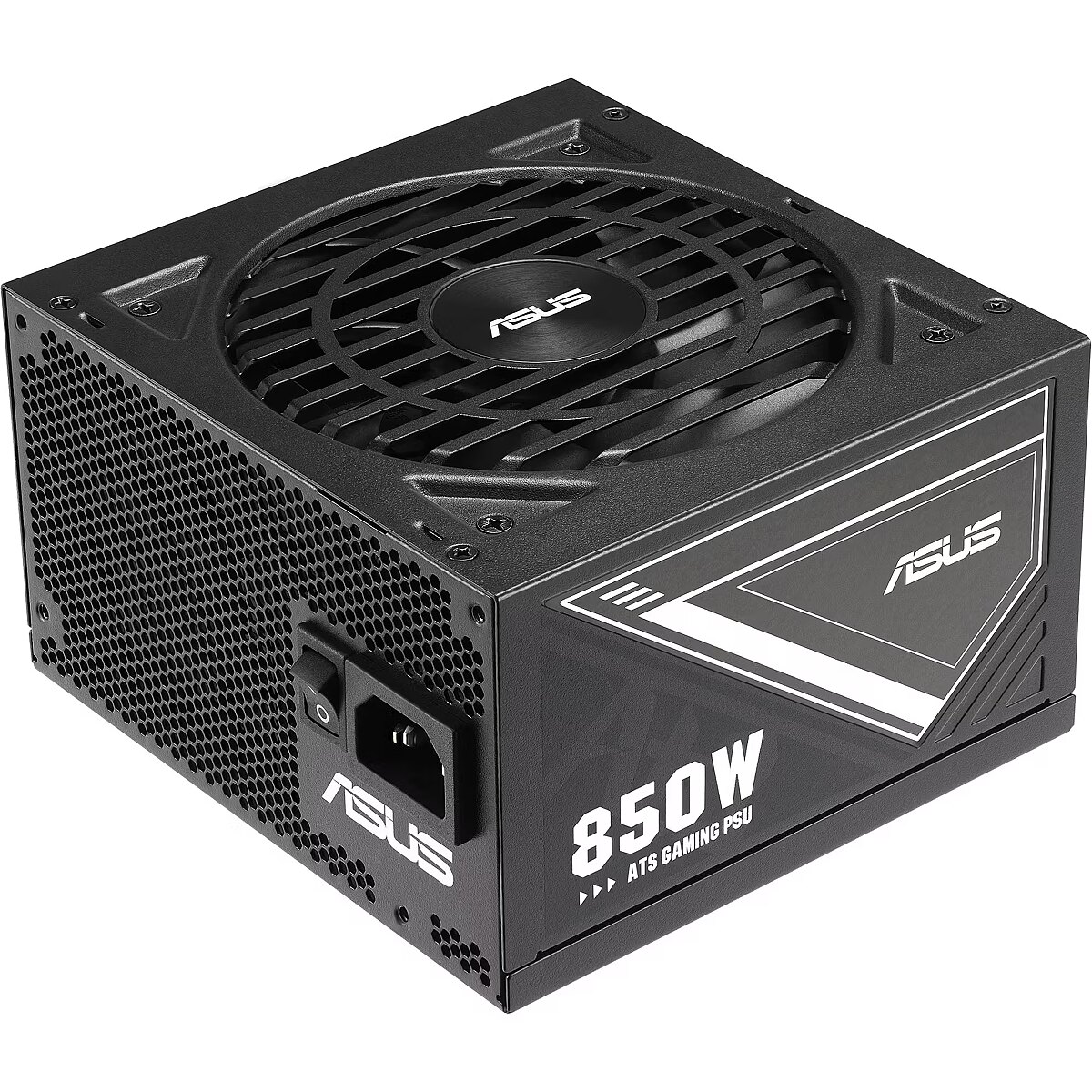

Asus 850W-ATS Gold, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Unisend parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Producer: Asus
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
We offer to purchase a Asus power supply unit with a power capacity of 850W, which has received the 80 PLUS Gold energy efficiency certification.
850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This power supply is manufactured by Asus. You can view all Asus power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.83A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular

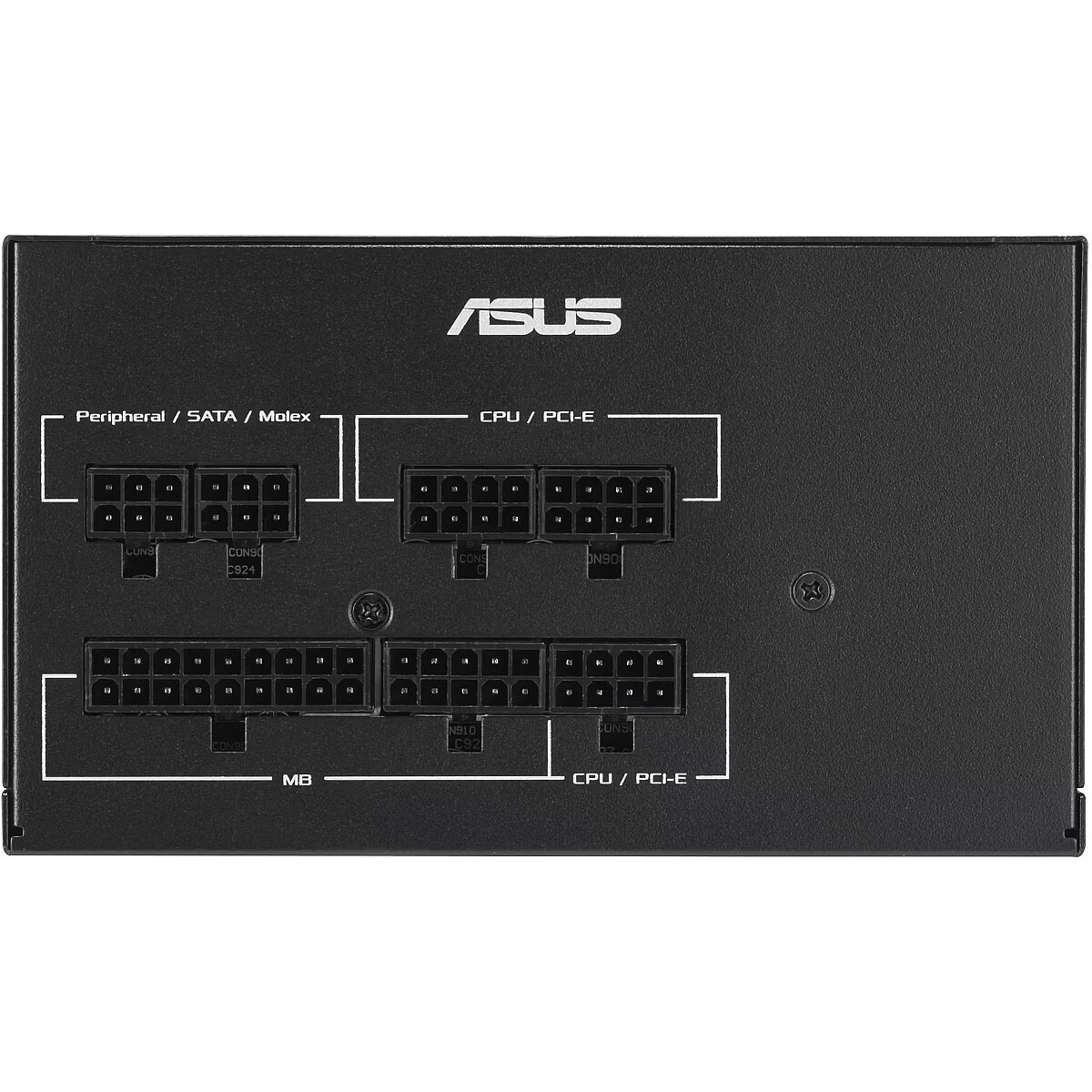

Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 3
4pin Molex
: 3
Case
More detailed specification
Brand - ASUS
BrandPartCode - 90YE04A0-B0NC00
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Compliance certificates - RoHS
Design - Cooling type - Active
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN_code - 4711387869871
GTIN - 0197105869875
GTIN - 197105869875
GTIN - 4711387869871
LongDesc - ASUS 850W-ATS Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.With 80+ Gold certification, dual ball fan bearings, etched cables and a 3-year warranty, the PSU brings efficient and durable power delivery to reliable performance for the system build.80 Plus Gold CertificationHeart of goldThe PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.COOLINGDual Ball Fan Bearings2X Longer LifespanDual ball bearings boast an extensive lifespan of up to 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This means long-lasting, reliable cooling with minimal noise when you choose the PSU.EXPERIENCEEtched CablesMade from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.DIY-friendly CPU Power ConnectorEngineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.3-year WarrantyWe're so confident about the reliability of the PSUs that we back them with a 3-year warranty.
LongProductName - 850W ATS Gold Gaming Power Supply (80 Plus Gold Certified, Low-ESR Electrolytic Capacitors, Dual Ball Bearing Fan, DIY-Friendly CPU Power Connector)
LongSummaryDescription - ASUS ATS-850G. Total power: 850 W, AC input voltage: 110 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Peripheral (Molex) power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: AC, PCIe, SATA, Packaging content: Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-1...
Manufacturer - Asus
Manufacturer_code - 90YE04A0-B0NC00
Name - ASUS 850W-ATS Gold, PC power supply black, 3x PCIe, 850 Watt
Packaging content - Cables included - AC, PCIe, SATA
Packaging content - Packaging content - Power Cord x 1
Motherboard Power Cable x 1 (550mm)
CPU 1-to-2 Cable x 1 (650+100mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E 1-to-2 Cable x 1 (675+100mm)
PCI-E Gen 5 (8-pin-8-pin-to-16-pin) Cable x 1 (675mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+120+120mm)
Chassis Screws Package x 1
Quick Start Guide x 1
Packaging data - Package depth - 180 mm
Packaging data - Package height - 115 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.89 kg
Packaging data - Package width - 250 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power cable length - 120,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input voltage - 110 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.83 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
ProductName - ATS-850G
ShortSummaryDescription - ASUS ATS-850G, 850 W, 110 - 240 V, Active, 100 W, 850 W, 100 W
Title - ASUS ATS-850G power supply unit 850 W 20+4 pin ATX ATX Black
URL - https://www.asus.com/motherboards-components/power-supply-units/asus/asus-ats-850g/
WarrantyInfo - 3 years
Weight - 1,10
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.55 kg
Weight & dimensions - Width - 150 mm
