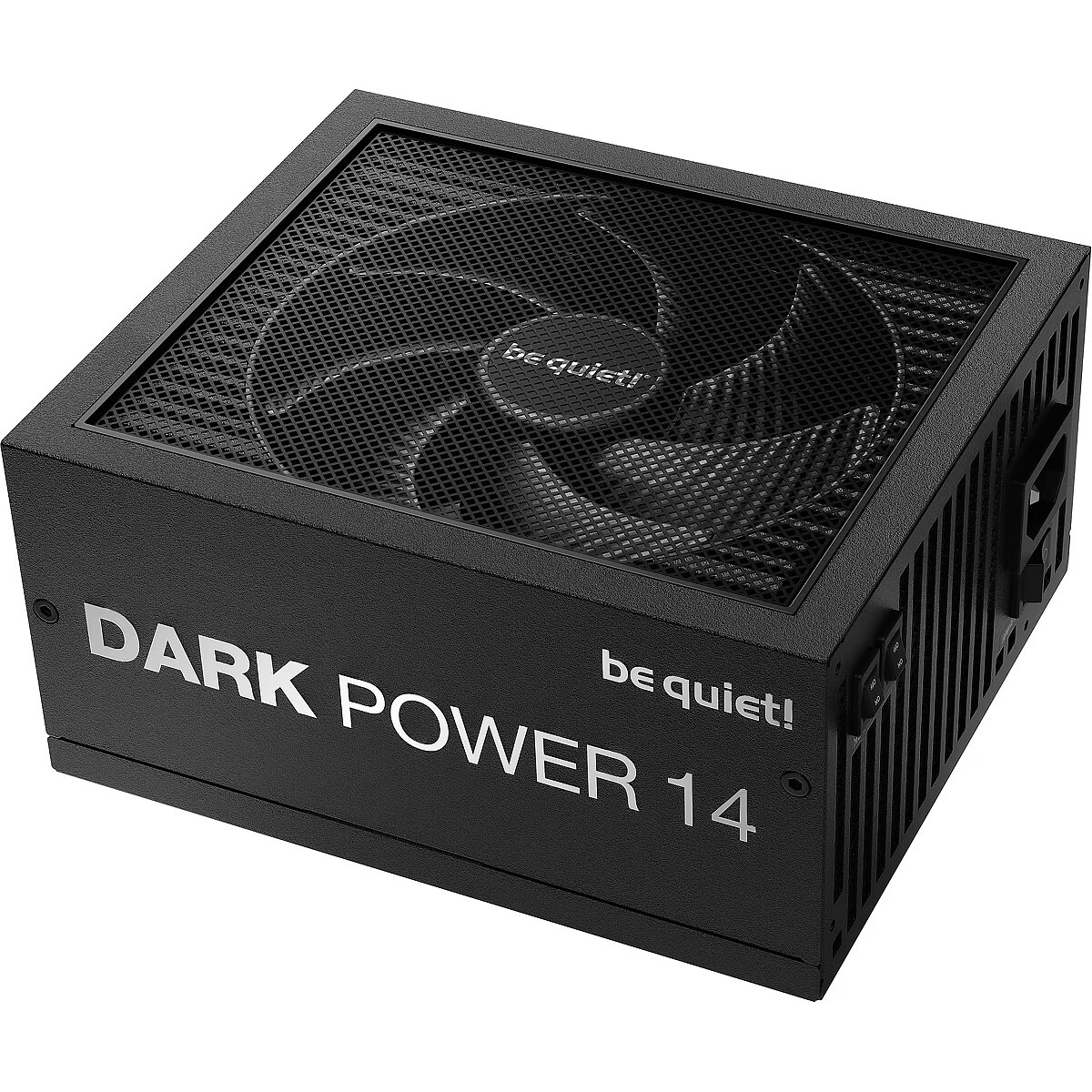

Be Quiet Dark Power 14, 850W, 80PLUS Titanium, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 0
80 PLUS certification Performance - 80 PLUS Titanium
Accessories included - Screws Cable ties User manual in: CN, DE, EN, ES, FR, IT, JP, PL, RU, TW, UA
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ARTIKEL1 - DARK POWER 14 850W
ARTIKEL2 - 80PLUS TITANIUM POWER
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX version - 3.1
ATX version Performance - 3.1
Bearing technology Performance - FDB
Brand - be quiet!
BrandPartCode - BP019EU
Breite - 0.23
Cable ties included Other features - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Certificates - Compliance certificates - cTUVus
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates 80+ - 80 PLUS Titanium
code - BP019EU
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+12V) Power - 850 W
Compliance certificates Certificates - CB/cTUVus/Federal Communications Commission (FCC)/RoHS/TÜV mark/UKCA/WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Dodatkowe informacje - Tryb pół-pasywny pracy
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Filtry - zabezpieczenie termiczne
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera be quiet!
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 175 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Maks. głośność - 16 dB
Dane techniczne: Moc - 850 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 24 A
Dane techniczne: Natężenie przy napięciu +5V - 24 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 30 A
Dane techniczne: Natężenie przy napięciu +12V2 - 30 A
Dane techniczne: Natężenie przy napięciu +12V3 - 35 A
Dane techniczne: Natężenie przy napięciu +12V4 - 35 A
Dane techniczne: Natężenie przy napięciu -12V - 0.5 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - be quiet!
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.2 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 13 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Depth Weight & dimensions - 175 mm
Description -
Description - The Dark Power 14 850W features a powerful heatsink with a built-in fan and can operate in active or semi-passive mode. 80 PLUS Titanium efficiency (up to 95.57%) ATX 3.1 power supply with full support for PCIe 5.1 cards and 6+2-pin connectors Active and semi-passive cooling can be selected via button Aluminum heatsink enhances component durability Silent Wings fan ensures ultra-quiet operation Full Bridge + synchronous rectifier + LLC technology guarantee stability and high efficiency Highest possible efficiency. I'm a Titan!
The Dark Power 14 850W is 80 PLUS Titanium certified, confirming maximum power efficiency of up to 95.6%. This provides numerous benefits for high-end configurations, including lower power consumption and overall cooler and quieter operation.
NEXT GEN. ATX 3.1 Compatibility
The Dark Power 14 850W is an ATX 3.1 power supply featuring native integration, a 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and four 6+2-pin PCIe connectors for current-generation graphics cards. This makes the power supply incredibly versatile and ideal for current and future high-end builds.

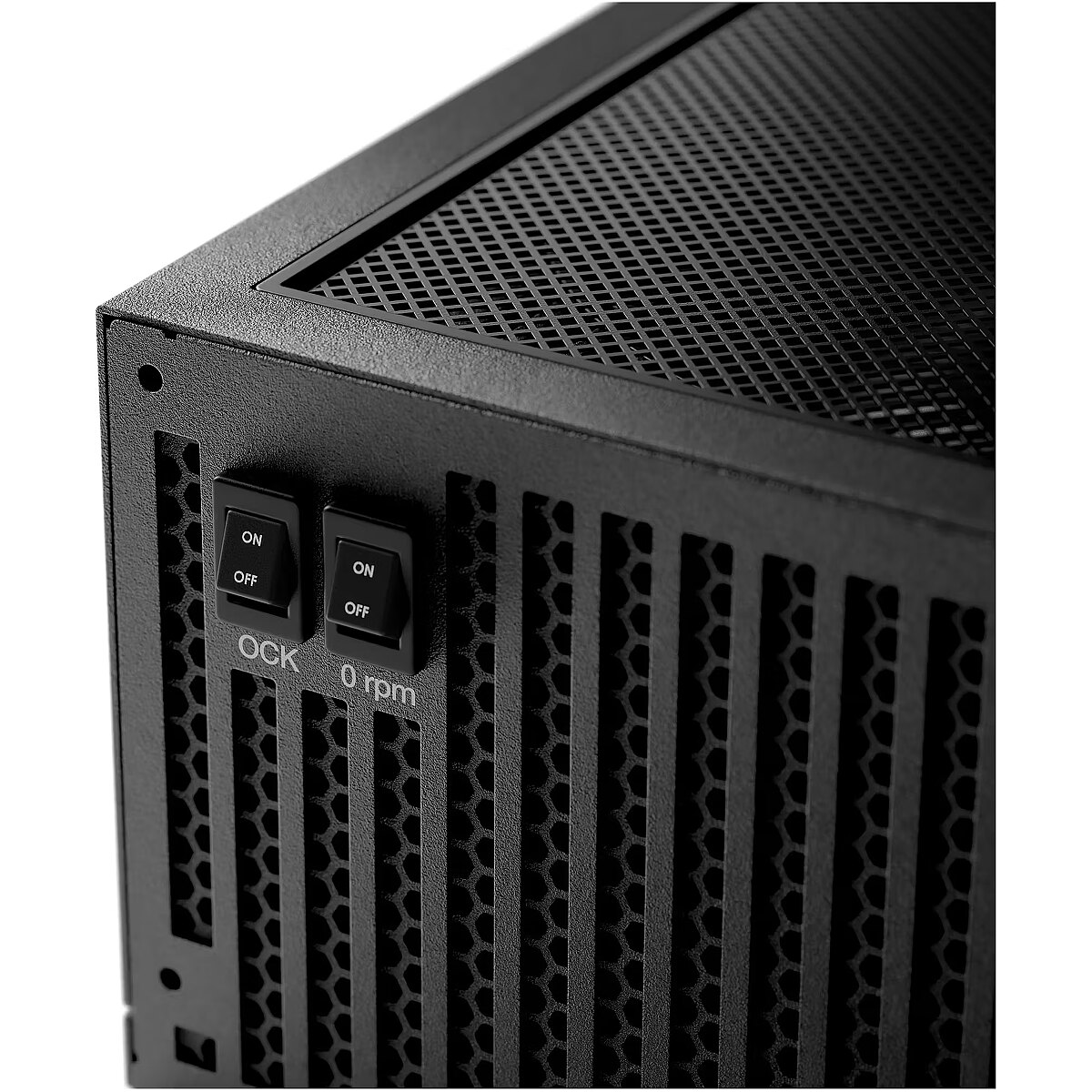

Press a Button! Easily Switch Between Active and Semi-Passive Cooling
A button located on the rear of the power supply allows you to toggle between balanced active cooling mode, in which the Silent Wings fan spins continuously, and semi-passive mode, in which the fan remains off under low load and only engages when additional cooling is needed during more demanding operations. The fan-off function allows the fan to spin for a short period (25 minutes) after cooling, preventing frequent and annoying start-stop cycles.
Integrated Silent Wings Heatsink I Simply fantastic
A large heatsink connects to the parts of the power supply that require the most cooling and dissipates a significant portion of the heat. Although a Titanium-efficient power supply doesn't generate as much heat, active cooling is necessary to prevent overheating under heavy load. The Dark Power 14 850W is cooled by be quiet!'s best-in-class fan. Integrated directly into the heatsink, this high-quality fan is vibration-resistant and remains stable. The 6-pole fan motor and fluid-dynamic bearing ensure exceptionally long life and minimal power consumption.
Overclocking Ready. Maximum Durability
The Dark Power 14 850W is especially suited for overclocking. With a single button press, you can manually switch between multi-rail and single-rail modes. This gives you complete control over your overclockingbetween the default four-rail 12V mode and the alternative single-rail mode.
High-Tech Technology Higher Efficiency and Lower Ripple
The Dark Power 14 850W is practically state-of-the-art technology. Thanks to its active rectifier and full-bridge LLC technology, it offers some of the most advanced technologies available, resulting in higher efficiency, better regulation, and lower ripple noise, ensuring unparalleled operating stability.
105°C Capacitors from Japan. Simply the Best
Every component in the Dark Power 14 850W power supply has been carefully selected. That's why we used only high-quality Japanese capacitors in this power supply. They are rated for 105°C, ensuring stability, reliability, and a long lifespan.

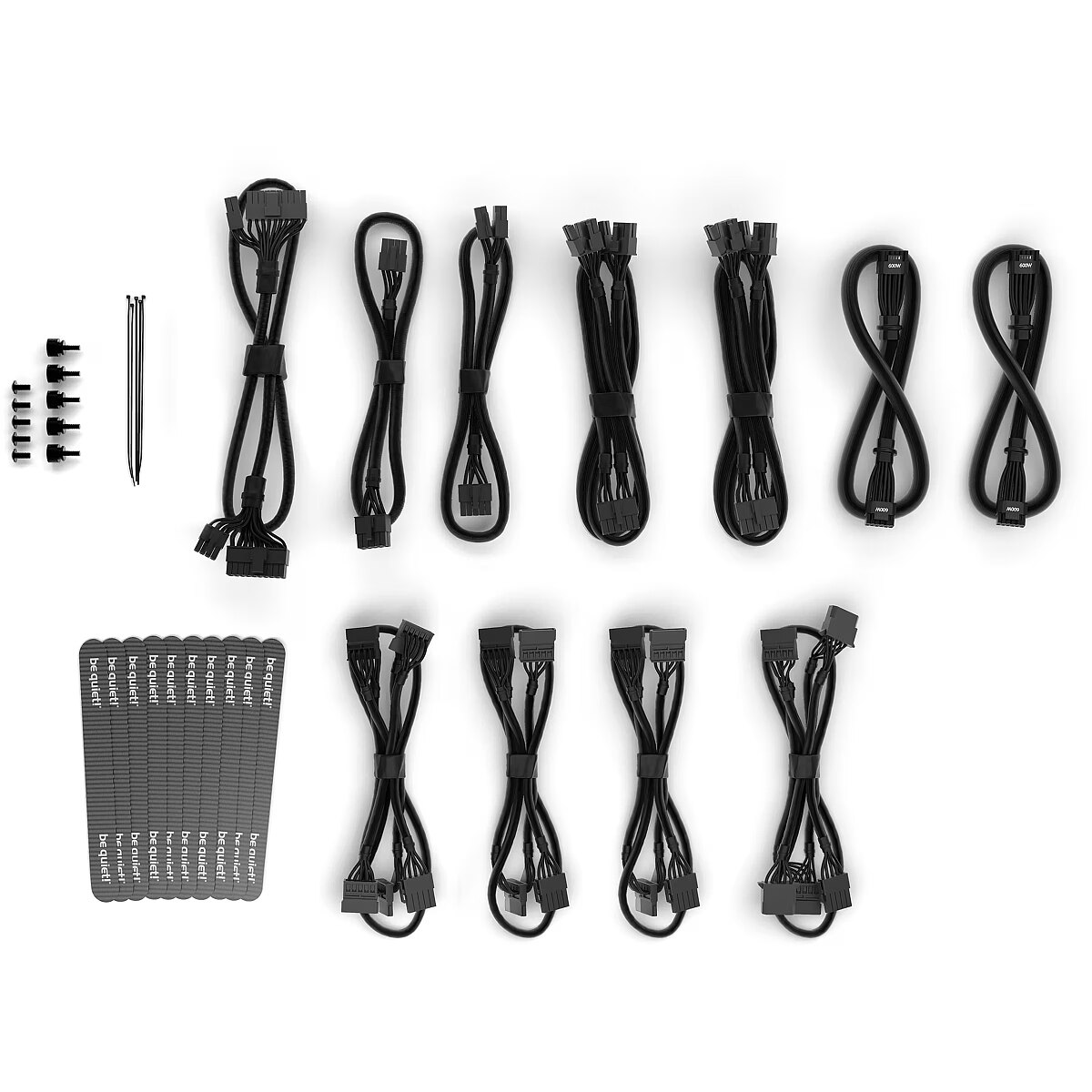

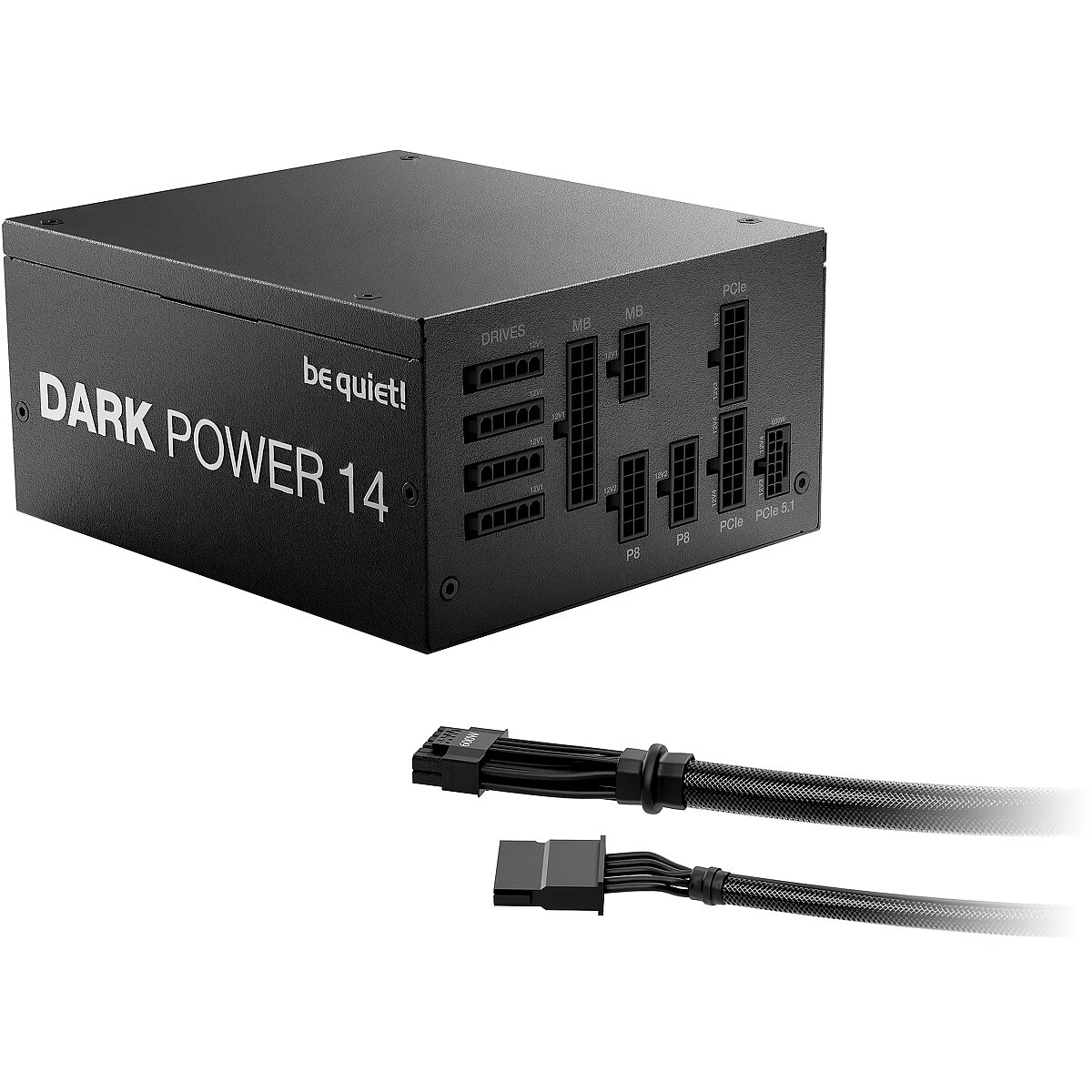

Perfect Modularity. As It Should Be
Modular, braided cables, up to 120 cm long, simplify component installation and reduce annoying tangles. This ensures improved airflow and cooling in even the largest computer cases.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan speed - 0 - 2100 RPM
Design - Number of fans - 1 fan(s)
Design - On/off fan switch - Yes
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 2199
dimension depth - 130 mm
dimension height - 230 mm
Dimensions - 175 x 150 x 86 mm
dimension weight - 4450 g
dimension width - 360 mm
ean - 4260052192016
EAN - 4260052192016
EANCode - 4260052192016
Eans - 4260052192016
Efficiency Power - 93.8 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - Yes
EPS version Performance - 2.92
Fan - 13.5 cm
Fan diameter Design - 135 mm
Fan speed (max) - 2100 rpm
Fan speed Design - 0 - 2100 RPM
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
Gewicht - 4.42
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052192016
guarantee - 120
guarantee_type - normal
Height Weight & dimensions - 86 mm
HERSTELLER - BE QUIET
Hoehe - 0.13
Hold time Power - 20.7 ms
HSTNUMMER - BP019EU
Laenge - 0.36
Logistics data - Products per shipping (inner) case - 4 pc(s)
Logistics data - Shipping (inner) case height - 26 cm
Logistics data - Shipping (inner) case length - 52.8 cm
Logistics data - Shipping (inner) case net weight - 19.3 kg
Logistics data - Shipping (inner) case width - 36.8 cm
LongSummaryDescription - be quiet! Dark Power 14 850 W - 80 Plus Titanium. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 950 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Manual languages Packaging data - English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
Manual Packaging data - Yes
Manufacturer - Be Quiet!
Maximum input current (@110V) Power - 10 A
Maximum input current (@220V) Power - 5 A
Max output current (+3.3V) Power - 24 A
Max output current (+5V) Power - 24 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V1) Power - 30 A
Max output current (+12V2) Power - 30 A
Max output current (+12V3) Power - 35 A
Max output current (+12V4) Power - 35 A
Max output current (-12V) Power - 0.5 A
MB power connector - 20 + 4 pin
Mean time between failures (MTBF) Performance - 100000 h
Modular power supply - Yes
MOLEX power connectors - 0
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - BP019EU
Name - 850W be quiet! DARK Power 14 black
name - be quiet! Dark Power 14 80 PLUS Titanium Netzteil, ATX 3.1, PCIe 5.1 - 850 Watt
Name - be quiet! Dark Power 14 850W
name - Be quiet Dark Power 14 850W 80+ Titanium
Noise level Performance - 16 dB
Number of +12V rail(s) Power - 4
Number of connectors PATA - 2
Number of fans Design - 1 fan(s)
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of SATA power cables Ports & interfaces - 13
Number of USB 10p connectors - 0
On/off fan switch Design - Yes
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Package depth Packaging data - 126 mm
Package height Packaging data - 355 mm
Package weight Packaging data - 3500 g
Package width Packaging data - 230 mm
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - Italian
Packaging data - Manual languages - Japanese
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Simplified Chinese
Packaging data - Manual languages - Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Packaging data - Manual languages - Spanish
Packaging data - Manual languages - Thai
Packaging data - Manual languages - Ukrainian
Packaging data - Package depth - 126 mm
Packaging data - Package height - 355 mm
Packaging data - Package weight - 3.5 kg
Packaging data - Package width - 230 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (12-pin) Ports & interfaces - 1
Peak power Power - 950 W
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 16 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 1050/900 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
PFC - None
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power cables - 13
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 900
Ports & interfaces - Peripheral (Molex) power cable length - 900,1050 mm
Ports & interfaces - Peripheral (Molex) power cable length - 1050 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 600
Ports & interfaces - SATA power cable length - 600,750,900,1050 mm
Ports & interfaces - SATA power cable length - 750 mm
Ports & interfaces - SATA power cable length - 900
Ports & interfaces - SATA power cable length - 1050 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+12V) - 850 W
Power - Efficiency - 93.8%
Power - Hold time - 20.7 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 24 A
Power - Max output current (+5V) - 24 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 30 A
Power - Max output current (+12V2) - 30 A
Power - Max output current (+12V3) - 35 A
Power - Max output current (+12V4) - 35 A
Power - Max output current (-12V) - 0.5 A
Power - Number of +12V rail(s) - 4
Power - Peak power - 950 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power factor Power - 0.98
Power protection features Power - Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
Power supply - 850 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - be quiet!
Listan GmbH
Wilhelm-Bergner-Str 11C
21509 Glinde / Hamburg

producer - Be quiet!
Producer - be quiet!
producerCode - BP019EU
ProducerCode - BP019EU
Product colour Design - Black

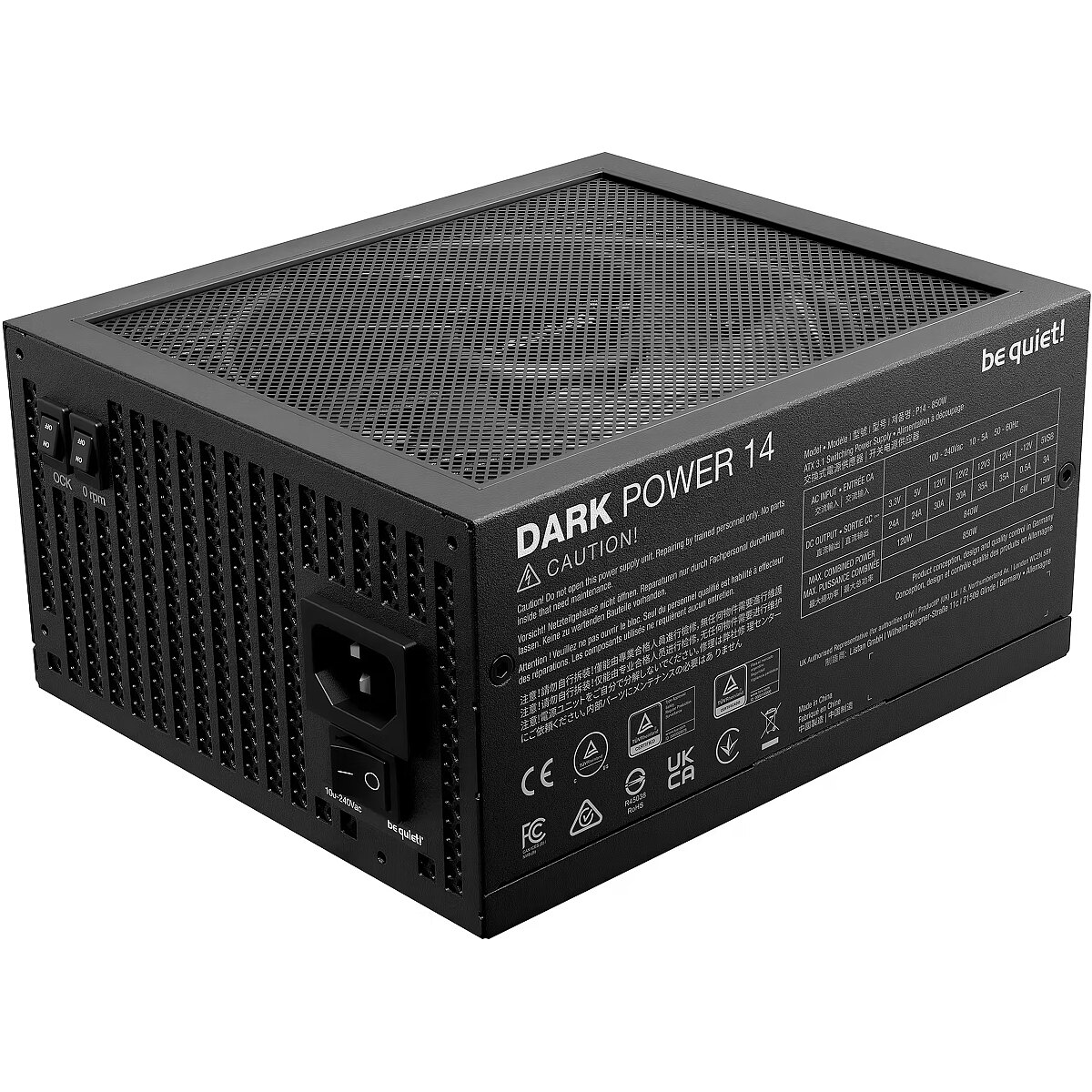

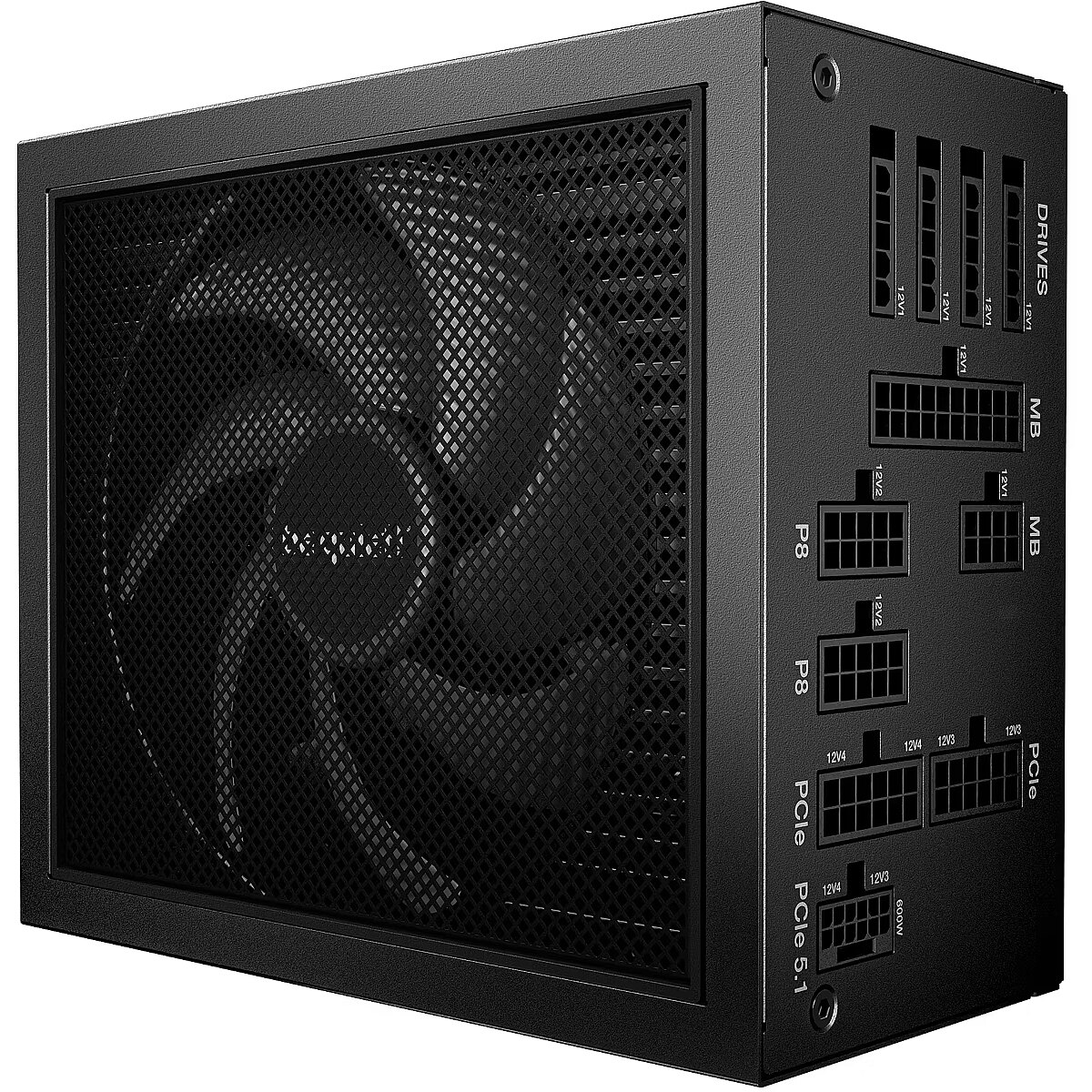

productName - be quiet! Dark Power 14 850 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
ProductName - Dark Power 14 850 W - 80 Plus Titanium
productSize - Normal
Products per shipping (inner) case Logistics data - 4 pc(s)
Purpose Performance - PC
SATA power cable length Ports & interfaces - 1050/600/750/900 mm
SATA power connectors - 13
Screws included Other features - Yes
Shipping (inner) case height Logistics data - 260 mm
Shipping (inner) case length Logistics data - 528 mm
Shipping (inner) case net weight Logistics data - 19340 g
Shipping (inner) case width Logistics data - 368 mm
ShortDescription - 850 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 175mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power 14 850 W - 80 Plus Titanium, 850 W, 100 - 240 V, 950 W, 50/60 Hz, 10 A, 5 A
sizeX - 360
sizeY - 235
sizeZ - 130
Stck_Kart - 4
Stck_Pal - 0
Storno - Y
Summary - be quiet! Dark Power 14 850 W - 80 Plus Titanium. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 950 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Sustainability certificates Technical details - ENERGY STAR/ErP/Triman
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Title - be quiet! Dark Power 14 850 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
Total power Power - 850 W
Unit Calculated Volume - 0.01 cubm
Unit Calculated Weight - 3.5 kg
Units per Shipping Box - 1
vendpn - BP019EU
Warranty - 24 months
warrantyLength - 120
warrantyType - G
Weight - 2.2 kg
Weight - 4.44
weight - 4450
Weight & dimensions - Depth - 175 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.2 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2200 g
Width Weight & dimensions - 150 mm
