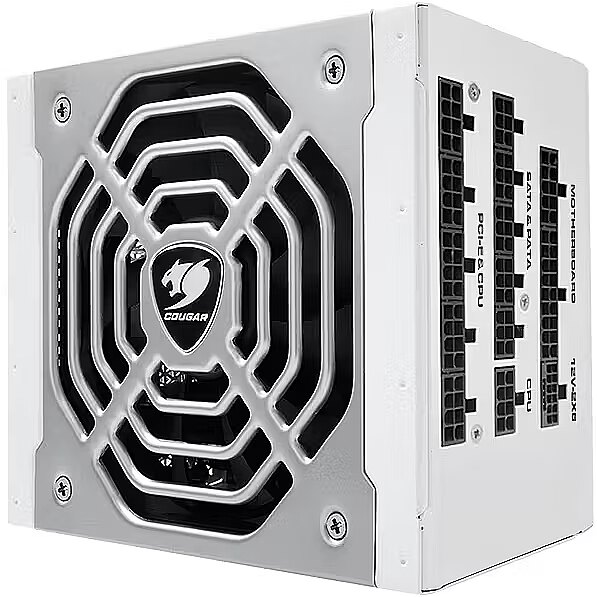

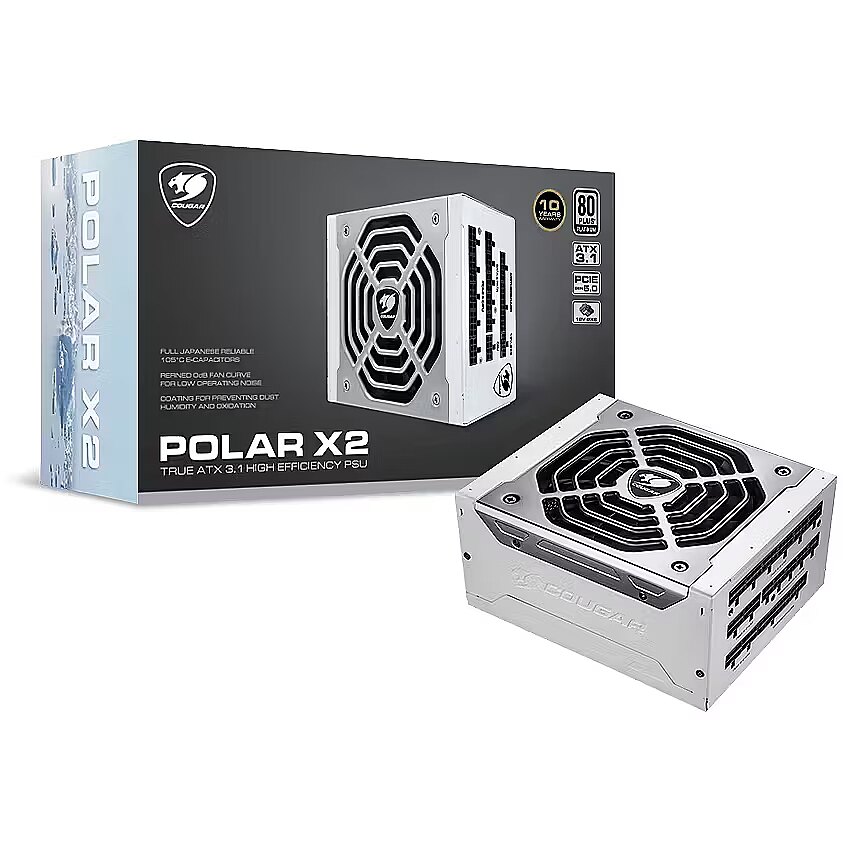

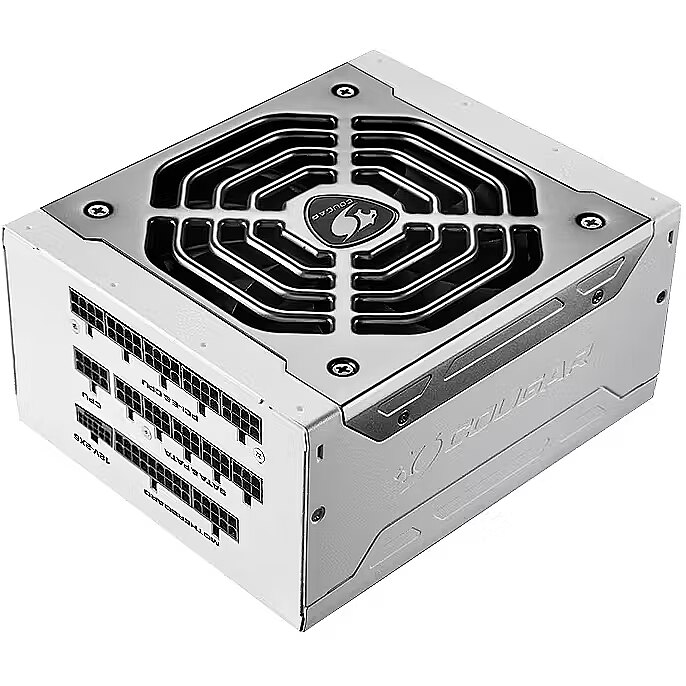

Cougar POLAR X2, 1050W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Name: Cougar POLAR X2, 1050W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Brand: Cougar
SKU: 1279502
Price: 189.91 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1279502 Product code: CGR-POLAR-X2-1050

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Main product parameters All parameters

Producer: Cougar
Power output: 1050W
80 PLUS certification: 80 PLUS Platinum
Fan size: 135 mm
Modular cables: Fully-Modular
Processor plug-in: 2 x 8-pin(4+4) EPS
PCI-E: 7 x 6+2pin

Similar Products

Basic information
	This product Cougar POLAR X2, 1050W, 80PLUS Platinum, ATX 3.1, PCIe 5.1	Cougar GLE, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1	Lian Li Edge Gold White, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1 (With USB Hub)	Lian Li RS1000G White, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1 (With USB Hub)	Lian Li RS1000G White, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.	189.91 €	195.70 €	152.73 €	159.15 €	149.53 €
Cybenetics Efficiency certification	Cybenetics Platinum	Cybenetics Platinum	Cybenetics Platinum	Cybenetics Platinum	Cybenetics Platinum
Cybenetics Noise level certification	Cybenetics A	Cybenetics A -	Cybenetics A	Cybenetics A	Cybenetics A
Power supply type	ATX	ATX	ATX	ATX	ATX
Power output	1050W	1000W	1000W	1000W	1000W
80 PLUS certification	80 PLUS Platinum	80 PLUS Gold	80 PLUS Gold	80 PLUS Platinum	80 PLUS Gold
Total amperage (+12V)	87.5A	83.3A	83A	83.3A	83.3A
Fan size	135 mm	135 mm	120 mm	135 mm	135 mm
Functionality
Cable colour	White	Melna	White	White	White
Lighting	Nav	Nav	Nav	Nav	Nav
Color	White	Melna	White	White	White
Modular cables	Fully-Modular	Fully-Modular	Fully-Modular	Fully-Modular	Fully-Modular
Ports and equipment
PCI-E 5.0/5.1	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)
Processor plug-in	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS
Motherboard power	20+4pin	20+4pin	20+4pin	20+4pin	20+4pin
PCI-E	7 x 6+2pin	6 x 6+2pin	3 x 6+2pin	4 X 6+2pin	4 X 6+2pin
SATA cconnectors	12	12	10	12	12
4pin Molex	4	4	4	3	3

Description

We offer to purchase a Cougar power supply unit with a power capacity of 1050W, which has received the 80 PLUS Platinum energy efficiency certification.

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of the power supply is Balta. It is equipped with flat cables, whose color is Balta.

The noise level of this power supply is 20-25 dB and it has a Cybenetics A noise level certificate.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information

Cybenetics Efficiency certification : Cybenetics Platinum

Cybenetics Noise level certification : Cybenetics A

Power supply type : ATX

Power output 1050W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : 80 PLUS Platinum

Total amperage (+12V) : 87.5A

Fan size : 135 mm

Functionality

Cable colour : White

Lighting : Nav

Color : White

Modular cables : Fully-Modular

Ports and equipment

PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)

Processor plug-in : 2 x 8-pin(4+4) EPS

Motherboard power : 20+4pin

PCI-E : 7 x 6+2pin

SATA cconnectors : 12

4pin Molex : 4

More detailed specification

Additional information in manufacturers website Cougar POLAR X2, 1050W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Brand - COUGAR
BrandPartCode - 31PX105001P01
Category - Power Supply Units
Category 1 - Netzteile
Certificates - Compliance certificates - EAC, TÜV mark, Federal Communications Commission (FCC), RoHS, CCC, CE
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Silver
EAN - 4710483775413
GTIN - 4710483775413
Logistics data - Country of origin - China
LongDesc - The Polar X2 passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.The modular 12+4pin, 12V-2X6, cable delivers perfect power supplies for next-gen graphics cards.Without any 6+2pin adaptor, the 650mm length can reduce connection risk while the PC installation.COUGAR will present the first Platinum efficiency PSU Series, POLAR X2 1200 and 1050. The 100% Japanese capacitors and 50°C ambient operations with LLC, DC-DC structure generate an environmentally friendly PSU with high-efficiency performance. The fine-tune HDB fan with zero noise mode will also provide the perfect experience for all users in different conditions.EVERY OUTPUT IS WORTH SAVINGSave the Earth with Lesser Energy Loss- The Polar X2 series will reduce the energy waste below 7%.- With 80Plus Platinum certified to provide the efficiency level up to 92% at 115Vac.- Less efficiency loss with streamlined board-to-board wave soldering.ZERO NOISE MODEULTRA-SILENCE AT HIGH OUTPUTLower Heat Emission for Steady Temperature- Zero noise mode at 40% loading silent.- Automatic thermal control to provide an optimal speed-noise ratio.Using COUGAR’s 135mm HDB silent fan and large inhalation punched hole, the advanced frame increase the concentration of airflow and its fan curvature has been fine-tuned to reduce vibration.- Hybrid Dynamic Bearing (HDB) fan to expand the durability.- Patented groove design- Centralized oil pressure- No oil leakage- Improved stability- Less friction and noise- Extended lifespanJAPANESE CAPACITORSREFIND ELECTRONIC SOLUTIONReduce the E-waste for the Next Generation- 100% premium Japanese capacitor to prolong the longevity.- Optimally perform in 50ºC working temperature environments.- Tight 2% voltage regulation for ultra-stable operation. FeaturesSupport PCI Express 5.0 Graphics Cards 12+4 Pin ConnectorConnect the 12V-2X6 with true 200% power excursion dynamic outputs80PLUS Platinum CertifiedUp to 92% efficiency power conversion to cut down your electricity bill100% Refined Japanese CapacitorsOutstanding components extend the longevity of PSU.Durable HDB FanHydro Dynamic Bearing Fan: Extended durability and lower noise levelsZero Noise Mode and Fan Curve TuningAdvanced technology for noise minimizationFully Modular Power Supply UnitConnect only the cables you need for less clutter and better airflowFlawless Operation at 50°CPowerful performance at 50°C ambient temperatureCompatible with The Lastest PC TechnologyCreated for user with current and next-generation multi-core CPU platformsProtectionUVP (Under Voltage Protection)If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.OCP (Overcurrent Protection)If the current on a single line is higher than indicated, the PSU automatically switches off.SCP (Short-Circuit Protection)In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.OVP (Over Voltage Protection)If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.OTP (Over Temperature Protection)If the temperature gets too high, the PSU automatically switches off.OPP (Over Power Protection)If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.Conformal Coating ProtectionPrevention of conductive particles/dust, high humidity, and intruding insects
LongProductName - ATX 3.1, 80Plus Platinum, 1050 W, AC100-240V~ 47-63Hz 15-7A, 12V-2X6, 180 x 150 x 86 mm, 2.09kg
LongSummaryDescription - COUGAR POLAR X2. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Silver, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: EAC, TÜV mark, Federal Communications Commission (FCC), RoHS, CCC, CE
Manufacturer - Cougar
MPN - CGR-POLAR-X2-1050
Name - 1050W COUGAR Netzteil POLAR X2 1050W ATX3.1/80 Plus Plat./Modular
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 10 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Package depth - 331 mm
Packaging data - Package height - 107 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.59 kg
Packaging data - Package width - 229 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 22 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 4
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 650 mm
Ports & interfaces - Peripheral (Molex) power cable length - 120,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 120,500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1050 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 15 - 7 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 87.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Power - Total power - 1050 W
ProductName - POLAR X2
ShortSummaryDescription - COUGAR POLAR X2, 1050 W, 100 - 240 V, 47 - 63 Hz, 15 - 7 A, 100 W, 1050 W
Title - COUGAR POLAR X2 power supply unit 1050 W 20+4 pin ATX ATX Silver
URL - https://cougargaming.com/
WarrantyInfo -
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.09 kg
Weight & dimensions - Width - 150 mm
