ID: 1275019
Product code: GP-UD750GM PG5 ICE
In stock >50 units
Warranty: 3 years
Gigabyte UD750GM PG5 V2 ICE, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
Available for purchase is a power supply produced by Gigabyte with a power output of 750W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

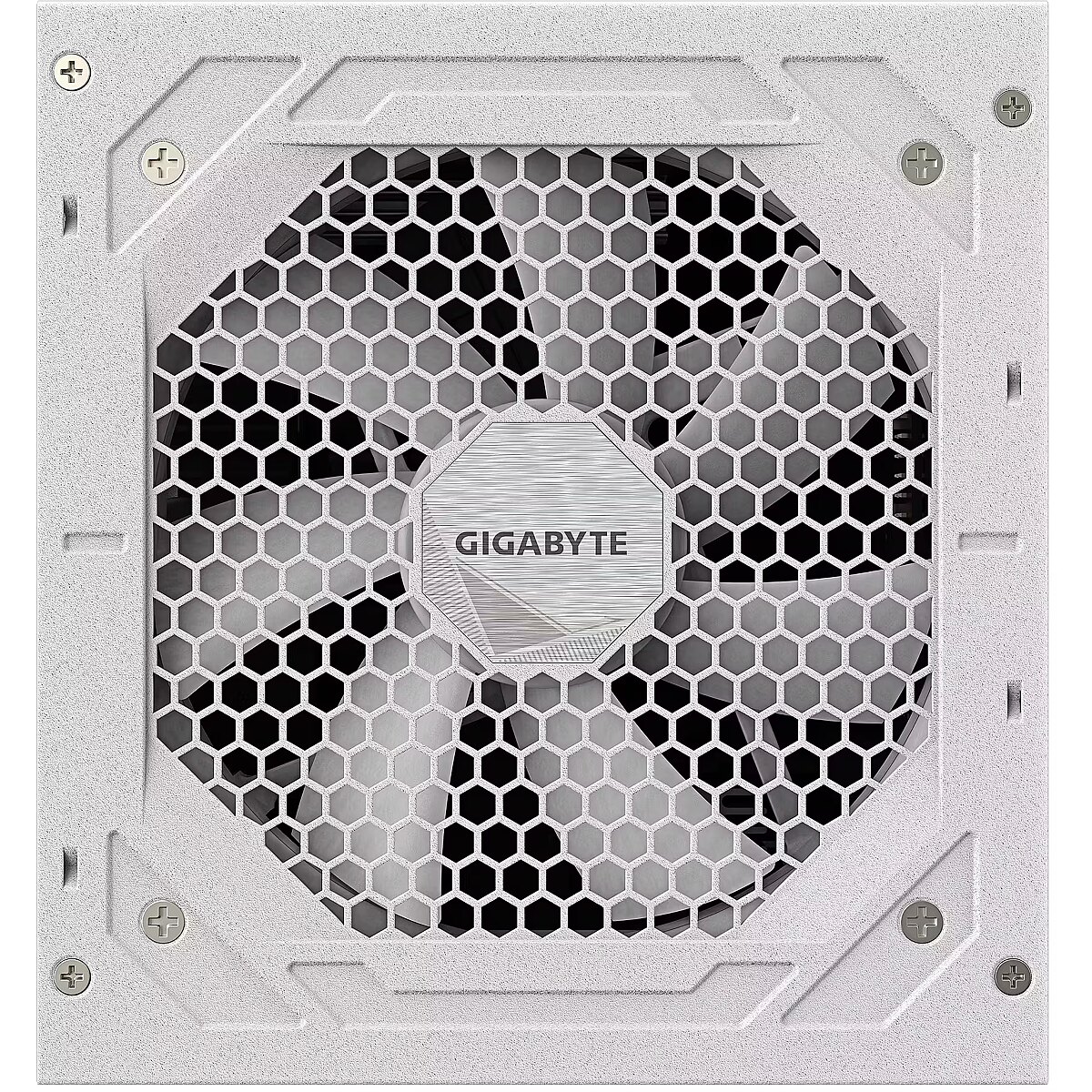

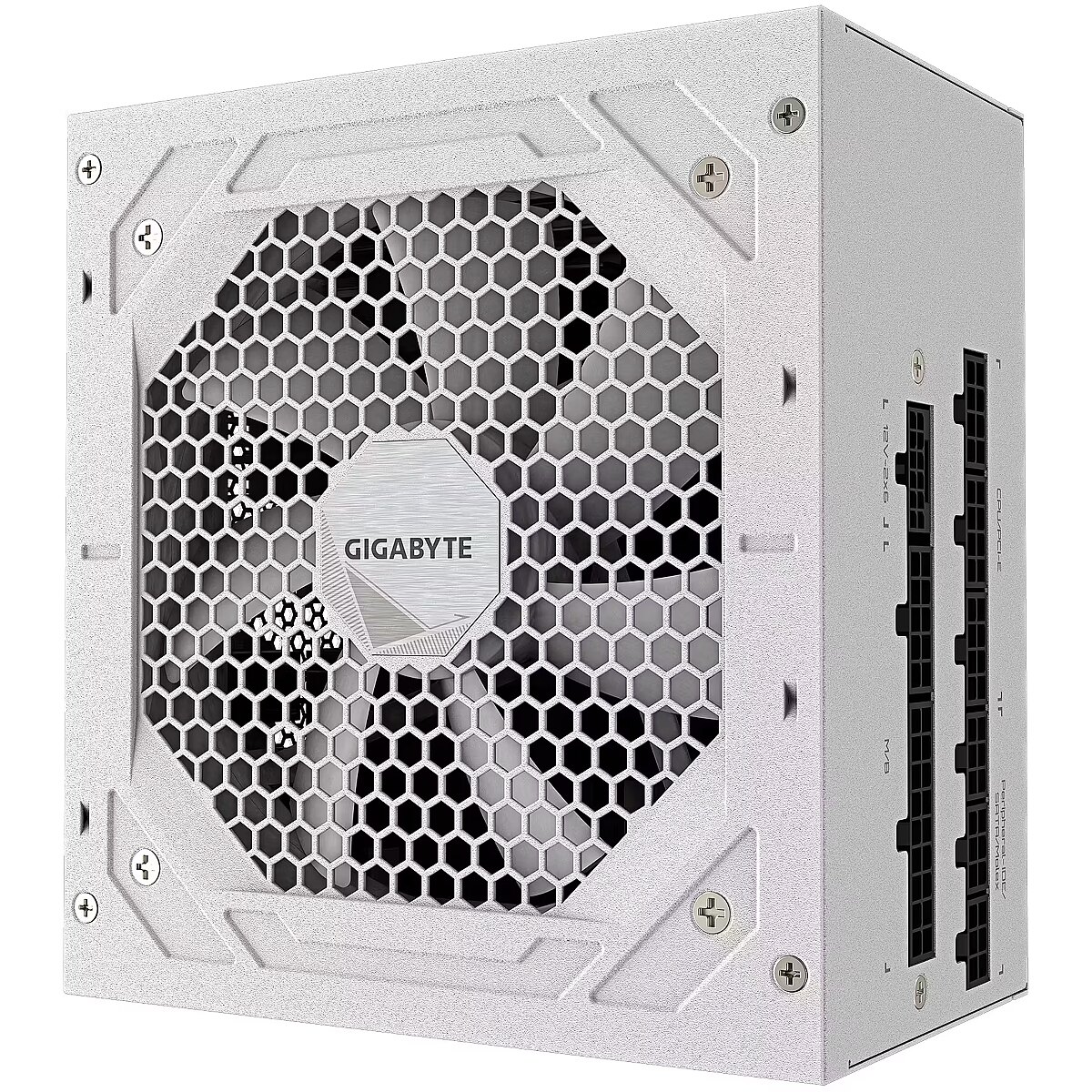

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of the power supply is Balta. It is equipped with flat cables, whose color is Balta.

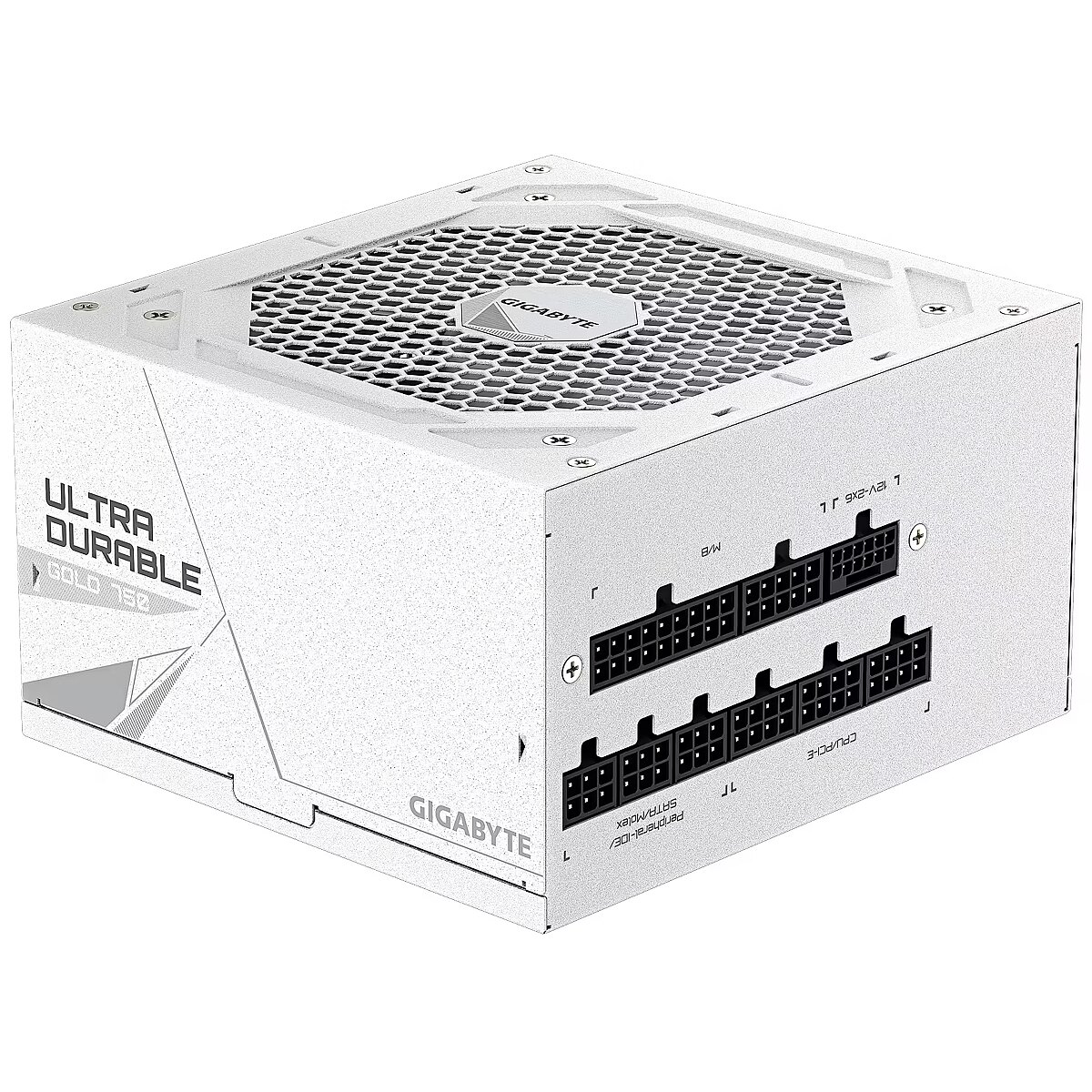

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
The manufacturer of this power supply is Gigabyte. View all Gigabyte power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: White
Lighting
: Nav
Color
: White
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: 1 x 450W 12V-2X6 (5.1)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Bearing technology Performance - HYB
Brand - GIGABYTE
BrandPartCode - GP-UD750GM PG5 ICE EU
Cabling type Ports & interfaces - Fully-Modular
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Code - GP-UD750GM PG5 ICE
Combined power (+3.3V) Power - 105 W
Combined power (+5V) Power - 105 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 750 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power cable length Ports & interfaces - 650 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 750 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 62.5 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 140 mm
Desc -
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Intel ATX 3.1 and PCIe Gen 5.1 ready80 PLUS Gold certifiedFully modular designPowerful single +12V railCompact size100% Japanese capacitors120mm smart hydraulic bearing (HYB) fanOptimized thermal solutionOVP/OPP/SCP/UVP/OCP/OTP protection
description_en - The GIGABYTE UD750GM PG5 V2 is a reliable fully modular ATX power supply designed for modern gaming rigs and performance PCs. With 750W output and solid efficiency, it delivers stable power to CPUs, GPUs, and system components. Fully modular cables help reduce clutter and improve airflow inside the case. Built‑in protections ensure safe operation under load. A quiet cooling fan maintains optimal temperatures without excessive noise, making it suitable for both demanding gaming and productivity builds.
Technical Specifications: Type: Fully modular ATX power supply Wattage: 750W Efficiency: 80 PLUS Gold Input voltage: 100–240V AC Frequency: 50–60 Hz Fan: 120 mm cooling fan Protections: Over Current Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection Modular cables: Fully modular Connector types: 24‑pin ATX, 8‑pin EPS, 6+2 PCIe, SATA, Molex Colour: Black Form factor: ATX MTBF: ~100,000 hours
description_lv - GIGABYTE UD750GM PG5 V2 ir uzticams pilnībā modulārs ATX barošanas bloks, kas paredzēts spēļu datoriem un jaudīgām sistēmām. Ar 750W jaudu tas nodrošina stabilu strāvas padevi procesoram, videokartei un pārējiem komponentiem. Pilnībā modulārie kabeļi palīdz samazināt vadu putru un uzlabot gaisa plūsmu korpusā. Iebūvētās aizsardzības sistēmas nodrošina drošu darbību pat pie lielas slodzes. Kluss ventilators uztur optimālu dzesēšanu, neradot lieku troksni, tādējādi piemērots gan spēlēm, gan augstas veiktspējas uzdevumiem.
Tehniskās īpašības: Tips: pilnībā modulārs barošanas bloks ATX Jauda: 750W Efektivitāte: 80 PLUS Gold Ieejas spriegums: 100–240V AC Frekvence: 50–60 Hz Ventilators: 120 mm Aizsardzības: pret pārspriegumu, pārslodzi, īssavienojumu, zemu spriegumu, pārkaršanu Kabeļi: pilnībā modulāri Savienotāju tipi: 24‑pin ATX, 8‑pin EPS, 6+2 PCIe, SATA, Molex Krāsa: melna Formfaktors: ATX MTBF: ~100,000 stundas
description_ru - GIGABYTE UD750GM PG5 V2 — это надёжный полностью модульный блок питания ATX, предназначенный для игровых систем и мощных ПК. С мощностью 750 Вт он обеспечивает стабильное питание процессора, видеокарты и остальных компонентов. Полностью модульные кабели помогают убрать лишние провода и улучшить воздушный поток внутри корпуса. Встроенные системы защиты гарантируют безопасную работу под нагрузкой. Тихий вентилятор поддерживает оптимальную температуру без лишнего шума, что делает блок подходящим как для игр, так и для задач высокой нагрузки.
Технические характеристики: Тип: полностью модульный блок питания ATX Мощность: 750 Вт Эффективность: 80 PLUS Gold Входное напряжение: 100–240 В AC Частота: 50–60 Гц Вентилятор: 120 мм Защиты: защита от перегрузки по току, перенапряжения, короткого замыкания, пониженного напряжения, перегрева Кабели: полностью модульные Типы разъёмов: 24‑pin ATX, 8‑pin EPS, 6+2 PCIe, SATA, Molex Цвет: чёрный Форм‑фактор: ATX MTBF: ~100,000 часов
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
dimensionalWeight - 1451
EAN - 4719331556310
Eans - 4719331556310
Efficiency Power - 90 %
Fan diameter Design - 120 mm
Floppy drive power connector Ports & interfaces - 1
gross_weight - 2.2 kg
GTIN - 4719331556310
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 12 - 6.5 A
LargeDescHTML -
Link - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE
Logistics data - Warranty period - 5 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model -
Model name - UD750GM PG5 ICE
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Barošanas bloks Gigabyte UD750GM PG5 ICE 750W
Name - Gigabyte GP-UD750GM PG5 V2 ICE
Name - Gigabyte Power Supply | UD750GM PG5 V2 ICE | 750 W
Number of EPS connectors Ports & interfaces - 2
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 8
On/off switch Design - Yes
Package depth Packaging data - 269 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 350 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 211 mm
Package type Packaging data - Box
Package weight Packaging data - 2500 g
Package width Packaging data - 618 mm
Packaging data - Package depth - 269 mm
Packaging data - Package height - 211 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.5 kg
Packaging data - Package width - 618 mm
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (12+4 pin) cable length Ports & interfaces - 700 mm
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6.5 A
Power - Input current - 15 - 6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Power protection features - UVP
Power - Total power - 750 W
Power > Nominal power - 750 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
Producer - Gigabyte
producerCode - GP-UD750GM PG5 ICE
ProducerCode - GP-UD750GM PG5 V2 ICE
Product colour Design - White
productName - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
ProductName - UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
productSize - Normal
Purpose Performance - PC
ShortDescription - 750 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 750 W, 100 - 240 V, 50/60 Hz, 12 - 6.5 A, Active, 105 W
sizeX - 260
sizeY - 128
sizeZ - 218
Summary - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Technical details > Gross weight - 2.85 kg
Technical details > Net weight - 2.65 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - Power Supply
Technical details > Producer product name - UD750GM PG5 V2 ICE
Title - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
title_en - Gigabyte UD750GM PG5 V2 Power supply unit 750W
title_lv - Gigabyte UD750GM PG5 V2 Barošanas bloks 750W
title_ru - Gigabyte UD750GM PG5 V2 Блок питания 750W
Total power Power - 750 W
Unit Box Height - 0.21
Unit Box Length - 0.12
Unit Box Width - 0.255
Unit Calculated Volume - 0.007986 cubm
Unit Calculated Weight - 2.53 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE#kf
Vendor Homepage - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE#kf
Warranty - 36 months
Warranty - 120
Warranty - 120 month(s)
WarrantyInfo - 5 years
warrantyLength - 36
Warranty period Logistics data - 5 year(s)
warrantyType - G
weight - 1.9 kg
weight - 2350
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.34 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2340 g
Width Weight & dimensions - 150 mm
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Bearing technology Performance - HYB
Brand - GIGABYTE
BrandPartCode - GP-UD750GM PG5 ICE EU
Cabling type Ports & interfaces - Fully-Modular
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Code - GP-UD750GM PG5 ICE
Combined power (+3.3V) Power - 105 W
Combined power (+5V) Power - 105 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 750 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power cable length Ports & interfaces - 650 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 750 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 62.5 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 140 mm
Desc -
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Intel ATX 3.1 and PCIe Gen 5.1 ready80 PLUS Gold certifiedFully modular designPowerful single +12V railCompact size100% Japanese capacitors120mm smart hydraulic bearing (HYB) fanOptimized thermal solutionOVP/OPP/SCP/UVP/OCP/OTP protection
description_en - The GIGABYTE UD750GM PG5 V2 is a reliable fully modular ATX power supply designed for modern gaming rigs and performance PCs. With 750W output and solid efficiency, it delivers stable power to CPUs, GPUs, and system components. Fully modular cables help reduce clutter and improve airflow inside the case. Built‑in protections ensure safe operation under load. A quiet cooling fan maintains optimal temperatures without excessive noise, making it suitable for both demanding gaming and productivity builds.
Technical Specifications: Type: Fully modular ATX power supply Wattage: 750W Efficiency: 80 PLUS Gold Input voltage: 100–240V AC Frequency: 50–60 Hz Fan: 120 mm cooling fan Protections: Over Current Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection Modular cables: Fully modular Connector types: 24‑pin ATX, 8‑pin EPS, 6+2 PCIe, SATA, Molex Colour: Black Form factor: ATX MTBF: ~100,000 hours
description_lv - GIGABYTE UD750GM PG5 V2 ir uzticams pilnībā modulārs ATX barošanas bloks, kas paredzēts spēļu datoriem un jaudīgām sistēmām. Ar 750W jaudu tas nodrošina stabilu strāvas padevi procesoram, videokartei un pārējiem komponentiem. Pilnībā modulārie kabeļi palīdz samazināt vadu putru un uzlabot gaisa plūsmu korpusā. Iebūvētās aizsardzības sistēmas nodrošina drošu darbību pat pie lielas slodzes. Kluss ventilators uztur optimālu dzesēšanu, neradot lieku troksni, tādējādi piemērots gan spēlēm, gan augstas veiktspējas uzdevumiem.
Tehniskās īpašības: Tips: pilnībā modulārs barošanas bloks ATX Jauda: 750W Efektivitāte: 80 PLUS Gold Ieejas spriegums: 100–240V AC Frekvence: 50–60 Hz Ventilators: 120 mm Aizsardzības: pret pārspriegumu, pārslodzi, īssavienojumu, zemu spriegumu, pārkaršanu Kabeļi: pilnībā modulāri Savienotāju tipi: 24‑pin ATX, 8‑pin EPS, 6+2 PCIe, SATA, Molex Krāsa: melna Formfaktors: ATX MTBF: ~100,000 stundas
description_ru - GIGABYTE UD750GM PG5 V2 — это надёжный полностью модульный блок питания ATX, предназначенный для игровых систем и мощных ПК. С мощностью 750 Вт он обеспечивает стабильное питание процессора, видеокарты и остальных компонентов. Полностью модульные кабели помогают убрать лишние провода и улучшить воздушный поток внутри корпуса. Встроенные системы защиты гарантируют безопасную работу под нагрузкой. Тихий вентилятор поддерживает оптимальную температуру без лишнего шума, что делает блок подходящим как для игр, так и для задач высокой нагрузки.
Технические характеристики: Тип: полностью модульный блок питания ATX Мощность: 750 Вт Эффективность: 80 PLUS Gold Входное напряжение: 100–240 В AC Частота: 50–60 Гц Вентилятор: 120 мм Защиты: защита от перегрузки по току, перенапряжения, короткого замыкания, пониженного напряжения, перегрева Кабели: полностью модульные Типы разъёмов: 24‑pin ATX, 8‑pin EPS, 6+2 PCIe, SATA, Molex Цвет: чёрный Форм‑фактор: ATX MTBF: ~100,000 часов
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
dimensionalWeight - 1451
EAN - 4719331556310
Eans - 4719331556310
Efficiency Power - 90 %
Fan diameter Design - 120 mm
Floppy drive power connector Ports & interfaces - 1
gross_weight - 2.2 kg
GTIN - 4719331556310
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 12 - 6.5 A
LargeDescHTML -
Link - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE
Logistics data - Warranty period - 5 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model -
Model name - UD750GM PG5 ICE
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Barošanas bloks Gigabyte UD750GM PG5 ICE 750W
Name - Gigabyte GP-UD750GM PG5 V2 ICE
Name - Gigabyte Power Supply | UD750GM PG5 V2 ICE | 750 W
Number of EPS connectors Ports & interfaces - 2
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 8
On/off switch Design - Yes
Package depth Packaging data - 269 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 350 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 211 mm
Package type Packaging data - Box
Package weight Packaging data - 2500 g
Package width Packaging data - 618 mm
Packaging data - Package depth - 269 mm
Packaging data - Package height - 211 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.5 kg
Packaging data - Package width - 618 mm
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (12+4 pin) cable length Ports & interfaces - 700 mm
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6.5 A
Power - Input current - 15 - 6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Power protection features - UVP
Power - Total power - 750 W
Power > Nominal power - 750 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
Producer - Gigabyte
producerCode - GP-UD750GM PG5 ICE
ProducerCode - GP-UD750GM PG5 V2 ICE
Product colour Design - White
productName - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
ProductName - UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
productSize - Normal
Purpose Performance - PC
ShortDescription - 750 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 750 W, 100 - 240 V, 50/60 Hz, 12 - 6.5 A, Active, 105 W
sizeX - 260
sizeY - 128
sizeZ - 218
Summary - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Technical details > Gross weight - 2.85 kg
Technical details > Net weight - 2.65 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - Power Supply
Technical details > Producer product name - UD750GM PG5 V2 ICE
Title - GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
title_en - Gigabyte UD750GM PG5 V2 Power supply unit 750W
title_lv - Gigabyte UD750GM PG5 V2 Barošanas bloks 750W
title_ru - Gigabyte UD750GM PG5 V2 Блок питания 750W
Total power Power - 750 W
Unit Box Height - 0.21
Unit Box Length - 0.12
Unit Box Width - 0.255
Unit Calculated Volume - 0.007986 cubm
Unit Calculated Weight - 2.53 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE#kf
Vendor Homepage - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-ICE#kf
Warranty - 36 months
Warranty - 120
Warranty - 120 month(s)
WarrantyInfo - 5 years
warrantyLength - 36
Warranty period Logistics data - 5 year(s)
warrantyType - G
weight - 1.9 kg
weight - 2350
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.34 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2340 g
Width Weight & dimensions - 150 mm
