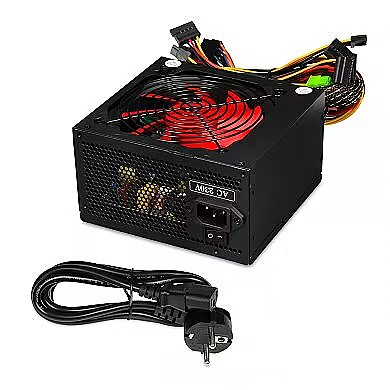

iBOX 500W, CUBE II, 120mm Fan

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 125233 Product code: ZIC2500W12CMFA
In stock 11 units
Warranty: 2 years
31.33 €
Delivery options More about shipping
  • Pick up at Dateks.lv office: tomorrow, 10.12.2019 after 15:00
  • Delivery to Omniva parcel machine free of charge: on Wednesday, 11.12.2019
  • Delivery to DPD Pickup Paku Bode shipping point free of charge: on Wednesday, 11.12.2019
  • Delivery to address in Riga 3.99 €: on Wednesday, 11.12.2019
  • Delivery to address in Latvia 6.99 €: on Wednesday, 11.12.2019
Main product parameters All parameters
  • Power output: 500W
  • 80 PLUS certification: Nav
  • PFC: Passive PFC
  • +12V_1: 0
  • +12V_2: 0
  • +12V_3: 0
  • +12V_4: 0
  • Modular cables: Nav
  • Fan size: 120 mm
Description
We offer to buy iBOX the power supply unit with 500W the power supply capacity and 12 cm cooling.

The 12cm diameter of the cooler of this power unit is the industry standard for ensuring silent operation of average class computers. If you wish to have an especially silent unit you should look for a unit with the ventilator diameter of 13.5cm or 14cm.
All parameters
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
PFC Passive PFC
Ir 2 tipu PFC (Power Factor Correction) - aktīvais (Active PFC) un pasīvais (PPFC, jeb vienkārši PFC).
Active PFC ir visizplatītākais veids, jo nodrošina maksimāli augstu efektivitāti (līdz pat 95%), kā arī krietni minimizē trokšņu daudzumu barošanas ķēdē. Tas automātiski pielāgojas maiņstrāvas (AC) spriegumam (voltage) un nodrošina saderību ar jebkuru elektrotīklu (110V - 250V).
Passive PFC ir ražošanas izmaksu ziņā lētāks risinājums, taču tas ir krietni jūtīgāks uz izmaiņām elektrotīklā, kā arī nenodrošina tik augstu efektivitāti kā APFC. Pasīvie barošanas bloki nespēj automātiski pielāgoties elektrotīklam, un tie parasti ir paredzēti tikai viena veida (230V vai 110V) elektrotīklam, vai arī uz iekārtas atrodams slēdzis manuālai voltāžas iestatīšanai.
Pastāv arī barošanas bloki bez PFC, taču Eiropas Savienībā tādus izplatīt ir aizliegts ar normatīviem.
+12V_1 : 0
+12V_2 : 0
+12V_3 : 0
+12V_4 : 0
+12V_5 : 0
+12V_6 : 0
Modular cables : Nav
Motherboard power : 20+4pin
PCI-E : Nav
SATA cconnectors : 3
4pin Molex : 4
Fan size : 120 mm
Case
More detailed specification
Certificates - CE
Certificates - RoHS
Depth - 150 mm
Fan's size class - 120 mm
Format - ATX
Height - 85 mm
Medium Time Between Failure (MTBF) - 100000 hr.
Net weight - 0.8 kg
Number of electric plugs +12V 4+4-pin (EPS12V) - 0 Pcs
Number of electric plugs +12V 8-pin (EPS12V) - 0 Pcs
Number of electric plugs 4-pin (FAN) - 0 Pcs
Number of electric plugs 6+2-pin (PCI-E) - 0 Pcs
Number of electric plugs 6-pin (PCI-E) - 0 Pcs
Number of electric plugs 8-pin (PCI-E) - 0 Pcs
Number of electric plugs Serial ATA - 3 Pcs
Number of fans - 1 Pcs
Number of electric plugs +12V 4-pin (P4) - 1 Pcs
Number of electric plugs 3-pin (FAN) - 0 Pcs
Number of electric plugs 4-pin (FDD) - 0 Pcs
Number of electric plugs 4-pin (HDD/ODD) - 4 Pcs
PFC (Power Factor Correction) type - Passive
Power supply (supplies) power - 500 Watt
Power supply kind - Standard
Power supply standard (ATX) - 2,2
Protections - OCP (Over Current Protection)
Protections - OPP (Over Power Protection)
Protections - OTP (Over Temperature Protection)
Protections - OVP (Over-Voltage Protection)
Protections - SCP (Short Circuit Protection)
Protections - UVP (Under Voltage Protection)
Type of +12V electric plug - P4 (4-pin)
Type of ATX power supply connector - 20-pin + 4-pin
Warranty - Warranty 24 months
Width - 140 mm
