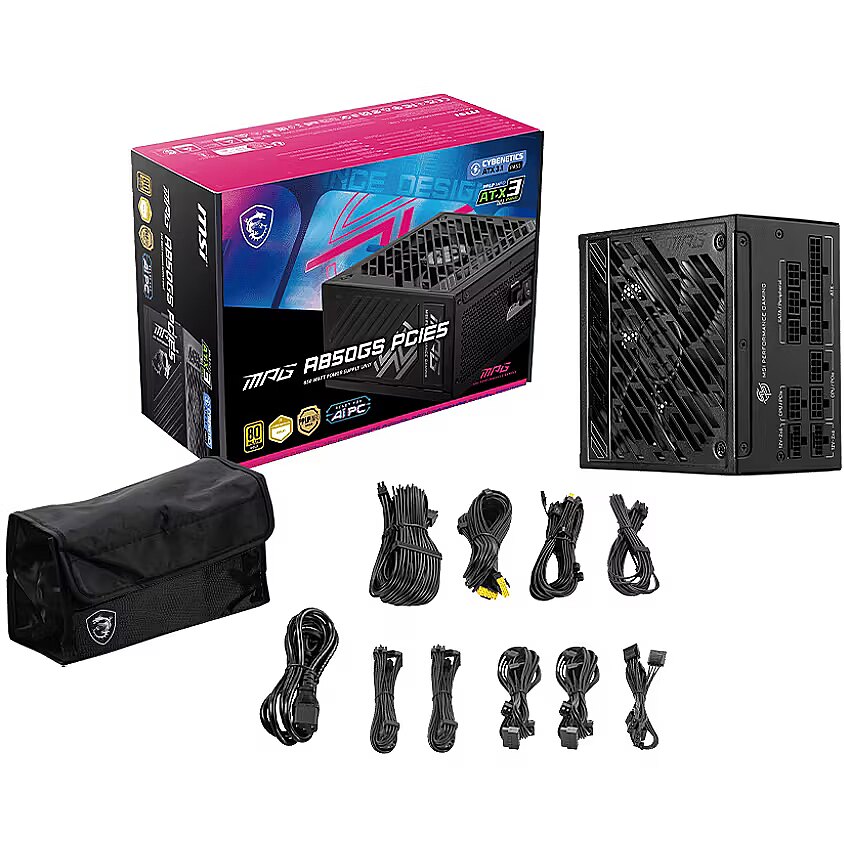

MSI MPG A850GS PCIE5, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1228815 Product code: MPG A850GS PCIE5
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years
194.64 €
Ready for dispatch
19.12.2025
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
Main product parameters All parameters
  • Producer: MSI
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

Available for purchase is a power supply produced by MSI with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

The manufacturer of this power supply unit is MSI. Check out all MSI power supply units here.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 70.8A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MSI MPG A850GS PCIE5, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
8-pin 12V power connectors - 0
80 PLUS certification Performance - 80 PLUS Gold
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB
Brand - MSI
BrandPartCode - MPG A850GS PCIE5
Cabling type Ports & interfaces - Fully-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates 80+ - 80 PLUS Gold
Combined power (+3.3V) Power - 120 W
Combined power (+5V) Power - 120 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 850 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Moc - 850 W
Dane techniczne: Model - MSI MPG A (GS)
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 22 A
Dane techniczne: Natężenie przy napięciu +5V - 22 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - MSI
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 4 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Depth Weight & dimensions - 150 mm
Description - MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
Description - Zasilacz MPG A850GS PCIE5 Obsługa kart graficznych z serii NVIDIA GeForce RTX 50 Natywne złącze 12V-2x6 Dwukolorowy kabel 12V-2x6 Certyfikat 80 PLUS Gold Najniższy poziom hałasu, Certyfikat Cybenetics A++ W 100% wszystkie kondensatory klasy serwerowej mogące pracować w temperaturze 105°C Kable z przetłaczanym płaszczem, dzięki czemu łatwiej je zaginać i prowadzić w obudowie komputera Kompleksowa ochrona obwodów wykorzystująca przemysłowej klasy zabezpieczenia OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1985
dimension depth - 130 mm
dimension height - 230 mm
Dimensions - 150 x 150 x 86 mm
dimension weight - 3094 g
dimension width - 300 mm
ean - 4711377243780
Eans - 4711377243780
Efficiency Power - 90 %
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - No
Fan - 13.5 cm
Fan diameter Design - 135 mm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4711377243780
GTIN - 4711377244039
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 86 mm
Illumination Design - No
LongDesc - MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
LongProductName - 850W, 135 mm, 80 PLUS Gold
LongSummaryDescription - MSI MPG A850GS PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Max output current (+3.3V) Power - 22 A
Max output current (+5V) Power - 22 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 70.8 A
Max output current (-12V) Power - 0.3 A
MB power connector - 24 pin
Model name - MPG A850GS PCIE5
Modular power supply - Yes
MOLEX power connectors - 4
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 24-pin ATX
name - MPG A850GS PCIE5
Name - MSI MPG A850GS PCIE5
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of SATA power connectors Ports & interfaces - 8
Number of USB 10p connectors - 0
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (16-pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 4
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - Power connector 16 PIN PCIe GEN5 - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power Factor Correction (PFC) type Power - Active
Power supply - 850 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
producerCode - 306-7ZPFZ11-CE0
ProducerCode - MPG A850GS PCIE5
Product colour Design - Black
ProductName - A850GS PCIE5
productName - MSI MPG A850GS 850W PCIE5 80+ Gold power supply (306-7ZPFZ11-CE0)
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Do not open the case - risk of electric shock.
SATA power connectors - 8
ShortDescription - 850 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 150mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MPG A850GS PCIE5, 850 W, 100 - 240 V, 50/60 Hz, Active, 120 W, 850 W
sizeX - 137
sizeY - 311
sizeZ - 233
Summary - MSI MPG A850GS PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Title - MSI MPG A850GS PCIE5 power supply unit 850 W 24-pin ATX ATX Black
Total power Power - 850 W
Unit Box Height - 0.227
Unit Box Length - 0.303
Unit Box Width - 0.13
Unit Calculated Volume - 0.01059 cubm
Unit Calculated Weight - 3.3 kg
Units per Pallet - 0
Units per Shipping Box - 4
URL - https://www.msi.com/Power-Supply/MPG-A850GS-PCIE5
Vendor Homepage - https://www.msi.com/Power-Supply/MPG-A850GS-PCIE5
vendpn - MPG A850GS PCIE5
Warranty - 24 months
WarrantyInfo -
warrantyLength - 120
warrantyType - G
weight - 3084
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Width Weight & dimensions - 150 mm
