ASRock PG-750G, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1219568 Product code: PG-750G
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Asrock
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Similar Products
This product ASRock PG-750G, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended Corsair RM850e White (2025), 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Recommended Phanteks AMP GH V2, 1200W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Be Quiet Straight Power 12, 1200W, ATX 3.0, 80PLUS Platinum, PCIe 5.0
Show similar specs. Hide similar specs.
158.11 €
146.36 €
62.95 €
202.61 €
273.29 €
Basic information
Cybenetics Efficiency certification Cybenetics Platinum Cybenetics Gold Nav Nav Nav
Cybenetics Noise level certification Cybenetics A Cybenetics A Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 750W 850W 650W 1200W 1200W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Bronze 80 PLUS Platinum 80 PLUS Platinum
Total amperage (+12V) 62.5A 70.8A 54A 100A 100A
Fan size 135 mm 120 mm 120 mm 120 mm 135 mm
Functionality
Cable colour Melna White Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna White Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Nav Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 1 x 600W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1) 1 x 450W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1) 2 x 600W 12VHPWR (5.0)
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 24-pin 24-pin 24-pin 24-pin 20+4pin
PCI-E 3 x 6+2pin 3 x 6+2pin 2 X 6+2pin 4 X 6+2pin 4 X 6+2pin
SATA cconnectors 9 6 6 14 9
4pin Molex 3 2 2 2 2
Description

This Asrock brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 750W.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

The power supply has received the Cybenetics A noise level certificate – the noise generated by the unit will be 20-25 decibels.

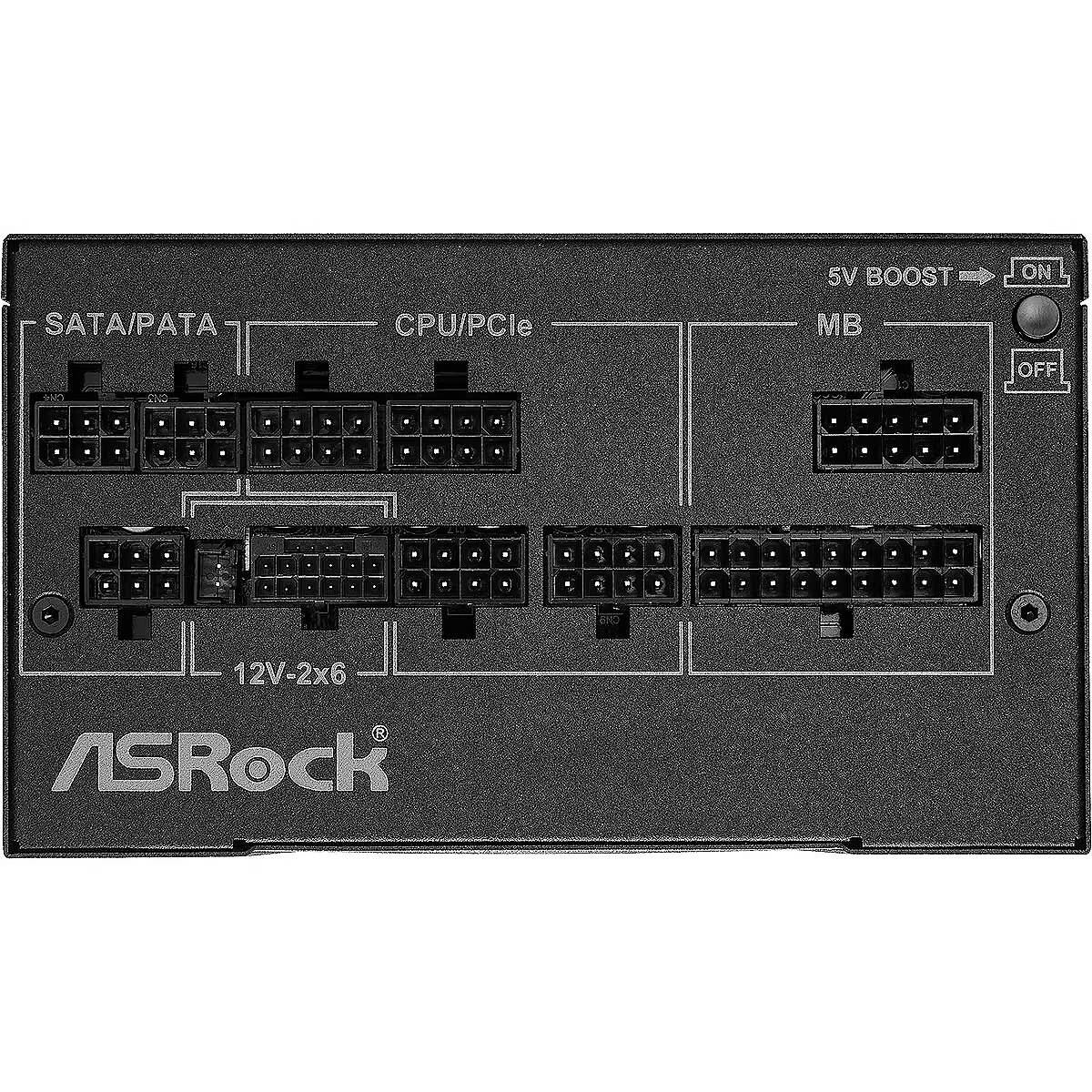

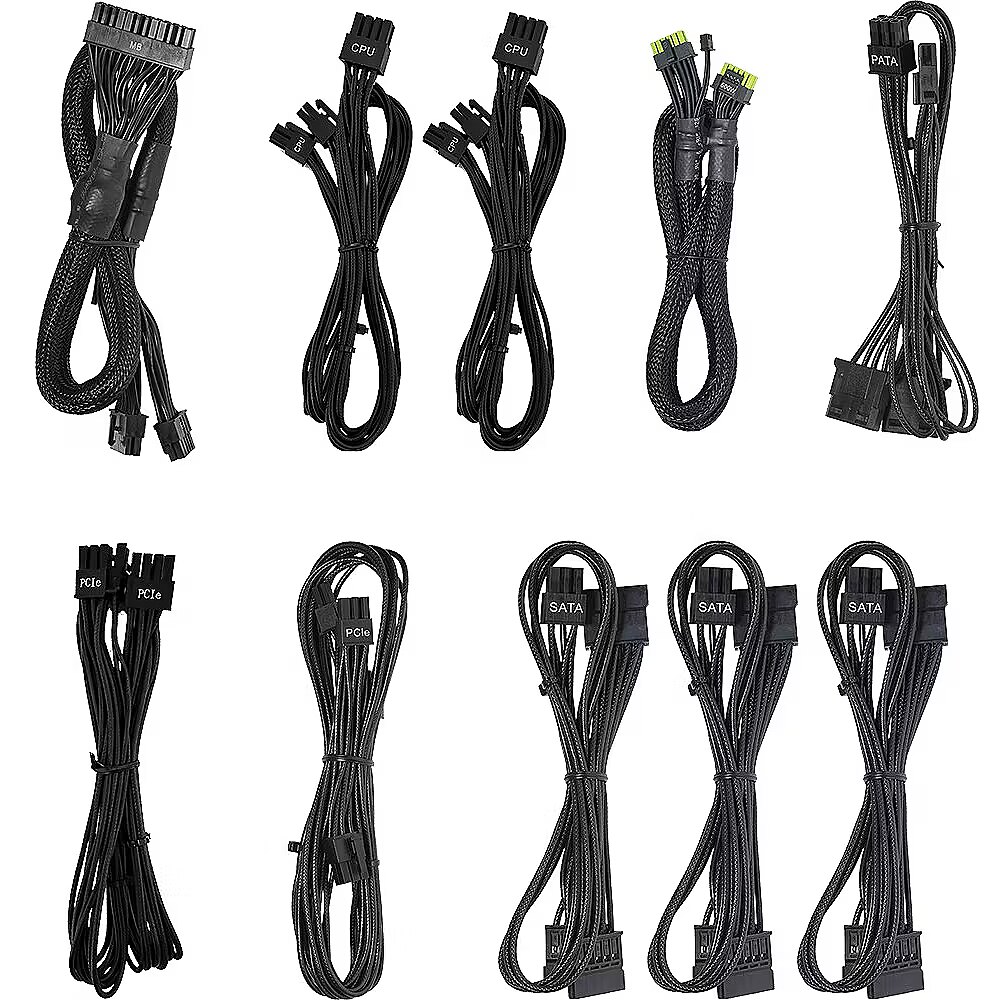

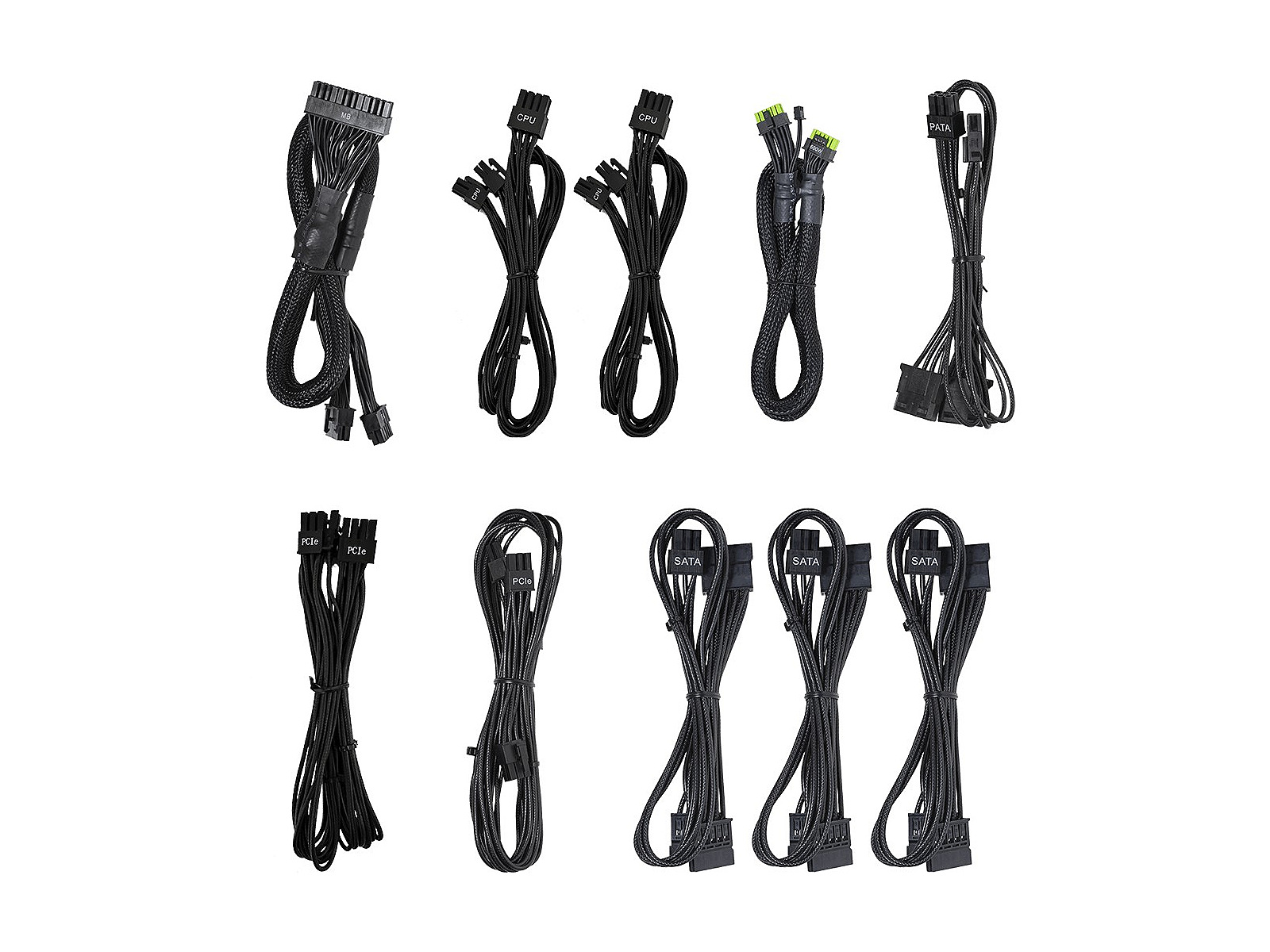

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62.5A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS Gold
Description -
dimension depth - 230 mm
dimension height - 310 mm
Dimensions - 86 x 150 x 150 mm
dimension weight - 3210 g
dimension width - 130 mm
ean - 4710483948428
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 120
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 3
name - Power supply PG-750G 750W 80PLUS GOLD full modular
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 750 W
producer - ASRock
SATA power connectors - 9
vendpn - PG-750G
158.11 €
ASRock PG-750G, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
