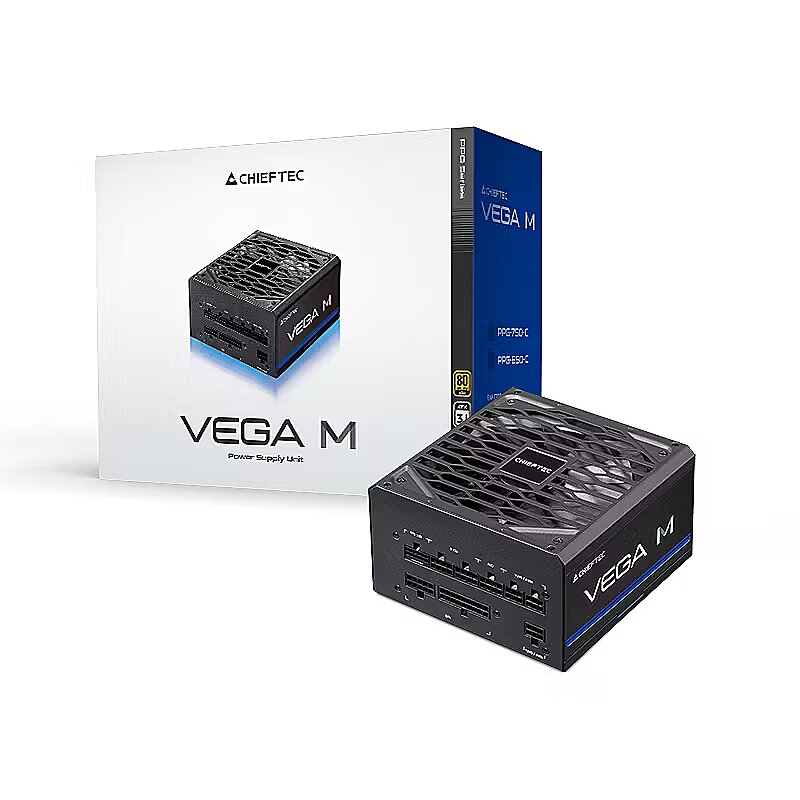

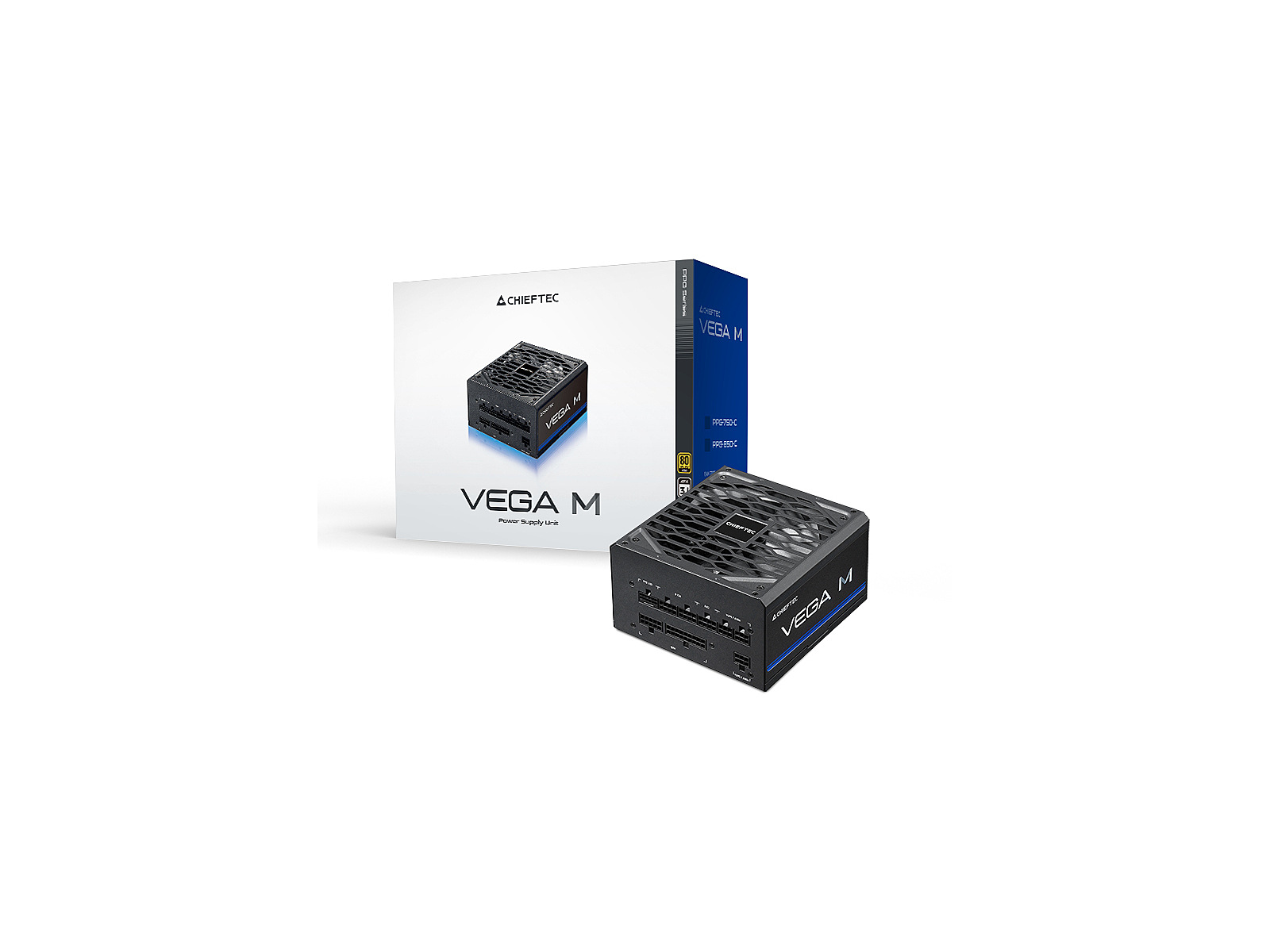

Chieftec VEGA M, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1203086 Product code: PPG-850-C
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Producer: Chieftec
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product Chieftec VEGA M, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended Corsair RM850e White (2025), 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended Seasonic Focus GX (2024), 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Recommended Phanteks AMP GH V2, 1200W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.
110.22 €
146.36 €
182.46 €
62.95 €
202.61 €
Basic information
Cybenetics Efficiency certification Nav Cybenetics Gold Nav Nav Nav
Cybenetics Noise level certification Nav Cybenetics A Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 850W 850W 1000W 650W 1200W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Bronze 80 PLUS Platinum
Total amperage (+12V) 70.8A 70.8A 83A 54A 100A
Fan size 135 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna White Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna White Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Fully-Modular Nav Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 1 x 600W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1) 1 x 450W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1)
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 24-pin 20+4pin 24-pin 24-pin
PCI-E 4 X 6+2pin 3 x 6+2pin 3 x 6+2pin 2 X 6+2pin 4 X 6+2pin
SATA cconnectors 6 6 10 6 14
4pin Molex 3 2 1 2 2
Description

We offer to purchase a Chieftec power supply unit with a power capacity of 850W, which has received the 80 PLUS Gold energy efficiency certification.

This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

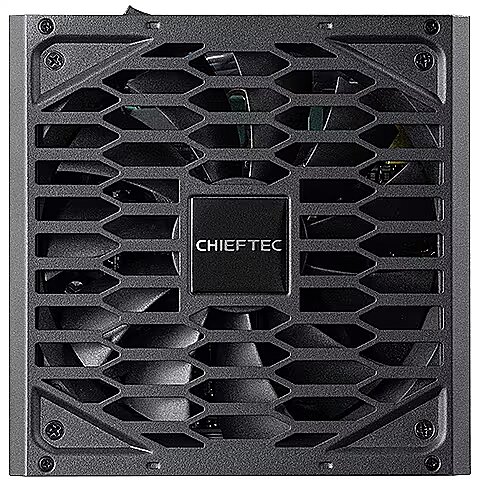

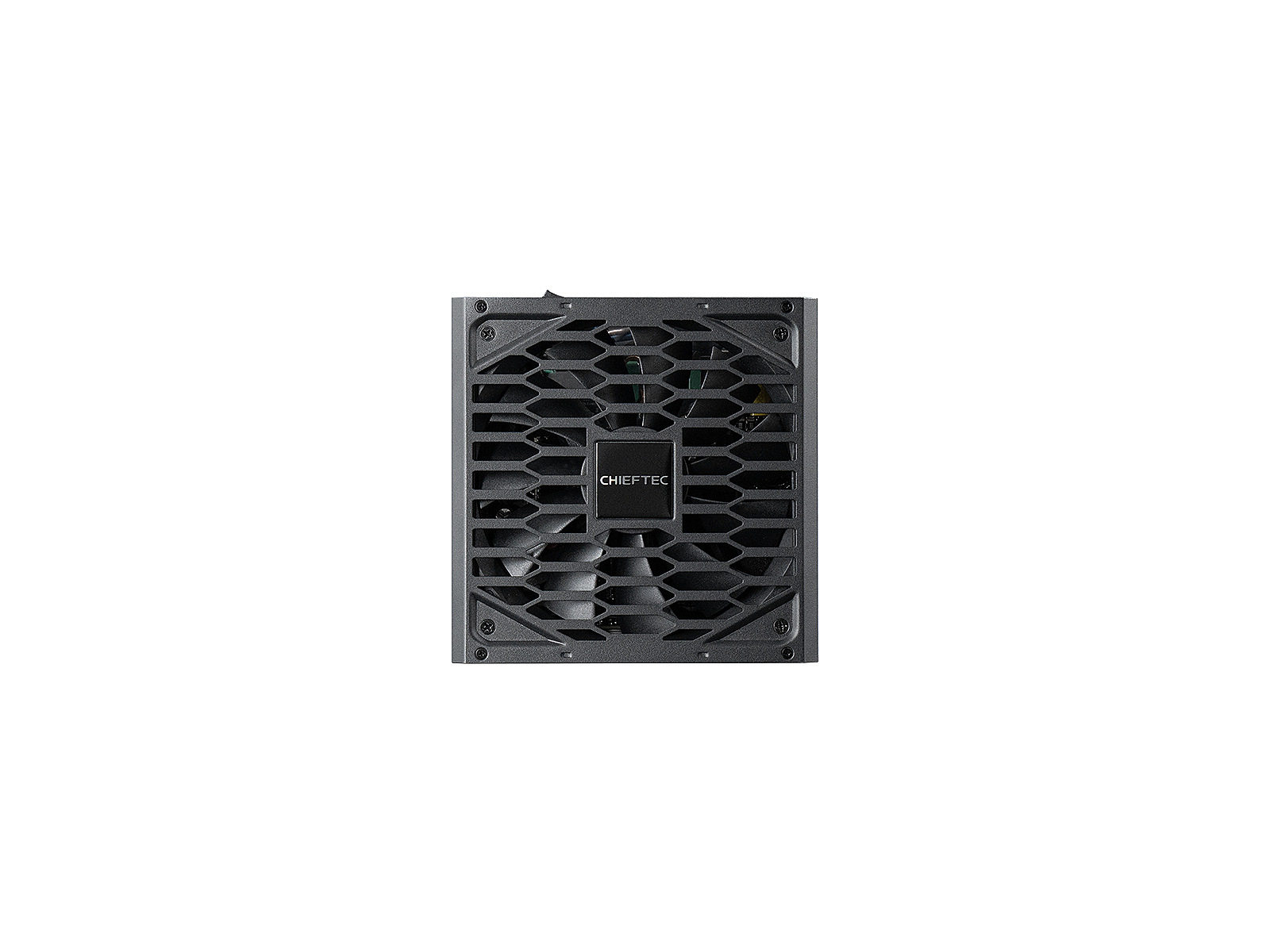

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 70.8A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
More detailed specification
8-pin 12V power connectors - 0
80 PLUS certification Performance - 80 PLUS Gold
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (20+4 pin) Ports & interfaces - Yes
ATX Power connector (24-pin) Ports & interfaces - Yes
ATX version Performance - 3.1
Bearing technology Performance - FDB
Brand - Chieftec
BrandPartCode - PPG-850-C
Cabling type Ports & interfaces - Fully-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - 80PLUS Gold
Certificates 80+ - 80 PLUS Gold
Certification Certificates - 80PLUS Gold
Cooling type Design - Active
CPU power cable length Ports & interfaces - 650 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - Chieftec VAGA M PPG
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Chieftec
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 85 mm
Dane techniczne: Zabezpieczenia - AFC
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Depth Weight & dimensions - 150 mm
Description - Zasilacz PPG-850-C VEGA M 850W 80+ GOLD Zasilacze serii CHIEFTEC Vega M są zgodne ze standardem Intel ATX 12V 3.1 i wspierają PCIe GEN5 z certyfikowaną efektywnością 80PLUS Gold. Przekonują konkurencyjnym stosunkiem ceny do wydajności, pozostając wiernymi sprawdzonej jakości Chieftec.
Seria Vega M wyposażona jest w konwerter LLC Half-Bridge z technologią DC-to-DC, zapewniającą lepszą efektywność energetyczną i stabilność. W pełni modułowa konstrukcja z wyjątkowo długimi czarnymi kablami sprawia, że jest to idealne rozwiązanie dla graczy, którzy chcą zbudować swój system, nawet w większych obudowach komputerowych.
Dodatkowo, 135-mm wentylator FDB optymalizuje równowagę między wydajnością chłodzenia a poziomem hałasu. Seria Vega to Twoje zaufane, niezawodne rozwiązanie dla wszystkich potrzeb komputerowych, wyposażone we wszystkie niezbędne, nowoczesne funkcje ochrony i bezpieczeństwa.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 110 mm
dimension height - 215 mm
Dimensions - 85 x 150 x 150 mm
dimension weight - 2100 g
dimension width - 285 mm
ean - 753263078902
EAN - 0753263078902
Eans - 753263078902
EAN_code - 0753263078902
EPS power connector (4+4 pin) Ports & interfaces - Yes
EPS power connector (8-pin) Ports & interfaces - Yes
Fan - 13.5 cm
Fan diameter Design - 135 mm
Filters / protection - Automatic fan speed control
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 0753263078902
GTIN - 753263078902
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 85 mm
Illumination Design - No
LongSummaryDescription - Chieftec Vega PPG-850-C. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
Manufacturer - Chieftec
Manufacturer_code - PPG-850-C
MB power connector - 20 + 4 pin
Model name - PPG-850-C
Modular power supply - Yes
MOLEX power connectors - 3
Motherboard power cable length Ports & interfaces - 600 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - PPG-850-C
Name - 850W Chieftec Vega M Series PPG-850-C 80+ Gold
Name - Chieftec VEGA M PPG-850-C
Name - Chieftec VEGA M PPG-850-C (1x 12 pin high power GPU, 4x PCIe, 850 watts)
name - Power supply PPG-850-C VEGA M 850W 80+ GOLD
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of SATA power connectors Ports & interfaces - 6
Number of USB 10p connectors - 0
Other features -
Package weight Packaging data - 2540 g
Packaging data - Package weight - 2.54 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (12+4 pin) cable length Ports & interfaces - 600 mm
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power cable length Ports & interfaces - 400 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Total power - 850 W
Power supply - 850 W
Power supply unit (PSU) form factor Performance - ATX
Producent: Nazwa producenta / importera - Chieftec
Arena Electronic GmbH
Koppersstr. 18
40549 Duesseldorf

producer - Chieftec
Producer - Chieftec
ProducerCode - PPG-850-C
Product colour Design - Black
ProductName - PPG-850-C
Purpose Performance - PC
SATA power cable length Ports & interfaces - 400 mm
SATA power connectors - 6
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 87mm x 150mm | 80Plus Gold |PCIe GEN5 | modularny |
ShortSummaryDescription - Chieftec Vega PPG-850-C, 850 W, 100 - 240 V, 50/60 Hz, 20+4 pin ATX, 60 cm, 400 mm
Summary - Chieftec Vega PPG-850-C. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
Title - Chieftec Vega PPG-850-C power supply unit 850 W 20+4 pin ATX ATX Black
Total power Power - 850 W
Unit Box Height - 0.21
Unit Box Length - 0.28
Unit Box Width - 0.105
Unit Calculated Volume - 0.00792 cubm
Unit Calculated Weight - 2.61 kg
Units per Shipping Box - 5
Vendor Homepage - www.chieftec.eu/products-detail/626/VEGA_M/628/PPG-850-C
vendpn - PPG-850-C
Warranty - 24 months
Weight - 2,50
Weight - 2.46
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 2.07 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2070 g
Width Weight & dimensions - 150 mm
