ID: 1186696
Product code: FOCUS-GX-850-V4-WHITE
Can be ordered 253 units Availability: 14 days after order approval
Warranty: 3 years

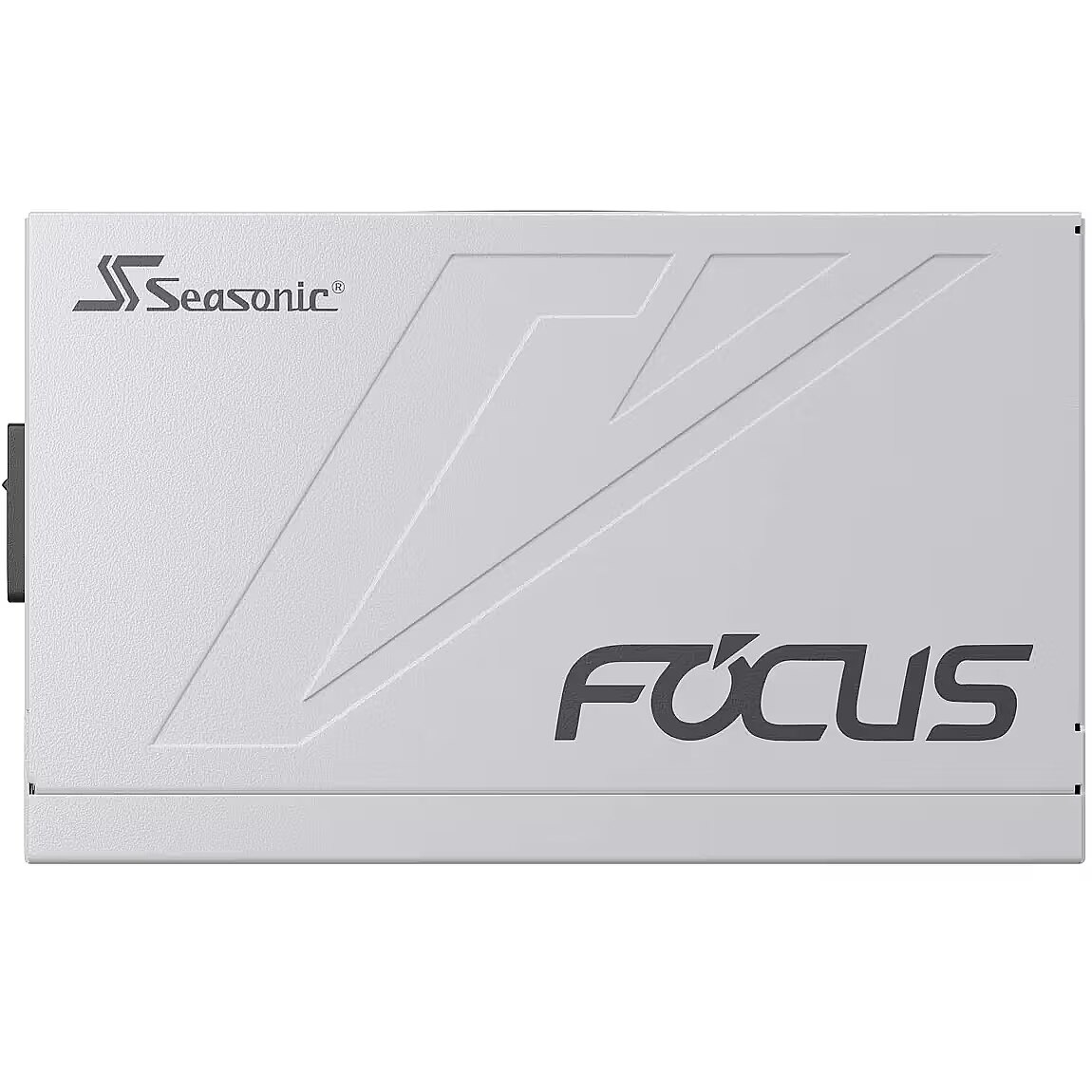

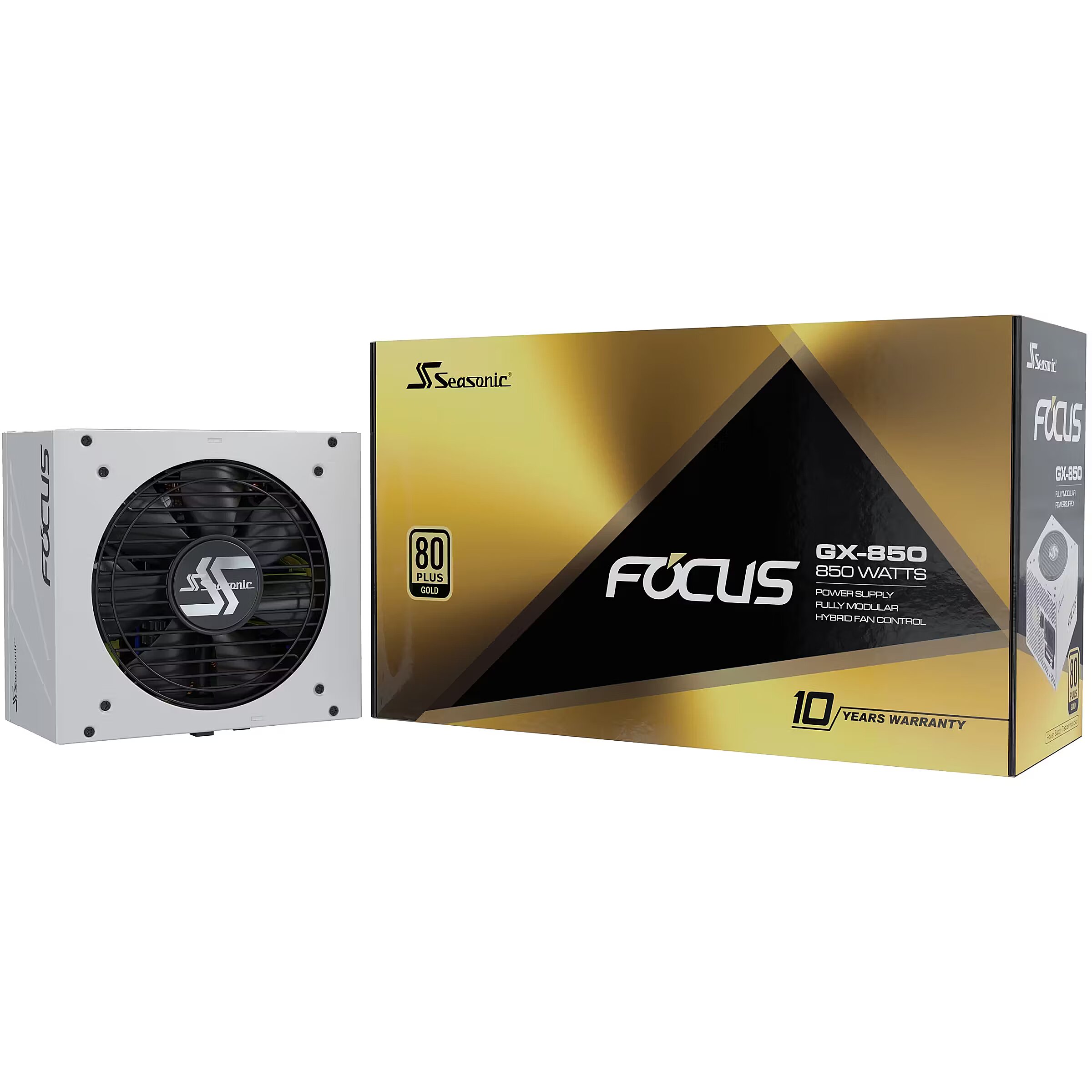

Seasonic Focus GX (2024) White, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Producer: Seasonic
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
Available for purchase is a power supply produced by Seasonic with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of the block is Balta. The block has flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics A -
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: White
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: 1 x 300W 12V-2X6 (5.1)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 2
4pin Molex
: 3
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - FOCUS-GX-850-V4-WHITE
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 840 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CB/CE/cTUVus/EAC/REACH/RoHS/WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - FOCUS GX ATX 3.0 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market. Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. Reduced noise without increase in temperature Extended fan life due to the reduced number of fan rotations Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
80 PLUS® GOLDFully ModularATX 3.0 & PCIe 5.0
ean - 4711173878568
EAN - 4711173878568
EAN_code - 4711173878568
Fan diameter Design - 135 mm
Height Weight & dimensions - 86 mm
Input current Power - 11 - 5.5 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - FOCUS-GX-850-V4-WHITE
Maximum input current (@110V) Power - 11 A
Maximum input current (@220V) Power - 5.5 A
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 70 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - FOCUS GX White ATX 3 (2024)
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - FOCUS-GX-850-V4-WHITE
Name - 850W Seasonic FOCUS-GX-850-V4-WHITE ATX 3.1 80+ Gold
Name - Seasonic FOCUS GX-850 850W ATX3.0 White Edition, PC power supply (white, 1x 12VHPWR, 3x PCIe, cable management, 850 watts)
name - Seasonic Focus GX 80 PLUS Gold Netzteil, modular, PCIe 5.1 - 850 Watt, weiß
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 2
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Package type Packaging data - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - White
Purpose Performance - PC
Safety Safety regulation & standards - cTUVus, TUV, CB, CCC, BSMI, EAC, CE
SATA power cable length Ports & interfaces - 550 mm
Summary - Seasonic Focus GX-850. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, CE, EAC, REACH, RoHS, WEEE, cTUVus
Sustainability certificates Technical details - ENERGY STAR
Total power Power - 850 W
Unit Box Height - 0.19
Unit Box Length - 0.305
Unit Box Width - 0.115
Unit Calculated Volume - 0.008442 cubm
Unit Calculated Weight - 3.52 kg
Units per Shipping Box - 5
Vendor Homepage - https://seasonic.com/focus-gx-white-atx-3/
Warranty - 120 months
Warranty period Logistics data - 10 year(s)
Weight - 3,37
Weight - 3.367
Width Weight & dimensions - 150 mm
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - FOCUS-GX-850-V4-WHITE
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 840 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - CB/CE/cTUVus/EAC/REACH/RoHS/WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - FOCUS GX ATX 3.0 Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market. Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. Reduced noise without increase in temperature Extended fan life due to the reduced number of fan rotations Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
80 PLUS® GOLDFully ModularATX 3.0 & PCIe 5.0
ean - 4711173878568
EAN - 4711173878568
EAN_code - 4711173878568
Fan diameter Design - 135 mm
Height Weight & dimensions - 86 mm
Input current Power - 11 - 5.5 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - FOCUS-GX-850-V4-WHITE
Maximum input current (@110V) Power - 11 A
Maximum input current (@220V) Power - 5.5 A
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 70 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - FOCUS GX White ATX 3 (2024)
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - FOCUS-GX-850-V4-WHITE
Name - 850W Seasonic FOCUS-GX-850-V4-WHITE ATX 3.1 80+ Gold
Name - Seasonic FOCUS GX-850 850W ATX3.0 White Edition, PC power supply (white, 1x 12VHPWR, 3x PCIe, cable management, 850 watts)
name - Seasonic Focus GX 80 PLUS Gold Netzteil, modular, PCIe 5.1 - 850 Watt, weiß
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 2
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Package type Packaging data - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - White
Purpose Performance - PC
Safety Safety regulation & standards - cTUVus, TUV, CB, CCC, BSMI, EAC, CE
SATA power cable length Ports & interfaces - 550 mm
Summary - Seasonic Focus GX-850. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, CE, EAC, REACH, RoHS, WEEE, cTUVus
Sustainability certificates Technical details - ENERGY STAR
Total power Power - 850 W
Unit Box Height - 0.19
Unit Box Length - 0.305
Unit Box Width - 0.115
Unit Calculated Volume - 0.008442 cubm
Unit Calculated Weight - 3.52 kg
Units per Shipping Box - 5
Vendor Homepage - https://seasonic.com/focus-gx-white-atx-3/
Warranty - 120 months
Warranty period Logistics data - 10 year(s)
Weight - 3,37
Weight - 3.367
Width Weight & dimensions - 150 mm
