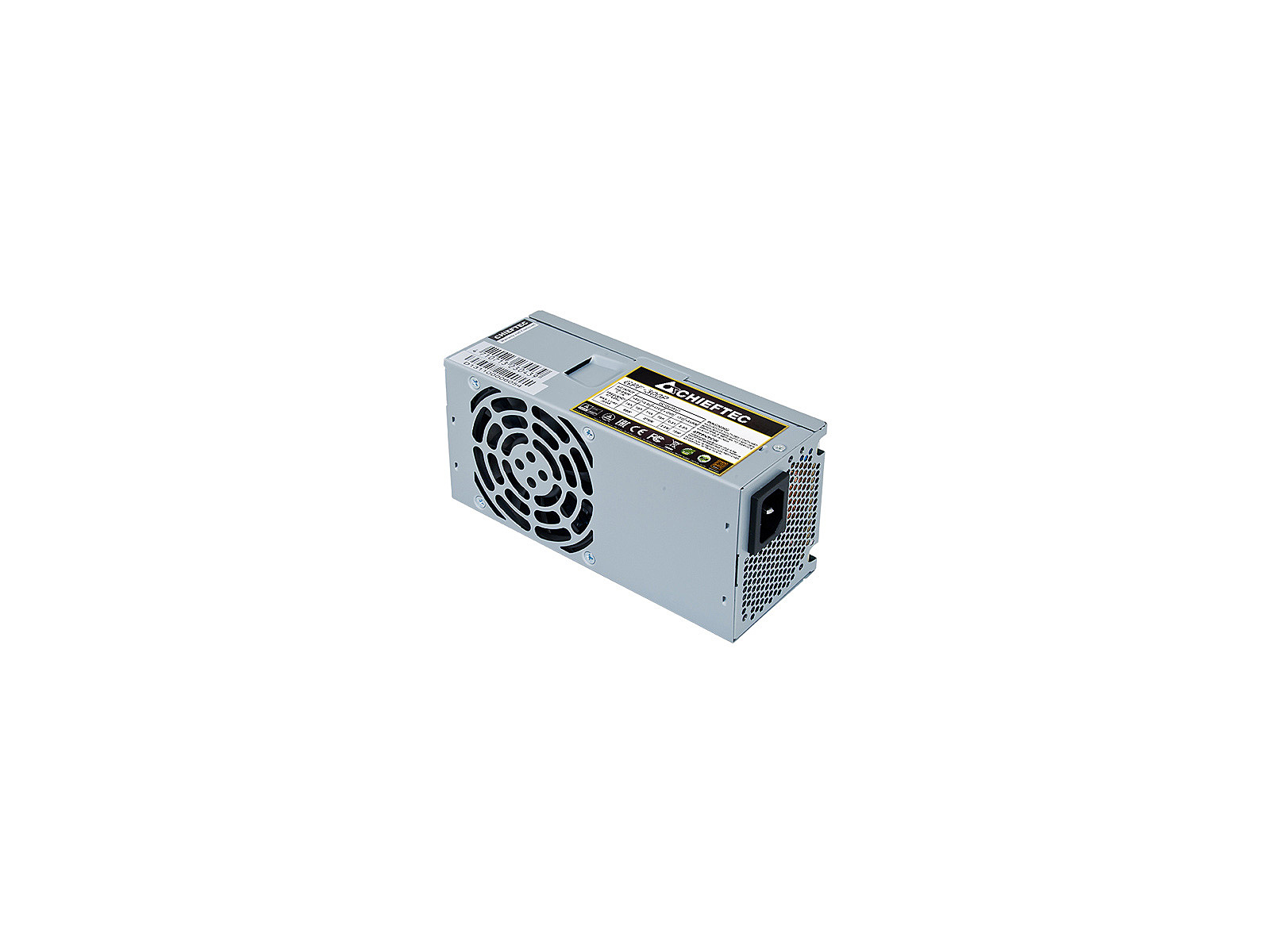

Chieftec Smart Series TFX, 400W

Name: Chieftec Smart Series TFX, 400W
Brand: Chieftec
SKU: 1148147
Price: 51.78 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1148147 Product code: GPF-400P

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Producer: Chieftec
Power output: 400W
80 PLUS certification: None
Fan size: 80 mm
Modular cables: None
Processor plug-in: 1 x 8-pin(4+4) EPS
PCI-E: None

Similar Products

Basic information
	This product Chieftec Smart Series TFX, 400W	Chieftec SMART Series, 450W, 80PLUS Bronze	Chieftec 400W, PSF-400B	Chieftec Smart Series, 250W, Bulk	Chieftec COMPACT Series, 450W, 80PLUS Gold
Show similar specs. Hide similar specs.	51.78 €	70.29 €	58.41 €	61.54 €	101.70 €
Cybenetics Efficiency certification	There isn't	There isn't	There isn't	There isn't	There isn't
Cybenetics Noise level certification	There isn't	There isn't	There isn't	There isn't	There isn't
Power supply type	TFX	SFX	ATX	SFX	SFX
Power output	400W	450W	400W	250W	450W
80 PLUS certification	None	80 PLUS Bronze	None	None	80 PLUS Gold
Total amperage (+12V)	26A	37.5A	30A	18A	37.5A
Fan size	80 mm	90 mm	80 mm	80 mm	80 mm
Functionality
Cable colour	Raiba	Raiba	Raiba	Raiba	Raiba
Lighting	None	None	None	None	None
Color	Silver	Silver	Silver	Silver	Black
Modular cables	None	None	None	None	Fully-Modular
Ports and equipment
PCI-E 5.0/5.1	There is no	There is no	There is no	There is no	There is no
Processor plug-in	1 x 8-pin(4+4) EPS	1 x 8-pin(4+4) EPS	1 x 8-pin(4+4) EPS	1 x 8-pin(4+4) EPS	1 x 8-pin(4+4) EPS
Motherboard power	20+4-pin	20+4-pin	20+4-pin	24-pin	24-pin
PCI-E	None	2 X 6+2pin	1 X 6pin	None	2 X 6+2pin
SATA cconnectors	4	3	4	2	4
4pin Molex	2	2	3	2	3

Description

The color of the block is Sudraba. The block has flat cables, whose color is Raiba.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information

Cybenetics Efficiency certification : There isn't

Cybenetics Noise level certification : There isn't

Power supply type : TFX

Power output 400W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : None

Total amperage (+12V) : 26A

Fan size : 80 mm

Functionality

Cable colour : Raiba

Lighting : None

Color : Silver

Modular cables : None

Ports and equipment

PCI-E 5.0/5.1 : There is no

Processor plug-in : 1 x 8-pin(4+4) EPS

Motherboard power : 20+4-pin

PCI-E : None

SATA cconnectors : 4

4pin Molex : 2

More detailed specification

Brand - Chieftec
BrandPartCode - GPF-400P
Category - Power Supply Units
Certificates - Compliance certificates - CE, EAC, Federal Communications Commission (FCC), RoHS
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Grey
GTIN - 0753263076809
GTIN - 753263076809
LongDesc - A strong GPF power supply unit in TFX format with the latest ATX 2.3 specification and active PFC that is compatible with Intel as well as with AMD CPUs.
LongProductName - TFX, 400 W, 100 - 240 V, 6.3 A, 47 - 63 Hz, 175 x 86 x 65 mm, 1.07 kg
LongSummaryDescription - Chieftec Smart GPF-400P. Total power: 400 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: TFX. Product colour: Grey, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: CE, EAC, Federal Communications Commission (FCC), RoHS
Packaging data - Package weight - 1.13 kg
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - TFX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 35 cm
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 30 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150,350 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,350 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 10 W
Power - Combined power (+12V) - 336 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 6.3 A
Power - Max output current (+3.3V) - 16 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2 A
Power - Max output current (+12V1) - 17 A
Power - Max output current (+12V2) - 17 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Total power - 400 W
ProductName - GPF-400P
ShortSummaryDescription - Chieftec Smart GPF-400P, 400 W, 100 - 240 V, 47 - 63 Hz, 6.3 A, Active, 105 W
Title - Chieftec Smart GPF-400P power supply unit 400 W 20+4 pin ATX TFX Grey
URL - https://www.chieftec.eu/products-detail/189/SMART_SERIES/274/GPF-400P
WarrantyInfo - 2 years
Weight & dimensions - Depth - 175 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Weight - 1.07 kg
Weight & dimensions - Width - 85 mm
