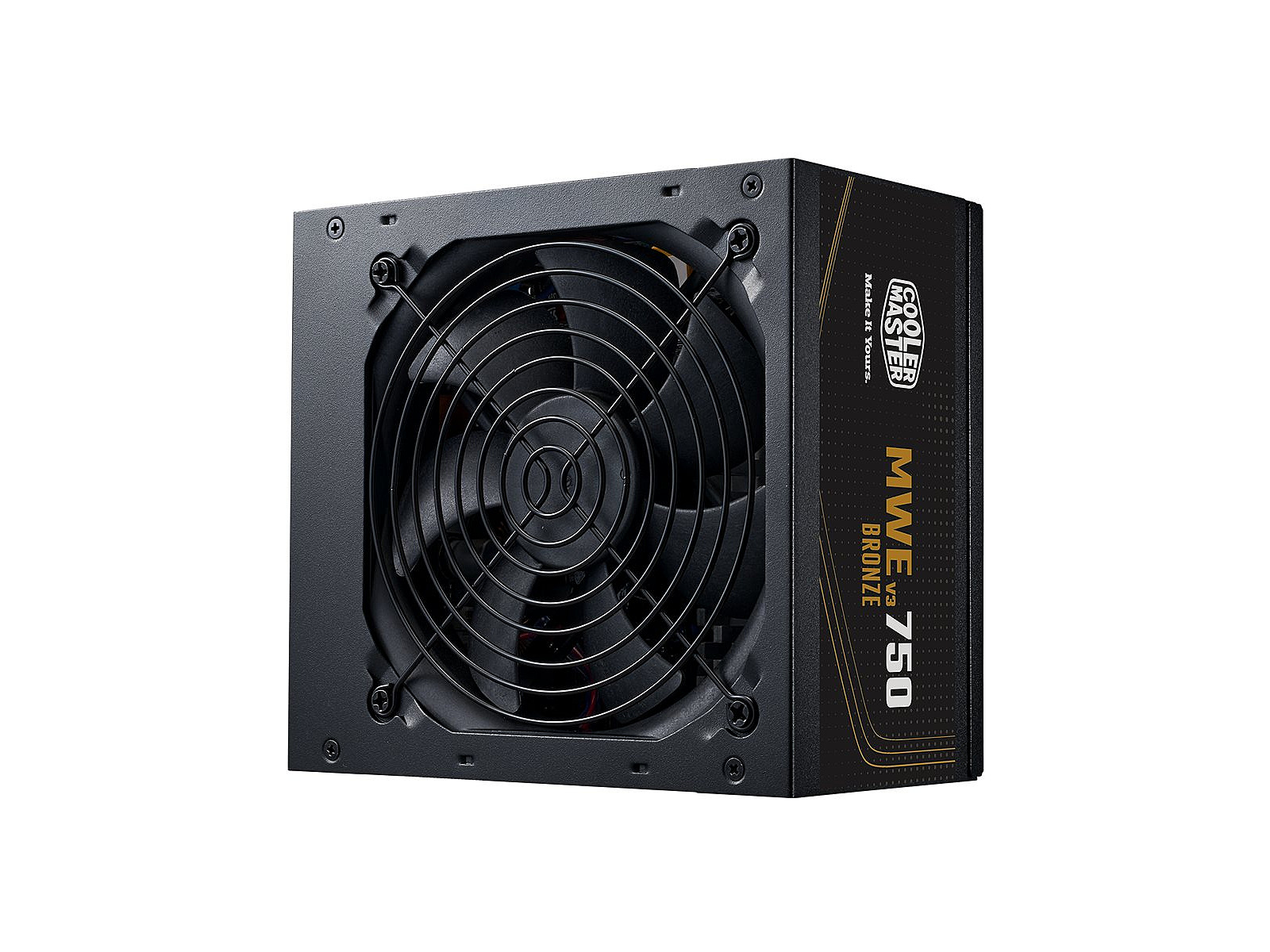

Cooler Master MWE Bronze V3, 750W, ATX 3.1, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1136341 Product code: MPE-7501-ACABW-3BEU
Can be ordered 33 units Availability: 14 days after order approval
Warranty: 2 years
69.36 €
Ready for dispatch
12.01.2026
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
Main product parameters All parameters
  • Producer: Cooler Master
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Cooler Master brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The noise level of this power supply is 35-40 dB and it has a Cybenetics Standard + noise level certification.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Cybenetics Silver
Cybenetics Noise level certification : Cybenetics Standard +
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 62A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Cooler Master MWE Bronze V3, 750W, ATX 3.1, 80PLUS Bronze
8-pin 12V power connectors - 0
Accessories included -
ATX version - 3.1
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Root/Electronics/PC parts/PC power supply units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze
code - MPE-7501-ACABW-3BEU
Code - MPE-7501-ACABW-3BEU
Cooling > Fan diameter - 12 cm
Dane techniczne: Certyfikat sprawności - 80 Plus Bronze
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera CoolerMaster
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 750 W
Dane techniczne: Model - Cooler Master MWE Bronze
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 62 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Producent - CoolerMaster
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 20pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Description - Introducing the MWE Bronze V3 230V, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC to DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5 year warranty, the MWE Bronze V3 will evolve your machine.
description_en - Cooler Master MWE Bronze V3 a reliable 750W power supply with 80 PLUS Bronze efficiency certification. Provides stable power for gaming PCs and workstations, supporting modern GPUs and CPUs. The built-in quiet fan and multiple protections make it a safe and durable choice for any computer build.
Specifications: Type: ATX power supply Power: 750 W Efficiency certification: 80 PLUS Bronze Fan: 120 mm, quiet Protections: OVP, OCP, SCP, OTP, UVP Connectivity: standard ATX, CPU, PCIe, SATA, Molex cables Compatibility: modern PCs and gaming systems
description_lv - Cooler Master MWE Bronze V3 uzticams 750 W barošanas bloks ar 80 PLUS Bronze sertifikātu. Nodrošina stabilu jaudu spēļu datoriem un darba stacijām, atbalstot mūsdienu grafiskās kartes un procesorus. Iebūvētais kluss ventilators un aizsardzības sistēmas padara to drošu un izturīgu risinājumu datoru komplektēšanai.
Specifikācijas: Tips: ATX barošanas bloks Jauda: 750 W Efektivitātes sertifikāts: 80 PLUS Bronze Ventilators: 120 mm, kluss Aizsardzība: OVP, OCP, SCP, OTP, UVP Savienojumi: standarta ATX, CPU, PCIe, SATA, Molex kabeļi Savietojamība: mūsdienu datori un spēļu sistēmas
description_ru - Cooler Master MWE Bronze V3 надёжный блок питания мощностью 750 Вт с сертификатом энергоэффективности 80 PLUS Bronze. Обеспечивает стабильное питание для игровых ПК и рабочих станций, поддерживает современные графические карты и процессоры. Встроенный тихий вентилятор и защита от перегрузок делают его безопасным и долговечным решением для сборки компьютера.
Характеристики: Тип: ATX блок питания Мощность: 750 Вт Сертификат эффективности: 80 PLUS Bronze Вентилятор: 120 мм, тихий Защита: OVP, OCP, SCP, OTP, UVP Подключение: стандартные кабели для ATX, CPU, PCIe, SATA, Molex Совместимость: современные ПК и игровые системы
Designation - CE+WEEE
dimension depth - 110 mm
dimension height - 195 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1760 g
dimension width - 250 mm
EAN - 4719512145340
ean - 4719512145340
Eans - 4719512145340
Fan - 12 cm
Floppy power connectors - 0
Form Factor - ATX
gross_weight - 2.1 kg
guarantee - 60
guarantee_type - normal
Link - https://www.coolermaster.com/en-global/products/mwe-bronze-750-v3-230v/?tab=overview
MB power connector - 24 pin
Model - MWE Bronze V3
Modular power supply - No
MOLEX power connectors - 0
Name - Cooler Master MWE 750W V3 80+ Bronze
Name - Cooler Master MWE Bronze V3 | MPE-7501-ACABW-3BEU | 750 W
name - Cooler Master MWE V3, 80 PLUS Bronze Netzteil, nicht-modular, ATX 3.1 - 750 Watt, schwarz
name - MWE Bronze 750W V3 ATX 3.1 Power Supply
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 3
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions > Operating temperature (T-T) - 0-40 °C
Other features -
Other features > Number of SATA connectors - 6
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 110.00 mm
Package features > Gross width (mm) - 190.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 560 pc(s)
Package features > Paper/Pasteboard - 340.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance > ATX version - ATX 12V Ver. 3.1
PFC - Active
Ports & interfaces > ATX Power connector (24-pin) - 1
Power > Input current - 6 A
Power > Nominal power - 750 W
Power supply - 750 W
Producent: Nazwa producenta / importera - CoolerMasterCooler Master BVLodewijkstraat 1b 5652AC EindhovenHolandiaEmail: https://www.coolermaster.com/en-eu/contact-us/
producer - Cooler Master
Producer - Cooler Master
Producer - CoolerMaster
ProducerCode - MPE-7501-ACABW-3BEU
SATA power connectors - 6
ShortDescription - 750 | ATX | 120mm | 24 pin | 140mm x 150mm x 86mm | 80 Plus Bronze | ATX 3.1 A/EU Cable |
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Cooler Master
Technical details > Producer product family - MWE Bronze V3
Technical details > Producer product name - MPE-7501-ACABW-3BEU
title_en - Cooler Master MWE Bronze V3 Power supply unit 750W
title_lv - Cooler Master MWE Bronze V3 Barošanas bloks 750W
title_ru - Cooler Master MWE Bronze V3 Блок питания 750W
vendpn - MPE-7501-ACABW-3BEU
Warranty - 24
Warranty - 24 month(s)
weight - 1.8 kg
