Lian Li SP850, 850W, 80PLUS Gold, White, Sleeved Cables

Name: Lian Li SP850, 850W, 80PLUS Gold, White, Sleeved Cables
Brand: Lian Li
SKU: 1117538
Price: 173.54 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1117538 Product code: SP850W

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Producer: Lian Li
Power output: 850W
80 PLUS certification: 80 PLUS Gold
Fan size: 92 mm
Modular cables: Fully-Modular
Processor plug-in: 2 x 8-pin(4+4) EPS
PCI-E: 3 x 6+2pin

Similar Products

Basic information
	This product Lian Li SP850, 850W, 80PLUS Gold, White, Sleeved Cables	Seasonic Core GX (2024), 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1	Seasonic Focus GX (2024), 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1	Corsair RM750e (2025), 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1	XPG PROBE, 700W, 80PLUS Bronze
Show similar specs. Hide similar specs.	173.54 €	140.73 €	187.63 €	129.63 €	67.51 €
Cybenetics Efficiency certification	Cybenetics Platinum	Cybenetics Platinum	Nav	Cybenetics Platinum	Nav
Cybenetics Noise level certification	Cybenetics Standard +	Cybenetics A -	Nav	Cybenetics A	Nav
Power supply type	SFX	ATX	ATX	ATX	ATX
Power output	850W	850W	1000W	750W	700W
80 PLUS certification	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold	80 PLUS Gold	80 PLUS Bronze
Total amperage (+12V)	70A	70A	83A	54.2A	54A
Fan size	92 mm	120 mm	120 mm	120 mm	120 mm
Functionality
Cable colour	White	Melna	Melna	Melna	Melna
Lighting	Nav	Nav	Nav	Nav	Nav
Color	White	Melna	Melna	Melna	Melna
Modular cables	Fully-Modular	Fully-Modular	Fully-Modular	Fully-Modular	Nav
Ports and equipment
PCI-E 5.0/5.1	1 x 12VHPWR (5.0)	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)	Nav
Processor plug-in	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS
Motherboard power	20+4pin	20+4pin	20+4pin	20+4pin	20+4pin
PCI-E	3 x 6+2pin	3 x 6+2pin	3 x 6+2pin	3 x 6+2pin	2 X 6+2pin
SATA cconnectors	Eight Core	6	10	6	5
4pin Molex	4	3	1	2	2

Description

Available for purchase is a power supply produced by Lian Li with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

1 x 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).

The color of the power supply is Balta. It is equipped with flat cables, whose color is Balta.

This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.

The power supply has a Cybenetics Standard + noise level certification, which means that its noise level is 35-40 dB.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

This power supply type is SFX. While it is not as powerful or large as AFX type blocks, it is ideal for small form factor (SFF) computers with limited space and compatible with motherboards like Mini-ITX, and it has smaller fans.

Basic information

Cybenetics Efficiency certification : Cybenetics Platinum

Cybenetics Noise level certification : Cybenetics Standard +

Power supply type : SFX

Power output 850W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : 80 PLUS Gold

Total amperage (+12V) : 70A

Fan size : 92 mm

Functionality

Cable colour : White

Lighting : Nav

Color : White

Modular cables : Fully-Modular

Ports and equipment

PCI-E 5.0/5.1 : 1 x 12VHPWR (5.0)

Processor plug-in : 2 x 8-pin(4+4) EPS

Motherboard power : 20+4pin

PCI-E : 3 x 6+2pin

SATA cconnectors : Eight Core

4pin Molex : 4

More detailed specification

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB
Cables included Packaging content - CPU,PCIe,Peripheral (Molex),SATA

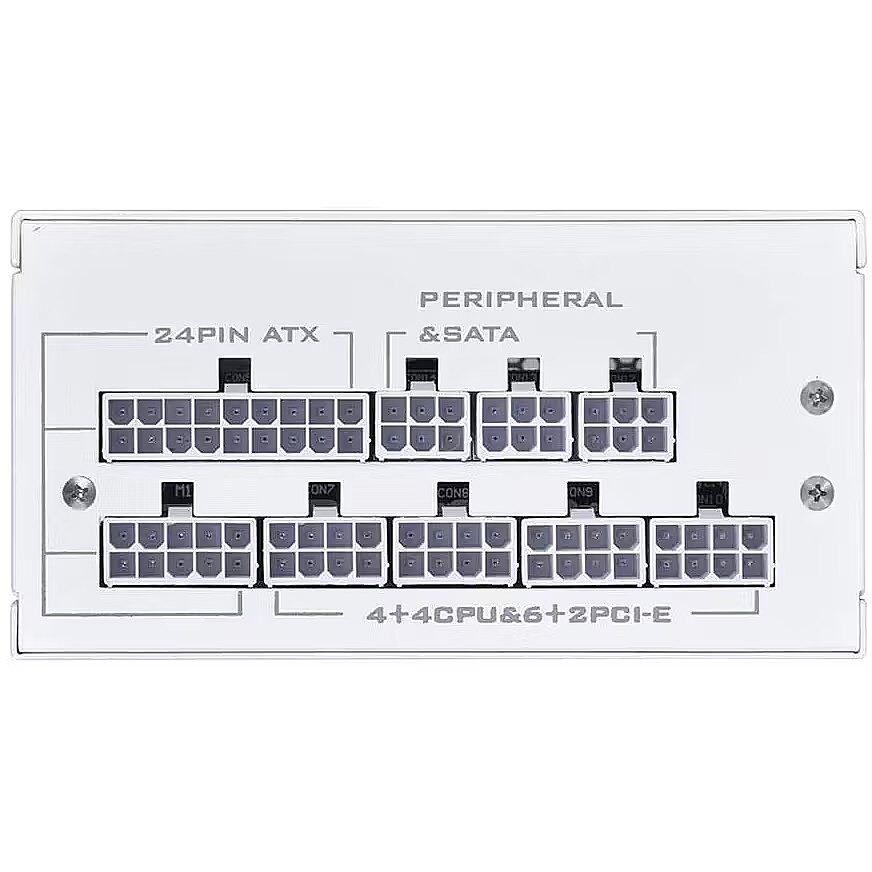

Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|Modular Power Supplies
Category Code - PSU
code - SP850W
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+12V) Power - 840 W
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power cable length Ports & interfaces - 450 mm
Depth Weight & dimensions - 100 mm
Description - SP850
Performance SFX Form Factor Power Supply

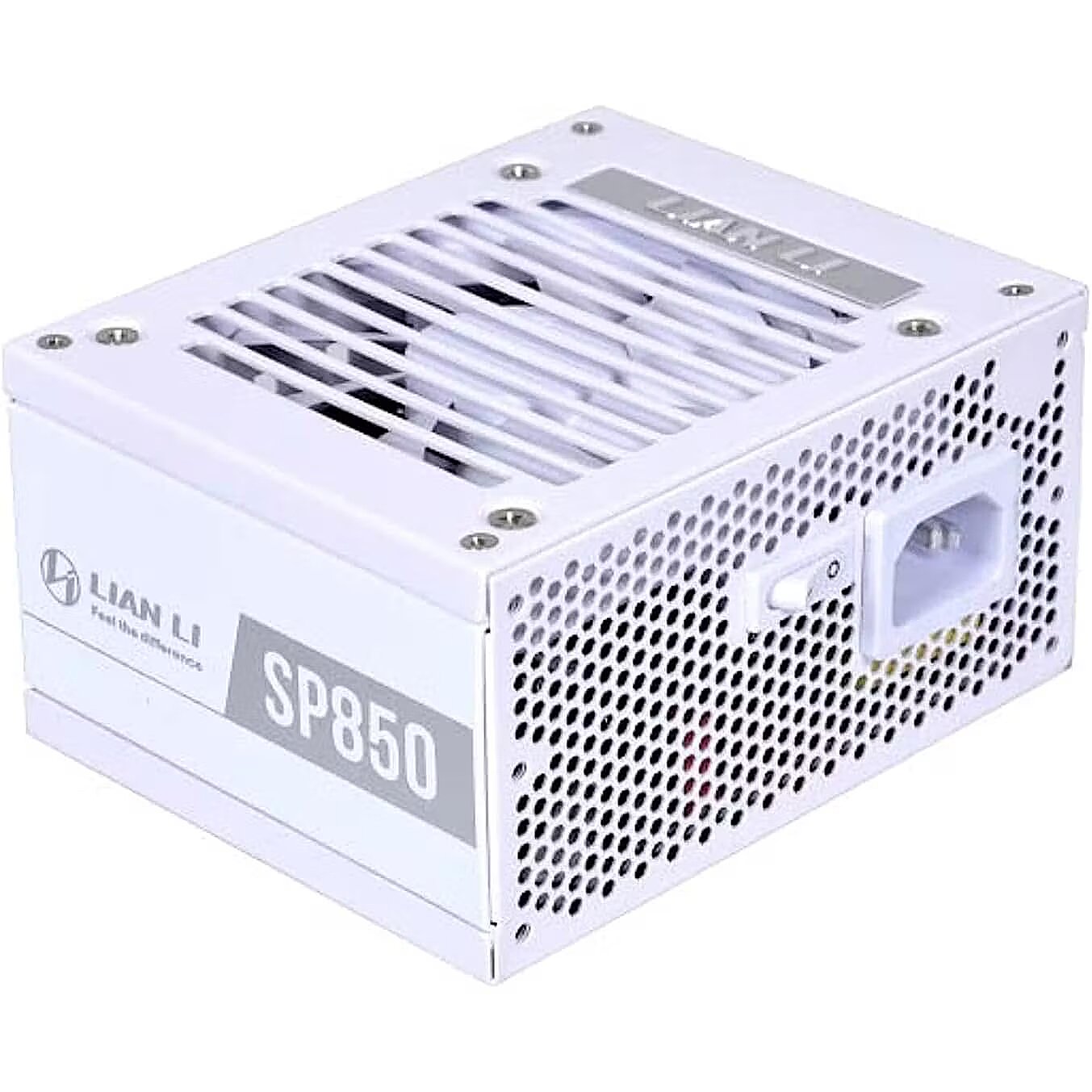

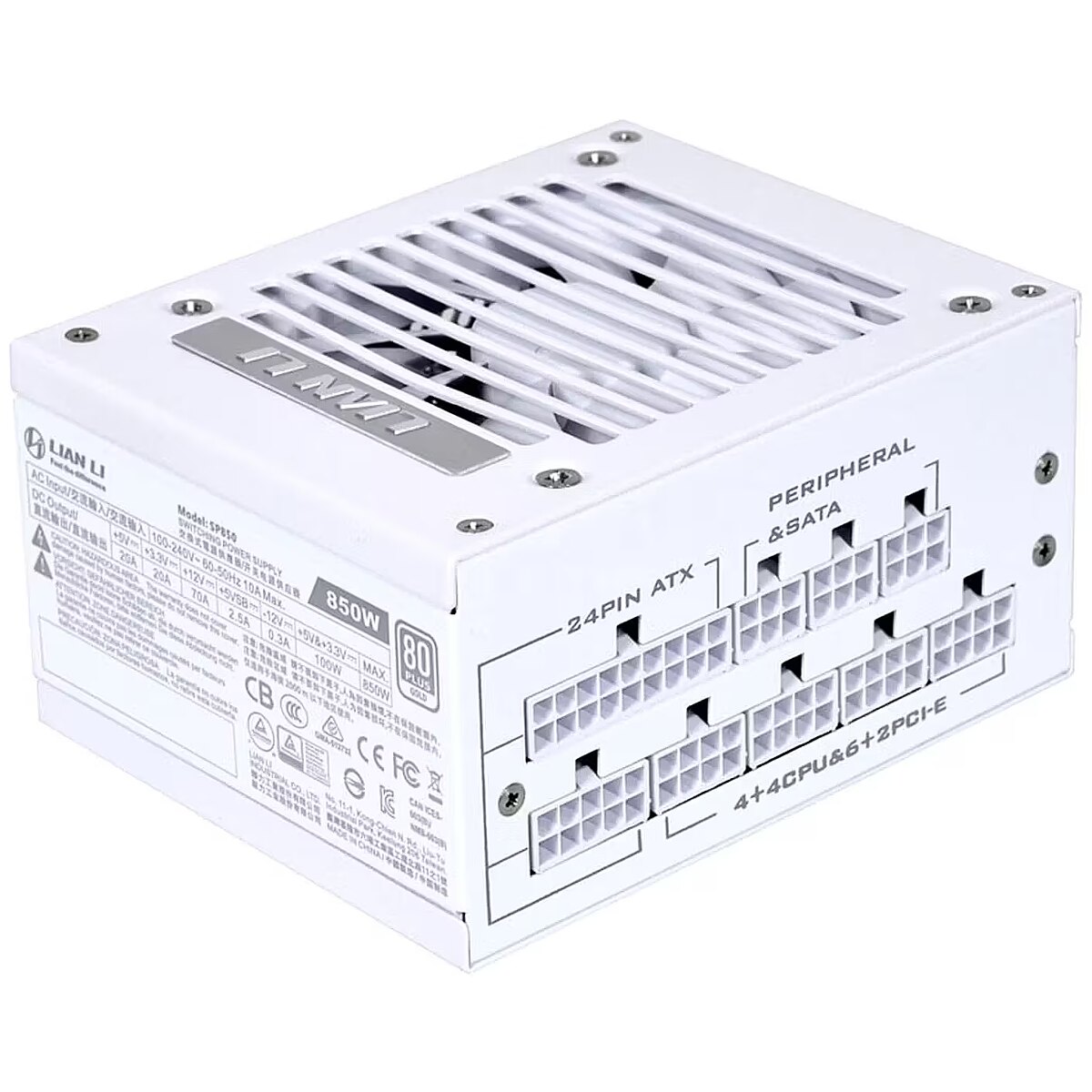

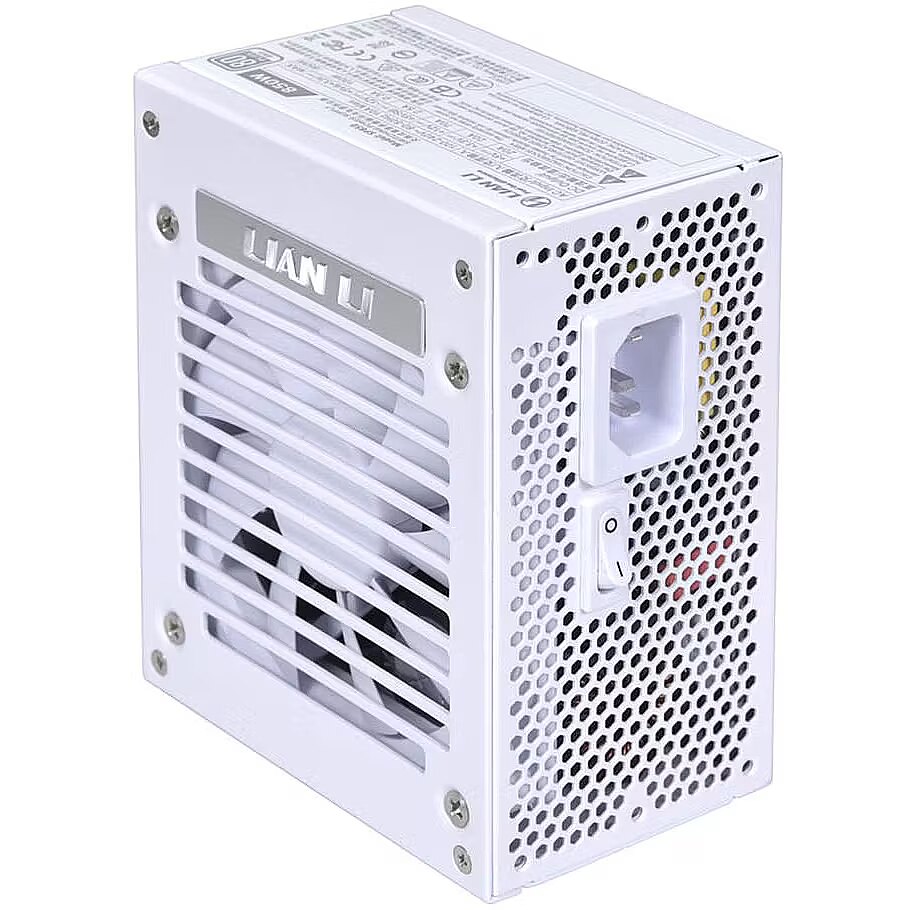

The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components. AVAILABLE IN TWO COLORS
The fully modular small PSU is offered in a sleek black aluminum housing, or in a completely white design. 80 PLUS GOLD CERTIFICATE
SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage. COOLING IN SILENCE

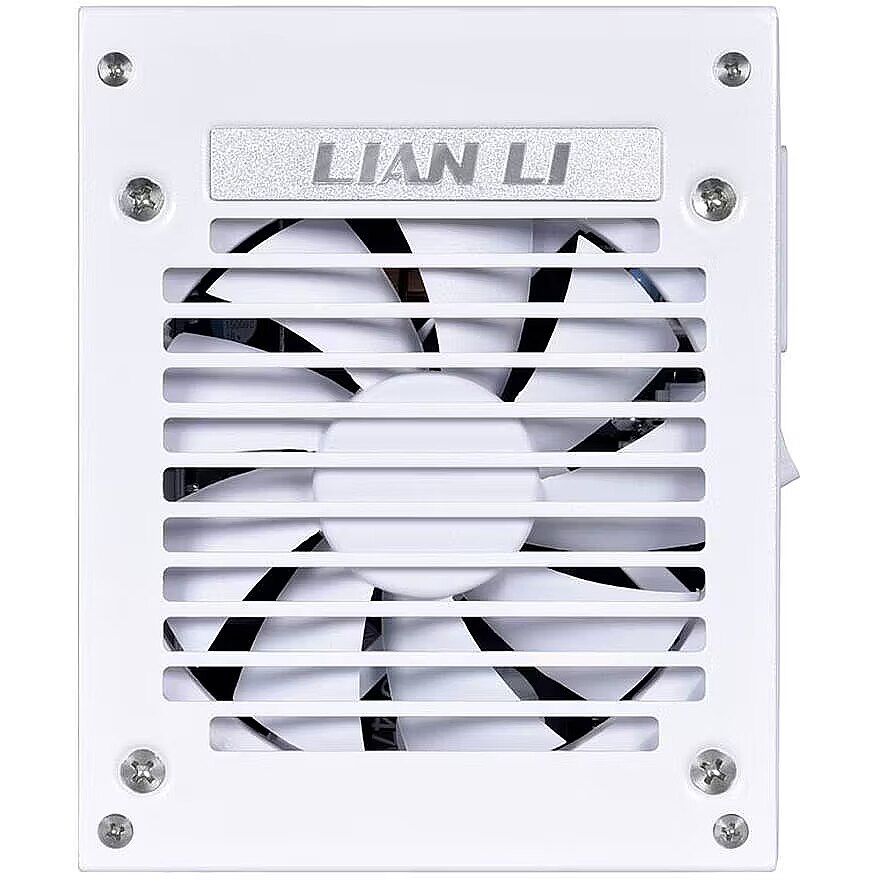

To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C. JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability. TRANSFERS 350W- 400W
A PCIe 5.0 12-pin (12VHPWR connector cable without sideband contact) is included, which is 16 AWG thick to transfer 350W- 400W and doesn’t need the use of an adaptor for the GPUs. FULLY MODULAR BRAIDED CABLES

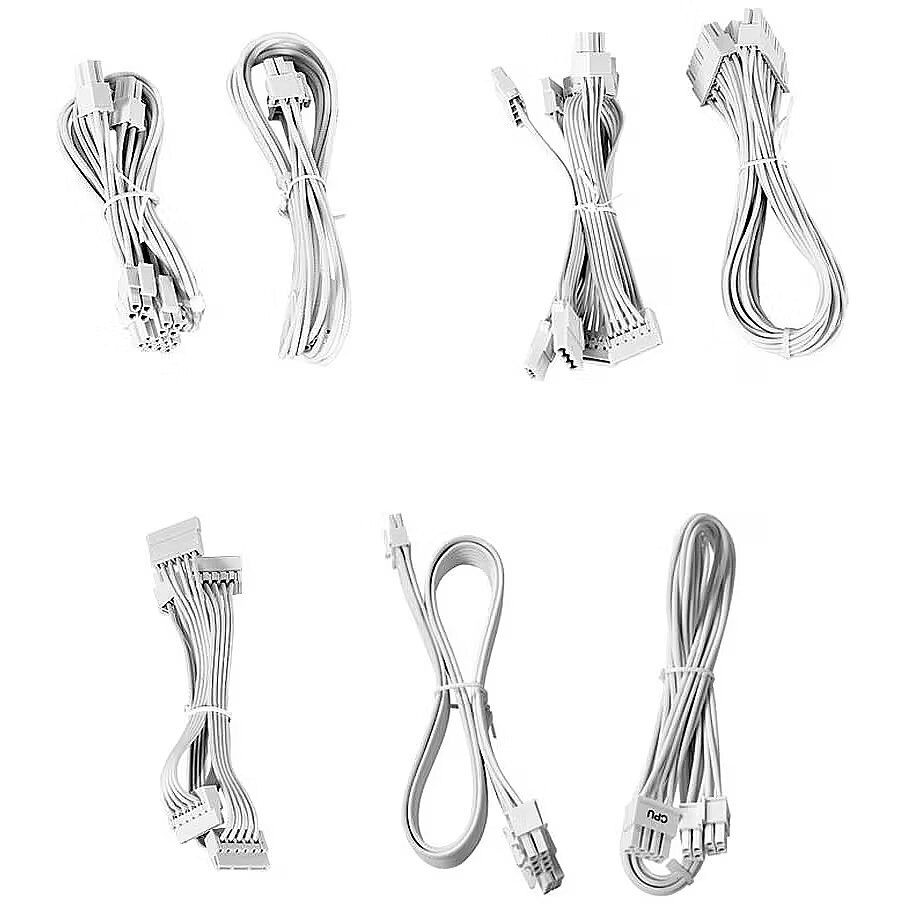

All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.
ean - 4718466012241
Efficiency Power - 93.53 %
Fan speed Design - 1000 - 2800 RPM
Height Weight & dimensions - 125 mm
Model name - SP850 WHITE
Motherboard power cable length Ports & interfaces - 300 mm
Motherboard power connector Ports & interfaces - 20-pin ATX
name - Lian Li SP850, 80 PLUS Gold SFX Power Supply, white - 850 Watt
Noise level Performance - 40.6 dB
Number of SATA power connectors Ports & interfaces - 2
PCI Express power cable length Ports & interfaces - 400 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
PCI Express power connectors (8-pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 120 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
Power Factor Correction (PFC) type Power - Active
Power supply unit (PSU) form factor Performance - SFX
Product colour Design - Black
Purpose Performance - PC
Safety Safety regulation & standards - OCP OVP OTP OPP SCP UVP
SATA power cable length Ports & interfaces - 120 mm
Silent mode Performance - Yes
Summary - Lian Li SP850WHITE. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 120 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan speed: 1000 - 2800 RPM. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Supported motherboard form factors Performance - ATX
Total power Power - 850 W
Unit Box Height - 0.185
Unit Box Length - 0.245
Unit Box Width - 0.105
Unit Calculated Volume - 0.006233 cubm
Unit Calculated Weight - 1.87 kg
Units per Shipping Box - 10
Vendor Homepage - https://lian-li.com/product/sp850/
Warranty - 24 months
Warranty period Logistics data - 5 year(s)
Width Weight & dimensions - 63.5 mm
