ID: 1062197
Product code: APB-400B8-BK
In stock 50 units
Warranty: 2 years

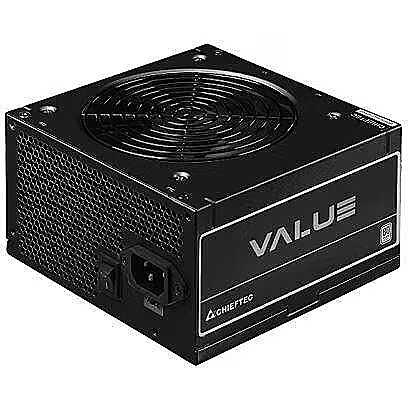

Chieftec Value Series Black, 400W, 80PLUS, Bulk
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Unisend parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Producer: Chieftec
- Power output: 400W
- 80 PLUS certification: 80 PLUS (White)
- Fan size: 120 mm
- Modular cables: None
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
This Chieftec brand power supply unit has an 80 PLUS (White) energy efficiency certificate and a power output of 400W.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
80 PLUS (White) energy efficiency certificate, which this power supply unit has received, guarantees at least 80% efficiency. In other words, for every 100 W of energy the power supply unit gets from the electrical grid, at least 80 W goes to your computer components, while the remaining 20 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Raiba.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: There isn't
Cybenetics Noise level certification
: There isn't
Power supply type
: ATX
Power output
400W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS (White)
Total amperage (+12V)
: 30A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: None
Color
: Black
Modular cables
: None
Ports and equipment
PCI-E 5.0/5.1
: There is no
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4-pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 3
4pin Molex
: 2
More detailed specification
80 PLUS certification Performance - 80 PLUS White
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 200 - 240 V
ATX version Performance - 2.3
Category Code - PSU
Combined power (+5Vsb) Power - 12.5 W
Depth Weight & dimensions - 150 mm
Description - The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
Fan diameter Design - 120 mm
Height Weight & dimensions - 87 mm
Input current Power - 200-240V / 3.0A A
Max output current (+3.3V) Power - 17 A
Max output current (+5V) Power - 16 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V1) Power - 30 A
Max output current (-12V) Power - 0.3 A
Model name - APB-400B8
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Power Factor Correction (PFC) type Power - Active
Product colour Design - Black
Supported motherboard form factors Performance - ATX
Total power Power - 400 W
Unit Box Height - 0.16
Unit Box Length - 0.22
Unit Box Width - 0.1
Unit Calculated Volume - 0.00352 cubm
Unit Calculated Weight - 1.17 kg
Units per Shipping Box - 1
Vendor Homepage - www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8
Warranty - 24 months
Weight Weight & dimensions - 1170 g
Width Weight & dimensions - 140 mm
