ID: 1003857
Product code: XN220
In stock 11 units
Warranty: 2 years

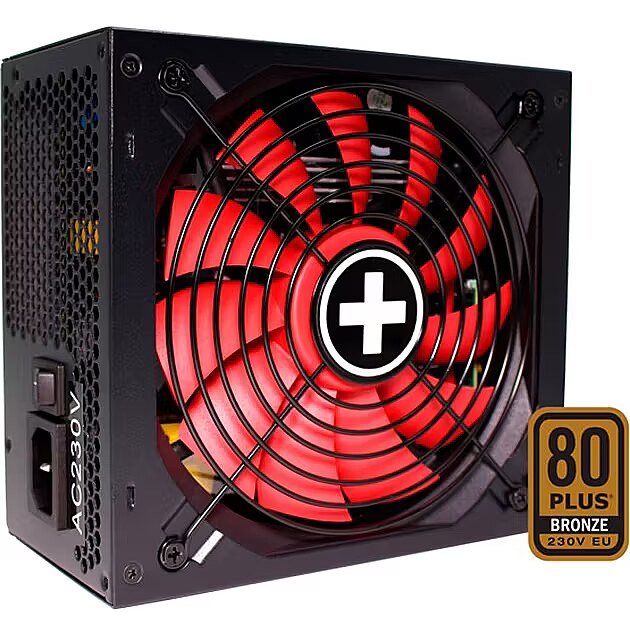

Xilence Gaming Bronze, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- Producer: Xilence
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 140 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This Xilence brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 650W.
650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.

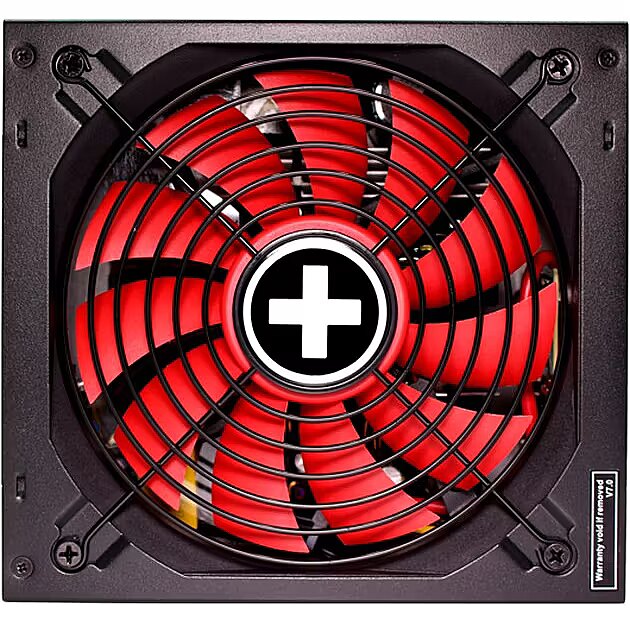

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
This power supply has semi-modular cables. Some cables are permanently attached, while others can be added or removed as needed. The power supply is suitable for users who want some flexibility but do not want a fully modular system.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 48A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Bronze

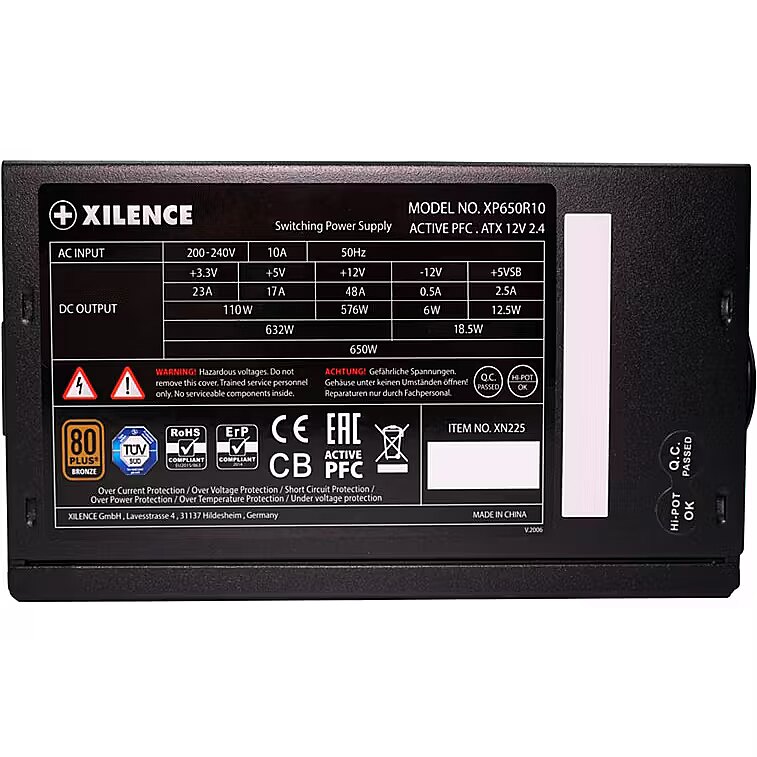

AC input frequency Power - 50 Hz
AC input voltage Power - 200 - 240 V
ATX version Performance - 2.4
Cabling type Ports & interfaces - Non-Modular
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - ErP2014
CnCode - 85044095
Combined power (+5Vsb) Power - 12.5 W
Combined power (+12V) Power - 576 W
Combined power (-12V) Power - 6 W
Compliance certificates Certificates - CB/CE/cTUVus/REACH/RoHS/WEEE
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Y
Description - The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.
EAN_code - 4044953503436
Efficiency Power - 85 %
Fan diameter Design - 140 mm
Floppy disk drive connector Ports & interfaces - Y
Floppy drive power connector Ports & interfaces - 1
Input current Power - 10 A
Manufacturer - Xilence
Manufacturer_code - XN220
Max output current (+3.3V) Power - 23 A
Max output current (+5V) Power - 17 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V1) Power - 48 A
Max output current (-12V) Power - 0.5 A
Model name - XN220 | XP650R10
Motherboard power cable length Ports & interfaces - 500 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Xilence Gaming Bronze 650W, PC power supply (black, 2x PCIe, 650 Watt)
Noise level Performance - 29 dB
Number of fans Design - 1 fan(s)
Number of PATA power connectors Ports & interfaces - 3
Number of SATA power connectors Ports & interfaces - 6
Package depth Packaging data - 440 mm
Package height Packaging data - 265 mm
Package weight Packaging data - 1980 g
Package width Packaging data - 580 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over current/Over voltage/Overheating/Overload/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black/Red
Purpose Performance - PC
Summary - Xilence XN225. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: CB, CE, REACH, RoHS, cTUVus, WEEE, Certification: ErP2014
Sustainability certificates Technical details - ErP
Sustainability compliance Technical details - Y
Total power Power - 650 W
Unit Box Height - 0.185
Unit Box Length - 0.26
Unit Box Width - 0.1
Unit Calculated Volume - 0.00481 cubm
Unit Calculated Weight - 1.81 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.xilence.net/en/power-supplies/232
Warranty - 24 months
Weight - 1,90
