Brand - Viewsonic
BrandPartCode - PS502W
Category - Data Projectors
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - LED indicators - Yes
Design - Market positioning - Business
Design - Market positioning - Education
Design - Product colour - White
Design - Product type - Standard throw projector
dimensionalWeight - 4529
Display - Built-in display - No
Features - Air filter - Yes
Features - HDCP - Yes
Features - HDCP version - 1.4
Features - Interactive - No
Features - Noise level - 32 dB
Features - Noise level - 34 dB
Features - Noise level (economic mode) - 25 dB
Features - Number of OSD languages - 22
Features - On Screen Display (OSD) - No
Features - On Screen Display (OSD) - Yes
Features - On Screen Display (OSD) languages - Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese
GTIN - 0766907020038
GTIN - 766907020038
Lens system - Digital zoom - 2x
Lens system - Fixed aperture - 2.8
Lens system - Fixed focal length - 7.51 mm
Lens system - Focus - Manual
Lens system - Offset - 112.4%
Lens system - Throw ratio - 0.52
Lens system - Zoom capability - Yes
Light source - Lamp power - 240 W
Light source - Lamps quantity - 1 lamp(s)
Light source - Lamp type - UHP
Light source - Light source type - Lamp
Light source - Service life of light source - 4000 h
Light source - Service life of light source (economic mode) - 12000 h
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers. High Brightness for Business & Education EnvironmentsThanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.Big Screen for Small SpacesThe PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.Ultra-Large Screen with Lower Cost-per-inchThe projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays. Easy and Flexible ConnectionThe dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source. Vibrant Colors for Captivating PresentationsImpress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.A Simpler Way to Update Projector SoftwareSkip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.*The latest projector software update can be found in the download section at the bottom of the page when available.USB Type A Power SupplyA built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content. Audio Right Out of the BoxThe projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
LongProductName - WXGA, 4000 ANSI, 15000:1, 1.07 B, 240W UHP, 16W, HDMI, Audio-in/out, VGA, RS232, USB, 100-240 V, 2.87 kg
LongSummaryDescription - Viewsonic PS502W. Projector brightness: 4000 ANSI lumens, Projector native resolution: WXGA (1280x800), Contrast ratio (typical): 15000:1. Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Fixed focal length: 7.51 mm, Digital zoom: 2x. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A
Multimedia - Built-in speaker(s) - Yes
Multimedia - RMS rated power - 16 W
Network - Ethernet LAN - No
Network - Smart TV - No
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Cables included - AC
Packaging content - Cables included - AC, VGA
Packaging content - Quick start guide - Yes
Packaging content - Remote control included - Yes
Packaging content - Remote control type - IR
Packaging content - Warranty card - Yes

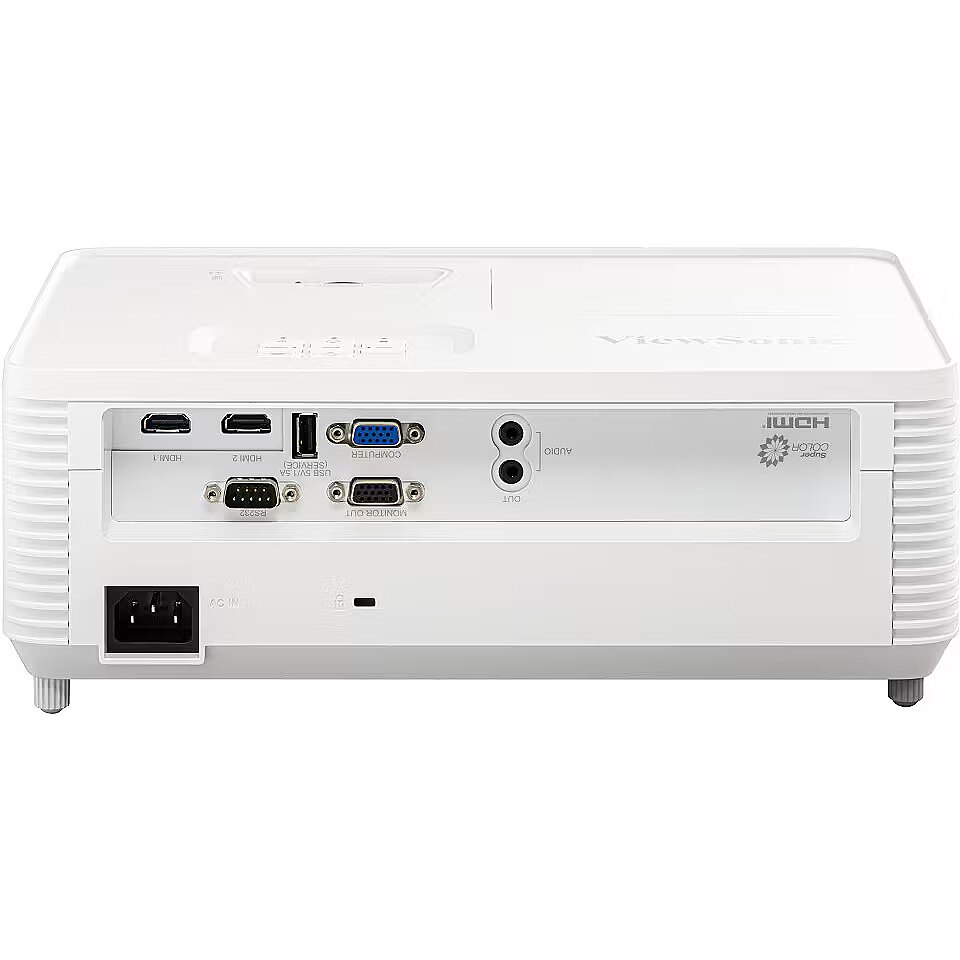

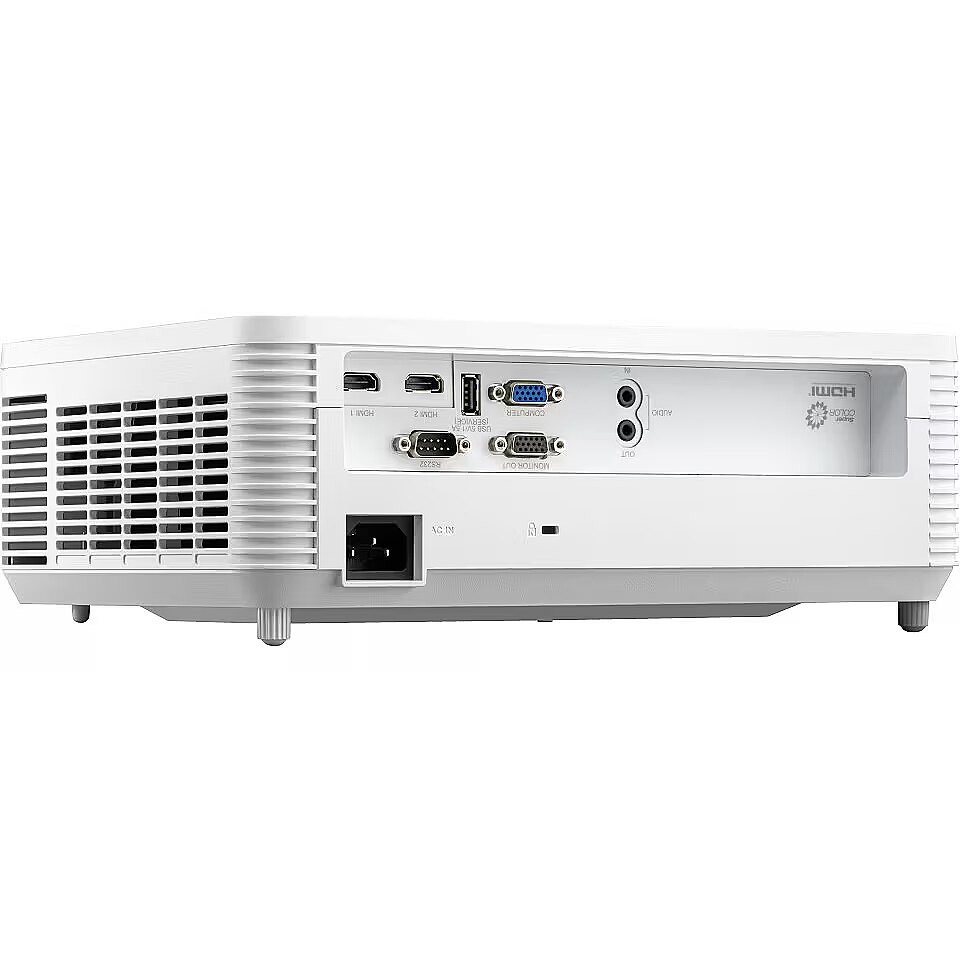

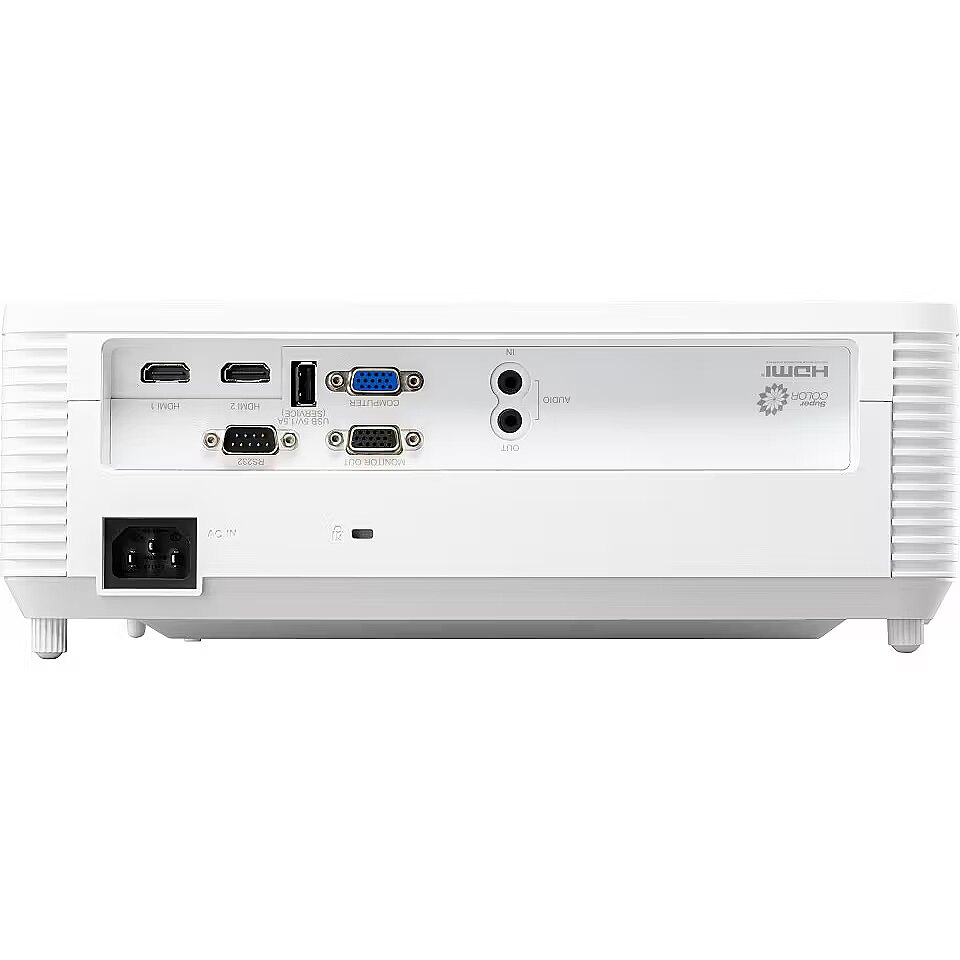

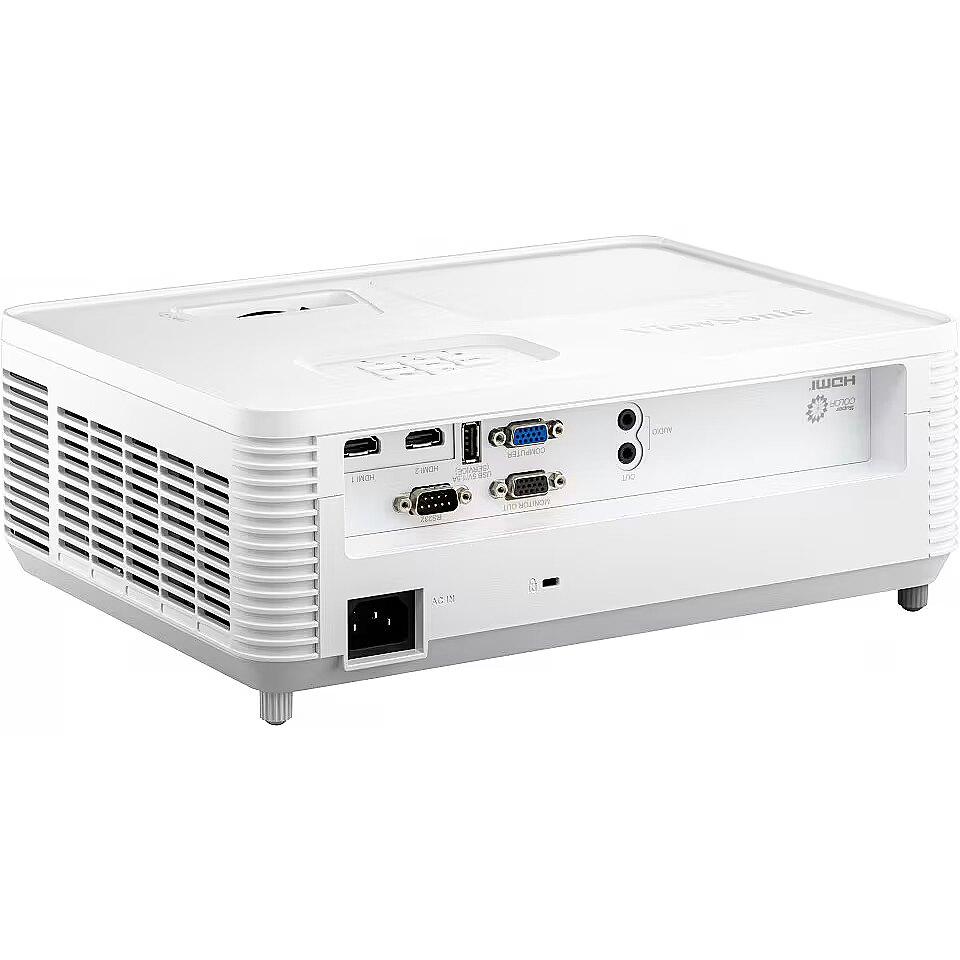

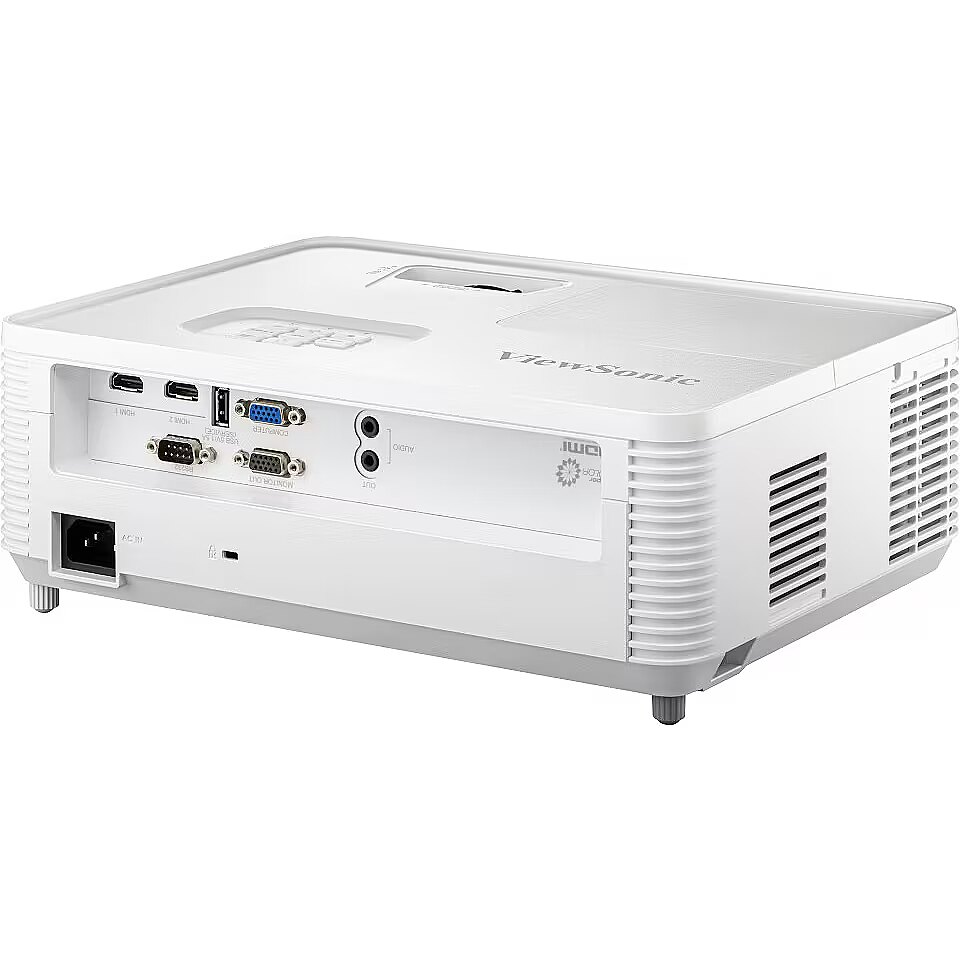

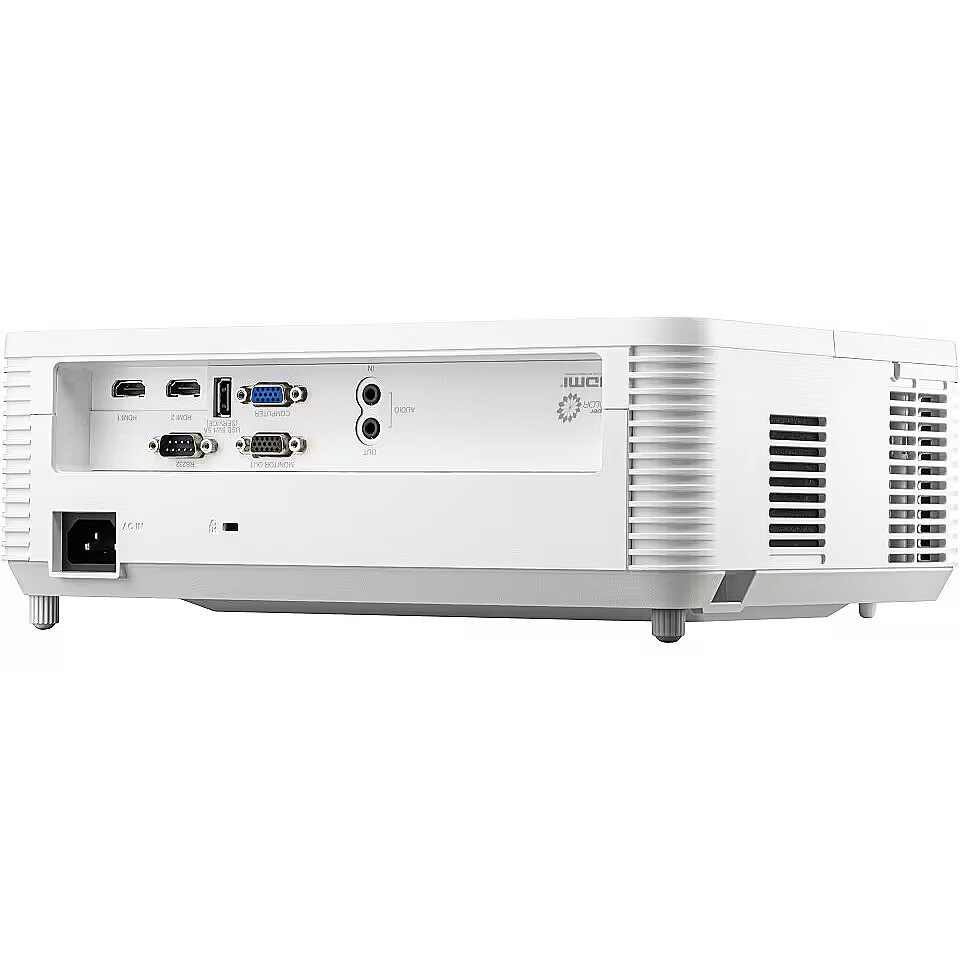

Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - Audio (L/R) out - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - PC in (D-Sub) - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Service port type - USB Type-A
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 295 W
Power - Power source - AC
producerCode - 1PD144
ProductName - PS502W
productName - Viewsonic PS502X-EDU 4000 ANSI lumens DLP 1280 x 800 (WXGA) White
productSize - Normal
Projector - Contrast ratio (typical) - 15000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Keystone correction, vertical - -19 - 19°
Projector - Number of colours - 1.07 billion colours
Projector - Projection distance - 0.67 - 3.36 m
Projector - Projection technology - DLP
Projector - Projector brightness - 4000 ANSI lumens
Projector - Projector native resolution - WXGA (1200x800)
Projector - Projector native resolution - WXGA (1280x800)
Projector - Screen size compatibility - 762 - 7620 mm (30 - 300")
Projector - Screen size compatibility - 1524 - 7620 mm (60 - 300")
Projector - Smart projector - No
Projector - Vertical scan range - 23 - 120 Hz
ShortSummaryDescription - Viewsonic PS502W, 4000 ANSI lumens, WXGA (1280x800), 15000:1, 1524 - 7620 mm (60 - 300"), 0.67 - 3.36 m, 1.07 billion colours
sizeX - 337
sizeY - 168
sizeZ - 400
Storage - Card reader integrated - No
Supplier features - Recommended gender - Any gender
Technical details - Image lag time - 33.2 ms

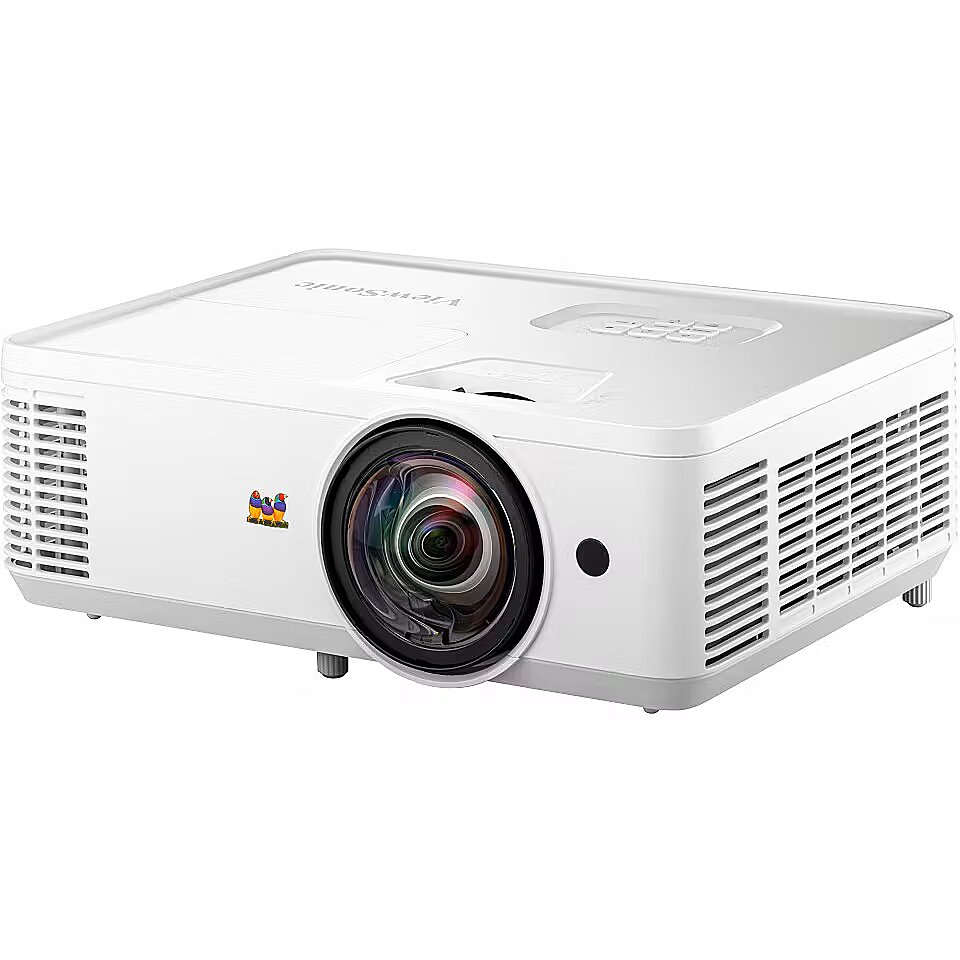

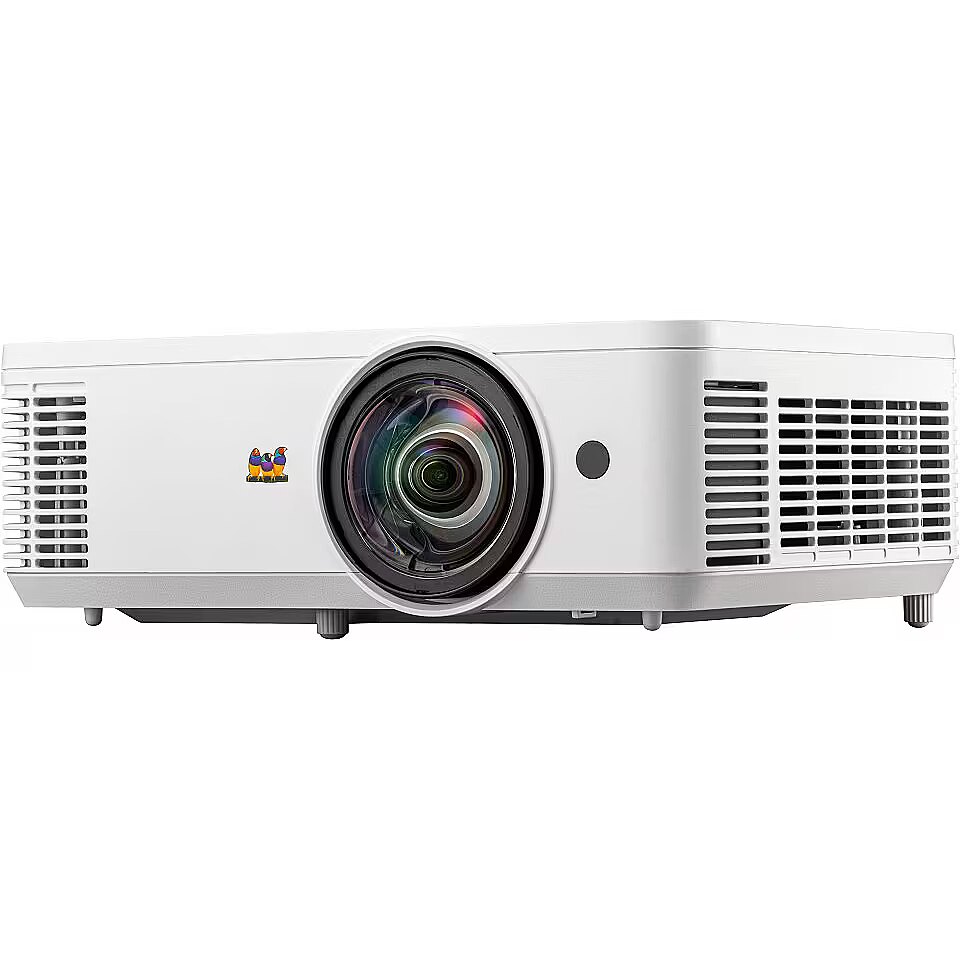

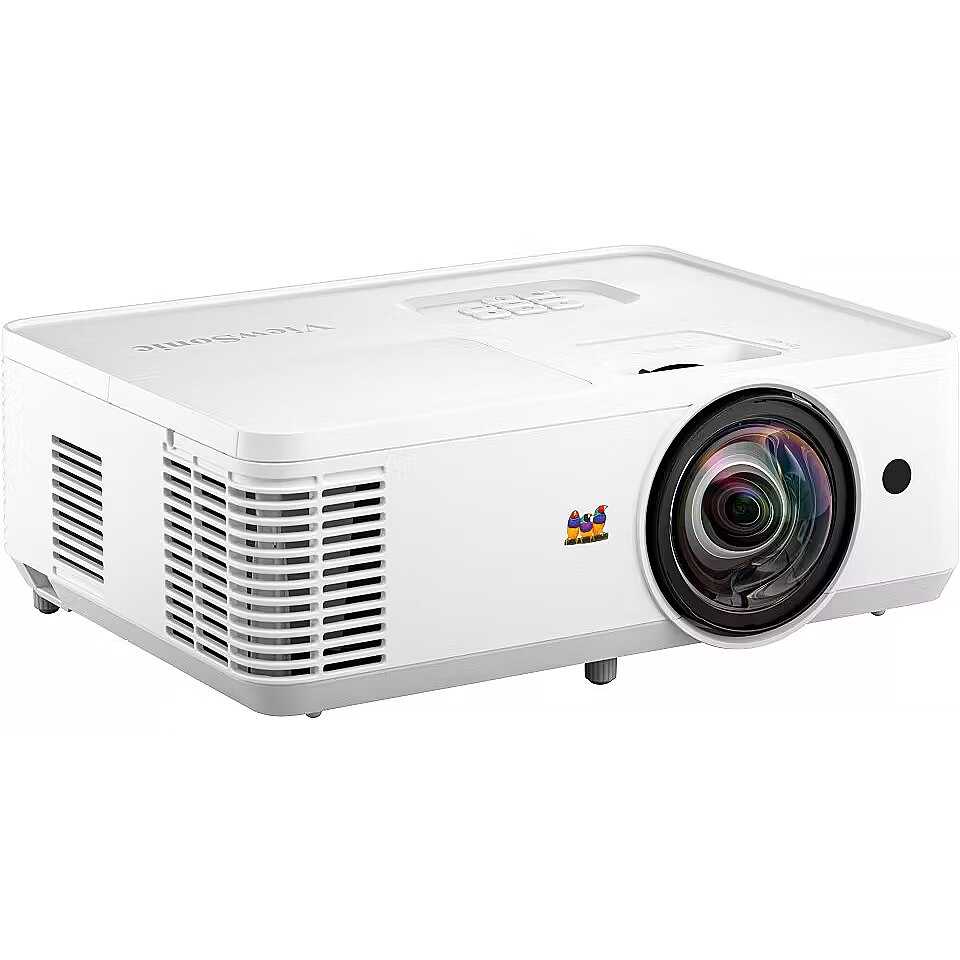

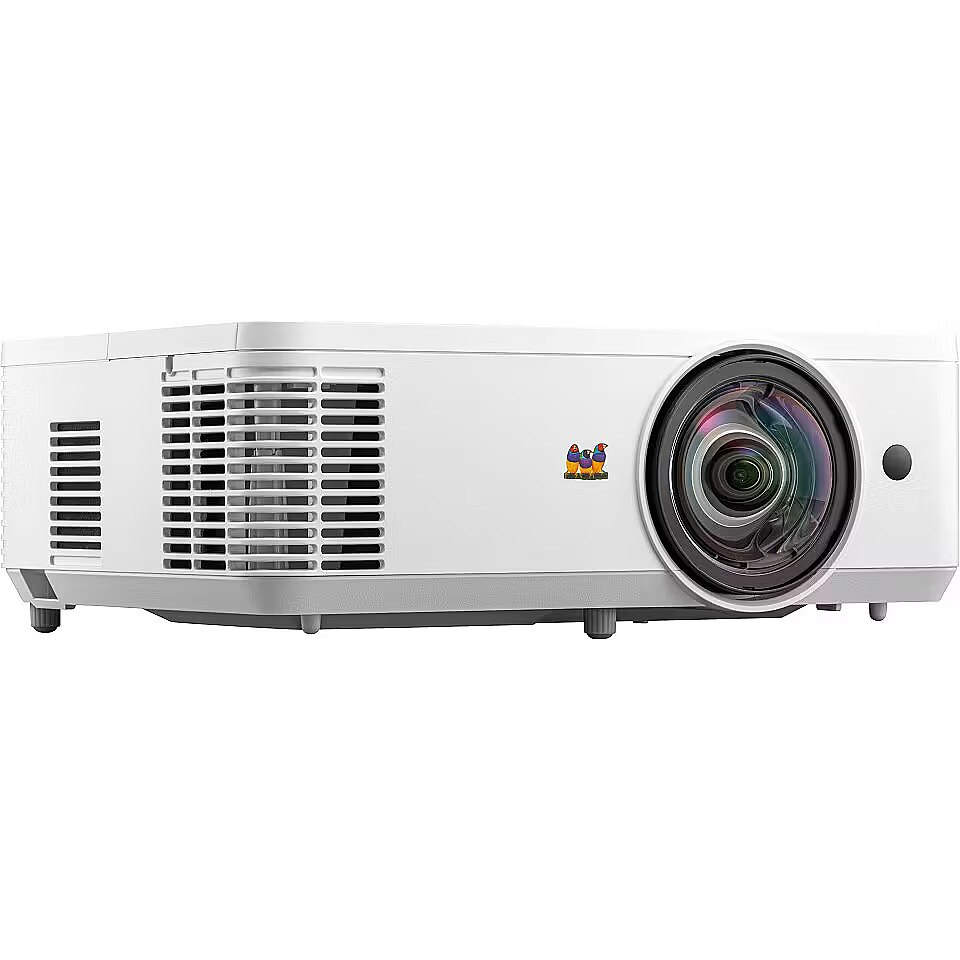

Title - Viewsonic PS502W data projector Standard throw projector 4000 ANSI lumens WXGA (1280x800) White
URL - https://www.viewsonic.com/global/products/projectors/PS502W
Video - 3D - No
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Full HD - No
Video - Full HD - Yes
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 1280 x 800 (WXGA)
Video - Supported video modes - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
WarrantyInfo -
warrantyLength - 36
warrantyType - F
weight - 4080
Weight & dimensions - Depth - 234 mm
Weight & dimensions - Height - 115 mm
Weight & dimensions - Package depth - 337 mm
Weight & dimensions - Package height - 168 mm
Weight & dimensions - Package weight - 4.08 kg
Weight & dimensions - Package width - 400 mm
Weight & dimensions - Weight - 2.87 kg
Weight & dimensions - Width - 309 mm
