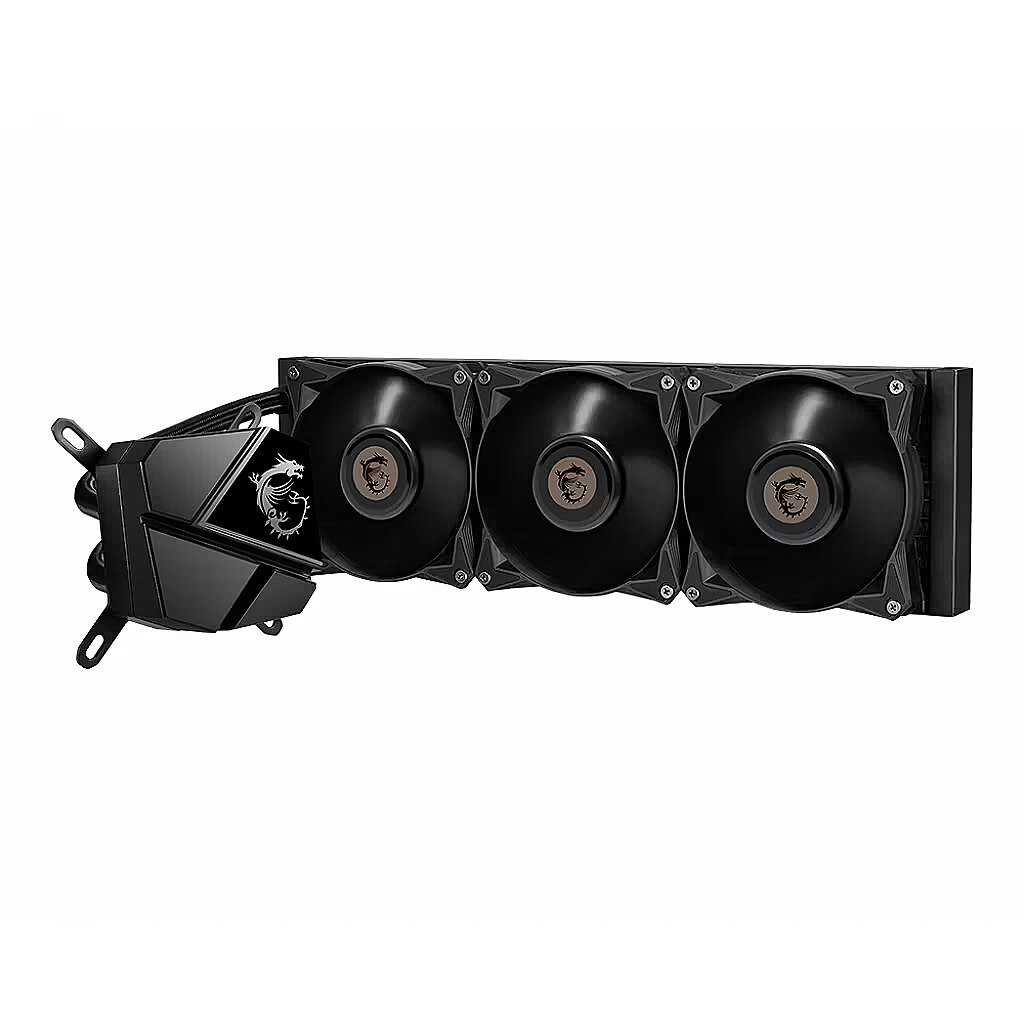

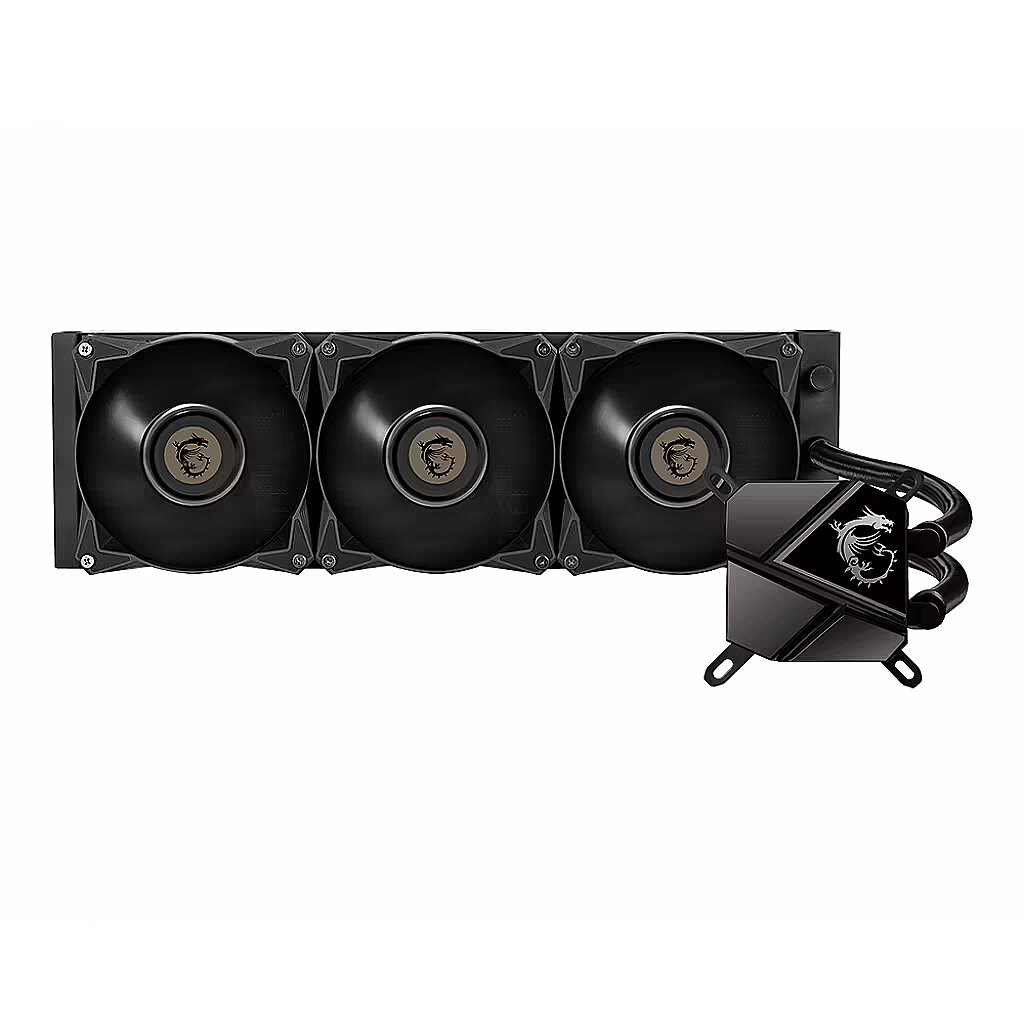

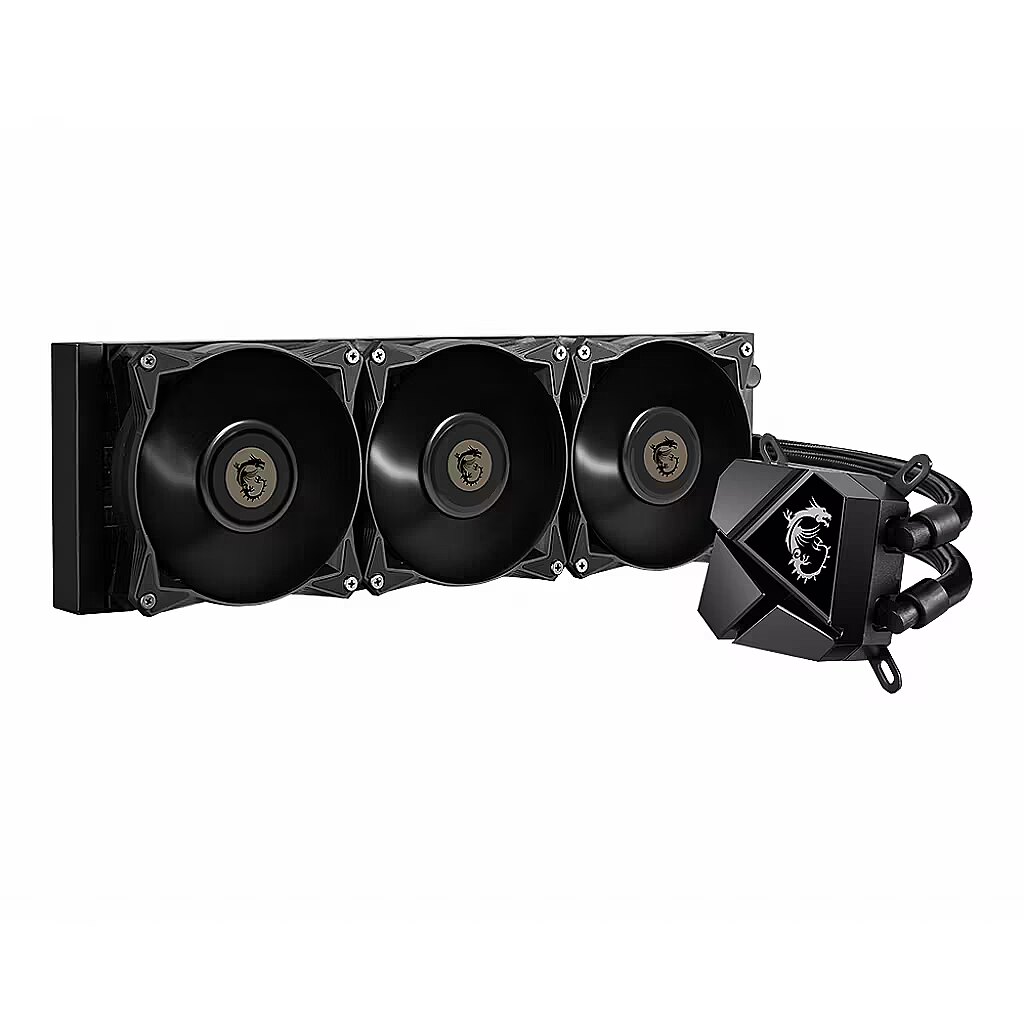

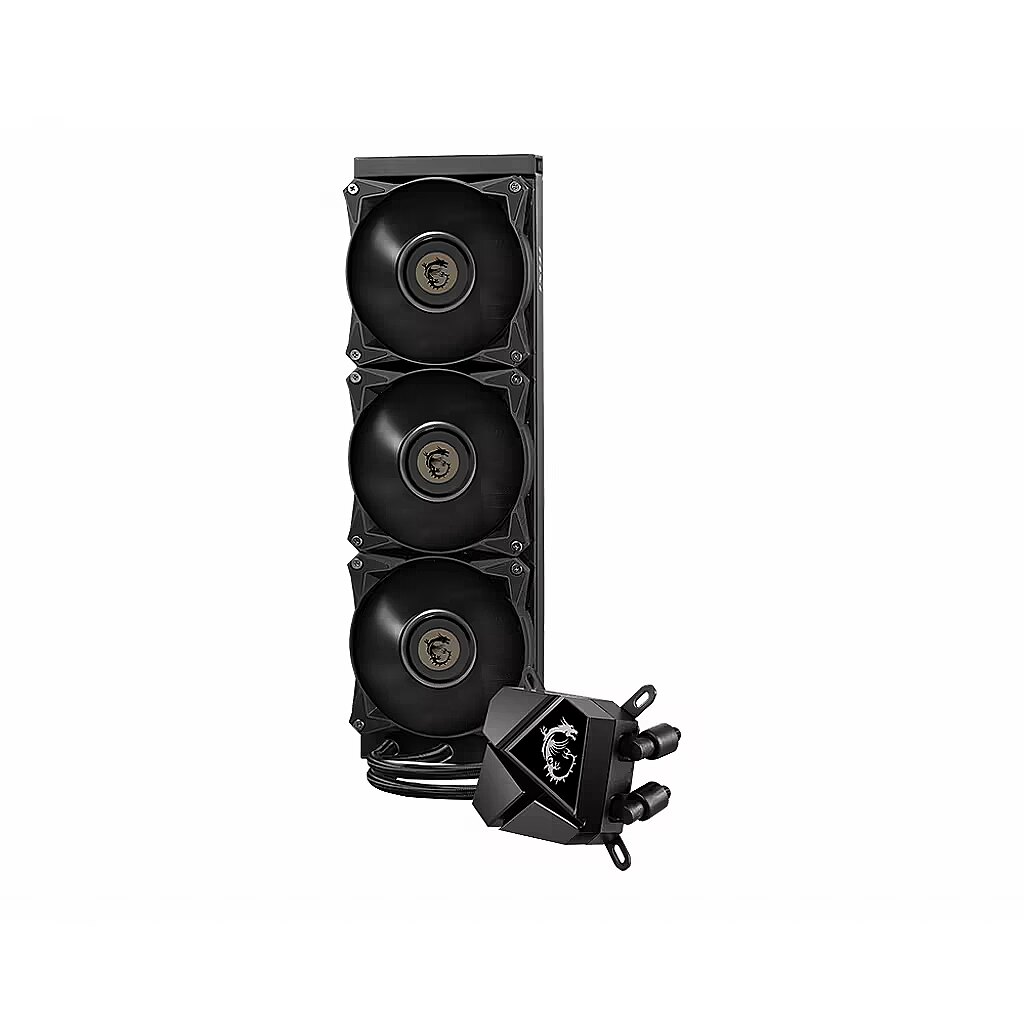

MSI MAG CoreLiquid P360

Accessories included - PWM 1 to 3 splitter cable x1 Double-sided 4-pin power cable with Molex plugs (2 active lines) x1 Electromagnetic interference suppressor cable x1
Air flow rates - 78.73 cfm
Brand - MSI
BrandPartCode - MAG CORELIQUID P360
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Processor fans
category - Watercooling All in One Sets - internal
code - 306-7ZW2P31-813
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1366

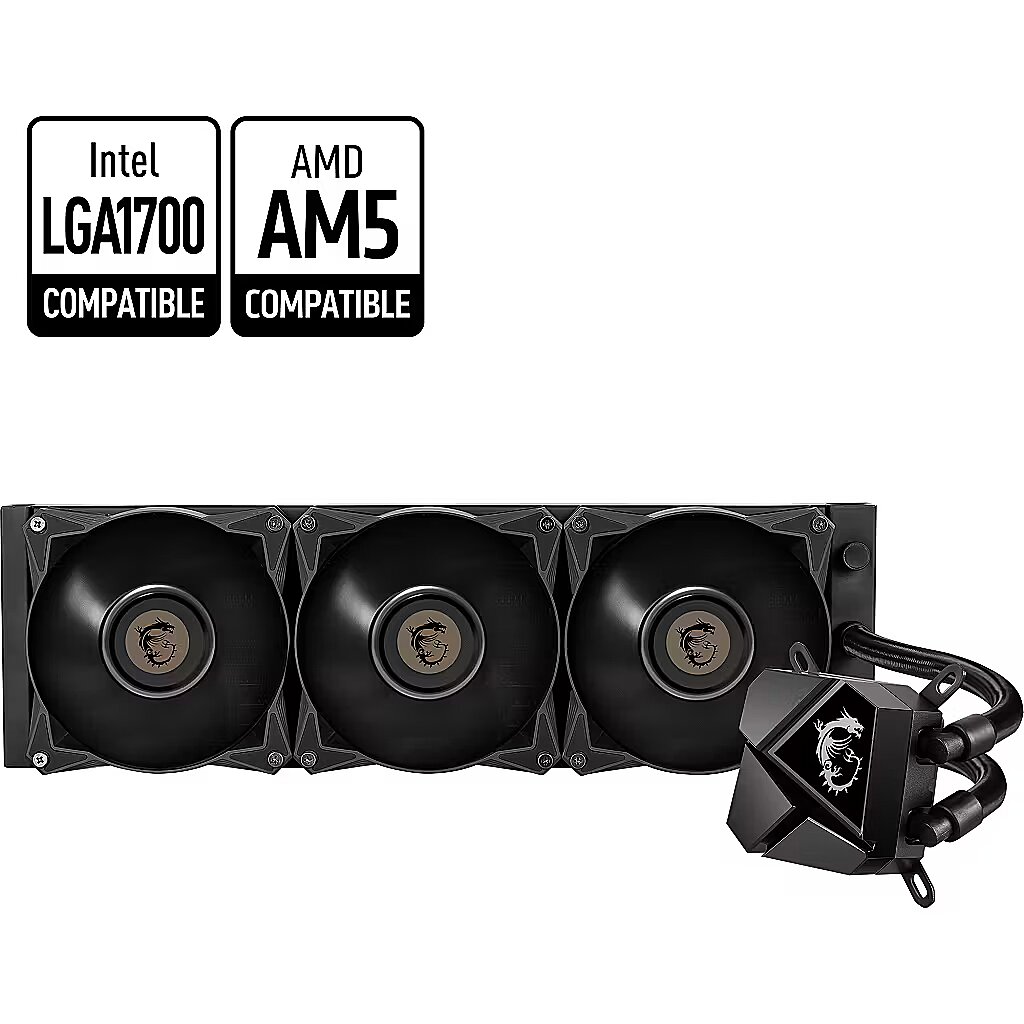

CPU socket - LGA1700
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - LGA2066
CPU socket - Socket AM2
CPU socket - Socket AM2+
CPU socket - Socket AM3
CPU socket - Socket AM3+
CPU socket - Socket AM4
CPU socket - Socket FM1
CPU socket - Socket FM2
CPU socket - Socket FM2+
CPU socket - Socket SP3
CPU socket - Socket sTRX4
CPU socket - Socket TR4
Description - UNOBTRUSIVE AND DISCREET The water block in the MAG CORELIQUID P-series liquid cooling systems is not a typical design you often find on the market. It is modest and unobtrusive, yet of very good quality. The block is divided into four areas with a unique diamond cut design, three of which are characterised by a piano black colour, while the fourth is decorated with our proud MSI logo emblem. LGA 1700 COMPATIBLE The MAG CORELIQUID P series water cooling systems are factory compatible with the new CPU socket standard, LGA 1700. PUMP INTEGRATED IN THE HEATSINK The pump is integrated into the heatsink to dampen sounds and reduce the noise generated. In addition, the placement of the pump inside the heatsink design has also increased the life of the unit by moving it away from the heat source. HIGH HEAT DISSIPATION EFFICIENCY The separation of the heat flow path inside the heat sink allows heat to be dissipated and dissipated quickly. The cooled liquid is then pumped back into the cooling system. PUMP MOTOR ELIMINATES RESONANCE Located in the pump core, the durable three-phase motor generates minimal vibration, ensuring long-lasting operation. ANTI-EVAPORATION TUBES The cooling system design uses three-layer connection tubes made of cross-linked polymer. In addition, the tubes are reinforced with an external braid. WIDE COMPATIBILITY Stylish yet flexible in installation, the water cooling systems of the MAG CORELIQUID P series are designed for safe installation and wide compatibility with many motherboards for Intel and AMD platforms. Compatible with Intel platform sockets LGA 1150/1151/1155/1156/1200/1700 LGA 1366/2011/2011-3/2066 AMD compatible sockets AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 SocketTR4/sTRX4/SP3
Design - Material - Aluminium
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 2337
dimension depth - 145 mm
dimension height - 180 mm
Dimensions - Heatsink dimensions: 396 x 120 x 27 mm Cooling block dimensions: 70.5 x 70.5 x 52 mm Fan dimensions: 120 x 120 x 25 mm
dimension weight - 2342 g
dimension width - 435 mm
ean - 4719072851484
Eans - 4719072851484
Fan - 12 cm
Fan speed (max) - 2000 rpm
Fan speed (min) - 500 rpm
GTIN - 4719072851484
guarantee - 36
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - REBELLIOUS AND DISCREETThe MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.LGA 1700 COMPATIBLEThe MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.RADIATOR PUMP DESIGNThe pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.HIGH THERMAL DISSIPATIONA split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.PUMP MOTOR RESONANCE ELIMINATIONA durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.EVAPORATION PROOF TUBINGConstructed with three layers of netted plastic tubing and a reinforced mesh exterior.EXTENSIVE COMPATIBILITYStylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
LongProductName - MSI MAG CORELIQUID P360 Liquid CPU Cooler '360mm Radiator, 3x 120mm PWM Fan, Noise Reducer connector, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
LongSummaryDescription - MSI MAG CORELIQUID P360 Liquid CPU Cooler '360mm Radiator, 3x 120mm PWM Fan, Noise Reducer connector, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'. Type: All-in-one liquid cooler, Maximum airflow: 78.73 cfm. Product colour: Black
name - MAG CORELIQUID P360 360 mm 3x FAN
Name - MSI MAG CORELIQUID P360
name - MSI MAG CoreLiquid P360 Komplett-Wasserkühlung - 360mm
Noise - 34.3 dB
Number of fans - 3
Other features - Fan specifications Pressure of the air discharged by the fan: 2.39 mmH2O Fan bearing: Double-row ball bearing Expected service life of fan: 70,000 hours Fan voltage rating: 12V DC Rated fan current: 0.15 A Fan power consumption: 1,8 W PWM mode: Yes
Other features - Noise level - 14.3 dB
Performance - Fan's mean time to failure (MTTF) - 70000 h
Performance - Fan bearing technology - Double ball bearing
Performance - Fan noise level (max) - 34.3 dB
Performance - Fan noise level (min) - 14.3 dB
Performance - Fan speed (max) - 2000 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Fan static pressure - 2.39 mmH2O
Performance - Maximum airflow - 78.73 cfm
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump's mean time to failure (MTTF) - 100000 h
Performance - Pump motor speed - 4200 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1366 (Socket B)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Type - All-in-one liquid cooler
Power - Fan current - 0.15 A
Power - Fan power consumption - 1.8 W
Power - Fan voltage - 12 V
Power - Pump current - 0.34 mA
Power - Pump power consumption - 4.08 W
Power - Pump voltage - 12 V
producer - MSI
Producer - MSI
producerCode - 306-7ZW2P31-813
ProducerCode - 306-7ZW2P31-813
productName - MSI MAG CORELIQUID P360 Liquid CPU Cooler '360mm Radiator, 3x 120mm PWM Fan, Noise Reducer connector, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
ProductName - MSI MAG CORELIQUID P360 Liquid CPU Cooler '360mm Radiator, 3x 120mm PWM Fan, Noise Reducer connector, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
productSize - Normal
Radiator - Aluminium
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MAG CORELIQUID P360 Liquid CPU Cooler '360mm Radiator, 3x 120mm PWM Fan, Noise Reducer connector, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready', All-in-one liquid cooler, 78.73 cfm, Black
sizeX - 435
sizeY - 184
sizeZ - 146
Title - MSI MAG CORELIQUID P360 Liquid CPU Cooler '360mm Radiator, 3x 120mm PWM Fan, Noise Reducer connector, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
Type of cooling - Active
URL - https://www.msi.com/Liquid-Cooling/MAG-CORELIQUID-P360/Overview
vendpn - MAG CORELIQUID P360
WarrantyInfo - 3 YEARS
warrantyLength - 36
warrantyType - G
weight - 2350
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Radiator depth - 2.7 cm
Weight & dimensions - Radiator height - 12 cm
Weight & dimensions - Radiator width - 39.6 cm
Weight & dimensions - Tube length - 40 cm
Weight & dimensions - Waterblock depth - 5.2 cm
Weight & dimensions - Waterblock height - 7.05 cm
Weight & dimensions - Waterblock width - 7.05 cm
