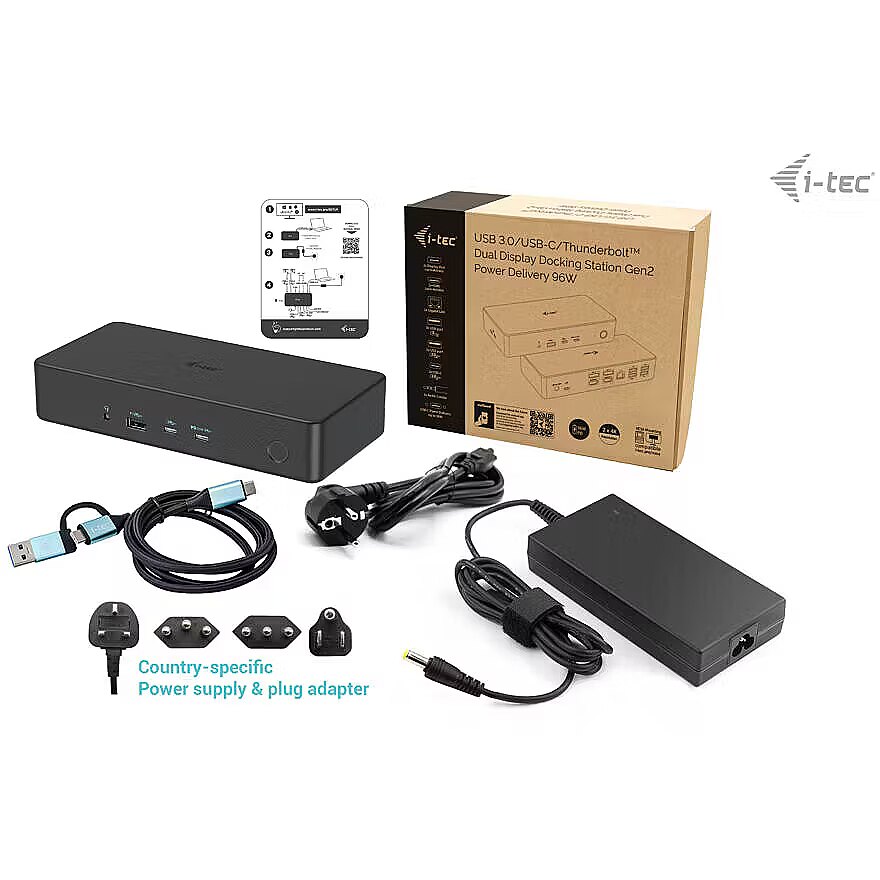

Accessories included - Station 150W power supply USB-C to USB-C/USB-A cable (100 cm) User manual
ARTIKEL1 - USB 3.0/USB-C/TB 3 PRO DUAL 4K
ARTIKEL2 - DISPLAY DOCKING STATION GEN2 PD
Brand - i-tec
BrandPartCode - CADUAL4KDOCKPD2
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Color - Black
Compatible with -
Description - A powerful office docking station supporting super-fast USB Gen 2 ports with fast charging. The docking station supports output to two external monitors in high resolution up to 4K. The docking station can be used with virtually all notebooks as it supports connection to all popular ports: USB 3.0, USB-C and Thunderbolt 3/4" while supporting all popular operating systems today. Plenty of USB ports (two USB-C support Gen 2 with speeds of up to 10 Gbps), a reliable and fast connection to the corporate network thanks to the integrated LAN port and the possibility of mounting behind a monitor make this docking station the ideal companion for real professionals. Of course, it supports charging a laptop or tablet with a power of up to 100 W. Professional, universal docking station, compatible with laptops and tablets equipped with a USB-C, USB-A and Thunderbolt connector. 2x DisplayPort and 2x HDMI supporting up to two 4K/60Hz displays (also applies to Apple M1/M2 platform) or a single 5K/60Hz display. 7 USB ports, including 2x USB-C Gen 2 (1x supporting 20W PD charging and one supporting BC 1.2 fast charging) and 5x USB-A 3.2 (2x Gen 2 and 3x Gen 1), making it easy to connect multiple USB devices and peripheral devices for super-fast data transfer. Provides up to 100W of power for compatible USB-C and Thunderbolt laptops and tablets. The host device must support USB-C Power Delivery. GLAN Ethernet supports network speeds of 10/100/1000 Mbps, ensuring a solid and fast Internet connection. Combined high-quality 3.5mm 32bit/192kHz audio input and output for easy connection to a headset or speakers. An available VESA mount helps keep your desk tidy and free from cables, while a K-lock slot provides additional security.
dimension depth - 60 mm
dimension height - 265 mm
Dimensions - 190 x 88 x 37 mm
dimension weight - 2200 g
dimension width - 200 mm
Docking connector - Thunderbolt 3
ean - 8595611706394
EANCode - 8595611706394
Eans - 8595611706394
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 8595611706394
guarantee - 24
guarantee_type - normal
HERSTELLER - I-TEC
HSTNUMMER - CADUAL4KDOCKPD2
I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 2 x DisplayPort
I/O ports - 2 x HDMI Type A
I/O ports - 2 x USB 3.1 Type A
I/O ports - 2 x USB 3.1 Type C
I/O ports - 3 x USB 3.0 Type A
LongDesc - A powerful office docking station supporting super-fast USB Gen 2 ports with fast charging. Dock supports output to up to two external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt” 3/4, while supporting all common current operating systems.Plenty of USB ports (two USB-C support Gen 2 speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.- Connect to 2 external monitors in resolutions up to 4K- Power delivery: up to 100 W- 2 DisplayPort and 2 HDMI ports available- 2x USB-C Gen 2 (10 Gbps), 2x USB-A 3.2 Gen 2 (10 Gbps) and 3x USB-A 3.2 Gen 1 (5 Gbps) allow you to easily connect your USB devices and peripherals.- USB ports support fast charging: USB-C provides PD up-to 20 W, two additional ports support BC 1.2 fast charging.- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds.- Combo jack for audio and microphone, very high quality 32bit/192 kHz sampling rate- Kensington lock provides anti-theft protection, especially in shared office environments or public areas- Docking station power switch allows for maximum power savings- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor- Supports Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux UbuntuNOTE: If the docking station is connected via USB 3.0 port, charging is not supported.
LongProductName - USB 3.0 / USB-C / Thunderbolt 3 Professional Dual 4K Display Docking Station Generation 2 + Power Delivery 100W
LongSummaryDescription - i-tec USB 3.0 / USB-C / Thunderbolt 3 Professional Dual 4K Display Docking Station Generation 2 + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: AC, Power supply: 150 W, Output voltage: 20 V. Other operating systems supported: Android, ChromeOS
Name - i-tec
name - i-tec USB-C/3.0/T3 Dual 4K DDS Gen.2 + PD 100W
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC, USB Type-A to USB Type-C
Packaging content - Manual - Yes
Packaging data - Package depth - 200 mm
Packaging data - Package height - 54 mm
Packaging data - Package width - 253 mm
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - No
Performance - Data transfer rate - 10 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 2
Performance - On/off switch - Yes
Performance - Product colour - Black
Performance - VESA mounting - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 100 W
Power - Output current - 7.5 A
Power - Output voltage - 20 V
Power - Power source type - AC
Power - Power supply - 150 W
Power - USB cable length - 1 m
producer - i-tec
Producer - i-tec
ProducerCode - CADUAL4KDOCKPD2
ProductName - USB 3.0 / USB-C / Thunderbolt 3 Professional Dual 4K Display Docking Station Generation 2 + Power Delivery 100W
ShortDescription - i-tec USB 3.0 / USB-C / Thunderbolt 2x 4K Professional Dual Docking Station Gen 2 2x DP 2x HDMI LAN Audio 2x USB-C (10Gbps) 5x USB-A (2x10Gbps + 3x 5Gbps)
ShortSummaryDescription - i-tec USB 3.0 / USB-C / Thunderbolt 3 Professional Dual 4K Display Docking Station Generation 2 + Power Delivery 100W, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Other operating systems supported - Android, ChromeOS
Software - Windows operating systems supported - Yes
Stck_Kart - 9
Stck_Pal - 54
Storno - Y
System Requirements - Devices with a free USB-A, USB-C, USB4 or Thunderbolt 3/4 port Power Delivery requirements: Devices with a free USB-C, USB4 or Thunderbolt 3 port with Power Delivery support. Operating system: Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported.
Title - i-tec USB 3.0 / USB-C / Thunderbolt 3 Professional Dual 4K Display Docking Station Generation 2 + Power Delivery 100W
URL - https://i-tec.pro/en/produkt/cadual4kdockpd2-2/
vendpn - CADUAL4KDOCKPD2
WarrantyInfo -
Weight - 539 g
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 37 mm
Weight & dimensions - Weight - 539 g
Weight & dimensions - Width - 190 mm
