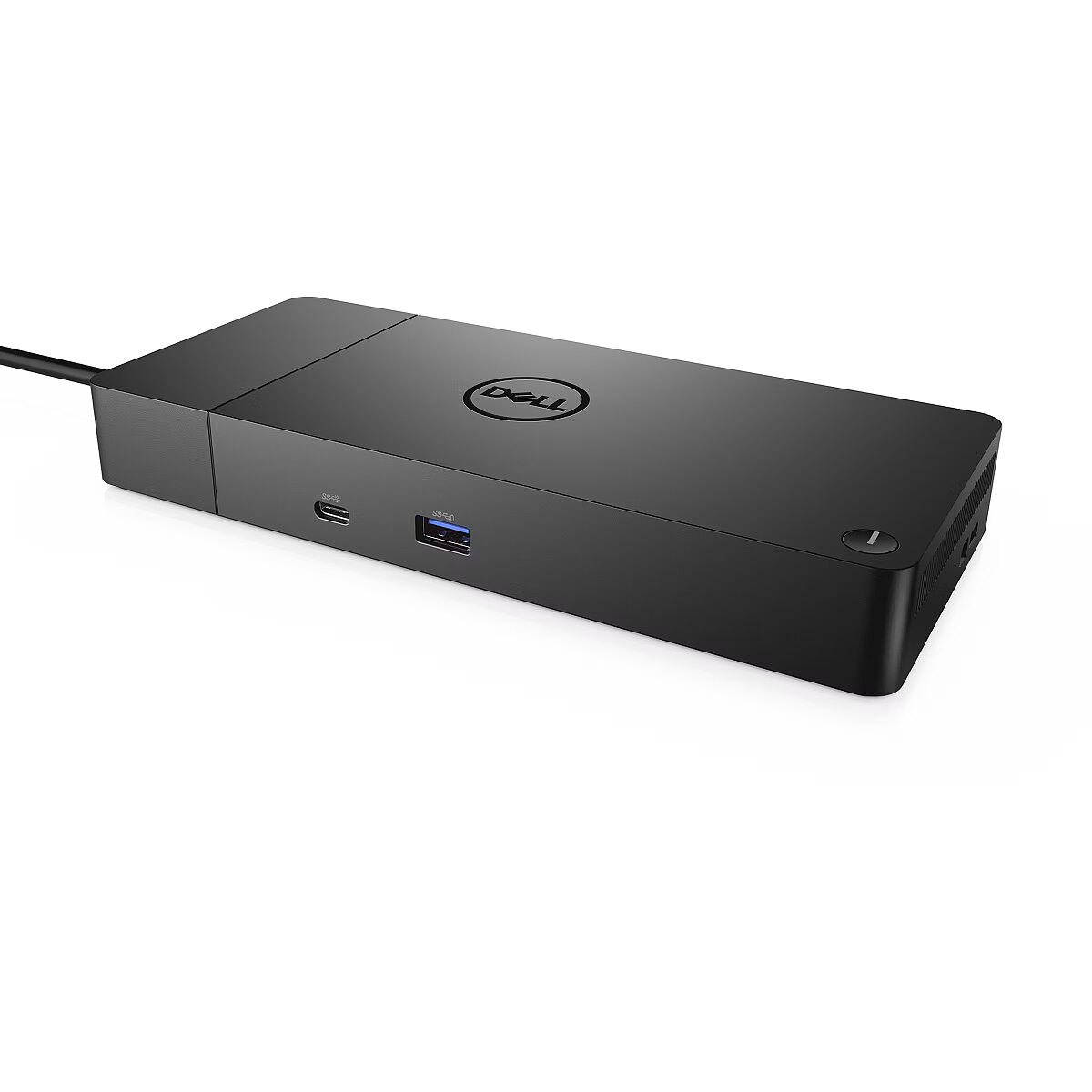

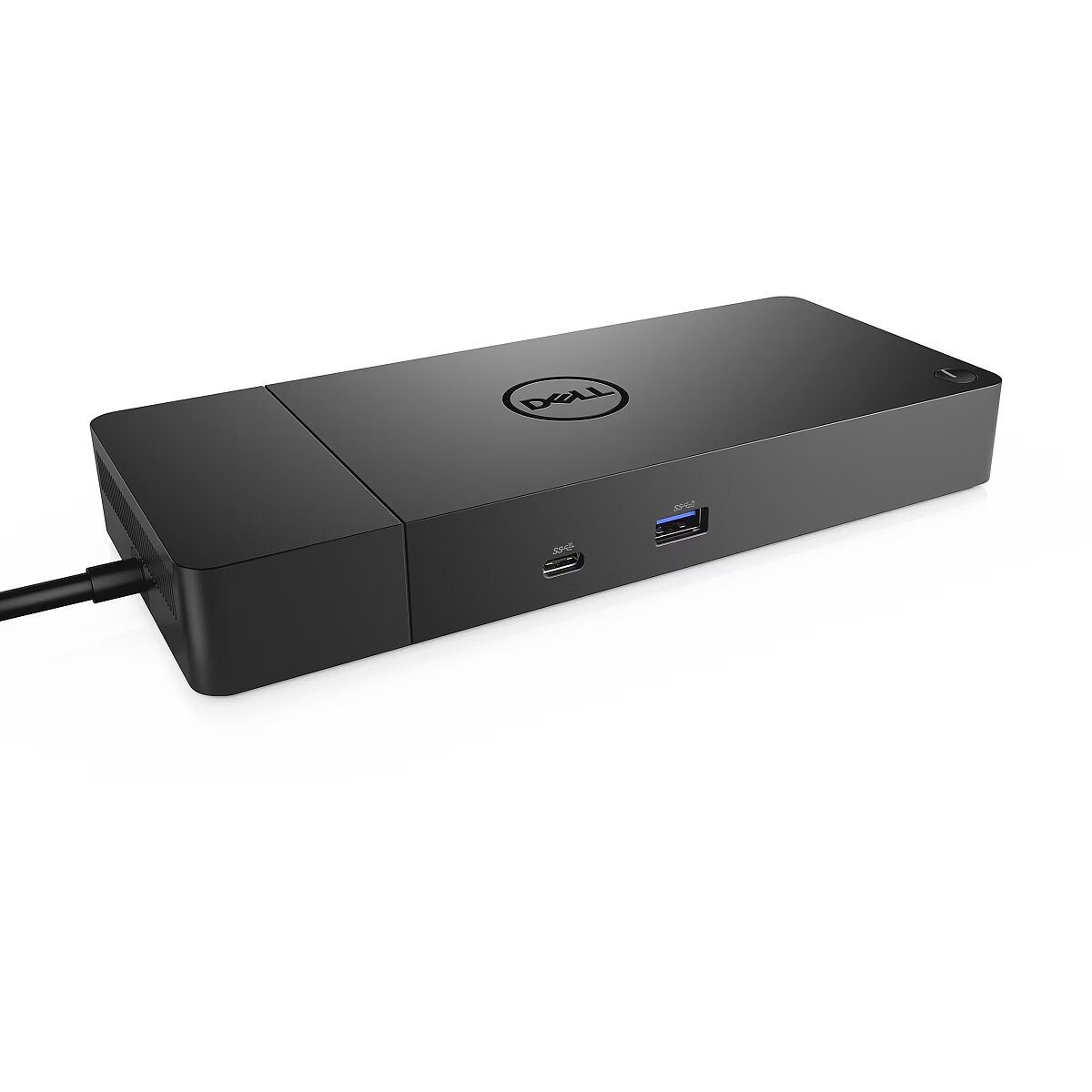

Dell WD19S Docking station, 180W

Brand - DELL
BrandPartCode - DELL-WD19S180W
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Category Code - NBK
CnCode CnCode - 84733020
Code - 210-AZBU
Color - Black
Colour - Black
Compatibility - -
Depth - 90 mm
Description - Dell Dock – WD19S 180W
dimensionalWeight - 1043
Dimensions - 20.5 cm x 9 cm x 2.9 cm
DisplayPort Input/Output connectors - 2
EAN - 5397184513989
Eans - 5397184513989
Full Description Line - Model name WD19S 180W|1xHDMI|2xDisplayPort|3xUSB 3.1|3xUSB-C|1xRJ45|Colour Black
GrossWeight - 1.600 kg
GTIN - 0884116398349
GTIN - 884116398349
GTIN - 5055190199428
GTIN - 5397184513989
GTIN - 5704174402169
GTIN - 5704174558521
GTIN - 5704174575382
HDMI Input/Output connectors - 1
Height - 29 mm
Interface -

2x display / video - DisplayPort - 20 pin DisplayPort

Display / video - HDMI - 19 pin HDMI Type A

USB-C

3x USB 3.1 Gen 1 - 9 pin USB Type A

2x USB-C 3.1 Gen 2

Link - https://www.dell.com/en-ie/work/shop/dell-docking-station-wd19s-180w/apd/210-azbu/pc-accessories
Logistics data - Harmonized System (HS) code - 84733020
LongDesc -
LongDesc - Boost your PC’s power on the world’s most powerful and first modular dock with a future-ready design. WD19S 180W is a simplified version of WD19 180W without 3.5mm ports.
LongProductName - USB 3.1 Gen2 Type-C, 3 x USB A 3.1, 2 x DisplayPort, HDMI, RJ-45, 180W
LongSummaryDescription - DELL WD19S-180W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels. Power source type: DC, AC input voltage: 120 - 230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...
MANUFDATASHEET - https://www.dell.com/en-uk/work/shop/dell-docking-station-wd19s-180w/apd/210-azbu/pc-accessories#techspecs_section
Model name - WD19S 180W
Name - Dell Stacja dokująca WD19S 180W
Name - Dell | WD19S | Docking station | Ethernet LAN (RJ-45) ports 1 | DisplayPorts quantity 2 | USB 3.0 (3.1 Gen 1) Type-C ports quantity 1 | USB 3.0 (3.1 Gen 1) ports quantity 3 | HDMI ports quantity 1 | Warranty month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
PackageContents - -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300 mm
Package features > Gross height (mm) - 60 mm
Package features > Gross width (mm) - 285 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 337 pc(s)
Package features > Paper/Pasteboard - 380 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.42 kg
Package features > Volume (m3) - 0.00513 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 290 mm
Packaging data - Package height - 62 mm
Packaging data - Package width - 300 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - No
Performance - LED indicators - Yes
Performance - Maximum digital resolution - 5120 x 2880 pixels
Performance - On/off switch - Yes
Performance - Product colour - Black
Performance - VESA mounting - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > USB 3.0 (3.1 Gen 1) ports quantity - 3
Ports & interfaces > USB 3.0 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces > USB 3.1 (3.1 Gen 2) Type-C ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 120 - 230 V
Power - Power cable length - 1 m
Power - Power source type - DC
Power - Power supply - 180 W
Power > Power - 180 W
ProdDesc - Dell Dock WD19S, 180W
Producer - Dell
producerCode - 210-AZBU
ProducerCode - 210-AZBU / WD19S180W
Producer product name - WD19S
productName - DELL WD19S-180W Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
ProductName - WD19S-180W
ProductPicture - http://www.tdbaltic.ee/images/ds4/210-ARJG1-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 30.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription -
ShortSummaryDescription - DELL WD19S-180W, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10,100,1000 Mbit/s, Black, 5120 x 2880 pixels, DC
sizeX - 285
sizeY - 305
sizeZ - 60
Software - Linux operating systems supported - Yes
Software - Windows operating systems supported - Windows 10
Software - Windows operating systems supported - Windows 10 Education
Software - Windows operating systems supported - Windows 10 Education x64
Software - Windows operating systems supported - Windows 10 Enterprise
Software - Windows operating systems supported - Windows 10 Enterprise x64
Software - Windows operating systems supported - Windows 10 Home
Software - Windows operating systems supported - Windows 10 Home x64
Software - Windows operating systems supported - Windows 10 IOT Core
Software - Windows operating systems supported - Windows 10 IoT Enterprise
Software - Windows operating systems supported - Windows 10 Pro
Software - Windows operating systems supported - Windows 10 Pro x64
Software - Windows operating systems supported - Windows 10 x64
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
SystemRequirements -

Red Hat Enterprise Linux

Windows 10

Ubuntu 18.04

Technical details > Gross weight - 1.65 kg
Technical details > Net weight - 1.23 kg
Technical details > Producer - Dell
Technical details > Type - Docking station
Technical details > Warranty - 3 year(s)
Technical details > Warranty - 36 month(s)
Technology -

Max Resolution Details: 3840 x 2160 - 60 Hz

Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

130W power delivery to Dell systems

90W power delivery to non-Dell systems

Wireless vPro

Title - DELL WD19S-180W Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
Type - Docking station 180 W
Unit Box Height - 0.29
Unit Box Length - 0.305
Unit Box Width - 0.06
Unit Brutto Volume - 0.005307 cubm
Unit Gross Weight - 1.6 kg
Unit Net Weight - 0.585 kg
URL - https://www.dell.com/en-uk/shop/
USB-C Input/Output connectors - 3
USB 3.1 Input/Output connectors - 3
Vendor Homepage - www.dell.com/en-uk/work/shop/dell-docking-station-wd19s-180w/apd/210-azbu/pc-accessories#techspecs_section
Warranty - 3 years
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years (upsell up to 5 years)
warrantyLength - 36
warrantyType - F
Weight - 0.585 kg
weight - 1590
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 29 mm
Weight & dimensions - Weight - 585 g
Weight & dimensions - Width - 205 mm
Width - 205 mm
