ARTIKEL1 - MDP 1.2 TO DP MST HUB
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - MSTMDP123DP
Breite - 0.15
Category - Video Splitters
EANCode - 0065030851879
Features - Cable length - 0.19 m
Features - Certification - CE, FCC, RoHS
Features - Housing material - Plastic
Features - Maximum resolution - 3840 x 2160 pixels
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Supported graphics resolutions - 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160
Features - Windows operating systems supported - Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Gewicht - 0.43
GRUPPE1 - Cables
GRUPPE2 - Monitor Cable
GTIN - 0065030851879
GTIN - 065030851879
GTIN - 6136005287895
HERSTELLER - STARTECH
Hoehe - 0.07
HSTNUMMER - MSTMDP123DP
Laenge - 0.25
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Master (outer) case height - 224 mm
Logistics data - Master (outer) case length - 496 mm
Logistics data - Master (outer) case width - 337 mm
Logistics data - Products per master (outer) case - 10 pc(s)

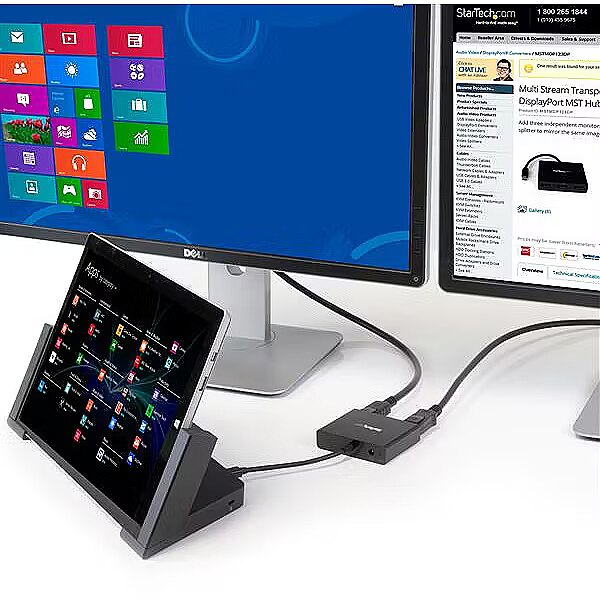

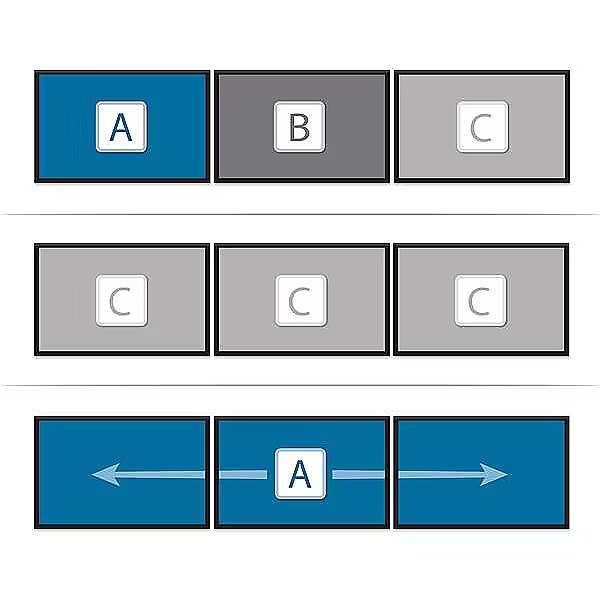

LongDesc - Use this adapter to connect three independent displays to a single mDP 1.2 portThis MST hub lets you connect three DisplayPort monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.Increase your productivity with multiple monitorsThe newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.Astonishing picture quality that won’t drain your system resourcesMST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.Works with any monitor, television or projectorWith this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

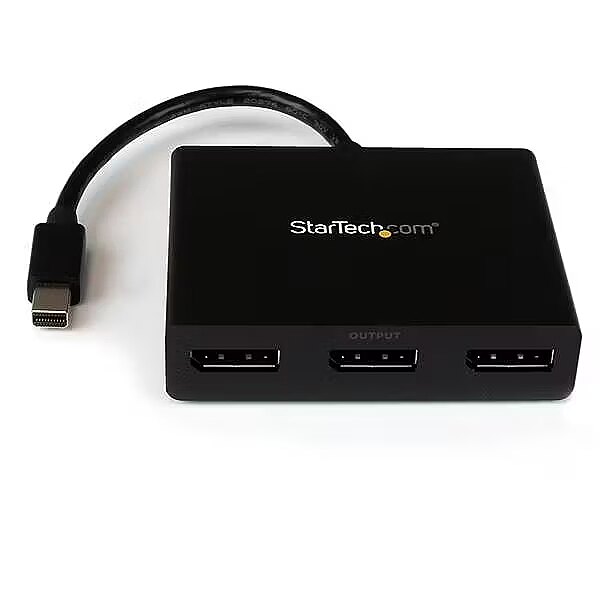

LongProductName - StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP (MSTMDP123DP)
LongSummaryDescription - StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP. Video port type: Mini DisplayPort, Video out: 3x DisplayPort. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Plastic. AC input voltage: 110 - 240 V, Input current: 0.5 A, Output voltage: 5 V. Width: 78 mm, Depth: 386 mm, Height: 20 mm. Package width: 228 mm, Package depth: 155 mm, Package height: 55 mm
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C

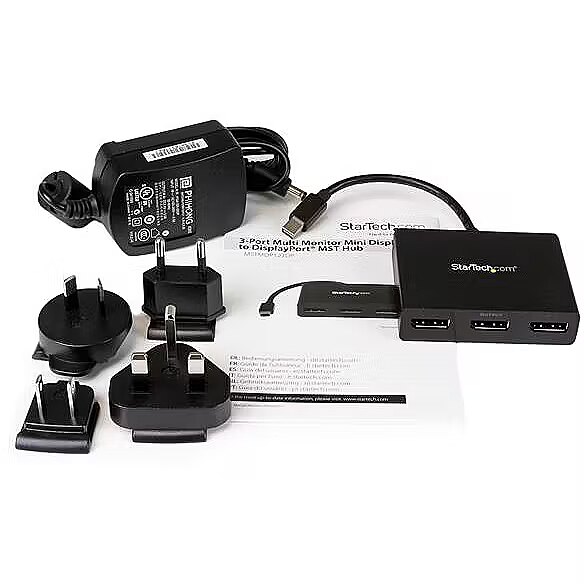

Packaging content - AC adapter included - Yes
Packaging content - Included power plug types - AU, EU, NA, UK
Packaging content - Manual - Yes
Packaging data - Package depth - 155 mm
Packaging data - Package height - 55 mm
Packaging data - Package weight - 400 g
Packaging data - Package width - 228 mm

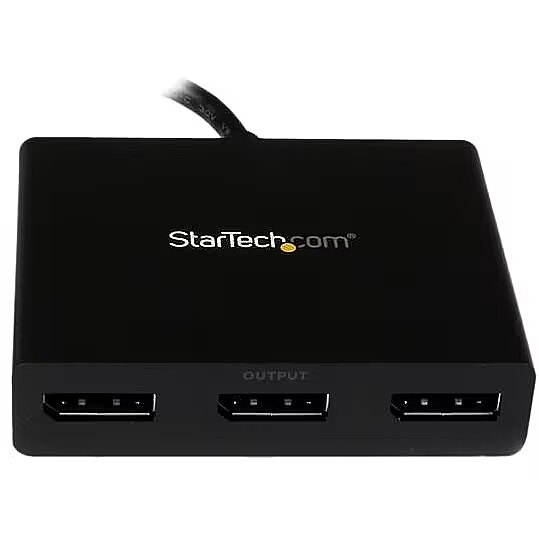

Ports & interfaces - Video out - 3x DisplayPort
Ports & interfaces - Video ports quantity - 3

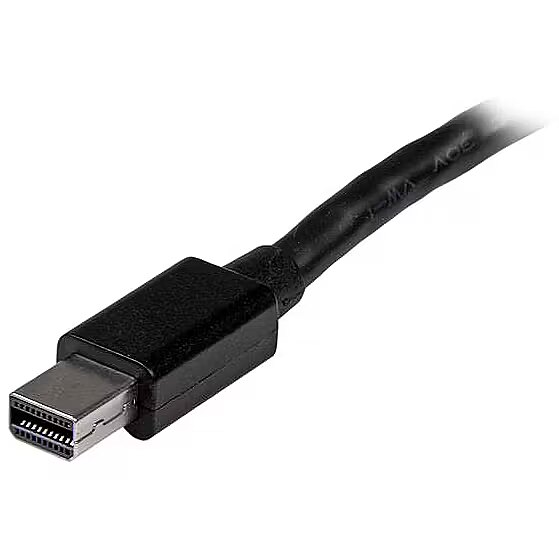

Ports & interfaces - Video port type - Mini DisplayPort
Power - AC input voltage - 110 - 240 V
Power - Input current - 0.5 A
Power - Output current - 3 A
Power - Output voltage - 5 V
Power - Power consumption (typical) - 15 W
ProductName - 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP
ShortSummaryDescription - StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP, Mini DisplayPort, 3x DisplayPort, 3840 x 2160 pixels, Black, Plastic, 0.19 m
Stck_Kart - 10
Stck_Pal - 10
Storno - Y
Technical details - Compliance certificates - RoHS
Title - StarTech.com 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub, Dual 4K 30Hz & 1x 1080p - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x DP
URL - https://www.startech.com/product/MSTMDP123DP
WarrantyInfo - 3 Years
Weight & dimensions - Depth - 386 mm
Weight & dimensions - Height - 20 mm
Weight & dimensions - Weight - 87 g
Weight & dimensions - Width - 78 mm
